– 95 – B E A M S EC TI O N 2006-009 No. Part No. Part Name Qty . Detail Y amaha Hitachi Rear Front 301 KYX-M2202-00 FRAME_ASSY 1 1 302 KYB-M2217-00 216E1454 PIN_LOCA TE 2 2 303 KYB-M220K-00 1010DC4R GUIDE_LINEAR 2 2 304 …
– 94 –
E1
2006-009

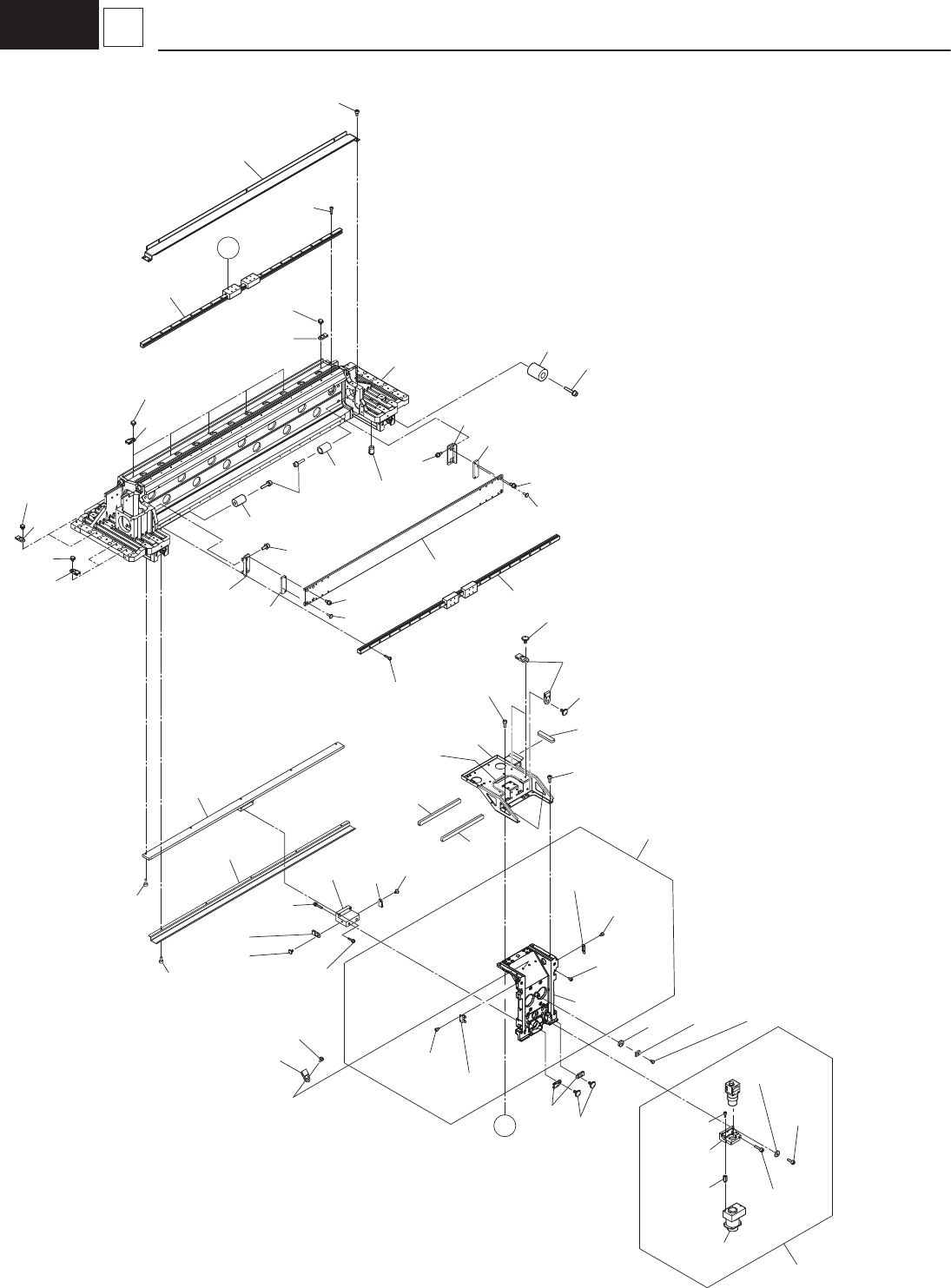

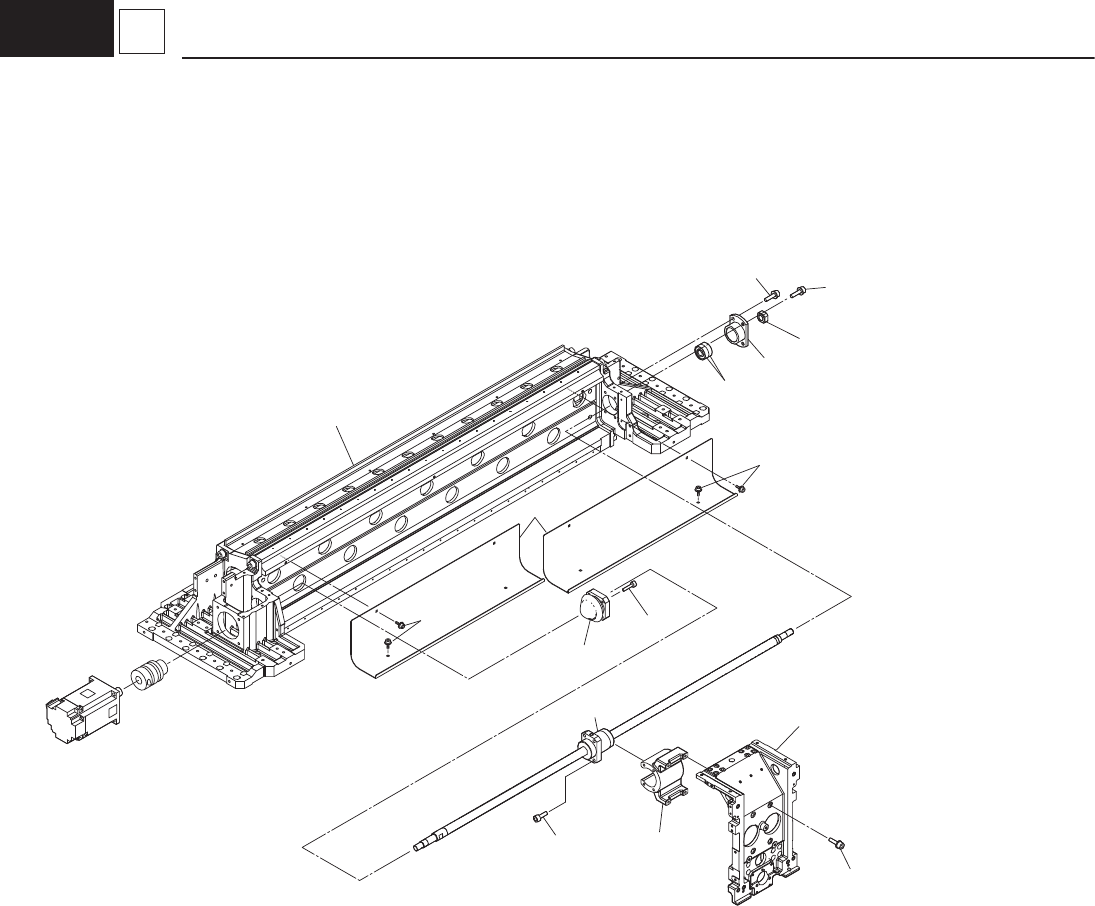

4 X Beam Unit
321
372
351
352
362
304-03
304-04
324
304-02
304-02
320
373
400
400
401
360
355
359
369
304-01
325
320-01
320-02
320-03
312
304
320-04
320-05
320-07
320-06
304-03
368
368
368
368
326
326
326
368
326
368
366
368
326
(rear side)
(front side)
362
350
351
319
311
303
313
370
351
351
360
355
364
355
322
323
314
314
315
302
323
303
318
350
361
301
368
326
370
357
316
368
368
326
326
368
326
357
C
C
– 95 –
BEAM SECTION
2006-009
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi Rear Front
301 KYX-M2202-00 FRAME_ASSY 1 1
302 KYB-M2217-00 216E1454 PIN_LOCATE 2 2
303 KYB-M220K-00 1010DC4R GUIDE_LINEAR 2 2
304 KYX-M220D-00 ASSY_HEAD_PLATE 1 1
304-01 KYX-M2203-00 HEAD_PLATE 1 1
304-02 KYB-M220T-00 1010DC4X BRACKET 2 2
304-03 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 4 4 M3L8
304-04 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2 2 M3L6
311 KYB-M220W-00 1010DC5J ENCODER_X 1 1
312 KYB-M220V-00 1010DC5F X_SCALE_BLOCK 1 1
313 KYX-M220L-00 COVER 1 1
314 KYX-M220Y-00 SPACER 2 2
315 KYX-M220X-00 BRACKET_L 1 1
316 KYX-M2210-00 BRACKET_R 1 1
318 KYX-M220M-00 1010DC8U COVER 1 1
319 KYX-M220N-00 COVER 1 1
320 KYB-M7306-00 10103C7X ASSY_PCB-CAMERA-1 1 1
320-01 KYB-M731M-00 10106DA2 PCB CAMERA 1 1
320-02 KYB-M731C-00 221E0456 BOLT 3 3
320-03 KYB-M730N-00 1010DC2Z CMR_BLOCK 1 1
320-04 91312-03012 221AA008 BOLT,HEX.SOCKET HEAD 3 3
320-05 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 1 1
320-06 91312-04014 221AA019 BOLT,HEX.SOCKET HEAD 2 2
320-07 92902-04200 221HA104 WASHER,PLAIN 2 2
321 KYB-M2204-00 1010DC5T HEAD_U_BOX-1 1 1
322 KYB-M2215-00 216C1049 ROD 1 1
323 KYB-M220R-00 1010DC38 X_STOPPER_GUM 2 2
324 KYB-M220U-00 1010DC56 SPACER 1
325 KYB-M65AB-00 226J0373 MOUNTING_BASE 1 1
326 KYB-M65AW-00 23N30632 WIRING 30 30
350 91312-03014 221AA009 BOLT,HEX.SOCKET HEAD 38 38 M3L14
351 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 21 21 M4L10
352 92902-04200 221HA104 WASHER,PLAIN 8 8 FW4
355 92902-05200 221HA105 WASHER,PLAIN 5 5 FW5
357 90990-66J008 221DA203 SCREW,TRUSS HEAD 2 2 TRS M3L6
359 91312-03012 221AA008 BOLT,HEX.SOCKET HEAD 2 2 M3L12
360 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 3 3 M5L25
361 90990-66J012 221DA207 SCREW,TRUSS HEAD 7 7 TRS M4L6
362 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 9 9 M4L8
364 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 2 2 M5L20
365 90990-11J016 221DA053 SCREW,PAN HEAD WW 4 4 PAN M4L6+SW+FW
366 90990-11J019 221DA063 SCREW,PAN HEAD WW 1 PAN M4L12+SW+FW
367 90990-66J015 221DA212 SCREW,TRUSS HEAD 10 10 TRS M5L6
368 90990-11J017 221DA062 SCREW,PAN HEAD WW 16 17 PAN M4L8+SW+FW
369 92902-03200 221HA103 WASHER,PLAIN 2 2 FW3
370 90990-66J014 221DA209 SCREW,TRUSS HEAD 4 4 TRS M4L10
372 KYX-M2211-00 PROTECTOR,EDGE 2 2
373 KYX-M2212-00 PROTECTOR,EDGE 1 1
400 KYX-M2213-00 PROTECTOR,EDGE 2 2
401 KYX-M2214-00 PROTECTOR,EDGE 1 1
