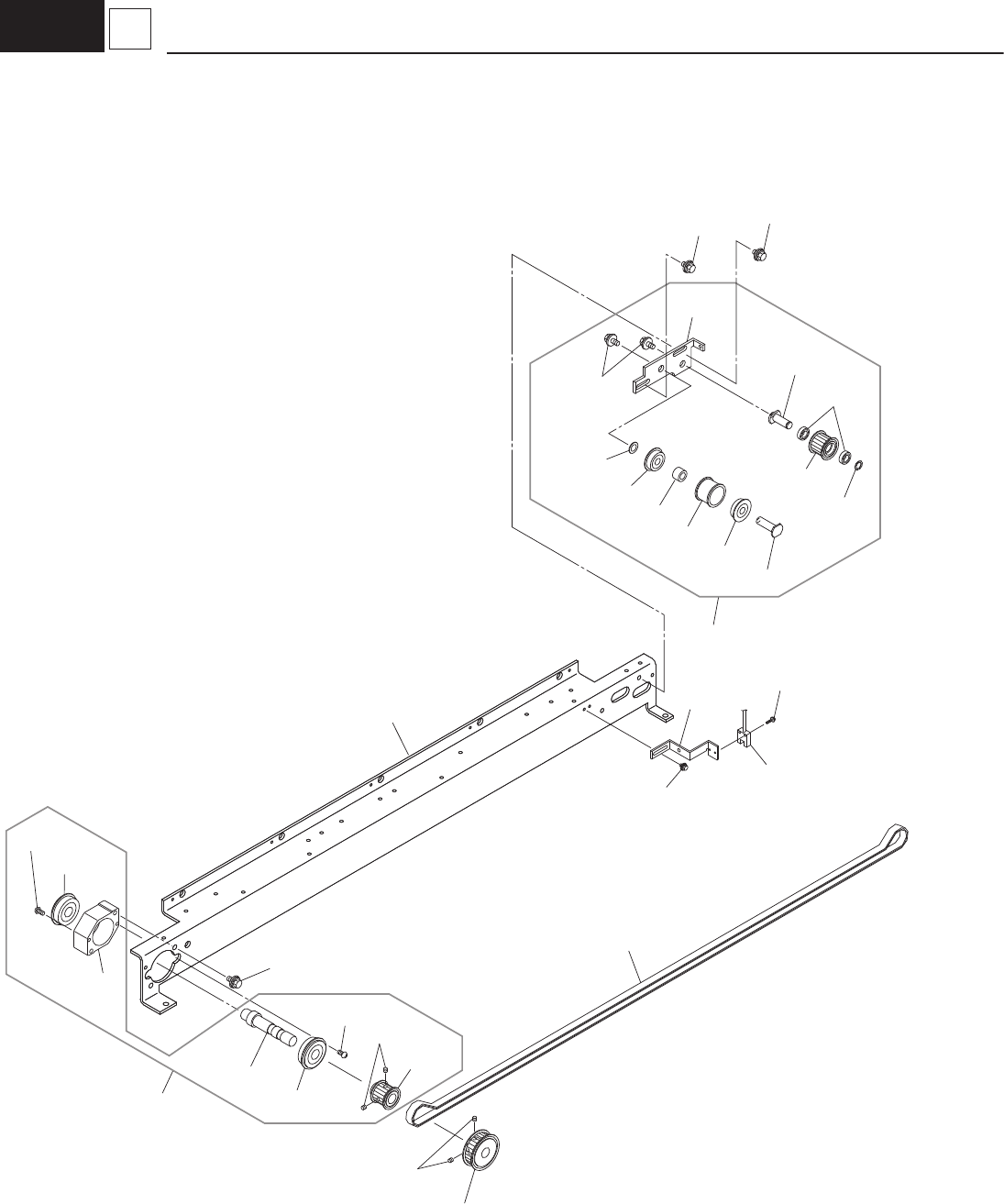

– 104 – E2 2006-009 3 Pully , Belt 204-04 204-01 204-1 1 204-12 204-09 204-02 204-03 204-10 204-07 204-08 204-06 204-07 204 204-05 202-06 202-03 202-02 202-03 216 214 215 202-05 202-05 201 202 213 206 214 215 202-01 207 …
– 103 –
CUTTER SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYB-M3T0G-00 1010H235 BASE 1
102 KYB-M3T0U-00 1010H225 GUIDE_LINEAR 1
103 KYB-M3T0L-00 0920H14Y GUIDE_BLOCK 1
104 KYB-M3T1M-00 0920H14F O_RING 2
105 KYB-M3T3X-00 226B0032 GREASE_NIPPLE 2
107 KYB-M3T0Y-00 210A3062 BASE 1
109 KYB-M3T2A-00 211AD295 COVER 1
110 KYB-M3T0S-00 1010700H ASSY_MOTOR 1
110-01 KYB-M3T0W-00 1010H231 MOTOR_AC-SERVO 1
110-02 KYB-M3T39-00 223Q0551 PULLEY,TIMING 1
110-03 KYB-M3T2J-00 211FE262 BRACKET 1
110-04 90990-02J023 221CA027 SCREW,SET 2 SET M4L4
110-05 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 4 M5L16
110-06 92902-05100 221HA005 WASHER,SPRING 4 SW5
110-07 92902-05200 221HA105 WASHER,PLAIN 8 FW5
110-08 95302-04600 221FA007 NUT,HEXAGON 4 M5
111 KYB-M3T37-00 223L0385 BELT_TIMING 1
112 KYB-M3T2L-00 211G5939 BLOCK 1
113 KYB-M3T11-00 211AC892 COVER 1
114 KYB-M3T10-00 211AC891 COVER 1
115 KYB-M3T2H-00 211FD727 BRACKET 1
117 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 26 M4L8
118 91312-03004 221AA004 BOLT,HEX.SOCKET HEAD 8 M3L4
119 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 8 M5L10
120 92012-03006 221EA131 BOLT,BUTTON HEAD 2 BUTTAN M3L6
121 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2 M3L6
123 90990-66J012 221DA207 SCREW,TRUSS HEAD 4 TRS M4L6
– 105 –
CUTTER SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201 KYB-M3T0H-00 210B4423 FRAME 1
202 KYB-M3T0T-00 1010700Z ASSY_GEARBOX 1
202-01 KYB-M3T2S-00 213A1604 SHAFT 1
202-02 KYB-M3T2M-00 211G5997 BLOCK 1
202-03 KYB-M3T3T-00 222D0086 BEARING_RADIAL 2
202-04 KYB-M3T3B-00 223Q0751 PULLEY_TIMING 1
202-05 90990-66J013 221DA208 SCREW,TRUSS HEAD 4 TRS M4L8
202-06 90990-02J023 221CA027 SCREW,SET 2 SET M4L4
203 KYB-M3T3C-00 223Q0766 PULLEY_TIMING 1
204 KYB-M3T0P-00 10107007 ASSY_PULLEY 1
204-01 KYB-M3T2F-00 211DE427 PLATE 1
204-02 KYB-M3T2R-00 213A1602 SHAFT 1
204-03 KYB-M3T3A-00 223Q0750 PULLEY_TIMING 1
204-04 90933-02J148 222D0429 BEARING,RADIAL 2
204-05 KYB-M3T2P-00 213A1573 SHAFT 1
204-06 KYB-M3T2V-00 216A1598 COLLAR 1
204-07 90933-03J608 222D0343 BEARING_RADIAL 2
204-08 KYB-M3T2U-00 216A1596 COLLAR 1
204-09 KYB-M3T2W-00 216A1599 COLLAR 1
204-10 KYB-M3T3P-00 221K0007 RING 1
204-11 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 2 M5L12
204-12 92902-05200 221HA105 WASHER,PLAIN 2 FW5
205 KYB-M3T38-00 223L0386 BELT_TIMING 1
206 KYB-M3T0R-00 10107008 ASSY-CUTTER-ORG 1
207 KYB-M3T26-00 1010H22W BRACKET 1
208 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 3 M5L10
209 97002-05010 221BA012 BOLT,HEXAGON 1 M5L10_HEX
210 90990-02J023 221CA027 SCREW,SET 2 SET M4L4
211 92902-05100 221HA005 WASHER,SPRING 2 SW5
212 92902-05200 221HA105 WASHER,PLAIN 2 FW5
213 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2 M3L6
214 92902-03100 221HA003 WASHER,SPRING 4 SW3
215 92902-03200 221HA103 WASHER,PLAIN 4 FW3
216 98502-03010 221DA012 SCREW,PAN HEAD 1 PAN M3L10
