P-0329-009_SIGMA-G5SII - 第126页

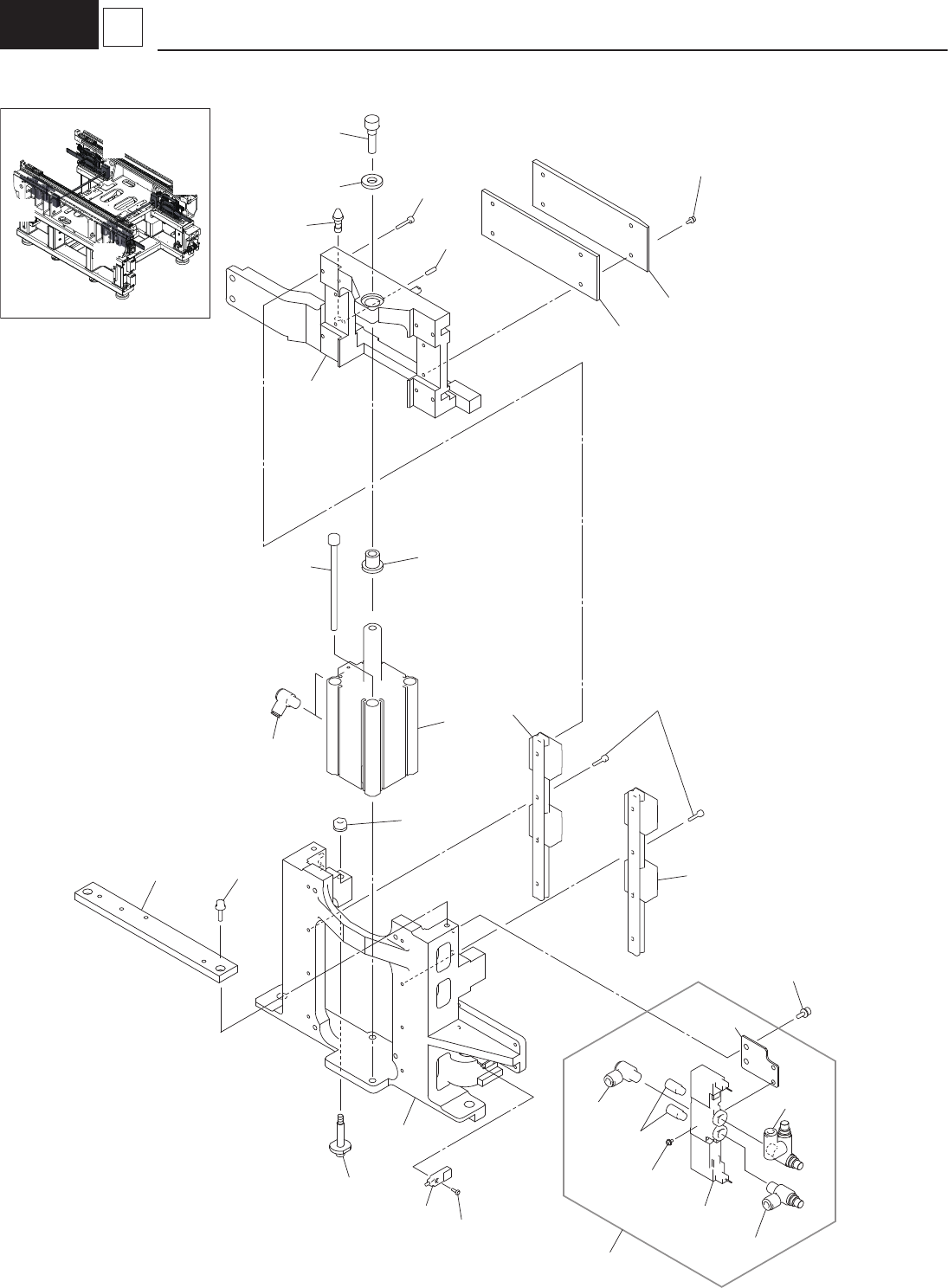

– 120 – E4 2006-009 3 Frame L 206 223 221 222 214 225 218 21 9 202-07 202-04 202-08 214 220 215 210 203 202-06 204 202-03 202-01 202-02 202 202-05 204 216 217 209 207 2 11 208 205 201 212 213 224 B A D C
– 119 –
POSITIONING UNIT
2006-009
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi Front Rear
101 KYB-M3J0M-00 0929E02A FIBER_BKT_L 2 2
102 KYB-M3J0N-00 0929E02B FIBER_BKT_R 1 1
103 KYB-M3J1D-00 0929E026 HOLDER_BKT_R 3 3
104 KYB-M3J1E-00 0929E027 HOLDER_BKT_L 3 3
105 KYB-M3J1F-00 0929E028 HOLDER_R 3 3
106 KYB-M3J1G-00 0929E029 HOLDER_L 3 3
107 90990-02J022 221CA002 SCREW,SET 6 6
108 KYB-M3J1N-00 1015A112 AMP-FIBER 3 3
110 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 24 24
111 92902-03100 221HA003 WASHER,SPRING 24 24
112 92902-03200 221HA103 WASHER,PLAIN 24 24
– 121 –
POSITIONING UNIT
2006-009
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi Front Rear
201 KYB-M3J0K-00 0929403D ASSY-POS-1L-SENSOR 1 B0610 A
201 KYB-M3J0H-00 0929403B ASSY-POS-2L-SENSOR 1 B0910 B
202 KYB-M3J0X-00 10101J1L ASSY_VALVE_F 1 A
202 KYB-M3J10-00 10101J1N ASSY_VALVE_B 1 B
202-01 KYB-M3J0B-00 09141D07 ASSY-VALVE 1 Y0632, Y0633
202-01 KYB-M3J0A-00 09141D06 ASSY-VALVE 1 Y0932, Y0933
202-02 KYB-M3J0F-00 0921A05D VALVE 1 1
202-03 $AN10-01 1010BJ1Z AIR_LINE_EQPT 2 2
202-04 KYB-M3J1K-00 1005AB12 PIPE_FITTINGS 1 1
202-05 KYB-M3J0E-00 0921A05C VALVE 1 1
202-06 KYB-M3J1C-00 0929E012 BRACKET 1 1
202-07 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 2 2 M4L8
202-08 92902-04200 221HA104 WASHER,PLAIN 2 2 SW4
203 KYB-M3J08-00 1010BJ1Q BASE_L 1 1
204 KYB-M3J1B-00 222L0694 GUIDE_LINEAR 1 1
205 KYB-M3J1X-00 224C0612 CYLINDER 1 1
206 KYB-M3J1J-00 1005AB11 PIPE_FITTINGS 2 2
207 KYB-M3J00-00 0929E01B BASE 1 1
208 KYB-M3J1R-00 216B1382 HOLDER 1 1
209 KYB-M3J1S-00 216F0999 PIN_GUIDE 1 1
210 KYB-M3J1P-00 213A1568 SHAFT 1 1
211 KYB-M3J17-00 211DD872 PLATE 1 1
212 KYB-M3J16-00 211DD870 PLATE 1 1
213 KYB-M3J13-00 1010BJ0V BLOCK_L 1 1
214 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 16 16 M4L16
215 91312-08120 221AA151 BOLT,HEX.SOCKET HEAD 2 2 M8L12
216 90112-10J035 221AA069 BOLT,HEX.SOCKET HEAD 1 1 M10L35
217 92902-10200 221HA108 WASHER,PLAIN 1 1 FW10
218 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 2 2 M5L12
219 92902-05200 221HA105 WASHER,PLAIN 2 2 FW5
220 90990-02J026 221CA007 SCREW,SET 1 1 SET M5L6
221 95302-06600 221FA011 NUT,HEXAGON 1 1 M6
222 92902-06200 221HA106 WASHER,PLAIN 1 1 FW6
223 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4 4 M4L12
224 91312-06012 221AA042 BOLT,HEX.SOCKET HEAD 2 2 M6L12
225 98502-03008 221DA011 SCREW,PAN HEAD 1 1 PAN M3L8
