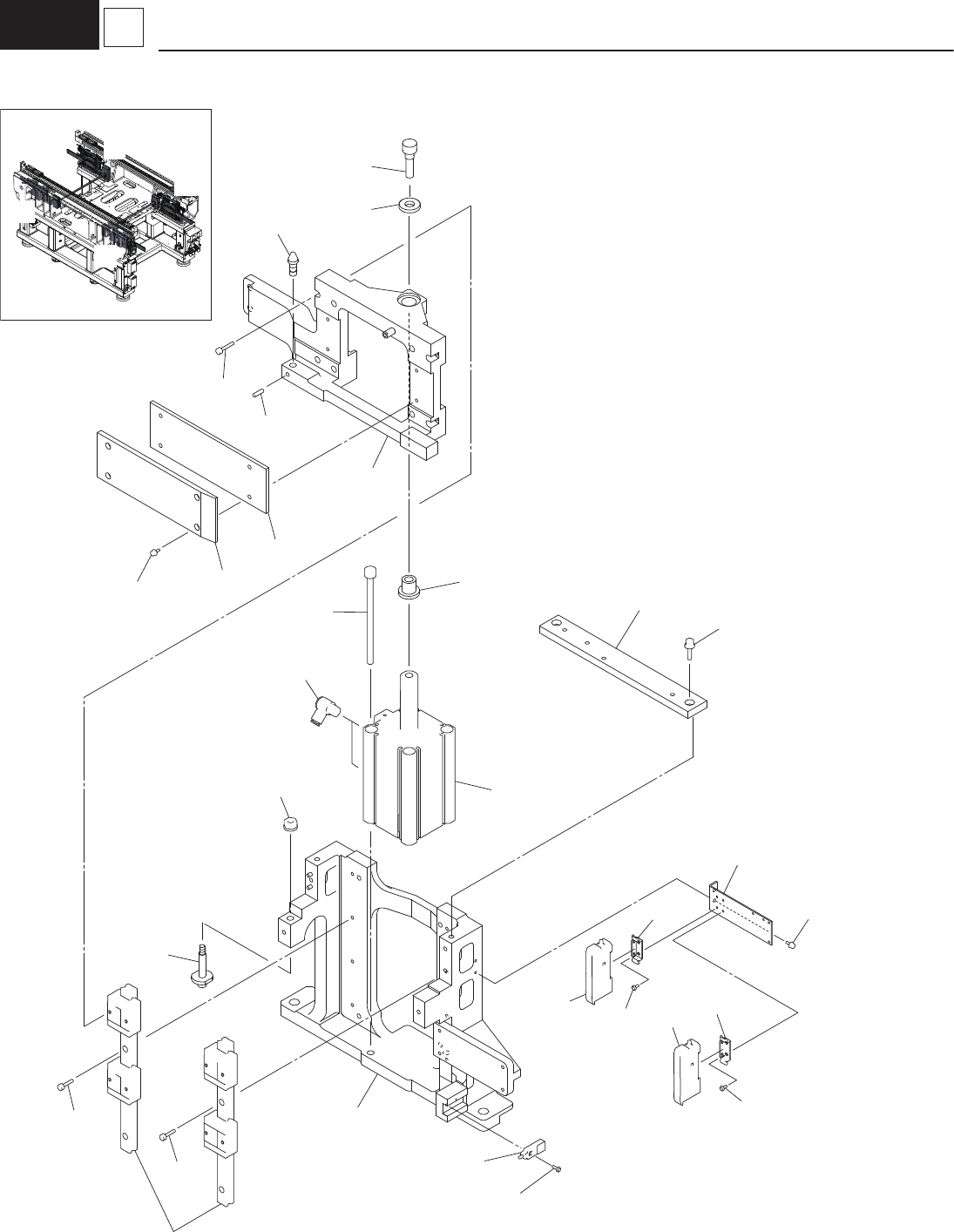

– 122 – E4 2006-009 4 Frame R 317 321 318 320 317 317 310 309 305 31 1 306 319 308 303 307 313 312 0 324 327 323 322 325 326 314 304 315 302 315 325 328 316 3 1 B A D C
– 121 –
POSITIONING UNIT
2006-009
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi Front Rear
201 KYB-M3J0K-00 0929403D ASSY-POS-1L-SENSOR 1 B0610 A
201 KYB-M3J0H-00 0929403B ASSY-POS-2L-SENSOR 1 B0910 B
202 KYB-M3J0X-00 10101J1L ASSY_VALVE_F 1 A
202 KYB-M3J10-00 10101J1N ASSY_VALVE_B 1 B
202-01 KYB-M3J0B-00 09141D07 ASSY-VALVE 1 Y0632, Y0633
202-01 KYB-M3J0A-00 09141D06 ASSY-VALVE 1 Y0932, Y0933
202-02 KYB-M3J0F-00 0921A05D VALVE 1 1
202-03 $AN10-01 1010BJ1Z AIR_LINE_EQPT 2 2
202-04 KYB-M3J1K-00 1005AB12 PIPE_FITTINGS 1 1
202-05 KYB-M3J0E-00 0921A05C VALVE 1 1
202-06 KYB-M3J1C-00 0929E012 BRACKET 1 1
202-07 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 2 2 M4L8
202-08 92902-04200 221HA104 WASHER,PLAIN 2 2 SW4
203 KYB-M3J08-00 1010BJ1Q BASE_L 1 1
204 KYB-M3J1B-00 222L0694 GUIDE_LINEAR 1 1
205 KYB-M3J1X-00 224C0612 CYLINDER 1 1
206 KYB-M3J1J-00 1005AB11 PIPE_FITTINGS 2 2
207 KYB-M3J00-00 0929E01B BASE 1 1
208 KYB-M3J1R-00 216B1382 HOLDER 1 1
209 KYB-M3J1S-00 216F0999 PIN_GUIDE 1 1
210 KYB-M3J1P-00 213A1568 SHAFT 1 1
211 KYB-M3J17-00 211DD872 PLATE 1 1
212 KYB-M3J16-00 211DD870 PLATE 1 1
213 KYB-M3J13-00 1010BJ0V BLOCK_L 1 1
214 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 16 16 M4L16
215 91312-08120 221AA151 BOLT,HEX.SOCKET HEAD 2 2 M8L12
216 90112-10J035 221AA069 BOLT,HEX.SOCKET HEAD 1 1 M10L35
217 92902-10200 221HA108 WASHER,PLAIN 1 1 FW10
218 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 2 2 M5L12
219 92902-05200 221HA105 WASHER,PLAIN 2 2 FW5
220 90990-02J026 221CA007 SCREW,SET 1 1 SET M5L6
221 95302-06600 221FA011 NUT,HEXAGON 1 1 M6
222 92902-06200 221HA106 WASHER,PLAIN 1 1 FW6
223 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4 4 M4L12
224 91312-06012 221AA042 BOLT,HEX.SOCKET HEAD 2 2 M6L12
225 98502-03008 221DA011 SCREW,PAN HEAD 1 1 PAN M3L8
– 123 –
POSITIONING UNIT
2006-009
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi Front Rear
301 KYB-M3J0L-00 0929403E ASSY-POS-1R-SENSOR 1 B0611 C
301 KYB-M3J0J-00 0929403C ASSY-POS-2R-SENSOR 1 B0911 D
302 KYB-M3J0D-00 09141D09 ASSY-SENSOR 1 B0515 C
302 KYB-M3J0C-00 09141D08 ASSY-SENSOR 1 B0514 D
303 KYB-M3J0Y-00 10101J1M ASSY-UPPER-F-SENSOR 1 B0614 C
303 KYB-M3J11-00 10101J1P ASSY-UPPER-B-SENSOR 1 B0914 D
304 KYB-M3J0V-00 10101J1J ASSY-FHOOK-SENSOR 1 B0521 C
304 KYB-M3J0W-00 10101J1K ASSY-BHOOK-SENSOR 1 B0520 D
305 KYB-M3J09-00 1010BJ1R BASE_R 1 1
306 KYB-M3J1B-00 222L0694 GUIDE_LINEAR 1 1
307 KYB-M3J1J-00 1005AB11 PIPE_FITTINGS 2 2
308 KYB-M3J01-00 0929E01C BASE 1 1
309 KYB-M3J1R-00 216B1382 HOLDER 1 1
310 KYB-M3J1S-00 216F0999 PIN_GUIDE 1 1
311 KYB-M3J1P-00 213A1568 SHAFT 1 1
312 KYB-M3J17-00 211DD872 PLATE 1 1
313 KYB-M3J16-00 211DD870 PLATE 1 1
314 KYB-M3J1L-10 SOL_BRACKET 1 1 MT10045-2020/1/17
315 KYB-M3J2H-00 23G00207 SENSOR_PELEC 2 2
316 KYB-M3J12-00 1010BJ0R BLOCK_R 1 1
317 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 16 16 M4L16
318 91312-08120 221AA151 BOLT,HEX.SOCKET HEAD 2 2 M8L12
319 90112-10J035 221AA069 BOLT,HEX.SOCKET HEAD 1 1 M10L35
320 92902-10200 221HA108 WASHER,PLAIN 1 1 FW10
321 90990-02J026 221CA007 SCREW,SET 1 1 SET M5L6
322 95302-06600 221FA011 NUT,HEXAGON 1 1 M6
323 92902-06200 221HA106 WASHER,PLAIN 1 1 FW6
324 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4 4 M4L12
325 98502-03006 221DA010 SCREW,PAN HEAD 4 4 PAN M3L6
326 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 2 2 M3L8
327 98502-03008 221DA011 SCREW,PAN HEAD 1 1 PAN M3L8
328 91312-06012 221AA042 BOLT,HEX.SOCKET HEAD 2 2 M6L12
