– 129 –

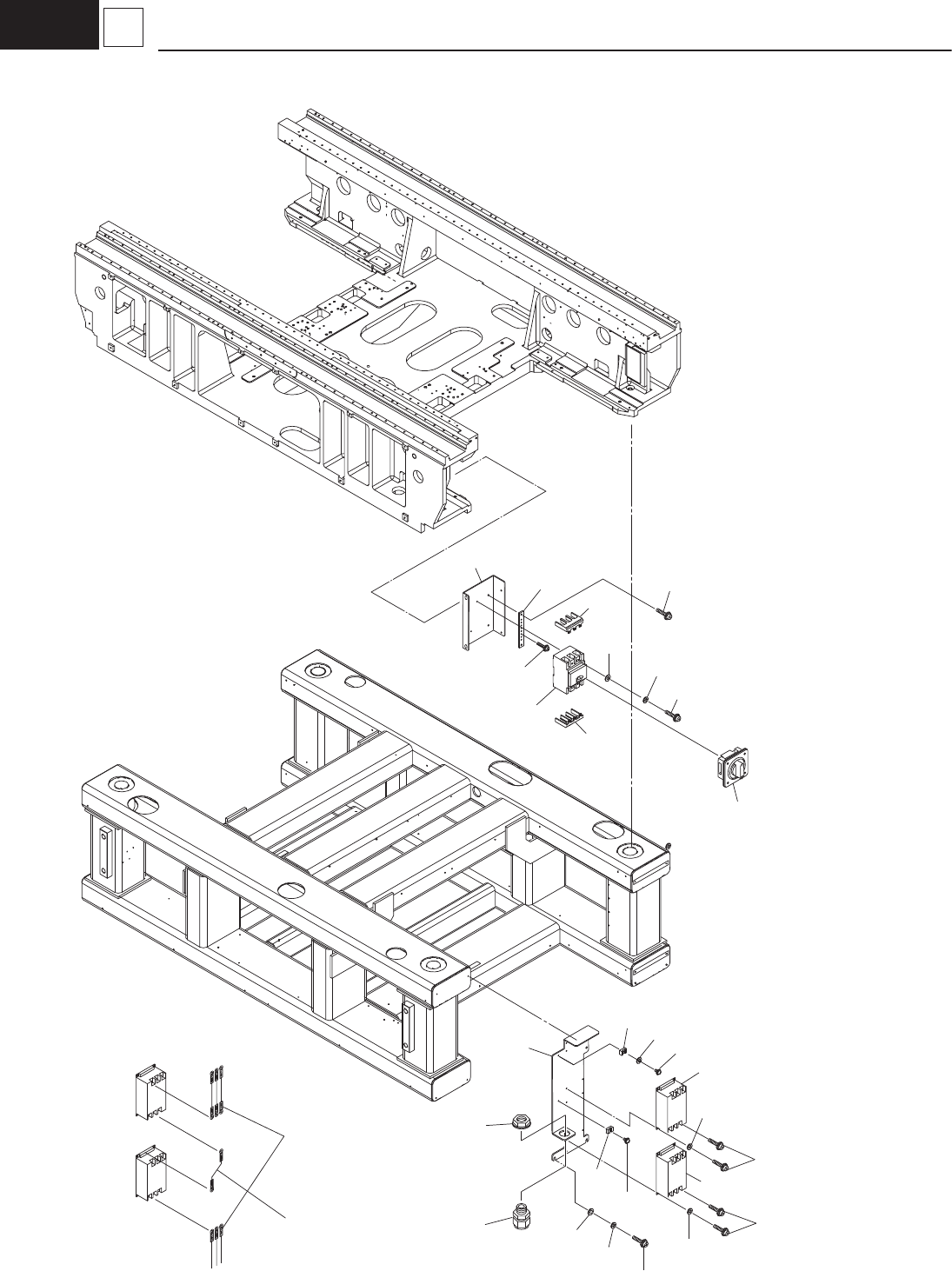

ELECTRICAL SECTION 3
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYB-M6511-00 0914BA2A BREAKER 1
102 KYY-M651C-00 BRACKET,BREAKER 1
103 KYB-M6582-00 211AC913 BREAKER TERMINAL CVR 1
104 KYB-M6585-00 226C0247 HANDLE 1
105 90990-08J034 221DA034 SCREW,PAN HEAD 2 PAN M4L70
106 92902-04200 221HA104 WASHER,PLAIN 2 FW4
107 90990-11J022 221DA055 SCREW,PAN HEAD WW 2 PAN M5L8 SW+FW
108 KYB-M6579-00 1010BA0K EARTHBAR 1
109 92902-04100 221H0283 WASHER, SPRING 2
110 90990-11J016 221DA053 SCREW,PAN HEAD WW 1
111 KYB-M656S-00 1005BA2A NOISE-FILTER 2
113 KYY-M651J-00 BRACKET,NOISE-FILTER 1
114 KYB-M65AP-00 23N30242 ACCESS-WIRING 1
115 KYB-M65AR-00 23N30243 ACCESS-WIRING 1
116 KYB-M65AB-00 226J0373 MOUNTING_BASE 3
117 98502-05006 221DA038 SCREW,PAN HEAD 12 M5L8
118
92902-05200
221HA105 WASHER,PLAIN 9 FW5
119
KYB-M65B8-00
4J300169 CAB_JOINTTERMIN 15
120
KYB-M6591-00
9W310119 CORD 1
121
KYB-M658A-00
23N20108 TUBE_WIRING 15
122
KYB-M655Y-00
0806E51D CABLE 1
123 KYB-M65B3-00 4J300016 CAB_JOINTTERMIN 4
124 KYB-M658B-00 23N20109 TUBE_WIRING 4
125 98502-05008 221DA035 SCREW, PAN HEAD 3
126 92902-05100 221HA005 WASHER, PLAIN 4
