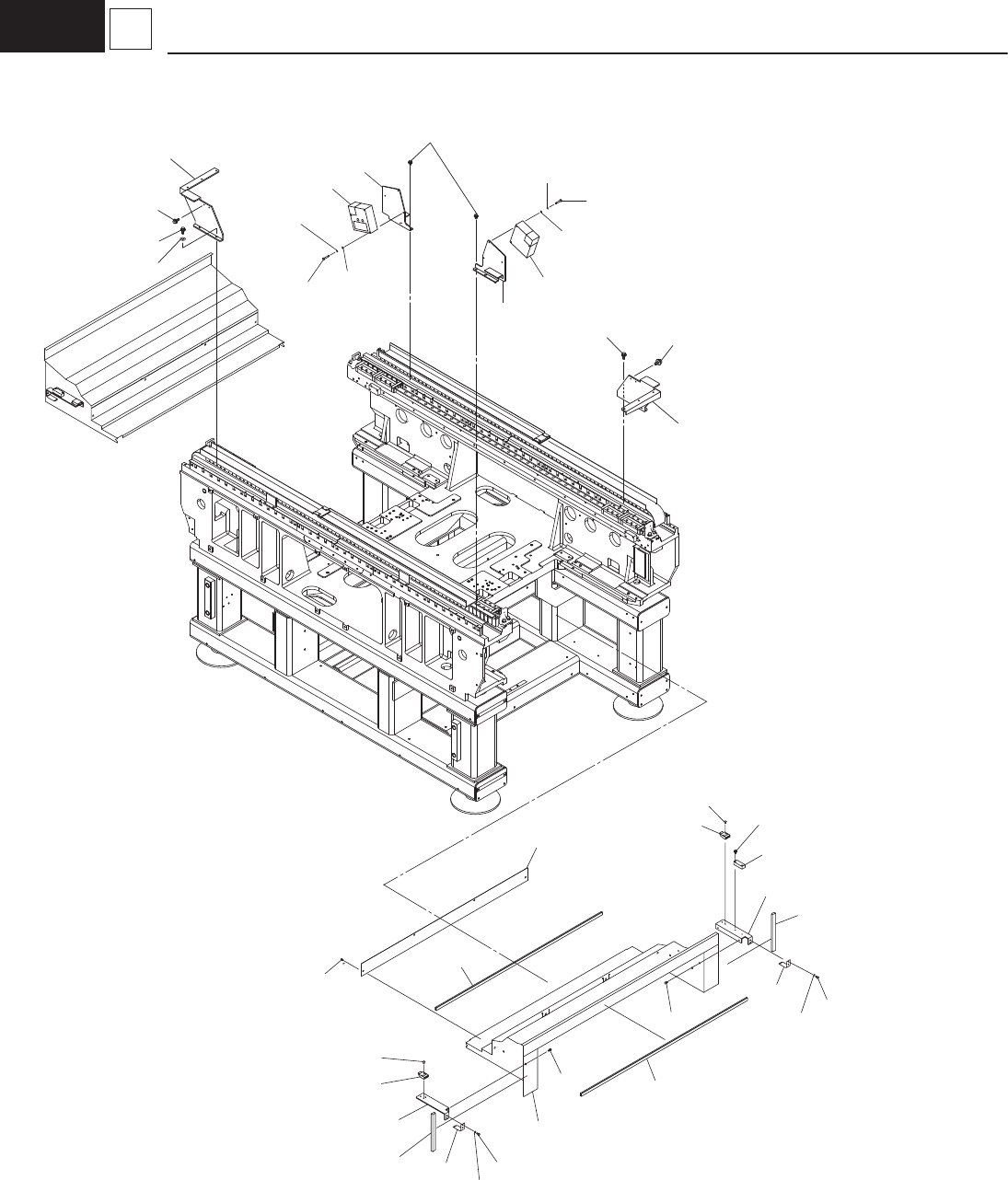

– 10 – B1 2006-009 2 Feeder Cover 136 136 139 138 136 138 137 137 101 112 121 123 135 134 104 102 104 103 109 105 110 110 108 112 111 112 115 114 115 112 113 111 106 107 106 122 131 133 132 134 135

100%1 / 258
– 9 –
COVER SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYX-M130K-00 COVER_CORNER_FL 1
2 KYX-M130G-00 COVER_CORNER_FR 1
3 KYX-M130H-00 COVER_CORNER_BL 1
4 KYX-M130J-00 COVER_CORNER_BR 1
5 KYX-M134S-00 COVER_SIDE_1:FL 1
6 KYX-M134T-00 - COVER,SIDE FR-BL 2
7 KYX-M135A-00 COVER,SIDE BR 1
8 KYX-M131B-00 COVER_INNER BL 1
9 KYX-M131C-00 COVER_INNER FL-BR 2
10 KYX-M1309-00 COVER_LOWER FRONT 1
11 KYX-M1308-00 COVER_LOWER BACK 1
12 KYX-M1315-00 COVER CORNER TOP 2
14 90990-66J017 221DA221 SCREW,TRUSS HEAD 100 TRS M5L8
15 KYX-M131D-00 COVER_INNER-FR 1
17 KYX-M131V-00 BRACKET_COVER 2
21 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 8 M4L8
24 KYB-M1317-00 1010FG1Y COVER 2
25 KYB-M1318-00 1010FG1Z COVER 2
27 KYB-M6513-00 09294023 ASSY-DOOR-SW 1
28 KYB-M6514-00 09294024 ASSY-DOOR-SW 1
29 KYX-M131A-00 INNER_BKT_L 2
30 KYX-M1319-00 INNER_BKT_R 2
31 KYB-M130D-00 1010FG0B COVER_BKT_L 2
32 KYB-M130E-00 1010FG0C COVER_BKT_R 2
33 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4
M4L12
