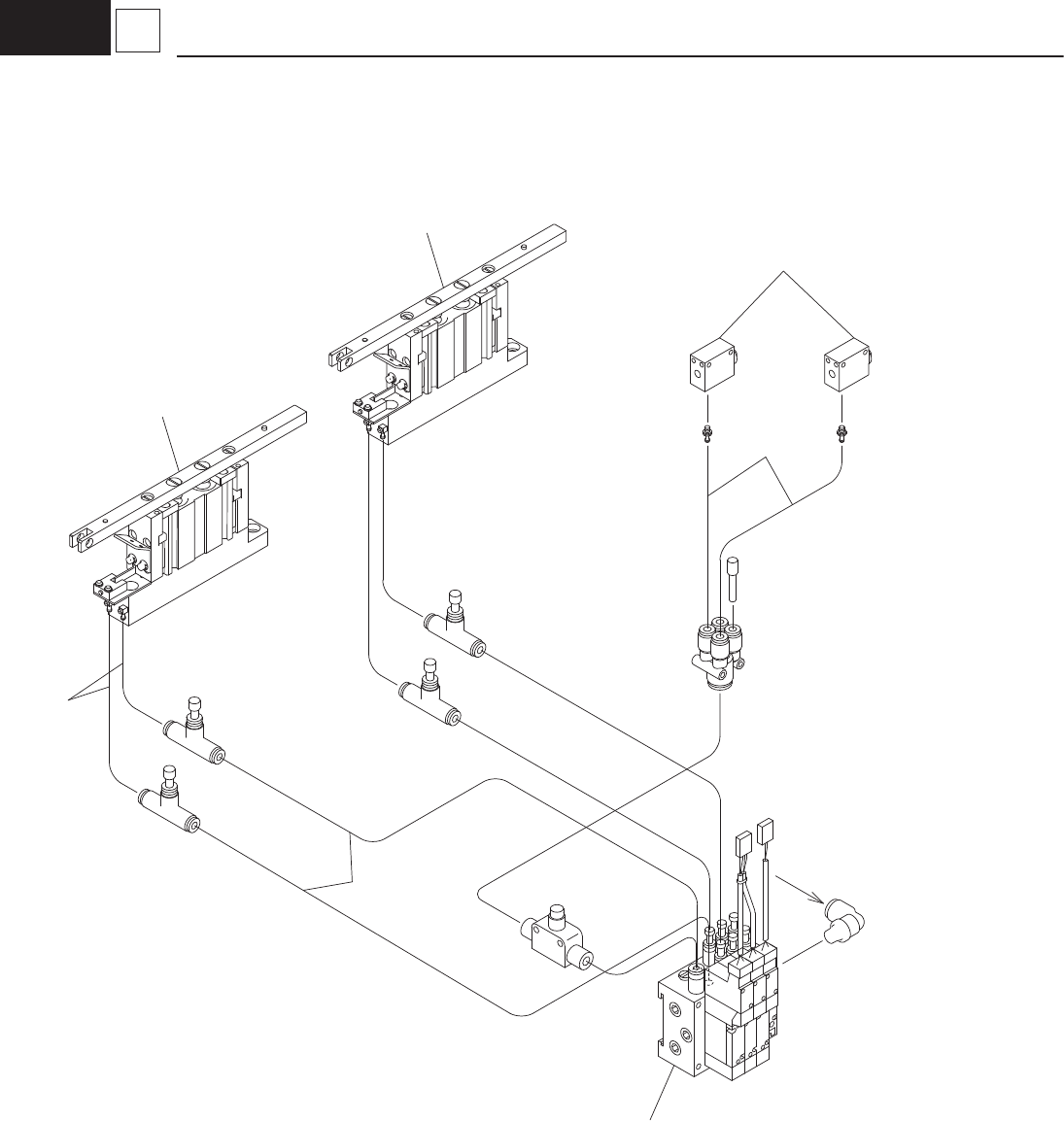

– 158 – G2 2006-009 4 Air Piping KQP-04 From Main Bod y See Fig. G2-1 Key No.1 See Fig. G2-2 Key No.134 See Fig. G2-2 Key No.134 See Fig. G3-2 Key No.101 301 301 301

– 157 –

HIGH SPPED NOZZLE STOCKER SECTION

2006-009

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

201 KYB-M380G-00 0919I02S STOCKER_BLOCK 1

202 KYB-M380F-00 0919I025 PLATE 1

203 91609-40016 221J1002 PIN,SPRING 2

204 KYB-M382E-00 222N0067 SPRING_TENSION 1

205 KYB-M3824-00 226J1958 MECH-P MAGNET 1

206 90166-02J206 221DA002 SCREW,PAN HEAD 1 PAN M2L6

207 90990-15J013 221FA001 NUT,HEXAGON 1 M2

208 KYB-M3806-00 09198000 HIGH-SPEED_STOCKER 1

– 158 –

2006-009

4 Air Piping

KQP-04

From Main Bod

See Fig. G2-1

Key No.1

See Fig. G2-2

Key No.134

See Fig. G2-2

Key No.134

See Fig. G3-2

Key No.101

301

– 159 –

HIGH SPPED NOZZLE STOCKER SECTION

2006-009

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

301 KYB-M919V-00 0919I00K TUBE D4 1
