– 181 –

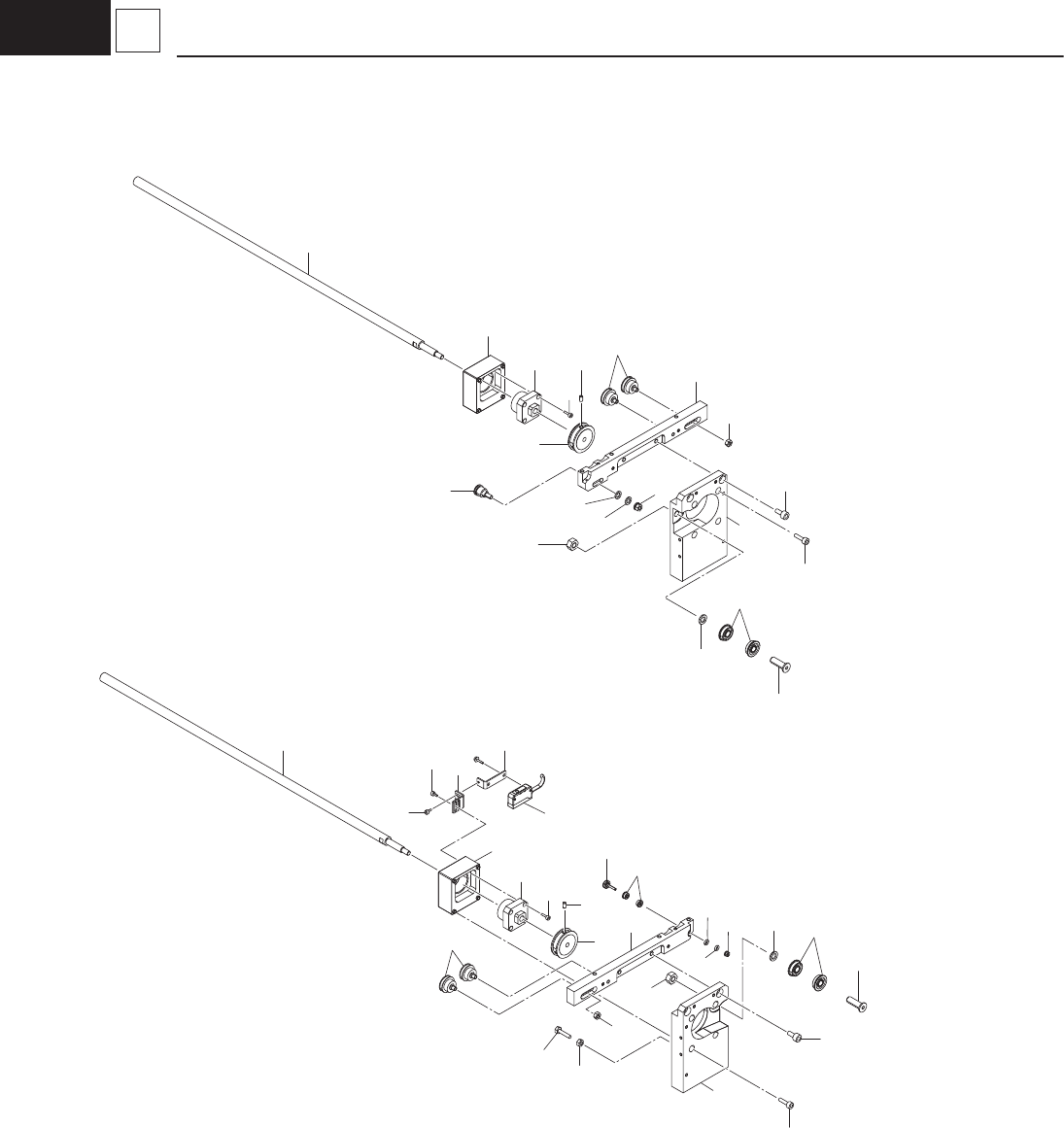

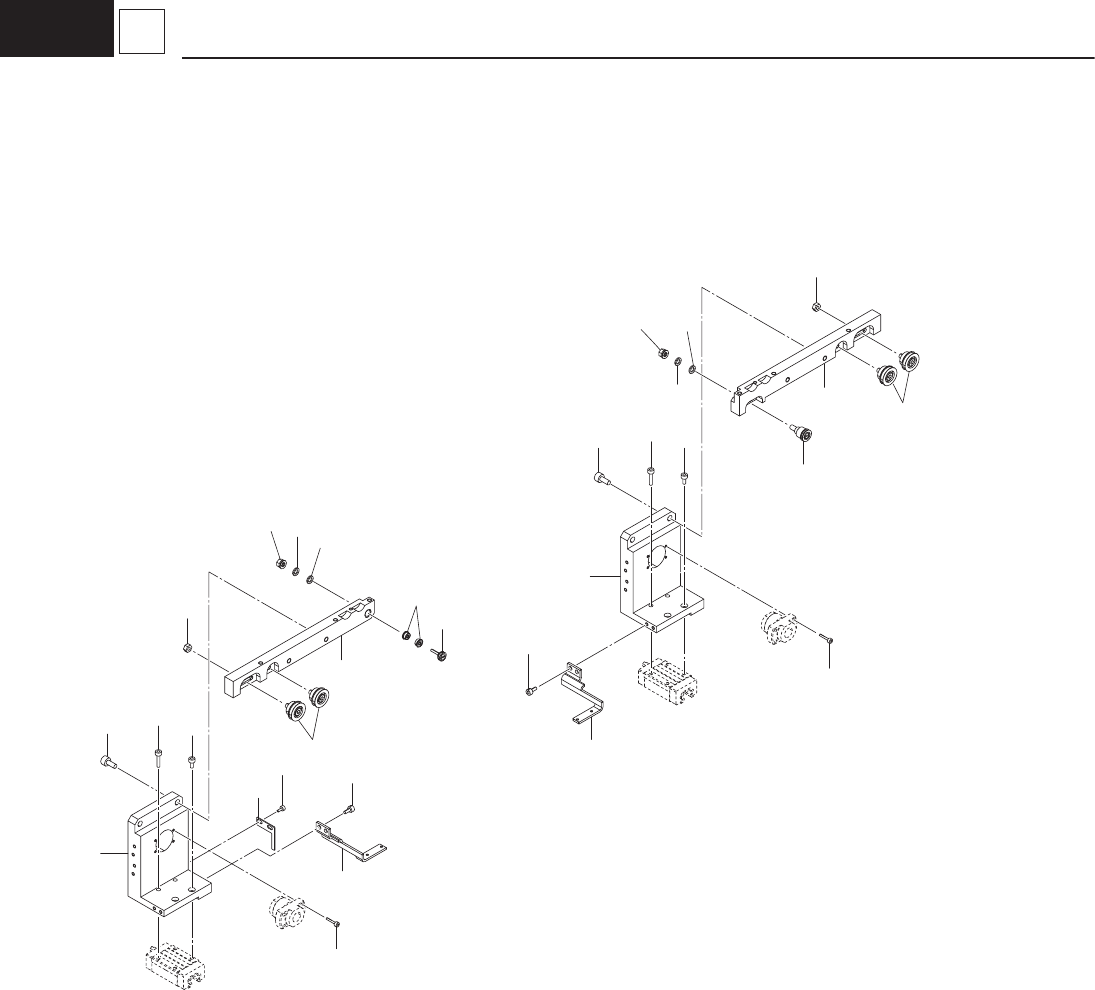

SINGLE CONVEYOR SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYX-M9112-00 BLOCK L 1
2 KYX-M9113-00 BLOCK R 1
3 KYX-M9180-00 BLOCK 1L 1
4 KYX-M9181-00 BLOCK 1R 1
5 KYA-M9157-00 1007A06K SUPPORT_UNIT 2
6 KYA-M915R-00 1007A08R PULLEY_TIMING 2
8 KYX-M9139-00 BLOCK,HOLDER 2
9 KYX-M9133-00 BALL SCREW 2
14 KYB-M916B-00 10122304 ASSY-BOARD-DET 1
15 KYX-M91BH-00 BRACKET SENSOR 1 1
16 KYX-M919S-00 BRACKET SENSOR 2 1
17 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 8
18 91312-03010 221AA007 BOLT,HEX.SOCKET HEAD 8
19 92902-05200 221HA105 WASHER,PLAIN 1
20 91312-06012 221AA042 BOLT,HEX.SOCKET HEAD 4
21 90990-02J027 221CA045 SCREW,SET 4
22 90990-01J128 1007A018 BOLT,HEX.SOCKET HEAD 2
23 90933-03J698 222D0118 BEARING_RADIAL 4
24 KYY-M914Y-00 COLLAR 2
25 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 3
26 97002-05020 BOLT,HEXAGON 1
27 95302-05600 221FA009 NUT,HEXAGON 4
29 95302-08600 221F0088 NUT,HEXAGON 2
33 KYY-M914U-A0 PULLEY_FLAT 4
34 KYB-M91B8-00 1012C071 PULLEY_FLAT 1
35 KYB-M91CX-00 223Q0755 PULLEY_TIMING 1
36 90933-03J693 222D0016 BEARING_RADIAL 2
37 95302-03600 221FA005 NUT,HEXAGON 1
38 92902-03600 221HA203 WASHER,PLAIN 1
39 92902-03100 221HA003 WASHER,SPRING 1
40 92902-05100 221HA005 WASHER,SPRING 1
