– 187 – SIN GLE C ONVEY OR SE CT ION 2006-009 No. Part No. Part Name Qty . Detail Y amaha Hitachi 1 KYB-M917X-00 1012C074 MOTOR_STEPPING 1 2 KYX-M918C-00 BRACKET MOT OR L 1 3 KYB-M91BP-00 1012C08N PULLEY_TIMING 1 4 KYB-M…

– 186 –

2006-009

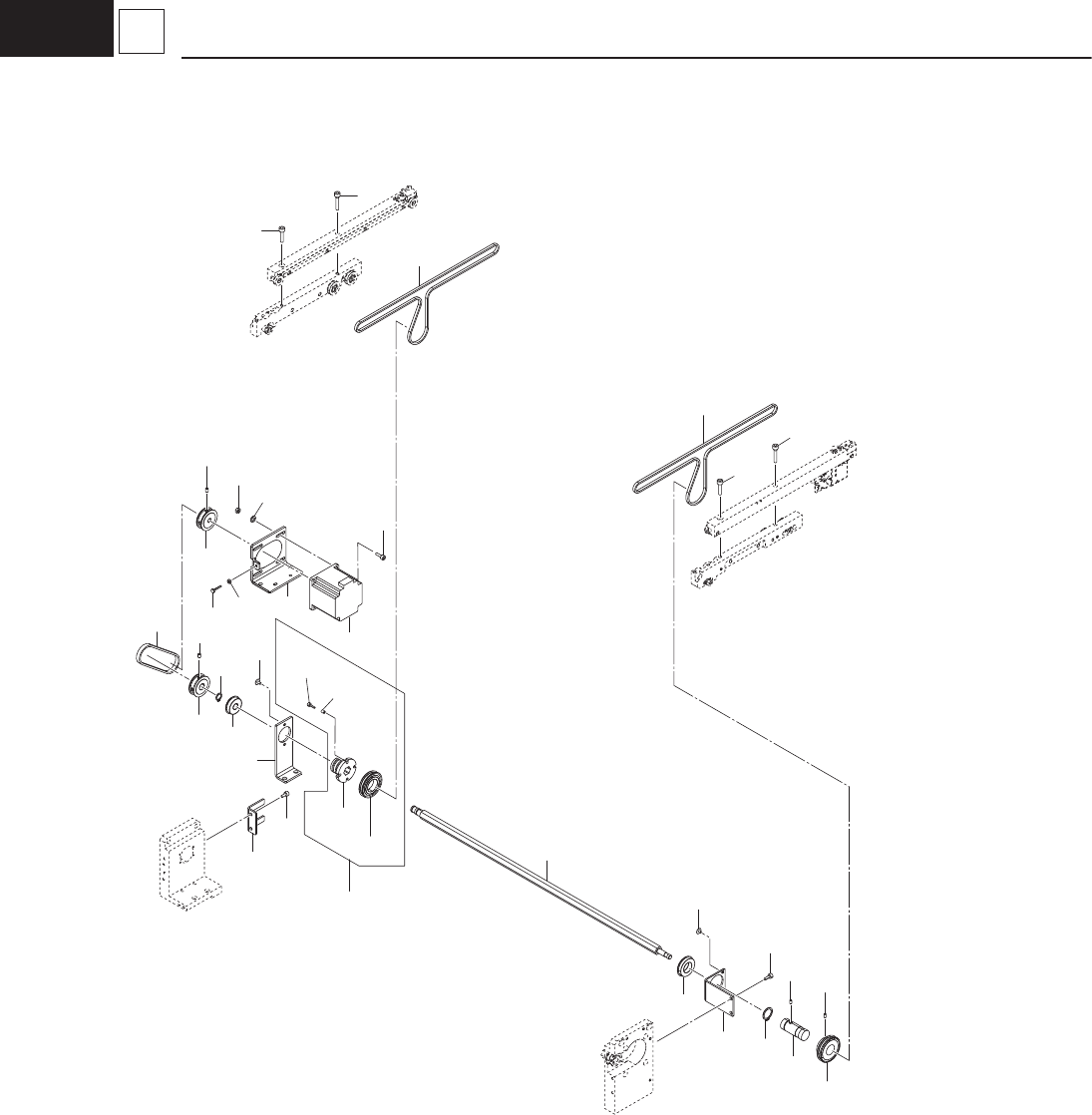

6 Conv C Section

13-01

13-02

13-03

13-04

– 187 –

SINGLE CONVEYOR SECTION

2006-009

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

1 KYB-M917X-00 1012C074 MOTOR_STEPPING 1

2 KYX-M918C-00 BRACKET MOTOR L 1

3 KYB-M91BP-00 1012C08N PULLEY_TIMING 1

4 KYB-M91AU-00 1012C06J PULLEY_TIMING 1

5 KYX-M91AV-00 TIMING BELT 1

6 99009-10400 221K0076 CIRCLIP 1

7 KYB-M91EL-00 222D0021 BEARING,RADIAL 1

8 KYX-M912W-00 SPLINE 1

12 KYX-M91E5-30 BRKT.,SPLINE-C 1

13 KYX-M919V-00 PULLEY MOVE ASSY. 1

13-01 KYX-M91AX-00 PULLEY TIMING 1

13-02 KLW-M9108-01 COLLAR,CONVEYOR 1

13-03 90990-41J176 COLLAR 4

13-04 91312-03010 221AA007 BOLT,HEX.SOCKET HEAD 4

14 KYX-M91B2-00 PULLEY TIMING 1

15 KYB-M919E-00 223L0383 BELT_TIMING 2

16 KYX-M91B3-00 SHAFT 1

17 KYX-M91PB-00 - BEARING 1

18 KYX-M918B-20 BRACKET,SUPPORT 2 1

19 KYX-M91B7-10 BRACKET 1

20 99009-17400 CIRCLIP 1

24 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 2

25 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 2

26 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 2

27 91312-04020 221AA021 BOLT,HEX.SOCKET HEAD 4

91312-04012

221AA018 BOLT,HEX.SOCKET HEAD 2

29 95302-04600 221FA007 NUT,HEXAGON 2

30 92902-04200 221HA104 WASHER,PLAIN 2

31 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 2

32 90990-66J011 221DA217 SCREW,TRUSS HEAD 2

33 90990-02J024 221CA005 SCREW,SET 2

34 90990-02J026 221CA007 SCREW,SET 6

36 92902-05100 221HA005 WASHER,SPRING 2

37 92902-05200 221HA105 WASHER,PLAIN 2

40 90990-66J012 221E0532 SCREW,TRUSS HEAD 2

41 90132-03J016 BOLT,HEXAGON 1

42 95302-03600 221FA005 NUT,HEXAGON 1

– 188 –

2006-009

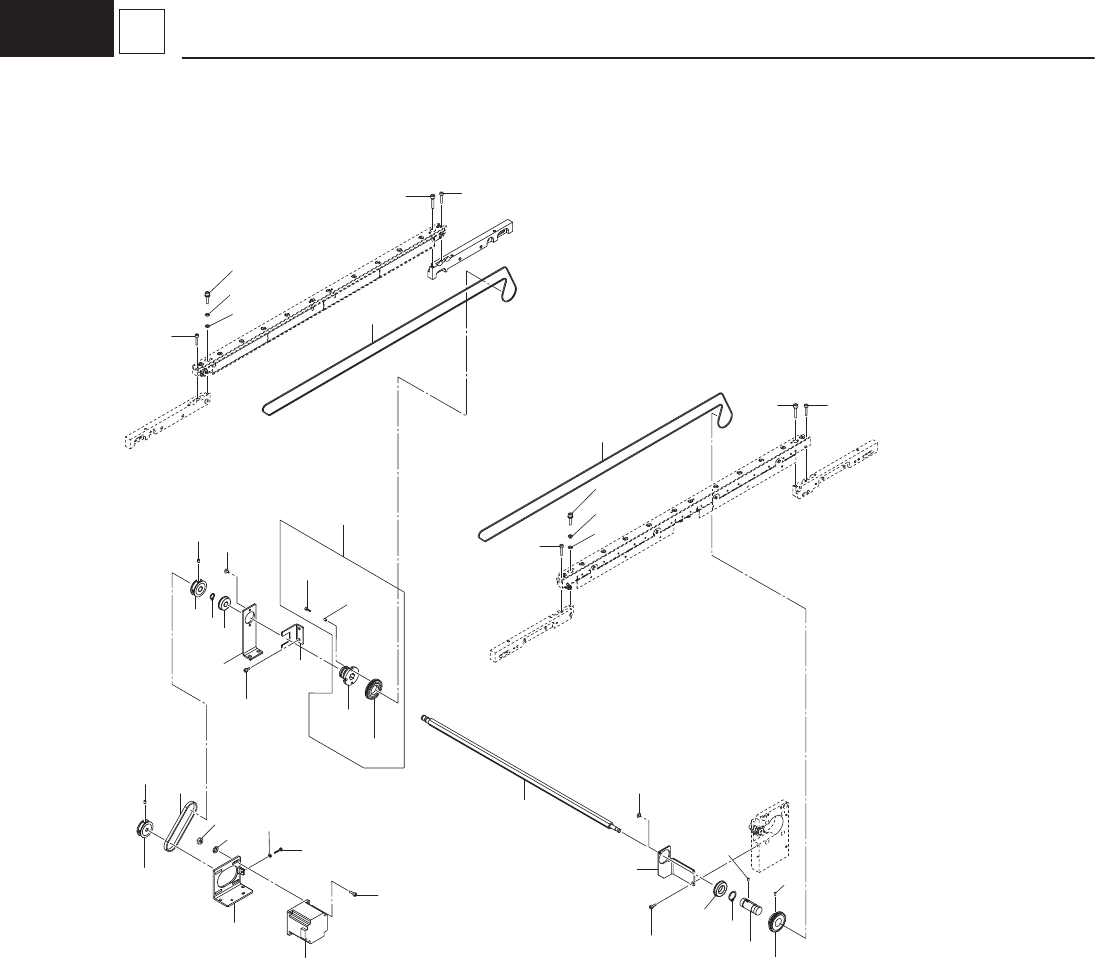

7 Conv R Section

13-01

13-02

13-03

13-04
