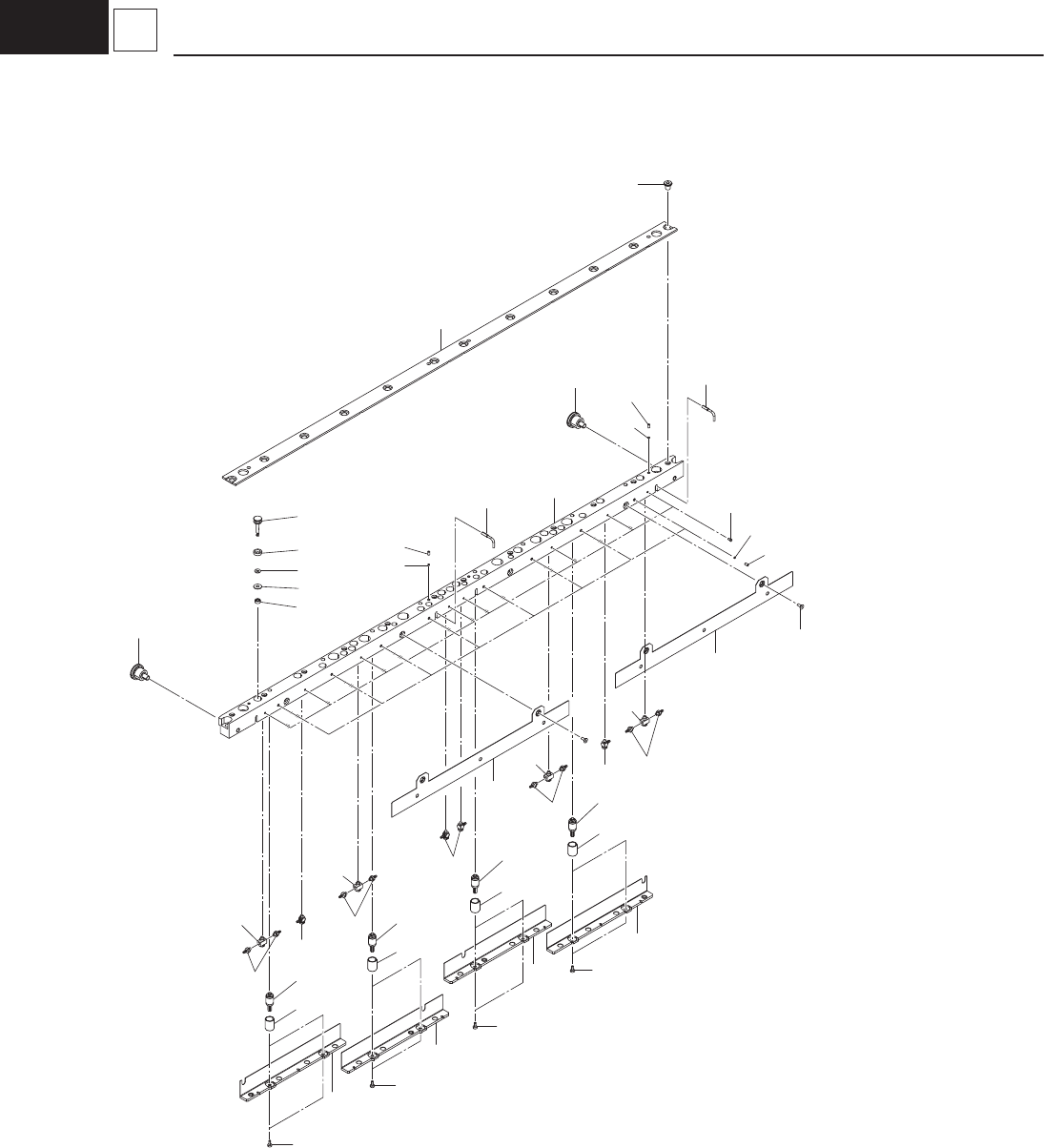

SINGLE CONVEYOR SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYB-M917X-00 1012C074 MOTOR_STEPPING 1
2 KYX-M9182-00 BRACKET,MOTOR R 1
3 KYB-M91BP-00 1012C08N PULLEY_TIMING 1
4 KYB-M91AU-00 1012C06J PULLEY_TIMING 1
5 KYX-M91BA-10 TIMING BELT 1
6 99009-10400 221K0076 CIRCLIP 1
7 KYB-M91EL-00 222D0021 BEARING,RADIAL 1
8 KYX-M912W-00 SPLINE 1
12 KYX-M91E5-21 BRKT.,SPLINE-R 1
13 KYY-M919V-00 - PULLEY MOVE ASSY. 1
13-01 KYY-M91AX-00 PULLEY,TIMING 1
13-02 KLW-M9108-01 COLLAR,CONVEYOR 1
13-03 90990-41J176 COLLAR 4
13-04 91312-03010 221AA007 BOLT,HEX.SOCKET HEAD 4
14 KYX-M91AY-00 PULLEY TIMING 1
15 KYB-M91B0-00 1012C06R BELT_TIMING 2
16 KYX-M91B3-00 SHAFT 1
17 KYX-M91PB-00 - BEARING 1
18 KYX-M918B-10 BRACKET,SUPPORT 1
19 KYX-M91B7-00 BRACKET 1
20 99009-17400 CIRCLIP 1
22 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 2
24 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 2
25
91312-05025
221AA033 BOLT,HEX.SOCKET HEAD 2
26 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 2
27 95302-04600 221FA007 NUT,HEXAGON 2
28 92902-04200 221HA104 WASHER,PLAIN 2
29 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 2
30 90990-66J011 221DA217 SCREW,TRUSS HEAD 2
31 90990-02J024 221CA005 SCREW,SET 2
32 90990-02J026 221CA007 SCREW,SET 6
39 90990-66J012 221E0532 SCREW,TRUSS HEAD 2
40 90132-03J016 BOLT,HEXAGON 1
41 95302-03600 221FA005 NUT,HEXAGON 1
