– 228 – H2 2006-009 12 Assy Moved 1 (T ransport) 12 18 23 18 17 3 11 12 7 25 24 20 21 1 19 13 25 2 22 25 19 14 19 6 6 5 5 4 4 16 16 23 15 10 9 8

100%1 / 258
– 227 –
DUAL CONVEYOR SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYX-M9122-00 CHUTE2KL 1
2 KYX-M9123-00 CHUTE2KR 1
3 KYB-M918K-00 1012CA0M MOTOR_STEPPING 2
4 KYB-M91CV-00 223Q0663 PULLEY_TIMING 4
5 KYB-M91CW-00 223Q0749 PULLEY_TIMING 2
6 KYB-M91C2-00 1012CA10 PULLEY_FLAT 4
7 KYB-M919F-00 223L0384 BELT_TIMING 2
8 KYB-M913G-00 0948C417 MBRACKET(2L) 1
9 KYB-M919U-00 0917C41H BRACKET_R1 1
10 KYB-M919T-00 0917C41G BRACKET_L1 1
11 KYB-M916U-00 101223B5 ASSY-PCB-SEN-LA 1
12 KYB-M916Y-00 101223B9 ASSY-PCB-SEN-RA 1
13 KYB-M913H-00 0948C418 MBRACKET(2R) 1
14 KYB-M919P-00 0917C41A BRACKET_LR 2
15 KYB-M919R-00 0917C41B BRACKET 2
16 KYY-M918W-21 BLOCK,CHUTE GUIDE 1 1
17 KYY-M918X-21 BLOCK,CHUTE GUIDE 2 1
18 KLF-M9135-01 PLATE,EDGE 2 2
19 90990-01J138 221AA099 BOLT,HEX.S/H WW 6
20 90990-01J139 221AA092 BOLT,HEX.S/H WW 4
21 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 4
22 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 4
23 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 4
24 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 2
25 91312-05030 221AA034 BOLT,HEX.SOCKET HEAD 2
26 92902-05200 221HA105 WASHER,PLAIN 2
27 90990-02J024 221CA005 SCREW,SET 4
28 95302-05600 221FA009 NUT,HEXAGON 4
29 90990-66J012 221DA207 SCREW,TRUSS HEAD 2
30 98702-03006 221DA106 SCREW,FLAT HEAD 4

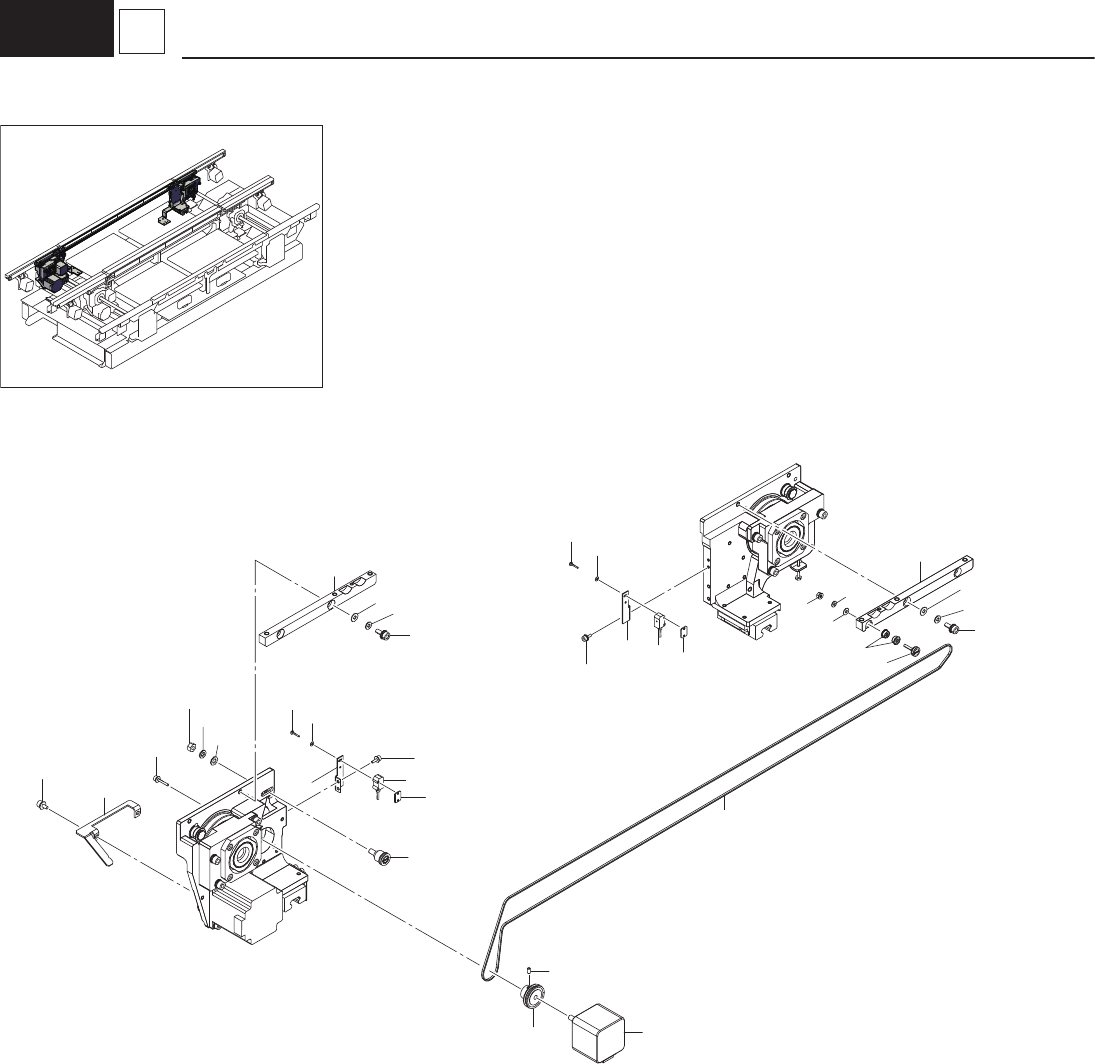

– 228 –
H2
2006-009
12 Assy Moved 1 (Transport)
12
18
23
18
17
3
11
12
7
25
24
20
21
1
19
13
25
2
22
25
19
14
19
6
6
5
5
4
4
16
16
23
15
10
9
8
– 229 –
DUAL CONVEYOR SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYB-M913L-00 0948C41J BLOCK(2L3RT) 1
2 KYB-M913M-00 0948C41K BLOCK(2R3LT) 1
3 KYB-M91AA-00 0948C41U BRACKET(3L) 1
4 KYB-M91C6-00 211FD659 BRACKET 2
5 KYB-M9178-00 101223BJ ASSY-BU-SEN-1 1
6 KYB-M91C8-00 211FD666 BRACKET 2
7 KYB-M91CX-00 223Q0755 PULLEY_TIMING 1
8 KYB-M919E-00 223L0383 BELT_TIMING 1
9 KYB-M918K-00 1012CA0M MOTOR_STEPPING 1
10 KYB-M91CW-00 223Q0749 PULLEY_TIMING 1
11 KYB-M91C2-00 1012CA10 PULLEY_FLAT 1
12 90933-03J693 222D0016 BEARING_RADIAL 2
13 90990-01J131 221AB008 BOLT,HEX.SOCKET HEAD 4
14 91312-03016 221AA010 BOLT,HEX.SOCKET HEAD 2
15 90990-02J024 221CA005 SCREW,SET 2
16 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 4
17 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 2
18 90166-02J210 221DA004 SCREW,PAN HEAD 4
19 92902-05100 221HA005 WASHER,SPRING 5
20 92902-03100 221HA003 WASHER,SPRING 1
21 95302-03600 221FA005 NUT,HEXAGON 1
22 95302-05600 221FA009 NUT,HEXAGON 1
23 90171-02J026 221HA101 WASHER,PLAIN 8
24 92902-03600 221HA203 WASHER,PLAIN 1
25 92902-05200 221HA105 WASHER,PLAIN 5
