– 17 –
UNIT-2: CART SECTION
CONTENTS
C1 FEEDER CART SECTION 18
1 Cover, Wiring 18
2 Frame Section 20
3 Electrical Box 22
4 Lower Base 24
5 Upper Base 26
– 18 –
C1
2006-009

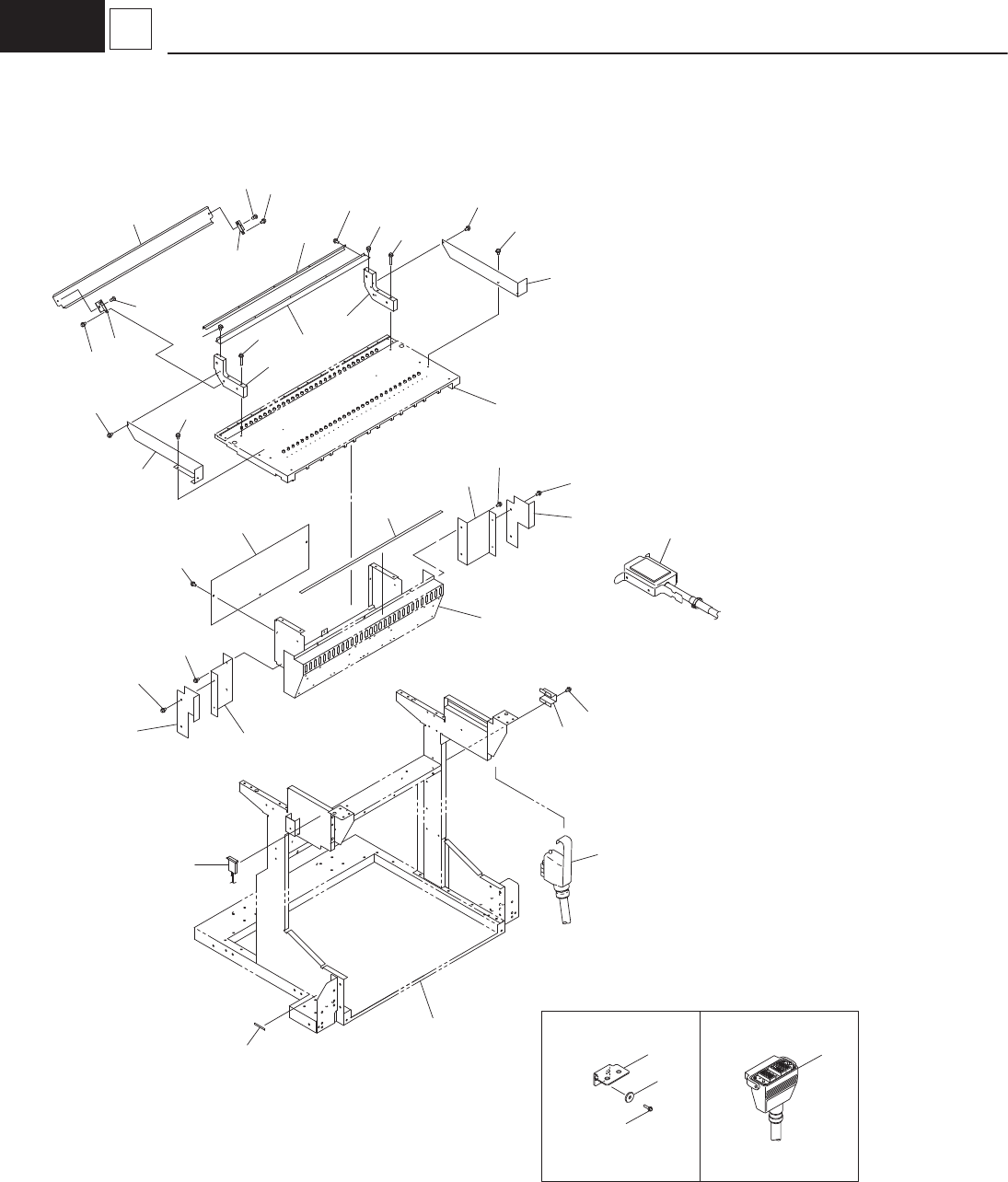

C1 FEEDER CART SECTION
1 Cover, Wiring
13
See Fig C1-5
See Fig C1-2
Key No.101
Securing Bracket
G5>G5S CONVERT
Key No.401
5
Key No.211
See Fig C1-3
3
5
6
7
8
9
10
11
12
12
14
15
15
16
16
17
19
19
18
18
27
18
18
27
21
22
23
30
35
36
37
18
18
20
26
33
27
27
32
4
38
– 19 –
FEEDER CART SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
3 KYB-M3700-01 ASSY_NAMEPLATE 1
4 KYX-M370H-00 ASSY_CART_SERIAL 1
5 KYB-M370P-00 10051A58 ASSY-EXT-FEEDER-PWR 1
6 KYB-M3714-00 1010E10R BRACKET_L 1
7 KYB-M3713-00 1010E10Q BRACKET_R 1
8 KYB-M370M-00 0920E11U PLATE_L 1
9 KYB-M370J-00 1014A20X COVER 1
10 KYB-M370Y-00 1009EQ1D BASE_COVER(R) 1
11 KYB-M3710-00 1009EQ1E BASE_COVER(L) 1
12 KYB-M3719-00 1010E111 BRACKET 2
13 90990-66J006 221DA218 SCREW,TRUSS HEAD 5
14 KYB-M370L-00 0920E10E EL_BOX_BACK 1
15 91312-03010 221AA007 BOLT,HEX.SOCKET HEAD 4 M3L10
16 91312-05050 221AA038 BOLT,HEX.SOCKET HEAD 4 M5L50
17 90990-66J012 221DA207 SCREW,TRUSS HEAD 7 TRS M4L6
18 90990-66J014 221DA209 SCREW,TRUSS HEAD 6 TRS M4L10
19 90990-66J017 221DA221 SCREW,TRUSS HEAD 4 TRS M5L8
20 KYB-M372A-00 1009EE15 BRACKET 1
21 KYB-M3717-00 1010E10Z COVER 1
22 KYB-M3718-00 1010E110 COVER 1
23 KYB-M371N-00 1014A20U PLATE 1
26 90990-11J017 221DA062 SCREW,PAN HEAD WW 2 PAN M4L8 SW+FW
27 90990-66J011 221DA217 SCREW,TRUSS HEAD 6 TRS M4L4
30 KYB-M370D-00 1010BC4Z HNS,FEED BUNDLE 1
32 KYB-M372G-00 1014A20V BRACKET 1
33 KYB-M372H-00 1014A20W BRACKET 1
35 KYB-M372F-00 1014A002 BRACKET 2
36 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 8
37 KYB-M65AA-00 221HA303 ROHS_WASHER 8
38 KYB-M370C-00 0957A00S HNS,CONVERT G5 G5S 1
