– 25 – FE EDER C A RT SE CT ION 2006-009 No. Part No. Part Name Qty . Detail Y amaha Hitachi 302 KYB-M371R-00 10150216 ASSY_CLAMP_LEVER 6 303 KYB-M370A-00 1014020S ASSY_LEVER 1 303-01 KYB-M371U-00 213A1613 SHAFT 1 303-02…
– 24 –

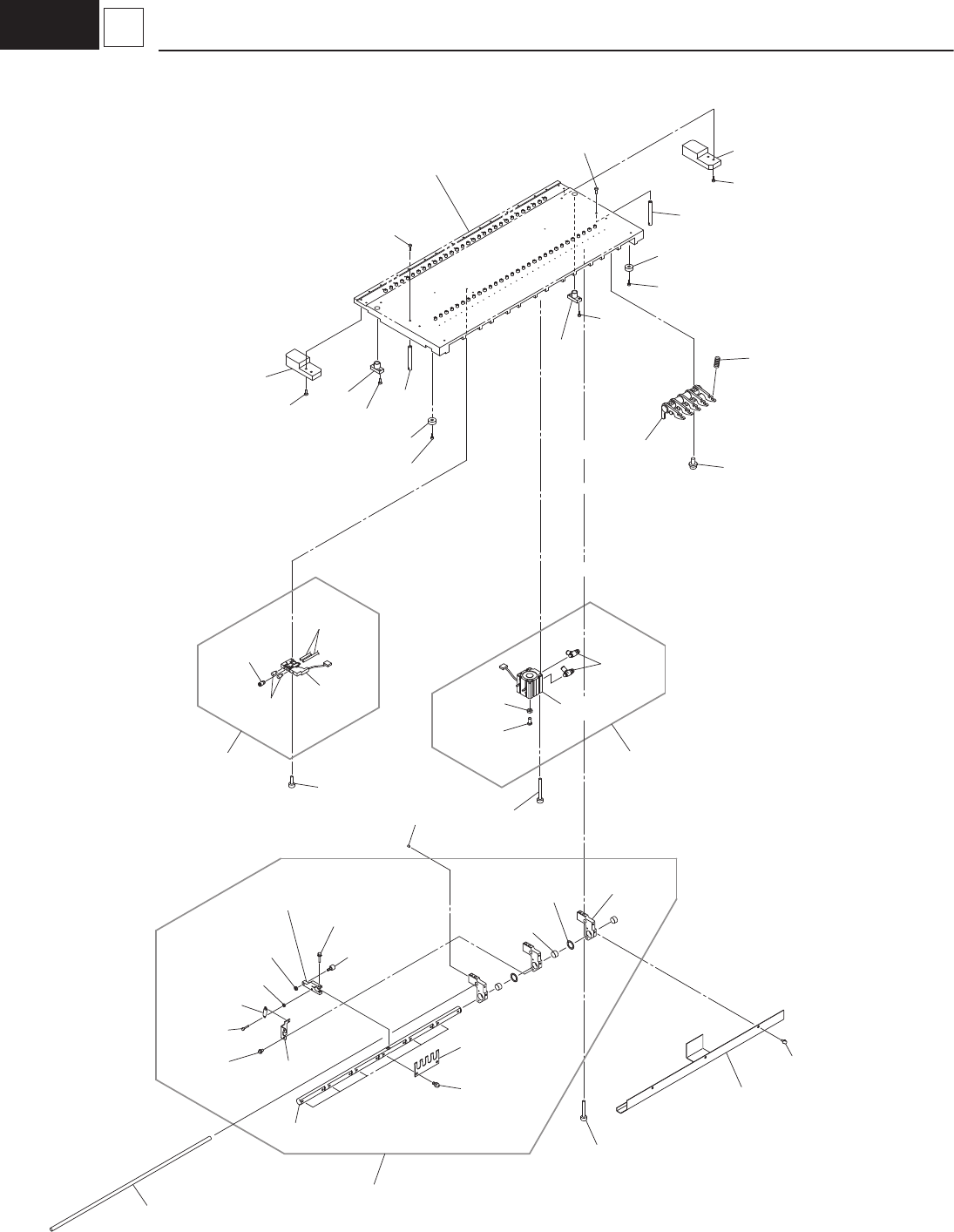

C1
2006-009
4 Lower Base
319
319
319
319
314
314
312
313
325
325
323
323
320
321
309
302
311
311
307
306
See Fig C1-5
Key No.401
316
305-04
305-03
305-02
305-01
324
304-02
304-01
304
304-04
304-03
305
315
303-05
303-07
303-08
303-06
303-07
303-08
303-09
303-07
303-10
303-03
303-04
303-11
303-02
303-01
303-12
304-13
303-14
303-15
303-16
303-19
321
322
310
318
303
308
– 25 –
FEEDER CART SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
302 KYB-M371R-00 10150216 ASSY_CLAMP_LEVER 6
303 KYB-M370A-00 1014020S ASSY_LEVER 1
303-01 KYB-M371U-00 213A1613 SHAFT 1
303-02 KYB-M3731-00 222Q0211 SPRING_FLAT 12
303-03 KYB-M372M-00 211E1181 SPACER 2
303-04 KYB-M372T-00 214A0065 BUSH_BEARING 3
303-05 92012-05012 221A0446 BOLT,BUTTON HEAD 12 BUTTAN M5L12
303-06 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 1 M5L25
303-07 92902-05100 221HA005 WASHER,SPRING 14 SW5
303-08 92902-05200 221HA105 WASHER,PLAIN 13 FW5
303-09 95302-04700 221FA008 NUT,HEXAGON 1 M4
303-10 95302-05700 221FA010 NUT, HEXAGON 1 M5
303-11 KYB-M372W-00 216S3266 LEVER 1
303-12 KYB-M373R-00 222H0132 CAM_FOLLOWER 1
303-13 KYB-M373S-00 222N0157 SPRING_TENSION 1
303-14 KYB-M372N-00 211FE156 BRACKET 1
303-15 91312-04020 221AA021 BOLT,HEX.SOCKET HEAD 1 M4L20
303-16 90990-01J145 221AA106 BOLT,HEX.S/H WW 2 M4L10 SW+FW
303-19 KYB-M372Y-00 222A0168 BUSH_BEARING 3
304 KYB-M371F-00 10140202 ASSY_FB_CYLINDER 1
304-01 KYB-M371B-00 1014010A ASSY-CYLINDER 1
304-02 KYB-M370N-00 0921A058 AIR_LINE_EQPT 2
304-03 KYB-M372U-00 216C0713 ROD 1
304-04 95302-08700 221FA014 NUT,HEXAGON 1 M8
305 KYB-M371E-00 10140201 ASSY_FB_VALVE 1
305-01 KYB-M371C-00 1014010B ASSY-VALVE 1
305-02 KYB-M3725-00 1005AB0Q PIPE_FITTINGS 1
305-03 $AN120-M5 225B0059 AIR_LINE_EQPT 2
305-04 KYB-M850P-00 0920E114 TUBE D6 1
306 KYB-M3715-00 1010E114 GUIDE_BLOCK_L 1
307 KYB-M3716-00 1010E115 GUIDE_BLOCK_R 1
308 KYB-M372V-00 216C1034 ROD 1
309 KYB-M3730-00 222M1468 SPRING_COMP 30
310 KYB-M370K-00 211AD669 COVER 1
311 KYB-M372C-00 1009EQ0D GUIDE_SHAFT 2
312 KYB-M372R-00 211G6364 BLOCK 1
313 KYB-M372S-00 211G6365 BLOCK 1
314 KYB-M3735-00 226J2598 MECH_PARTS 2
315 90990-02J025 221CA044 SCREW,SET 3 SET M4L10
316 91312-03004 221AA004 BOLT,HEX.SOCKET HEAD 2 M3L4
318 90990-66J014 221DA209 SCREW,TRUSS HEAD 3 TRS M4L10
319 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 6 M5L12
320 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 12 M5L20
321 92902-05200 221HA105 WASHER,PLAIN 18 FW5
322 91312-05040 221AA036 BOLT,HEX.SOCKET HEAD 6 M5L40
323 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 4 M5L16
324 91312-05055 221AA261 BOLT,HEX.SOCKET HEAD 2 M5L55
325 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 2 M5L35
