P-0329-009_SIGMA-G5SII - 第34页
– 28 –
– 27 –
FEEDER CART SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
401 KYB-M3703-00 1010E10K F_BASE 1
402 KYB-M372P-00 211G5359 BLOCK 6
403 KYB-M3711-00 1010E10M PLATE_GUIDE_L 2
404 KYB-M3712-00 1010E10N PLATE_GUIDE_S 1
405 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 12 M5L16
406 92902-05600 221HA205 WASHER,PLAIN 12 FWS5
407 90112-2AJ006 221AA145 BOLT,HEX.SOCKET HEAD 31 M2.5L6
408 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 14 M3L8
409 92902-03600 221HA203 WASHER,PLAIN 14 FWS3
– 28 –
– 29 –

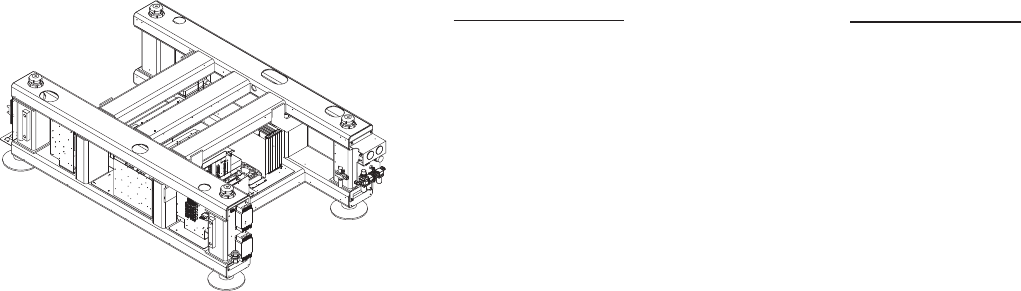

UNIT-3: LOWER FRAME SECTION
C4NCB4N
C
3NC
C4NCB4NC
3
NC
CONTENTS
D1 ELECTRICAL SECTION 1 30
1 Frame 30
2 Fixed Screw 32
3 I/F Board 34
D2 CPU BOX SECTION 36
1 CPU 1 Box 36
2 CPU 2 Box 38
D3 ELECTRICAL SECTION 2 40
1 Assy-BA 40
2 XY Servo Amp(HI) 42
3 XY Servo Amp(F) 44
4 Side Panel 46
5 Driver Board 50
6 PCB 1 (U01) 52
7 PCB 2 (U95) 56
8 AC Cable 58
9 Terminal Wire-DC/U27 Cable 62
10 CPU Cable 66
D4 DC POWER SUPPLY SECTION 68
1 DC Power 68
2 ATX Power 70
3 Fan (M105, M107, M108) 72
D5 AIR SUPPLY SECTION 74
1 Frame Section 74
2 Air-Panel, Air-Sup/Vaccum Pump 78
3 Solenoid Valve, Manifold 80
