– 36 – D2 2006-009 1 CPU 1 Box D2 CPU BOX SECTION A 2 9 12 3 5 1 14 1 7 10 8 15 17 16 10 10 U91 U92 D89 X19404

100%1 / 258
– 35 –
ELECTRICAL SECTION 1
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201 KYB-M650H-00 1010BA2Q PANEL 1
202 KYB-M6538-00 1010BA4N FB-IF PANEL 1
203 KYB-M6531-00 1010BA21 PCB-MOUNT 1 UC34(U27)
207 KYB-M65AB-00 226J0373 MOUNTING_BASE 4
208 90990-11J016 221DA053 SCREW,PAN HEAD WW 4 PAN M4L6 SW+FW
209 90990-11J014 221DA058 SCREW,PAN HEAD WW 6 PAN M3L18 SW+FW
210 92902-05200 221HA105 WASHER,PLAIN 2 FW05W
211 90990-11J017 221DA062 SCREW,PAN HEAD WW 4 BW05W
212 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 2 M5L12
– 36 –
D2
2006-009
1 CPU 1 Box

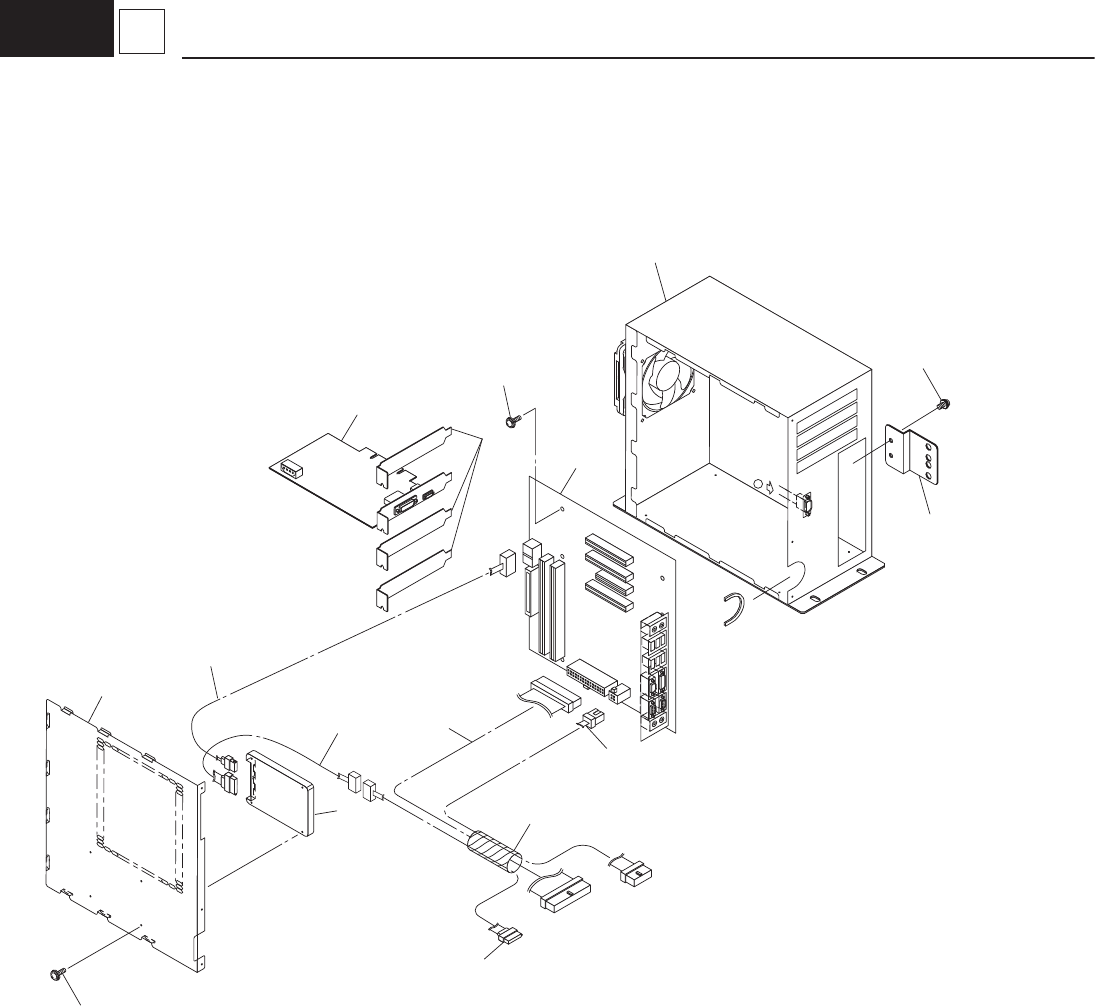

D2 CPU BOX SECTION
A
2
9
12
3
5
1
14
1
7
10
8
15
17
16
10
10
U91
U92
D89
X19404
– 37 –
CPU BOX SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYB-M410H-00 1010GD0H CPU-BOX 1
2 KYB-M4105-00 1005GD14 MOTHER BOARD 1
3 KYB-M4104-00 1005GD12 FRAME GRABBER BOARD 1
5 KYB-M410Y-00 23N30719 ACCESS-WIRING 3
7 KYB-M410B-01 SSD-COPY 1
8 KYB-M4106-00 1005GD17 CABLE(SATA) 1
9 KYB-M4107-00 1005GD18 CABLE(SATA-P) 1
10 90990-11J009 221DA051 SCREW,PAN HEAD WW 16 PAN M3L6 SW+FW
12 KYB-M410L-00 0921A024 COIL-TUBE 1
14 KYB-M410T-00 1005GD27 USB-BRACKET 1
15 KYB-M410R-00 1005BC4M CORD-ATX-MAIN 1
16 KYB-M4103-00 1005BC4N CORD-ATX-HD 1
17 KYB-M410S-00 1005BC4P CORD-ATX12V 1
