P-0329-009_SIGMA-G5SII - 第44页
– 38 – D2 2006-009 2 CPU 2 Box 105 101 102 103 104 109 1 13 108 U180 U85 (UC16) U82 U81 D81
– 37 –

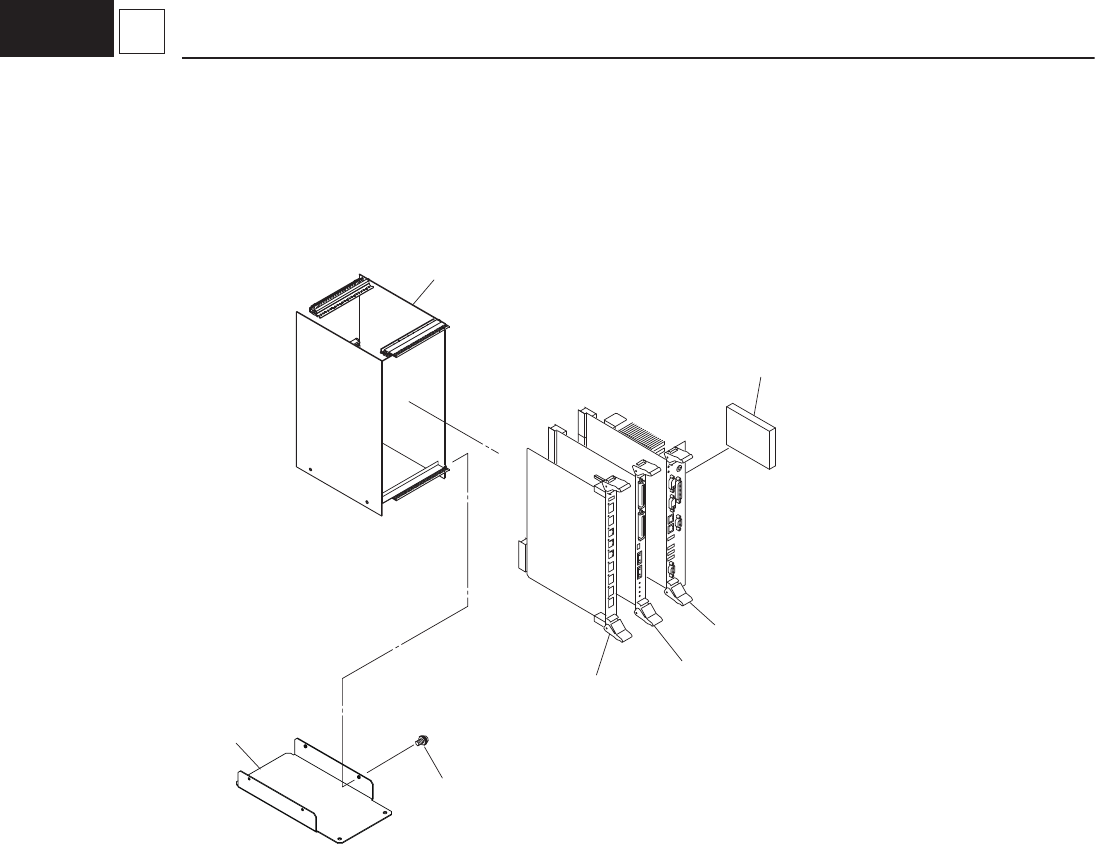

CPU BOX SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYB-M410H-00 1010GD0H CPU-BOX 1
2 KYB-M4105-00 1005GD14 MOTHER BOARD 1
3 KYB-M4104-00 1005GD12 FRAME GRABBER BOARD 1
5 KYB-M410Y-00 23N30719 ACCESS-WIRING 3
7 KYB-M410B-01 SSD-COPY 1
8 KYB-M4106-00 1005GD17 CABLE(SATA) 1
9 KYB-M4107-00 1005GD18 CABLE(SATA-P) 1
10 90990-11J009 221DA051 SCREW,PAN HEAD WW 16 PAN M3L6 SW+FW
12 KYB-M410L-00 0921A024 COIL-TUBE 1
14 KYB-M410T-00 1005GD27 USB-BRACKET 1
15 KYB-M410R-00 1005BC4M CORD-ATX-MAIN 1
16 KYB-M4103-00 1005BC4N CORD-ATX-HD 1
17 KYB-M410S-00 1005BC4P CORD-ATX12V 1
– 39 –
CPU BOX SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYB-M410E-00 1010BA3B EQUIP-BUSRACK 1
102 KYX-M410U-00 ASSY_CPU2-BOARD 1
103 KYB-M4110-00 4B111612 PCB-MOUNT 1
104 KYA-M4109-00 1005BA27 PCB-MOUNT 1
105 KYX-M410C-00 FLASH DISK, COPY 1
108 KYX-M410D-00 PLATE CPU2 1
109 KYB-M410N-00 1005BA3Q PANEL 1
113 90990-11J017 221DA062 SCREW,PAN HEAD WW 6 TRS M4L6
