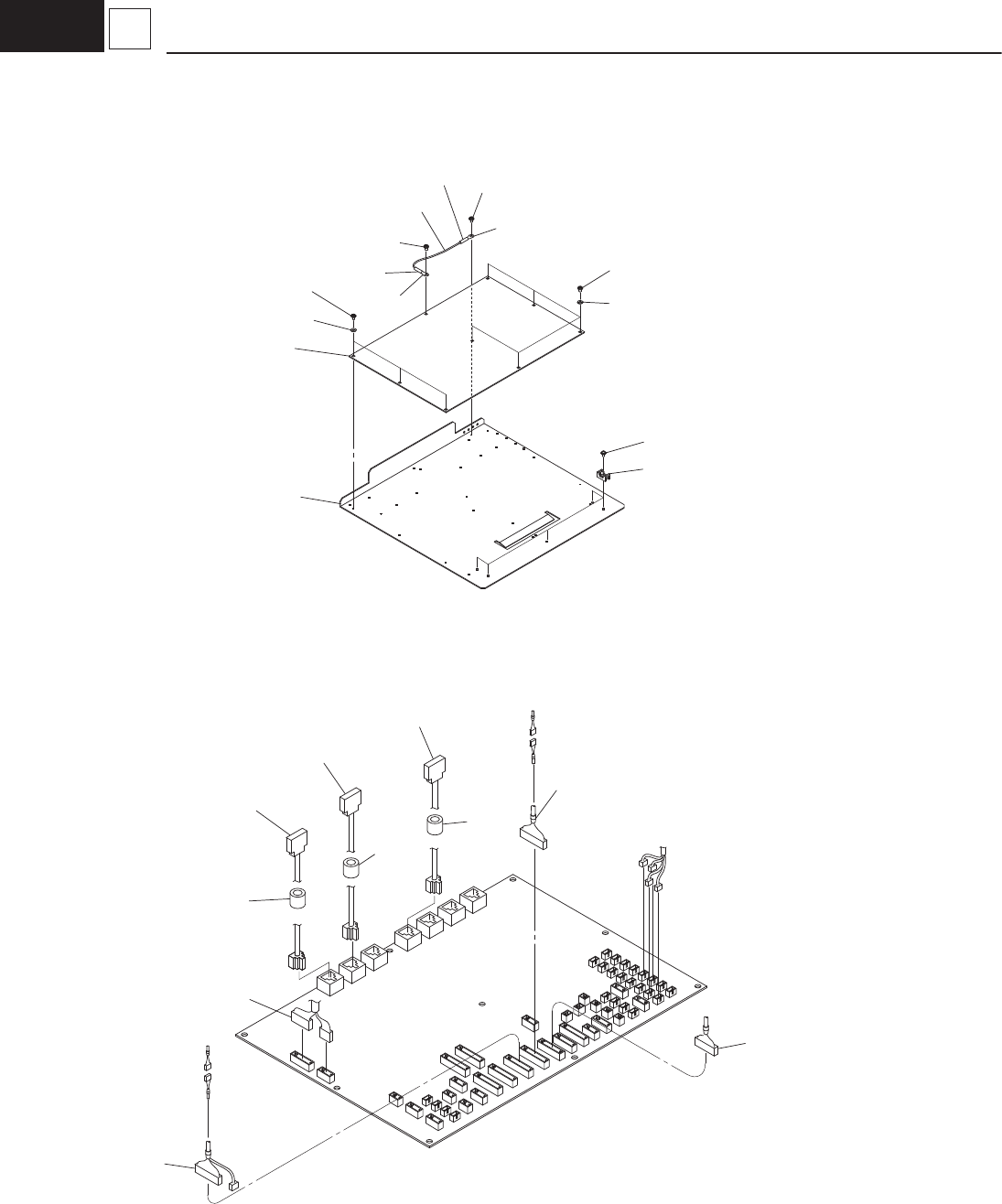

– 52 – D3 2006-009 6 PCB 1 (U01) 501 502 504 5 11 5 11 509 508 510 504 512 513 503 505 506 507 505 521 539 523 543 543 543 550 529 540 522 U01(UC18)
– 51 –
ELECTRICAL SECTION 2
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
401 KYX-M658U-A0 UNIT-DRIVER 2
402 KYX-M65G5-00 BRACKET_PCB_FRONT 1
403 KYB-M657K-00 1010BA3Q ACCESS-WIRING 9
404 KYB-M657H-00 1010BA3A ACCESS-WIRING 9
405 97602-03306 221DB002 SCREW,PAN HEAD WW 18 PAN M3L6 SW+FWS
411 KYB-M6535-00 1010BA36 PCB-MOUNT 1
412 KYX-M6507-00 PCB_BRACKET 1
413 KYB-M657K-00 1010BA3Q ACCESS-WIRING 9
414 KYB-M657S-00 1010BA4D UNIT-POWER 1
415 97602-03306 221DB002 SCREW,PAN HEAD WW 9 PAN M3L6 SW+FWS
416 90990-11J016 221DA053 SCREW,PAN HEAD WW 6 PAN M4L6 SW+FW
417 KYB-M65AW-00 23N30632 WIRING 6
418 98702-03006 221DA106 SCREW,FLAT HEAD 2 FLT M3L6
421 KYX-M650P-00 HNS,HD-M-ENC-H1 1 MT10045-2020/1/17
422 KYB-M6555-00 1010BC8N HNS,HD-AB-F 1
423 KYX-M650N-01 HNS,HD-M-ENC-H2 1 MT10045-2020/1/17
424 KYB-M6554-00 1010BC8M HNS,HD-AB-B 1
425 KYB-M655W-00 4W204932 HNS,OPTICAL-CABLE 1
426 KYB-M657L-00 1010BA3W FERRITE-CORE 4
429 90990-11J016 221DA053 SCREW,PAN HEAD WW 5 PAN M4L6 SW+FW
430 KYB-M65AW-00 23N30632 WIRING 5
431 KYX-M650P-01 HNS,HD-M-ENC-H1 1 with FG Compati-NG
432 KYX-M650N-02 HNS,HD-M-ENC-H2 1 with FG Compati-NG
– 53 –
ELECTRICAL SECTION 2
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
501 KYB-M6534-00 1010BA35 BOX 1
502 KYB-M657N-00 1010BA41 PCB-MOUNT 1
503 90990-11J016 221DA053 SCREW,PAN HEAD WW 5 PAN M4L6 SW+FW
504 92902-03600 221HA203 WASHER,PLAIN 8 FWS3
505 98502-03012 221DA013 SCREW,PAN HEAD 8 PAN M3L12
506 90990-11J012 221DA057 SCREW,PAN HEAD WW 1 PAN M3L14 SW+FW
507 97602-03306 221DB002 SCREW,PAN HEAD WW 1 PAN M3L6 SW+FWS
508
KYB-M65B3-00
4J300016 CAB_JOINTTERMIN 1
509
KYB-M65BB-00
4J300207 CAB_JOINTTERMIN 1
510 KYA-M6559-00 0900B00W CORD G/Y 14-150 1
511
KYB-M1321-00
23N20115 TUBE-WIRING 2
512 KYB-M65AB-00 226J0373 MOUNTING_BASE 5
513 92902-04600 221HA204 WASHER,PLAIN 5 FWS3
521 KYB-M6539-00 1010BC00 HNS,U01_POW 1
522 KYB-M655D-00 1010BC90 HNS,U85-U01 1
523 KYB-M655B-00 1010BC8Y HNS,HSIO-FB2 1
524 KYX-M653M-10 HNS,MOTION-DI 1
525 KYB-M653E-00 1010BC0A HNS,CPU-FAN 1
526 KYB-M6557-00 1010BC8Q HNS,HD-INTLK 1
527 KYB-M654L-00 1010BC7K HNS,X30D1-B 1
528 KYB-M654M-00 1010BC7L HNS,X30D1_F 1
529 KYB-M654K-00 1010BC7J HNS,X0125-U27 1
530 KYB-M654J-00 1010BC7H HNS,X0115-U27 1
531 KYB-M653J-00 1010BC0G HNS,F-RDY-B2 1
532 KYB-M653H-00 1010BC0F HNS,F-RDY-B1 1
533 KYB-M650T-00 1010BC94 HNS,X0119 1
534 KYB-M653F-00 1010BC0C HNS,X0120 1
535 KYB-M650U-00 1010BC95 HNS,X0121 1
536 KYB-M653G-00 1010BC0E HNS,X0122 1
537 KYB-M653B-00 1010BC02 HNS,X0126 1
538 KYB-M653C-00 1010BC03 HNS,IF 1
539 KYB-M653L-00 1010BC0J HNS,FB-ROCK-F 1
540 KYB-M653K-00 1010BC0H HNS,FB-ROCK-B 1
541 KYB-M653D-00 1010BC09 HNS,X0129-LAMP 1
542 KYB-M653A-00 1010BC01 HNS,X0131-FAN 1
543 KYB-M658H-00 23N30590 ACCESS-WIRING 3
550 KYB-M655E-00 1010BC91 HNS,U01-U02 1
