– 64 – D3 2006-009 9 T erminal Wire-DC/U27 Cable No. Part No. Part Name Qty . Detail Y amaha Hitachi 801 KYC-M189X-W0 CORD,REEL 1 802 KYX-M652P-00 ASSY -TERMINAL 1 803 KYC-M187B-W0 CORD,REEL 1 804 KYC-M185D-W0 CORD,REEL …
– 63 –
ELECTRICAL SECTION 2
2006-009
13 23 33 43 53 61
T11 T12 T31 T32 T23
A1
T21 T22
A B
PE
A2
14 24 34 44 54 62
T11 T12 Y1 X1 X2
T21 T22
T31 T32 T33 D1 D2 D3
A1
T41 T42 A2
D4L1S54S24S14 S44
1
2
3
K10: 21
K10: 22
K29: A2
X10126
4
X10126
527
10
F200
10
527
1
2
3
1
2
36
Q205: 14
37
Q205: 13
XF200ALM
XF200ALM
1 3 5 21 A1
2 4 6 22
K33B
13
14
A2
415
1 3 5 21 A1
2 4 6 22
K33A
13
14
415
414
A2
10
429
293031
10
416
430
323334
1 3 5 21 A1
2 4 6 22 A2
1 3 5 21 A1
2 4 6 22 A2
1 3 5 21 A1
2 4 6 22 A2
K29
K28
K10
24A2
10
10
24A2
26
27
28
334
1 3 5 13
2 4 6
14
Q205
37 36
X10126-4
X10126-3
10
527
1 3 5 21 A1
2 4 6 22 A2
1 3 5 21 A1
2 4 6 22 A2
K29
K10
1
23
X2723-1X2723-2
X2723-3
420A
673
405B
UC34(U27)
856
857
858
859
862
852
869
868
853
860
863
864865
861
854
855
867
866
868
K4 K3
828
824
804
803
819
817
828
804
803
819
817
828
812
851
814
815
828
832
828
821
820
828
803
804
828
824
828
824
828
824
828
824
828
824
804
804
803
UC34(U27)
– 64 –
D3
2006-009

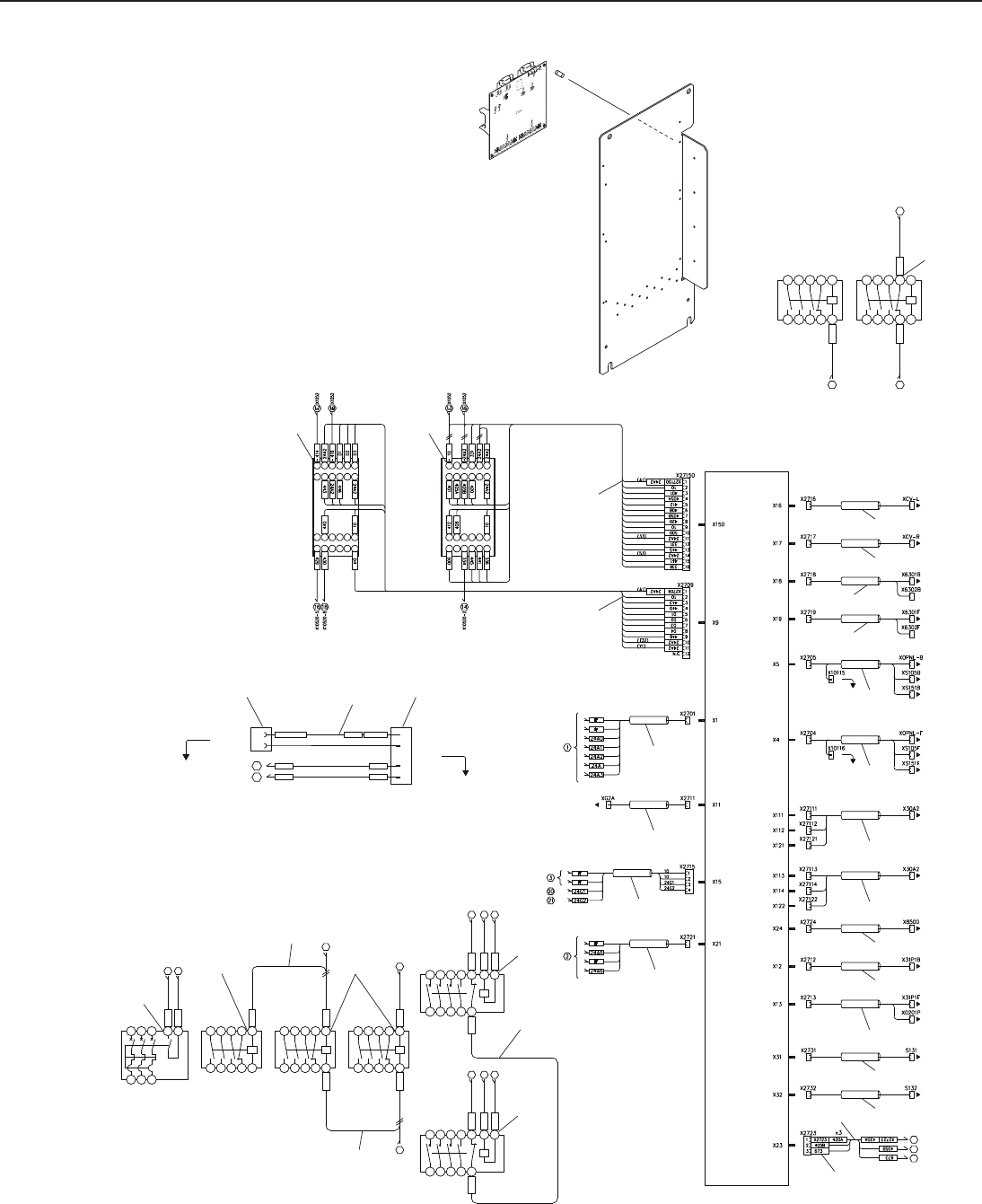

9 Terminal Wire-DC/U27 Cable
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
801 KYC-M189X-W0 CORD,REEL 1
802 KYX-M652P-00 ASSY-TERMINAL 1
803 KYC-M187B-W0 CORD,REEL 1
804 KYC-M185D-W0 CORD,REEL 1
805 KYX-M654Y-00 HNS,HD-M-POW-H1 1
806 KYX-M6550-00 HNS,HD-M-POW-H2 1
810 KYX-M6552-00 HNS,HD-IF 1
811 KYB-M6545-00 1010BC33 HNS,24VOUT-2 1
812 KYB-M6548-00 1010BC42 HNS,U27_POW 1
813 KYB-M65BH-00 4S200097 RELAY 1
814 KYB-M6549-00 1010BC44 HNS,X2715 1
815 KYB-M654C-00 1010BC60 HNS,X2721 1
816 KYB-M65BN-00 4S300023 FUSE-250V-6.3A 1
817 KYB-M656X-00 1005BC5C CONNECTOR 1
818 KYB-M656Y-00 1005BC5D CONNECTOR 1
819 KYB-M65B6-00 4J300096 CAB-JOINTTERMIN 27
820 KYB-M65AH-00 CASE_CONN 1
821 KYB-M65B9-00 4J300179 CAB-JOINTTERMIN 8
822 KYB-M656W-00 1005BC5A CONNECTOR 1
823 KYB-M65BA-00 4J300194 CAB-JOINTTERMIN 9
824 KYB-M65B5-00 4J300050 CAB_JOINTTERMIN 45
825 KYB-M65B4-00 4J300049 CAB_JOINTTERMIN 7
826 KYB-M6569-00 0914B35Y DIODE 2
827 KYB-M3T3D-W0 TUBE_WIRING,REEL 2
828 KYB-M6588-00 TUBE_WIRING 1
829 $AB100-W 0916D209 TIE 100MM 30
830 KYB-M658B-00 23N20109 TUBE_WIRING 1
831 KYB-M655A-00 1010BC8U HNS,U02-POW 1
832 KYB-M65AF-00 23K10263 CASE-CONN 1
834 KYB-M65BJ-00 4S200100 RELAY 2
835 KYB-M658K-00 23N30708 ACCESS-WIRING 4
836 KYB-M6562-00 0914B307 SWITCH-CONTROLLER 1
837 KLF-M537F-00 SAFTY RELAY 1
838 KYB-M6560-00 0900H1A7 ACCESS-WIRING 2
– 65 –
ELECTRICAL SECTION 2
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
839 KYB-M652U-00 1010BA0V PANEL 1
840 KYB-M6533-00 1010BA34 PANEL SIDE-B2 1
841 KYB-M65AS-00 23N30497 RAIL-WIRING 1
842 KYB-M6587-00 23N10027 TERMINAL 2
843 90990-11J016 221DA053 SCREW,PAN HEAD WW 22 PAN M4L6 SW+FW
844 KYB-M65AW-00 23N30632 WIRING 11
845 KYB-M65AN-00 23N10019 BRACKET-WIRING 2
846 KYB-M65B1-00 4J120082 SOCKET 1
847 KYB-M65AL-00 23K10437 CASE-CONN 1
851 KYB-M654U-00 1010BC7S HNS,G2OUT-2A 1
852 KYB-M654N-00 1010BC7M HNS,CV-L_POW 1
853 KYB-M654P-00 1010BC7N HNS,CV-R_POW 1
854 KYB-M654R-00 1010BC7P HNS,CT-POW-B1 1
855 KYB-M654S-00 1010BC7Q HNS,CT-POW-B2 1
856 KYB-M654H-00 1010BC7G HNS,OPNL-B 1
857 KYB-M654G-00 1010BC7F HNS,OPNL-F 1
858 KYB-M653W-00 1010BC2N HNS,B1FD-POW 1
859 KYB-M653X-00 1010BC2R HNS,B2FD-POW 1
860 KYB-M654G-00 1010BC7F HNS,OPNL-F 1
861 KYB-M654W-00 1010BC7W HNS,31B-POW 1
862 KYB-M654X-00 1010BC7X HNS,31F-POW 1
863 KYB-M6559-00 1010BC8T HNS,S131 1
864 KYB-M6558-00 1010BC8S HNS,S132 1
865 KYB-M6567-00 0914B33W CORD 1
866 KYB-M65AG-00 23K10270 CASE-CONN 1
867 KYB-M65B6-00 4J300096 CAB-JOINTTERMIN 3
868 KYB-M6596-00 225G1026 RIBBON TUBE 1
869 KYB-M65B5-00 4J300050 CAB_JOINTTERMIN 3
870 KYX-M65FW-00 HNS,FAN M107 1
871 KYX-M65FX-00 HNS,FAN M108 1
