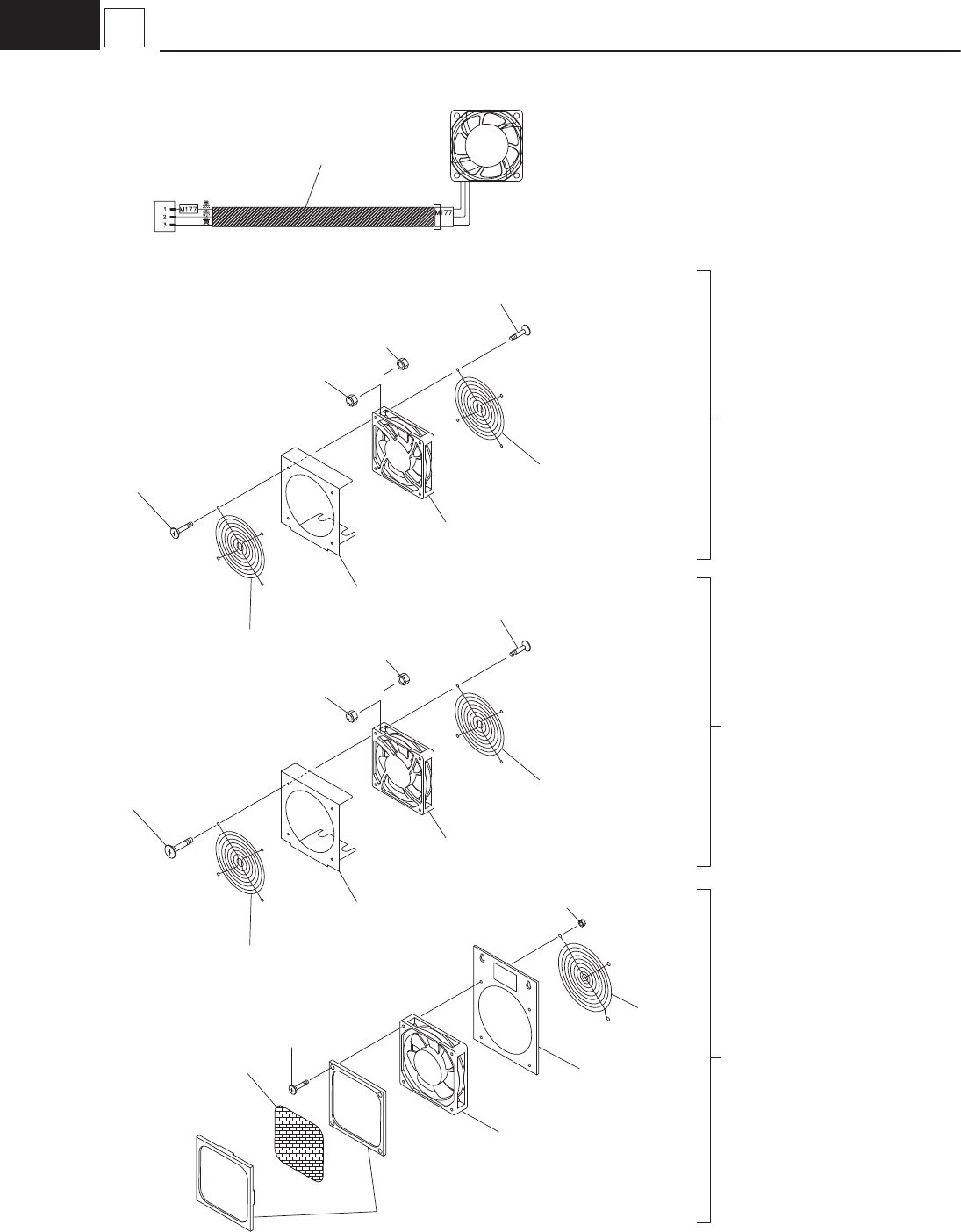

– 72 – D4 2006-009 3 Fan (M105, M107, M108) 202 201 203 203 213 214 215 202 204 M105 205 205 204 201 203 203 210 208 209 204 212 21 1 207 204 M107 M108 205 205 205 204
– 71 –
DC POWER SUPPLY SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYB-M410M-00 1005BA2E UNIT-POWER-ATX 1
102 KYB-M410X-00 1010BA4Y BRACKET_ATX 1
103 90990-11J010 221DA056 SCREW,PAN HEAD WW 2
110 KYB-M4100-00 1005BC4A HNS,ATX-MAIN 1
111 KYB-M4101-00 1005BC4B HNS,ATX-HD 1
112 KYB-M4102-00 1005BC4C HNS,ATX12V 1
113 KYB-M410L-00 0921A024 COIL-TUBE 1
– 73 –
DC POWER SUPPLY SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201 KYX-M652W-00 BRACKET,LOW-PF,FAN 2
202 KYX-M6525-00 FAN ASSY-M105 1
203 KYB-M65AM-00 23M00062 ACCESSORY-MOT-M 2
204 91312-04050 BOLT,HEX.SOCKET HEAD 12 M4L12
205 95302-04600 221FA007 NUT,HEXAGON 12
207 KYX-M65FU-00 FAN ASSY.M107 1
208 KYA-M655S-00 1005BA4D PANEL 1
209 KYX-M65FV-00 FAN ASSY.M108 1
210 KLF-M4187-20 FAN GUARD 120MM 1
211 KYA-M656G-00 23M00064 ACCESSORY-MOT-M 1
212 KYB-M410J-00 0914BA17 FAN_SUPPORT 1
213 KYX-M65FY-00 FAN ASSY.M105 1
214 KYX-M65G1-00 FAN ASSY.M107 1
215 KYX-M65G2-00 FAN ASSY.M108 1
