BEAM SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
103 KYB-M260D-00 0914DA0Y Y_MOTOR 4
104 KYB-M260B-00 0914DA0W Y_MAG_672 4
105 KYB-M260C-00 0914DA0X Y_MAG_480 2
107 KYB-M2208-00 1010DC4B COVER_MAGNET_Y1 4
108 KYB-M2209-00 1010DC4C COVER_MAGNET_Y2 4
109 KYB-M260L-00 211FD946 BRACKET 2
118 KYX-M2602-00 BRACKET,Y-CABLE 2
122 KYX-M260W-00 BRACKET,Y-BA-T2 2
123 KYX-M260G-00 Y_CBLFIX_BB_T2 2
124 KYX-M2612-00 PLATE,Y-CABLE FIX 2 2
139 91312-06035 221AA047 BOLT HEX,SOCKET HEAD 176 M6L35
141 90990-66J017 221DA221 SCREW,TRUSS HEAD 20 TRS M5L8
142 90990-66J013 221DA208 SCREW,TRUSS HEAD 14 TRS M4L8
143 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 8 M5L12
144 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 8 M4L10
– 92 –

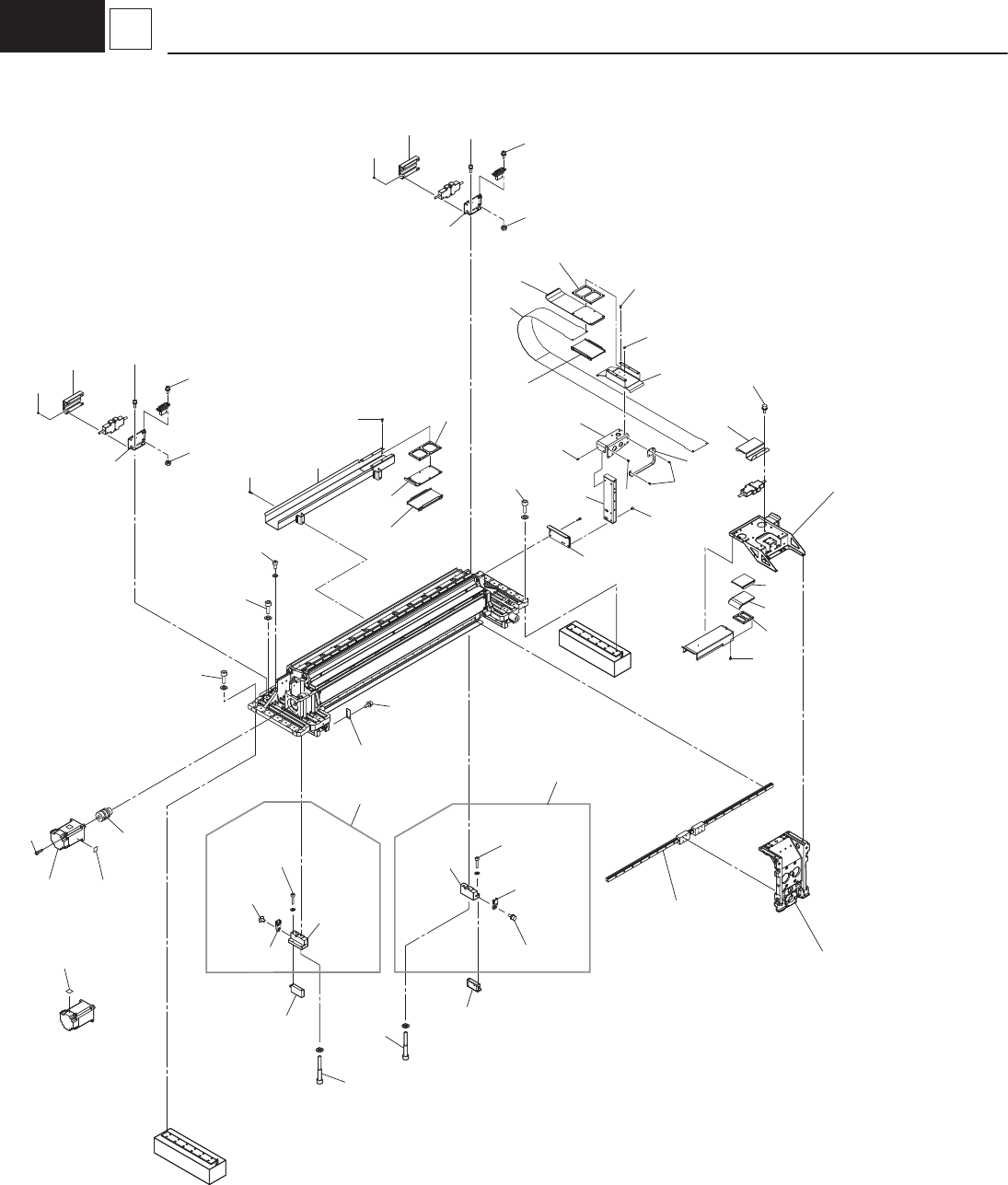

E1
2006-009
3 X Axis Base
See Fig E1-4
Key No.321
See Fig E1-4
Key No.328
See Fig E1-4
Key No.313
252
233
231
232
258
251
215-01
215-05
214-06
238
248
214-03
214-04
298
299
214-05
214-01
214
238
248
215
215-03
215-04
237
238
246
237
238
246
235
236
211
211
259
256
260
261
210
210
252
252
244
230
229
228
206
240
227
217
226
225
220
212
237
251
262
251
251
257
249
213
244
250
255
255
253
253
(rear side)
(front side)
244
244
247
247
215-06
See Fig E1-1
Key No.33
See Fig E1-1
Key No.33
– 93 –
BEAM SECTION
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
206 KYX-M220A-00 1010DC57 BRACKET,X-CABLE 1
210 KYX-M263W-00 COVER,CONNECTOR Y 2
211 KYX-M263U-00 BRACKET,CONNECTOR Y 2
212 KYB-M220F-00 1010DC2V X_MOTOR 1
213 KYB-M220J-00 1010DC4Q COUPLING 1
214 KYB-M260N-00 10103C5L ASSY_ENCODER_Y-L 2
214-01 KYB-M2610-00 1010DC5B Y_SCALE_BLOCK-1 2
214-03 91312-03014 221AA009 BOLT,HEX.SOCKET HEAD 4 M3L14
214-04 92902-03200 221HA103 WASHER,PLAIN 4 FW3
214-05 KYB-M65AW-00 23N30632 WIRING 2
214-06 90990-66J012 221DA207 SCREW,TRUSS HEAD 2 TRS M4L6
215 KYB-M260P-00 10103C5M ASSY_ENCODER_Y-R 2
215-01 KYB-M2611-00 1010DC5C Y_SCALE_BLOCK-2 2
215-03 91312-03014 221AA009 BOLT,HEX.SOCKET HEAD 4 M3L14
215-04 92902-03200 221HA103 WASHER,PLAIN 4 FW3
215-05 KYB-M65AW-00 23N30632 WIRING 4
215-06 90990-66J012 221DA207 SCREW,TRUSS HEAD 4 TRS M4L6
220 KYX-M2629-00 FRAME,PILLAR STAND 2
225 KYX-M2617-00 BRACKET,Y-CABLE FIX 2
226 KYX-M260J-00 BRACKET,SPACER Y1 2
227 KYX-M260K-00 BRACKET,Y-CABLE HOLD 2
228 KYX-M260X-00 BRACKET,SPACER Y2 2
229 KYX-M2615-00 BRACKET,CABLE UP Y1 2
230 KYX-M260Y-00 PLATE 2
231 KYX-M2613-00 BRACKET 2
232 KYX-M2614-00 BRACKET 2
233 KYX-M260E-00 COVER,CONNECTOR X 2
235 91312-08016 221AA055 BOLT,HEX.SOCKET HEAD 48 M8L16
236 92902-08600 221HA207 WASHER,PLAIN 48 FWS8
237 91312-05014 221AA120 BOLT,HEX.SOCKET HEAD 48 M5L14
238 92902-05200 221HA105 WASHER,PLAIN 56 FW5
240 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 6
243 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 8 M5L12
244 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 30 M4L10
245 90990-11J009 221DA051 SCREW,PAN HEAD WW 8 PAN M3L6+SW+FW
246 92902-05100 221HA005 WASHER,SPRING 46 SW5
247 95302-03600 221FA005 NUT,HEXAGON 4 M3
248 91312-05040 221AA036 BOLT,HEX.SOCKET HEAD 8 M5L40
249 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 8 M5L16
251 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 12 M4L6
252 90990-11J016 221DA053 SCREW,PAN HEAD WW 16 PAN M4L6+SW+FW
253 KYB-M2604-00 10103C6K ASSY_LABEL_HIGH_TEMP 1
255 90990-11J010 221DA056 SCREW,PAN HEAD WW 8 PAN M3L8+SW+FW
256 KYX-M2631-00 BRACKET,PILLAR UPPER 2
257 KYX-M2603-00 BRACKET,PILLAR FIX 2
258 KYX-M2634-00 PLATE,X-CABLE FIX 1 2
259 KYX-M2635-00 PLATE,Y-CABLE FIX 1 2
260 KYX-M263E-00 TAPE,Y-CABLE GUARD 2
261 90990-66J011 221DA217 SCREW,TRUSS HEAD 8
262 KYX-M261B-00 BRACKET,CABLE GUALD 2
