SIPLACE Setup Center RF 2.1 - Tools Installation Manual – SIPLACE Trace Config Assistant
Step 7: Update Progress and Finish
In this step you can see the update process. The current object in progress is displayed.
Press “finish” to close the SIPLACE Trace Config Assistant.

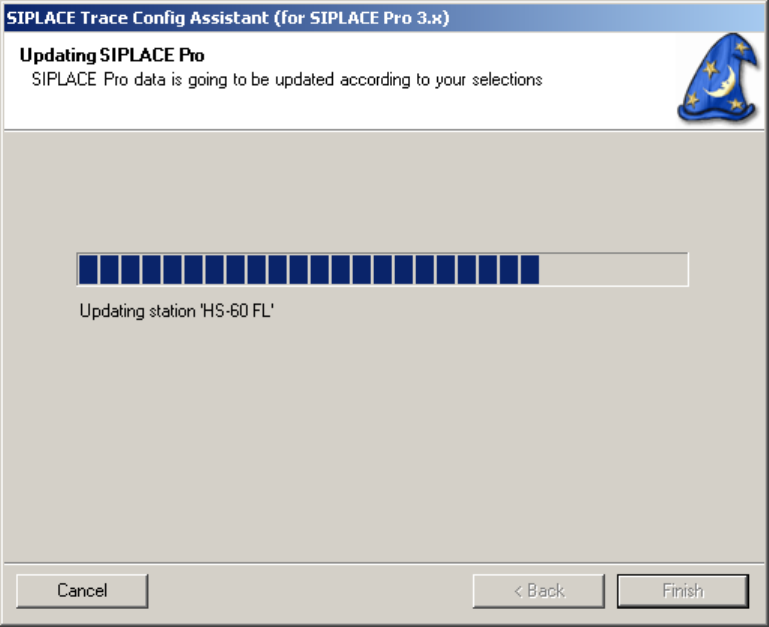

Figure 9 "Update Progress and Finish" page
18 von 20
Installation Manual – SIPLACE Trace Config Assistant SIPLACE Setup Center RF 2.1 - Tools
19 von 20
-
