Step 2: Component Selection

In this step you can select what components will be updated in the following steps. It is possible to select

either all components or components that are used with a specific type of feeder.

Figure 6 "Component Selection" page

13 von 20

SIPLACE Setup Center RF 2.1 - Tools Installation Manual – SIPLACE Trace Config Assistant

Step 3: Verification Mode

In this step you can select the verification mode settings for the components selected in the last step.

“Without forced verification” will clear the “Validate” flag in SIPLACE Pro, “With Forced Verification” will

set it. In addition to this you can set the traceability and splice detection flags.

Figure 6 "Verification Mode" page

These settings are relevant if you use the SIPLACE Component Level indicator and

Traceability options on the stations.

14 von 20

Installation Manual – SIPLACE Trace Config Assistant SIPLACE Setup Center RF 2.1 - Tools

Step 4: Feeder Pitch

In this step you can update the feeder pitch of the selected components from Step 2.

You can select to reset the values, to update new ones or to update all components.

The Feeder Pitch is calculated from the component size and its pickup angle. In a few cases the

calculation may differ from the actual value and needs to be adjusted manually in SIPLACE Pro.

The feeder pitch is used to determine the component threshold for the remaining length of a reel.

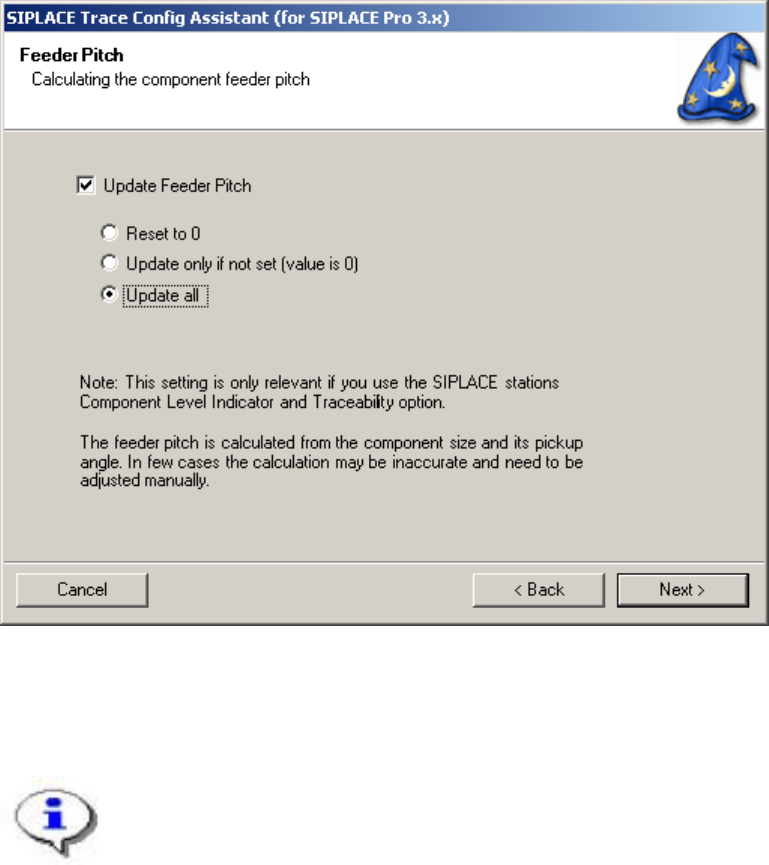

Figure 7 "Feeder Pitch" page

These settings are relevant if you use the SIPLACE Component Level indicator and

Traceability options on the stations.

15 von 20
