Installation Manual – SIPLACE Trace Config Assistant SIPLACE Setup Center RF 2.1 - Tools Step 6: Verify Selections In this step you can verify the selection. The update pro cess of the SIPLACE Pro data will start when “n…

SIPLACE Setup Center RF 2.1 - Tools Installation Manual – SIPLACE Trace Config Assistant

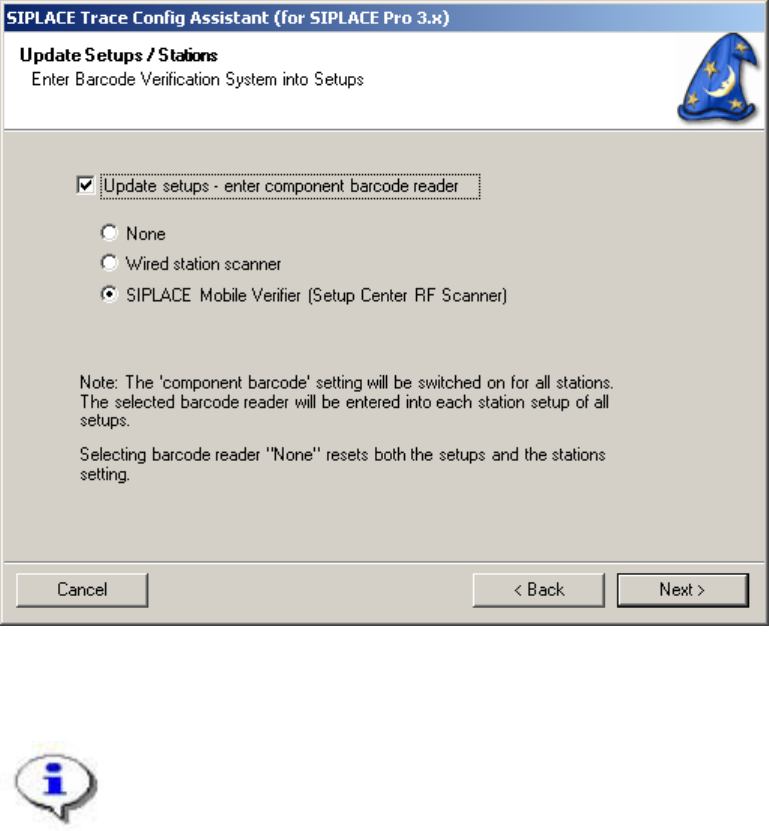

Step 5: Update Setups / Stations

In this step you can update all Setups with the component barcode reader.

Options are to enter no barcode reader, the wired station scanner or SIPLACE Mobile Verifier. Latter is

used by SIPLACE Setup Center RF.

Figure 8 "Update Setups / Stations" page

These settings are relevant if you use the SIPLACE Component Level indicator and

Traceability options on the stations.

16 von 20

Installation Manual – SIPLACE Trace Config Assistant SIPLACE Setup Center RF 2.1 - Tools

Step 6: Verify Selections

In this step you can verify the selection. The update process of the SIPLACE Pro data will start when

“next” is pressed.

Figure 8 "Verify Selections" page

17 von 20

SIPLACE Setup Center RF 2.1 - Tools Installation Manual – SIPLACE Trace Config Assistant

Step 7: Update Progress and Finish

In this step you can see the update process. The current object in progress is displayed.

Press “finish” to close the SIPLACE Trace Config Assistant.

Figure 9 "Update Progress and Finish" page

18 von 20
