43-D 3ノズルヘ ッド V2 3 Nozz le Head V2 パーツレイアウト Kit No. キット品番 Kit Name キット名称 MTKA009365A A セクシ ョンNo. PARTS LAYO UT Section No. - - O147 ( KMTKA009365AA-10 -4 )
Ref
No.
Remarks R
1
Q'ty
43-C
3ノズルヘッド V2
3 Nozzle Head V2
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA009365AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
BRACKET
1
1 N210199398AB
BRACKET
2
2 MTPB013975AA
BRACKET
1
3 MTPB001159AC
BRACKET
1
4 MTPB002363AB
BRACKET
1
5 MTPB002364AB
BOLT
3
6 N510017534AA
SSS 003 Hexagon socket button head screw M4X6-10.9 A2J (Trivalent)
REGULATOR
1
8 MTNP000178AC ITV0030-2N-DIW00449
SPACER
4
9 N510064234AA ASL-325E
SPACER
2
10 N510062870AA ASL-330E
JOINT
1
12 N510066671AA KQ2R04-06A
CLIP
12
13 KXF0BLPAA00 TA1S8-M
O146
--
( KMTKA009365AA-10-3 )

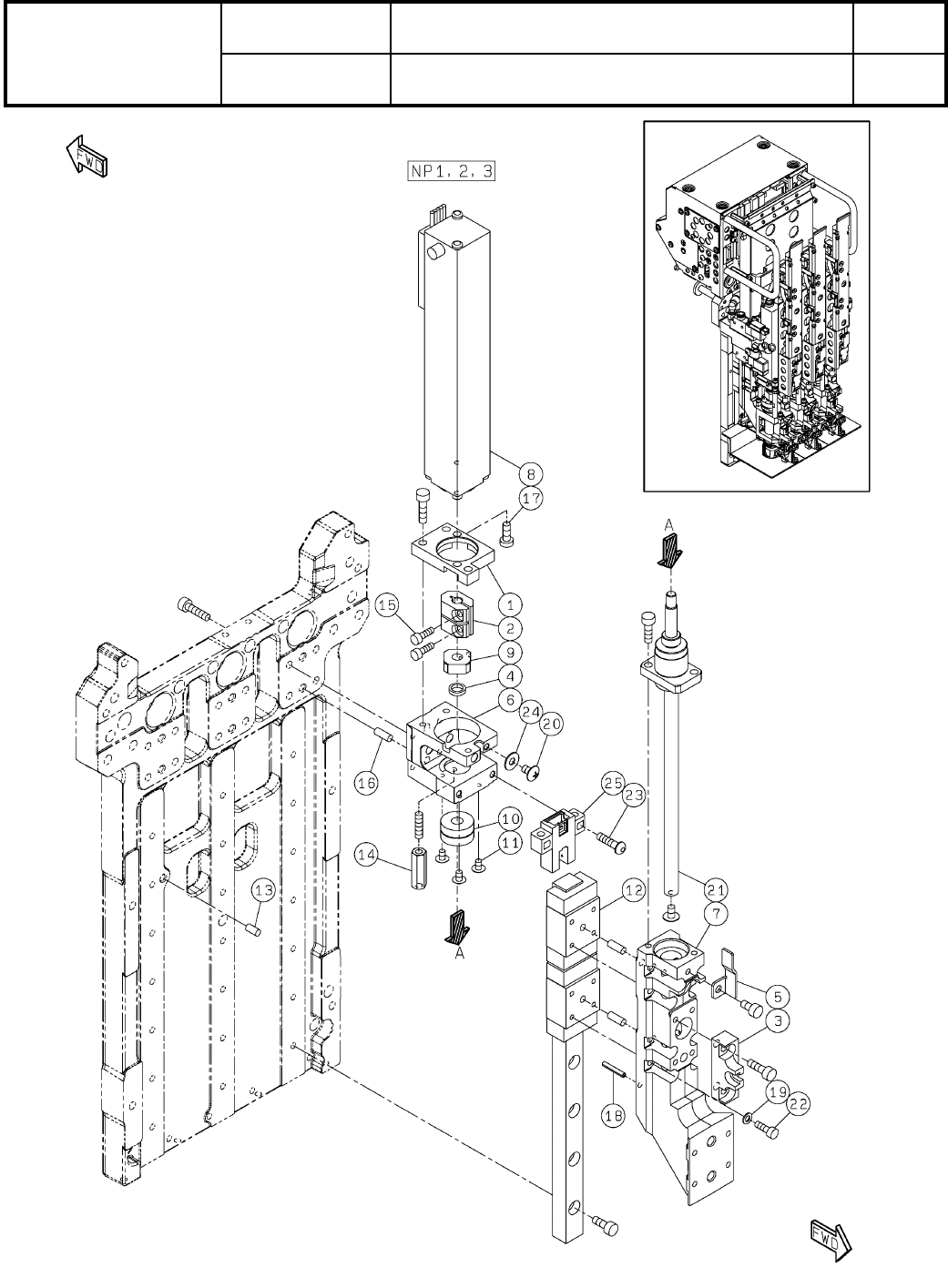

43-D
3ノズルヘッド V2
3 Nozzle Head V2
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
MTKA009365AA
セクションNo.
PARTS LAYOUT
Section No.
--
O147
( KMTKA009365AA-10-4 )
Ref
No.
Remarks R
1
Q'ty
43-D
3ノズルヘッド V2
3 Nozzle Head V2
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA009365AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
3
1 MTPS000820AA
COUPLING
3
2 N210199414AD
BRACKET
3
3 MTKA014917AA
WASHER
3
4 N210200236AA
DOG
3
5 N210199428AB
HOLDER
3
6 MTKP006175AA
BLOCK
3
7 MTKP003184AC
MOTOR
3
8 MTNM000021AB
S
R2GA02D15FCSP2
NUT
3
9 MTNK001843AA KR20 LOCKNUT SET(RN5+M2.6TAP1)-3342908
BEARING
3
10 N510069570AA AC5-14DF
SCREW
9
11 N510018225AA
Cross recessed Truss head machine screw M2.5X4-4.8 A2J (Trivalent)
LINEAR-WAY
3
12 MTNB000069AA MXD10C2R182SLE005
PIN
1
13 KXF0DAHAA00 1624701-30060
SPACER
3
14 MTNK000577AA ASL-317.5E
BOLT
6
15 N510017247AA
Hexagon socket head cap screw M2.5X8-10.9 A2J (Trivalent)
PIN
9
16 N510020589AA MMS3-8
BOLT
6
17 N510067765AA Low Head Cap Screw M3X8-8.8 A2J(Trivalent)
SPRING-PIN
3
18 N510029368AA 1017003-20012
WASHER
24
19 N510018476AA
Small round-plain washer 2.6 10H A2J (Trivalent)
SCREW
6
20 N510018251AA
Cross recessed Truss head machine screw M3X5-4.8 A2J (Trivalent)
BALL-SCREW
3
21 N510069546AC BLK0608S-3.3GT+154LCp5R(B)(33095316K014)
BOLT
24
22 N510017252AA
Hexagon socket head cap screw M2.6X8-10.9 A2J (Trivalent)
BOLT
6
23 N510018824AA
SSS 003 Hexagon socket button head screw M3X12-10.9 A2J (Trivalent)
WASHER
3
24 N510033229AA CC-0308-05
SENSOR
3
25 MTNS000145AA PM-K65
O148
--
( KMTKA009365AA-10-4 )
