55-C 汎用型転写ユニット (メカ):NPM MU LTIFUNCTIONAL TRANSFER UNIT :NPM パーツレイアウト Kit No. キット品番 Kit Name キット名称 N610095857A B セクシ ョンNo. PARTS LAYO UT Section No. - - O189 ( KN610095857AB-06 -3 )
Ref
No.
Remarks R
1
Q'ty
55-B
汎用型転写ユニット(メカ):NPM
MULTIFUNCTIONAL TRANSFER UNIT:NPM
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610095857AB
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
GUIDE
1
1 N210184922AC
PLATE
1
2 N210075276AF
BLOCK
1
3 N210117795AB
PLATE
1
4 N210184923AB
TABLE
1
5 N210125586AE
PLATE
1
6 N210074851AB
BLOCK
1
7 N210074852AB
BRACKET
1
8 N210066083AD
OPERATING-SW
1
9 N610048204AA
SEAL
1
10 KXF0DWTLA00 NP(DA KXF0DWTLA00)
BOX
1
11 KXFA1L1BA02
SWITCH
1
12 N510014002AA SK-P-QMSF2
LINEAR-WAY
2
14 N510031641AA ML15C2R320E162
PIN
1
15 N986MMS410 MMS4-10
PIN
5
16 N510026048AA 1010801-30014
PLUNGER
2
17 N510060654AA PSS-6-1
PULL
1
18 N982THA3882 THA-31SUS-4-TAP LEG
AMPLIFIER
1
19 N510026696AA FX-301P
BRACKET
1
20 N510007457AA MS-DIN-2
SPACER
2
21 N510027939AA C-2604
NUT
2
23 N510017869AA
Hexagon nut Type-3 Best class M6-6H-4T A2J (Trivalent)
SCREW
2
24 XSN25+14YW
Cross recessed Pan head machine screw M2.5X14-A2-70
BRACKET
2
25 N210187881AA
PIN
2
26 N510020590AA MMS3-10
TABLE-KIT
1
27 N610102731AD
PIN
2
28 N510020589AA MMS3-8
SHEET
2
29 N210184921AA
COVER
1
30 N210184918AA
BRACKET
1
31 N210184919AA
BRACKET
1
32 N210184920AA
SCREW
2
33 XSS2+6VW
Cross recessed Countersunk head machine screw M2X6-A2-70
SCREW
2
34 XSN2+4VW
Cross recessed Pan head machine screw M2X4-A2-70
WASHER
2
35 N510018492AA
Round finish plain washer 2 10H A2J (Trivalent)
O188
--
( KN610095857AB-06-2 )

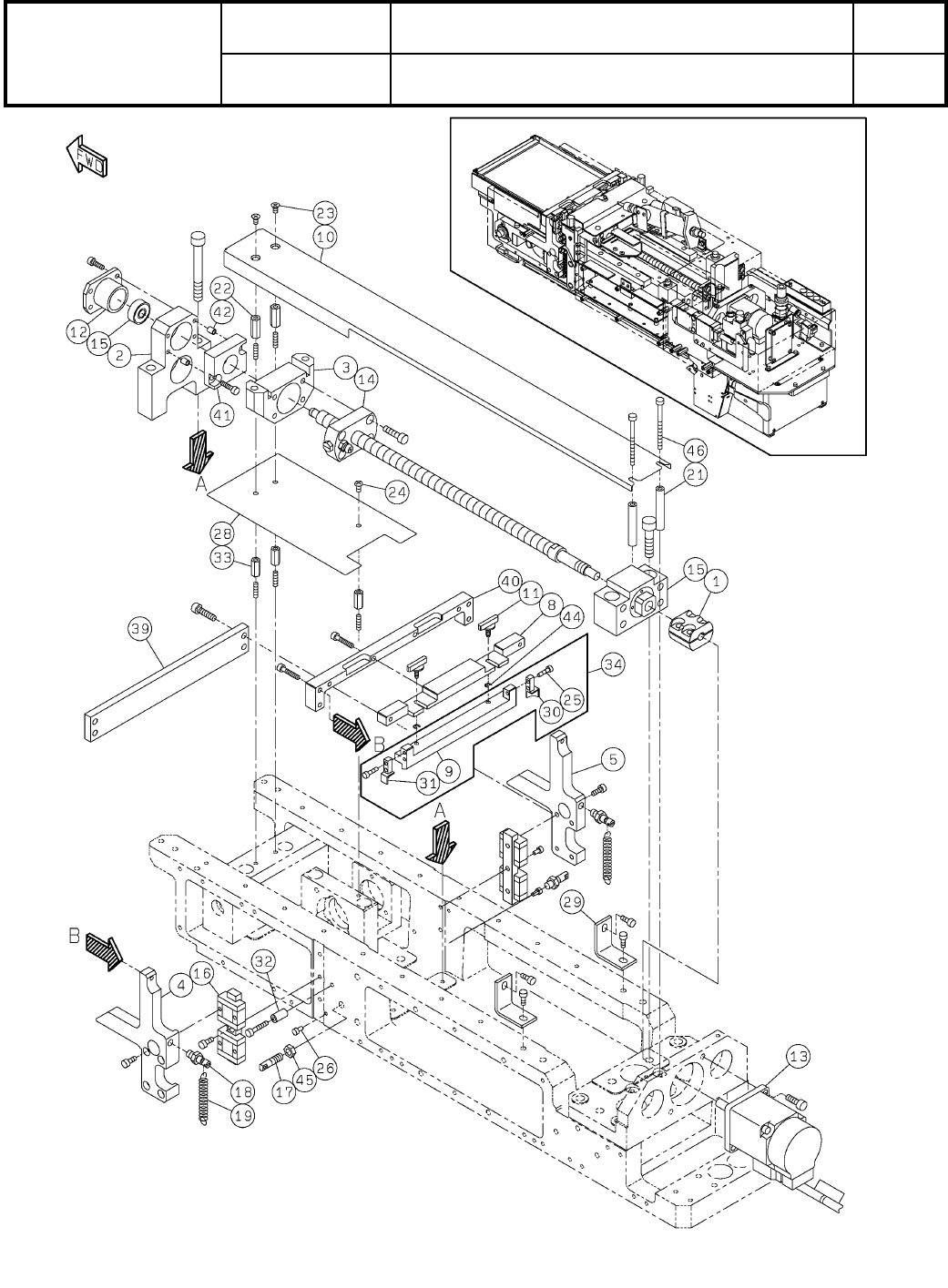

55-C
汎用型転写ユニット(メカ):NPM
MULTIFUNCTIONAL TRANSFER UNIT:NPM
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610095857AB
セクションNo.
PARTS LAYOUT
Section No.
--
O189
( KN610095857AB-06-3 )
Ref
No.
Remarks R
1
Q'ty
55-C
汎用型転写ユニット(メカ):NPM
MULTIFUNCTIONAL TRANSFER UNIT:NPM
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610095857AB
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
COUPLING
1
1 KXFB01V1A00
BRACKET
1
2 N210125480AB
HOLDER
1
3 N210063077AE
PLATE
1
4 N210122329AB
PLATE
1
5 N210122330AB
PLATE
1
8 N210172666AA
SQUEEGEE
1
9 N210184809AA
COVER
1
10 N210117434AA
KNOB
2
11 N210175891AA
FLANGE
1
12 N210069927AC
MOTOR
1
13 N610069411AB
S
BALL-SCREW
1
14 N510026043AC W1002-467PSS-C5Z5
SUPPORT-UNIT
1
15 KXF0BBMAA00 WBK08-01A
LINEAR-WAY
2
16 N510026044AA LWLC9C2R60BE140
POST
2
17 N210158674AA
POST
2
18 N510056925AA SPOS-M5X20-B
SPRING
2
19 N510011475AA 2131
SPACER
2
21 N510030908AA CB-335E
SPACER
2
22 N510032781AA KSB-316AE
SCREW
26
23 XSS3+6VW
Cross recessed Countersunk head machine screw M3X6-A2-70
SCREW
15
24 XSN3+6VW
Cross recessed Pan head machine screw M3X6-A2-70
BOLT
4
25 XVE25B10FTC
Hexagon socket head cap screw M2.5X10-12.9 SOB
BOLT
2
26 XVE25B4FTC
Hexagon socket head cap screw M2.5X4-12.9 SOB
COVER
1
28 N210117430AA
BRACKET
2
29 N210075279AA
BLOCK
1
30 N210184849AB
BLOCK
1
31 N210184850AB
SPACER
2
32 KXF0BPKAA00 CU-311
SPACER
3
33 N510029471AA ASF-313E
SQUEEGEE-KIT
1
34 N610160089AB
PLATE
1
39 N210117441AA
PLATE
1
40 N210172665AB
STOPPER
1
41 N210125481AA
SPACER
2
42 N510036039AA 3382330-30050
E-RING
2
44 KXF01X6AA00 ETW-1.5
NUT
4
45 XNG5CVW Hexagon nut Type-3 Best class M5-6H-A2-70
BOLT
2
46 N510017329AA
Hexagon socket head cap screw M3X40-10.9 A2J (Trivalent)
O190
--
( KN610095857AB-06-3 )
