REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-48941 SIDECOVERL 1
2 400-49942 REARCOVERCTSILK 1
3 400-48926 WINDOWS 1
4 400-48894 EMBEDDEDPULLS 1
5 400-53447 TOPCOVERL 6
6
#01
E6209-723-000 TOPCOVERL(CE) 6
7
#01
E6215-723-000 JOINTCOVERBR(CE) 2
8 400-48926 WINDOWS 2
9 SM-0041201-SA SCREWM4X0.7L=12 8
10 NM-6040001-SC NUTM4 8
11 WS-0410002-KN SPRINGWASHER 8
12 WP-0430801-SC WASHER4.3X9X0.8 8
13 400-53448 TOPCOVERR 6
14
#01
E6210-723-000 TOPCOVERR(CE) 6
15 400-48947 DOORCOVER 2
16 SM-0040601-SC SCREWM4X0.7L=6 8
17 400-48926 WINDOWS 1
18
#01
E6212-723-000 BRACKERCOVER(CE) 1
19
#02
E2411-723-000 BREAKERCOVERB 1
20 400-48949 REARCOVERR 1
21 HX-0033900-0D SPACER 6
22 SM-0040601-SC SCREWM4X0.7L=6 6
23
#01
400-98346 RETAININGWASHERM4 6
24 400-48948 REARCOVERL 1
25 HX-0033900-0D SPACER 4
26 SM-0040601-SC SCREWM4X0.7L=6 4
27
#01
400-98346 RETAININGWASHERM4 4
28 HX-0032600-0M DOMEPLUG 2
29 400-48942 SIDECOVERR 1
30 SM-0040601-SC SCREWM4X0.7L=6 6
31
#01
400-48926 WINDOWS 2
32
#01
SM-0041201-SA SCREWM4X0.7L=12 8
33
#01
NM-6040001-SC NUTM4 8
34
#01
WS-0410002-KN SPRINGWASHER 8
35
#01
WP-0430801-SC WASHER4.3X9X0.8 8
36 400-48951 FRONTCOVERB 1
37 SM-0040601-SC SCREWM4X0.7L=6 4
38 400-48944 FRONTCOVERL 1
39 SM-0040601-SC SCREWM4X0.7L=6 6
40 400-48946 FRONTCOVERU 1
41
#01
400-49279 FRONTCOVERU 1
42 SM-0040601-SC SCREWM4X0.7L=6 4
43
#01
E6216-723-000 JOINTCOVERPL(CE) 2
44
#01
400-50026 JOINTCOVERL5D 3
45
#02
400-94914 JOINTCOVERL5D 1
46 400-48943 SIDECOVERU 1
47 SM-0040601-SC SCREWM4X0.7L=6 4
48 400-48952 SIDECOVERUR 1
49 SM-0040601-SC SCREWM4X0.7L=6 4
50 400-48945 FRONTCOVERR 1
51 SM-0040601-SC SCREWM4X0.7L=6 6
52
#01
400-50025 JOINTCOVERR5D 3
53
#02
400-94915 JOINTCOVERR5D 1
54 400-48894 EMBEDDEDPULLS 1
- -

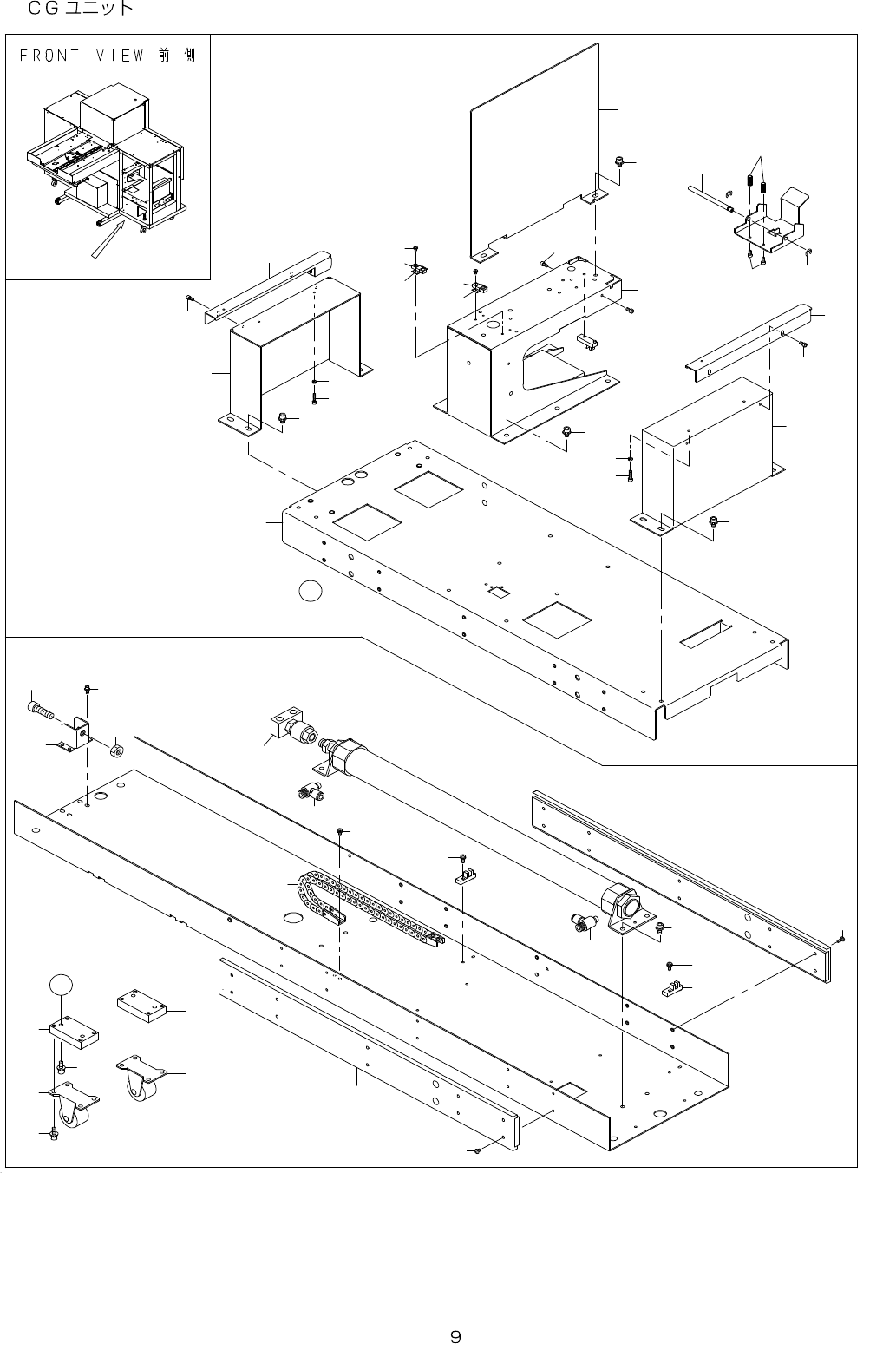

5. CGUNIT
1
2
4
5
7
6
1 0
1 3
1 4
1 4
1 5
2 8
2 6
2 9
3 3
3 3
8
3 5
3 6
9
3 6
1 8
3 0
3 4
3 4
2 7
2 7
1
2 9
3 1
3 2
3 1
3 2
1 9
2 2
2 3
2 1
2 0
4 1
A
4 0
1 7
1 6
1 6
1 7
3 7
3 8
3 9
2 5
1 2
1 2
3 8
3 7
2 4
2 4
1 1
4 2
3 5
3
A
- -

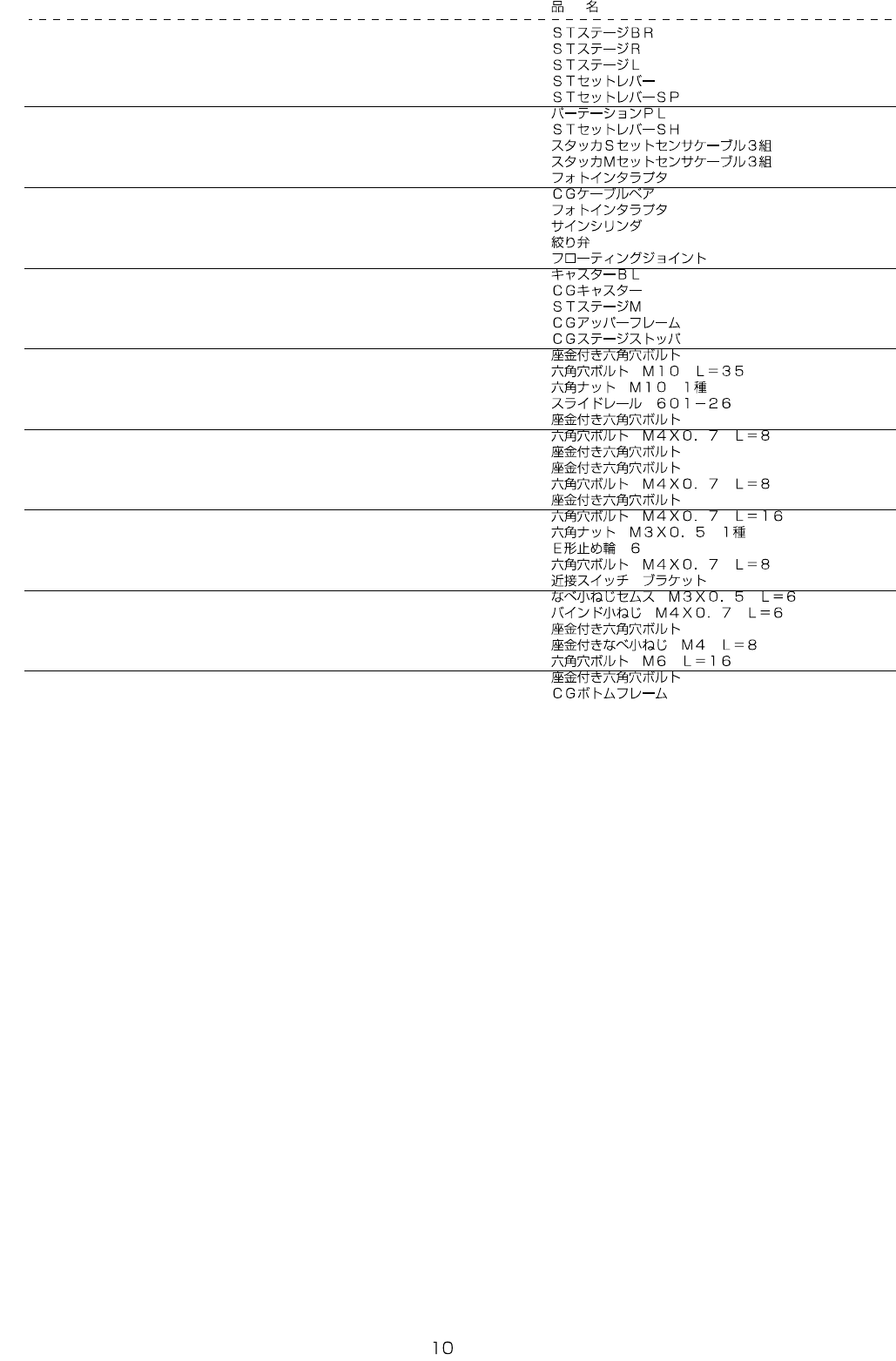

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-49103 STSTAGEBR 2
2 400-49102 STSTAGER 1
3 400-49101 STSTAGEL 1
4 E6058-723-000 STSETLEVER 1
5 E6060-723-000 STSETLEVERSP 2
6 400-48936 PARTITIONPL 1
7 E6059-723-000 STSETLEVERSH 1
8 400-49533 STKSSETSENSORCABLE3ASM 1
9 400-49530 STKMSETSENSORCABLE3ASM 1
10 HD-0017100-00 PHOTOSENSOR 1
11 E6053-723-000 CGCABLEBARE 1
12 HD-0017100-00 PHOTOSENSOR 2
13 PA-4045001-A0 SIGNCYLINDER 1
14 PC-0252020-00 THROTTLEVALVE 2
15 PA-9000680-00 FLOATINGJOINT 1
16 E6056-723-000 CASTERBL 2
17 E6055-723-000 CGCASTER 2
18 400-49262 STSTAGEM 1
19 400-48935 CGUPPERFRAME 1
20 400-48937 CGSTAGESTOPPER 1
21 SL-6041092-TN SCREW 4
22 SM-6103502-TP SCREWM10L=35 1
23 NM-6100001-SC NUTM10X1.5 1
24 E6052-723-000 SLIDERAIL601-26 2
25 SL-6061292-TN SCREW 4
26 SM-6040802-TN SCREW 2
27 SL-6061092-TN SCREW 8
28 SL-6061092-TN SCREW 6
29 SM-6040802-TN SCREW 2
30 SL-6061092-TN SCREW 4
31 SM-6041602-TN SCREWM4X16 4
32 NM-6030001-SC NUTM3 4
33 RE-0600000-K0 E-RING6 2
34 SM-6040802-TN SCREW 2
35 E3020-700-000 PROXIMITYSENSORBRACKET 2
36 SL-4030691-SC SCREWM3X6 4
37 SM-5040601-SC SCREWM4X0.7L=6 20
38 SL-6061292-TN SCREW 2
39 SL-4040891-SC SCREWM4L=8 4
40 SM-6061602-TN SCREWM6L=16 4
41 SL-6061692-TN BOLT 8
42 400-48933 CGBOTOMFRAME 1
