REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-49100 STGUIDERAIL5D 4
2 400-51573 BALLCATCH 2
3
#02
400-52108 DOORSENSORBR 2
4
#02
HD-0017100-00 PHOTOSENSOR 2
5 E4508-717-000 DOORDAMPERSP 4
6 400-50094 DOORLOCKBR(CE) 2
7 400-45098 DOORMINTERLOCKSOL.ASM 1
8 400-45100 DOORSINTERLOCKSOL.ASM 1
9 E1055-717-000 DOORLOCKSP 2
10 E1524-716-000 DOORCUSHION 4
11 SL-6030892-TN SCREWM3L=8 4
12 E4559-717-000 DOORLOCKLEVER 2
13 HD-0005700-0A PHOTOSENSOR 2
14
#01
400-49626 DOORSOPENSWASM 1
15
#01
400-50026 JOINTCOVERL5D 1
16
#01
400-50025 JOINTCOVERR5D 1
17
#01
400-49621 DOORMOPENSWASM 1
18 SL-4030691-SC SCREWM3X6 4
19 NM-6030001-SC NUTM3 2
20 SM-6033002-TP SCREWM3L=30 2
21
#01
E6208-723-000 SAFETYSWBR(CE) 2
22
#01
SL-4040891-SC SCREWM4L=8 4
23
#01
SL-4043091-SC SCREWM4L=30 4
24 400-49278 DOORDAMPBRR 1
25 400-49277 DOORDAMPBRL 1
26 400-48786 DOORDAMPERBR 1
27 SL-6041092-TN SCREW 2
28 400-48894 EMBEDDEDPULLS 1
29
#02
SL-6041092-TN SCREW 4
30
#02
SL-4031291-SC SCREWM3X12 2
31 400-48854 DOORPLATE 4
32 NM-3040510-SL FLANGENUT 8
33 400-48926 WINDOWS 1
34 WP-1052001-SC WASHER10,5X21X2 8
35 E4503-717-000 DOORPIVOTPIN 4
36 RC-0100001-KP SNAPRINGM10 4
37 SL-6041092-TN SCREW 4
38 E6042-723-000 DOORBRC 2
39 E6043-723-000 DOORBRD 2
40 SL-4030691-SC SCREWM3X6 8
41 E6134-723-000 DOORSTAY5DR 2
42 SL-6041092-TN SCREW 8
43 E6133-723-000 DOORSTAY5DL 2
44 SM-6041202-TN SCREWM4X0.7L=12 2
45 NM-6040001-SC NUTM4 2
- -
7. ZUNIT
7
9
9
2
3
6
6 9
5
8
1 1
1 3
3 4
2 3
3 4
6 6
3 2
5 7
3 3
3 3
2 3
2 3
2 3
3 6
3 4
3 4
2 9
2 8
2 7
2 9
2 5
2 4
2 0
1 2
3 0
3 0
1 6
1 0
4 1
4 0
2 6
4 2
4 3
5 0
1 5
5 2
5 1
5 1
4 6
4 6
4 6
4 4
4 4
4 5
4 5
5 3
3 9
3 9
5 5
5 5
5 6
5 4
5 8
5 9
5 8
5 9
6 0
6 0
1 8
6 0
6 0
6 5
6 5
4 7
4 8
3 8
3 8
6 1
6 2
6 2
6 3
6 2
6 2
6 3
6 4
1 7
4
1
1 9
A
A
2 2
2 1
3 5
3 5
3 5
3 5
3 7
3 1
6 7
6 7
6 8
4 9
1 4
- -

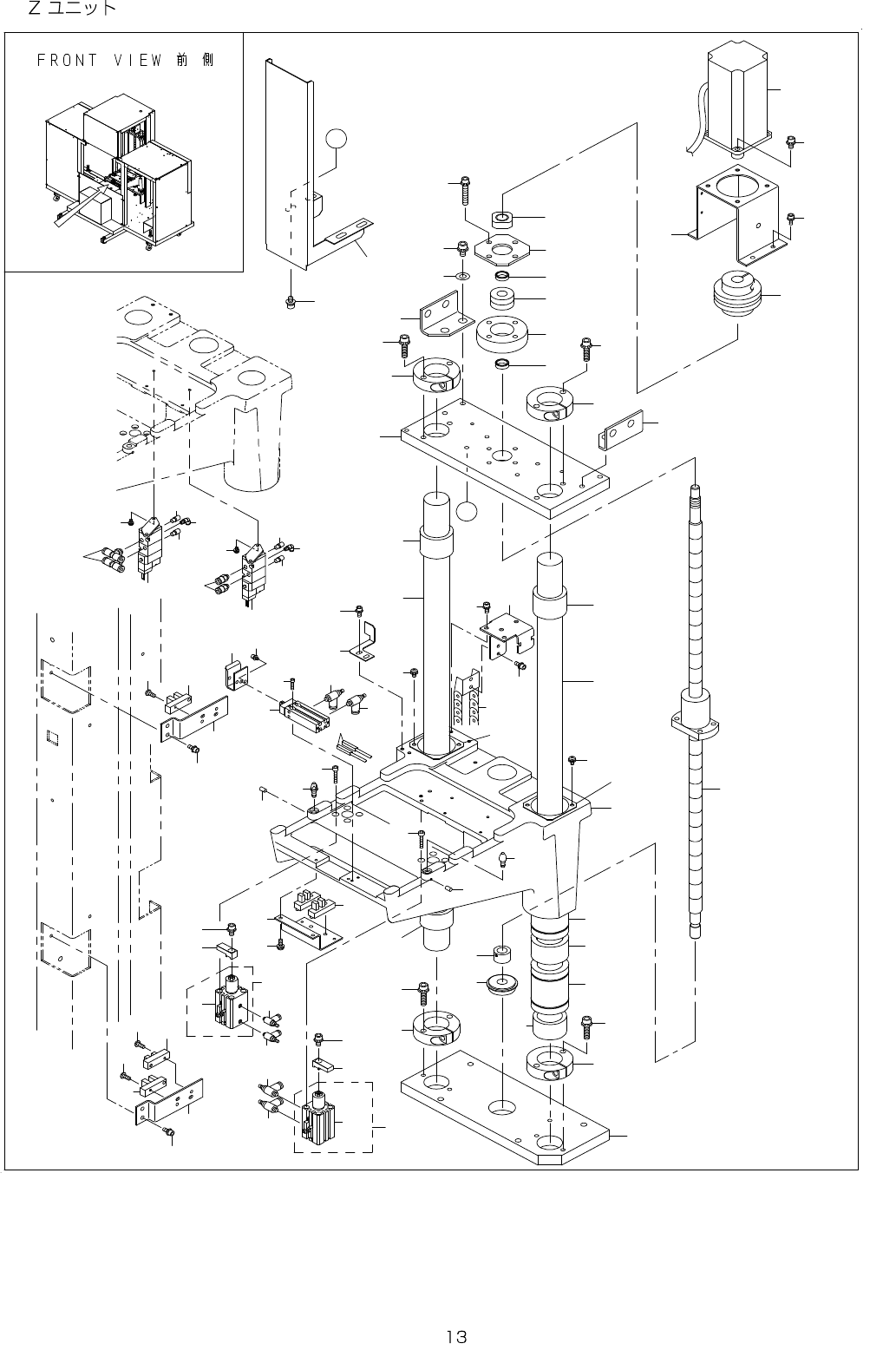

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-49564 STKCLAMPS.V.CABLE3ASM 1
2 400-49571 STKCLAMPLSENSORASM 1
3 PA-1601015-A0 ROTARYCLAMPCYLINDER 1
4 400-49561 SHTOPENS.V.CABLE3ASM 1
5 PA-0602003-B0 FREEMOUNTCYLINDER 1
6 HD-0017100-00 PHOTOSENSOR 1
7 400-48800 ZBALLSCREW 1
8 400-45703 SERVOMOTOR 1
9 HD-0017000-00 PHOTOSENSOR 2
10 400-48801 ZMOTORBR 1
11 E2070-723-000 ZMOTORCOUPLING 1
12 400-48928 ZBASEBRB 1
13 400-48927 ZBASEBRA 1
14 400-48932 BEARBR5D 1
15 400-48931 ZSENSDOG5D 1
16 400-48720 SHUTHOOK 1
17 400-49572 STKCLAMPRSENSORASM 1
18 PA-1601015-A0 ROTARYCLAMPCYLINDER (1)
19 HD-0017100-00 PHOTOSENSOR 2
20 400-48929 ZBASEU5D 1
21 400-54968 TRAYSTOPPER 1
22 SL-6051092-TN BOLT 4
23 E1312-717-000 ZDAMPER 4
24 E1268-726-000 LOCKNUTRN12 1
25 400-48683 ENDPLATE 1
26 SL-6053592-TN BOLT 4
27 400-69754 BEARING 1
28 E1266-726-000 COLLARROUND60 1
29 E1262-726-000 COLLARROUND12X5 2
30 E1315-717-000 ZLINEARBUSHINGSTOPPER 4
31 400-48721 SHUTSENSORBR 1
32 SB-1120001-00 BEARINGD=12X32 1
33 400-48802 ZSHAFT700 2
34 E1303-717-000 ZSHAFTSUPPORT 4
3
5 SL-6062592-TN SCREW 8
36 400-48938 ZBASEL6S 1
37 SL-4041281-SC SCREWM4X0.7L=12 2
38 SL-4030691-SC SCREWM3X6 4
39 SM-6042002-TN BOLT 8
40 SM-6051202-TN SCREWM5X0.8L=12 4
41 SL-6051092-TN BOLT 4
42 SL-6062092-TN SCREWM6L=20 4
43 WP-0841601-SC WASHER8.4X17.4X1.6 4
44 400-48930 ZSENSORBR5D 2
45 SL-6040892-TN BOLT 2
46 SM-4041001-SC SCREWM4X0.7L=10 3
47 E6081-723-000 ZCABLEBEAR 1
48 SL-6041092-TN SCREW 4
49 SL-6041092-TN SCREW 2
50 SL-6041092-TN SCREW 2
51 PC-0105080-00 SPEEDCONTROLLER 2
52 SM-6031202-TN SCREWM3X12 2
53 SL-6030692-TN BOLT 2
54 E6086-723-000 LOCATEPINB 1
55 E2250-525-000 SETSCREW 2
56 E6085-723-000 LOCATEPINA 1
57 400-48719 STACKERBASE 1
58 E6083-723-000 CLAMPARM 2
59 SL-6051042-TN SCREW 2
60 PC-0105080-00 SPEEDCONTROLLER 4
61 PJ-3050405-02 T-UNION 2
62 PX-0505010-00 SILENCER 4
63 PJ-3040405-05 ELBOW 2
64 PJ-2100043-00 UNION 2
65 SL-4040891-SC SCREWM4L=8 8
66 E6076-723-000 ZTHRUSTCOLLAR 1
67 E2008-716-000 LINEARBUSHING 4
68 E1314-717-000 ZLINEARBUSHINGSPACER
2
69 E9557-723-0A0 SHUTTERSENSORASM. 1
