TR5DNR_TR5DNX-Rev05 - 第23页

- - REF.NO NOTE PARTNO DESCRIPTION Qty 1 400-487 1 2 CHUCKGUIDELH 1 2 E3403-715-000 GUIDESPACER 2 3 E3404-700-000 THRUSTWASHER 4 4 E1430-726-000 CYLINDERBASEL 1 5 PA-1001524-A0 AIRCYLINDER 1 6 P…

100%1 / 58
- -
10.YUNIT(3)
2
3
9
1 0
1 1
1 2
1 4
1 5
1 6
2 1
1 7
1 8
2 5
2 2
2 3
2 4
2 0
1 9
3 0
3 1
3 2
3 3
2 8
3 4
3 7
8
4
5
6
7
2 6
2 7
3 8
3 8
1 3
3 5
3 6
2 9
1
4 9
5 0
5 1
5 2
5 3
5 4
5 5
5 0
4 9
3
2
3
3
5 3
5 4
1 5
1 5
1 5
1 6
5 6
2 8
4 1
4 2
3 9
4 8
4 7
4 0
4 4
4 3
4 6
5 7
5 8
5 9
6 0
6 2
6 1
6 8
7 0
6 9
7 2
6 7
6 6
6 5
6 4
6 3
7 1
7 1
3 8
7 7
7 8
7 9
7 6
7 5
7 4
7 3
4 5
4 5
4 6
- -

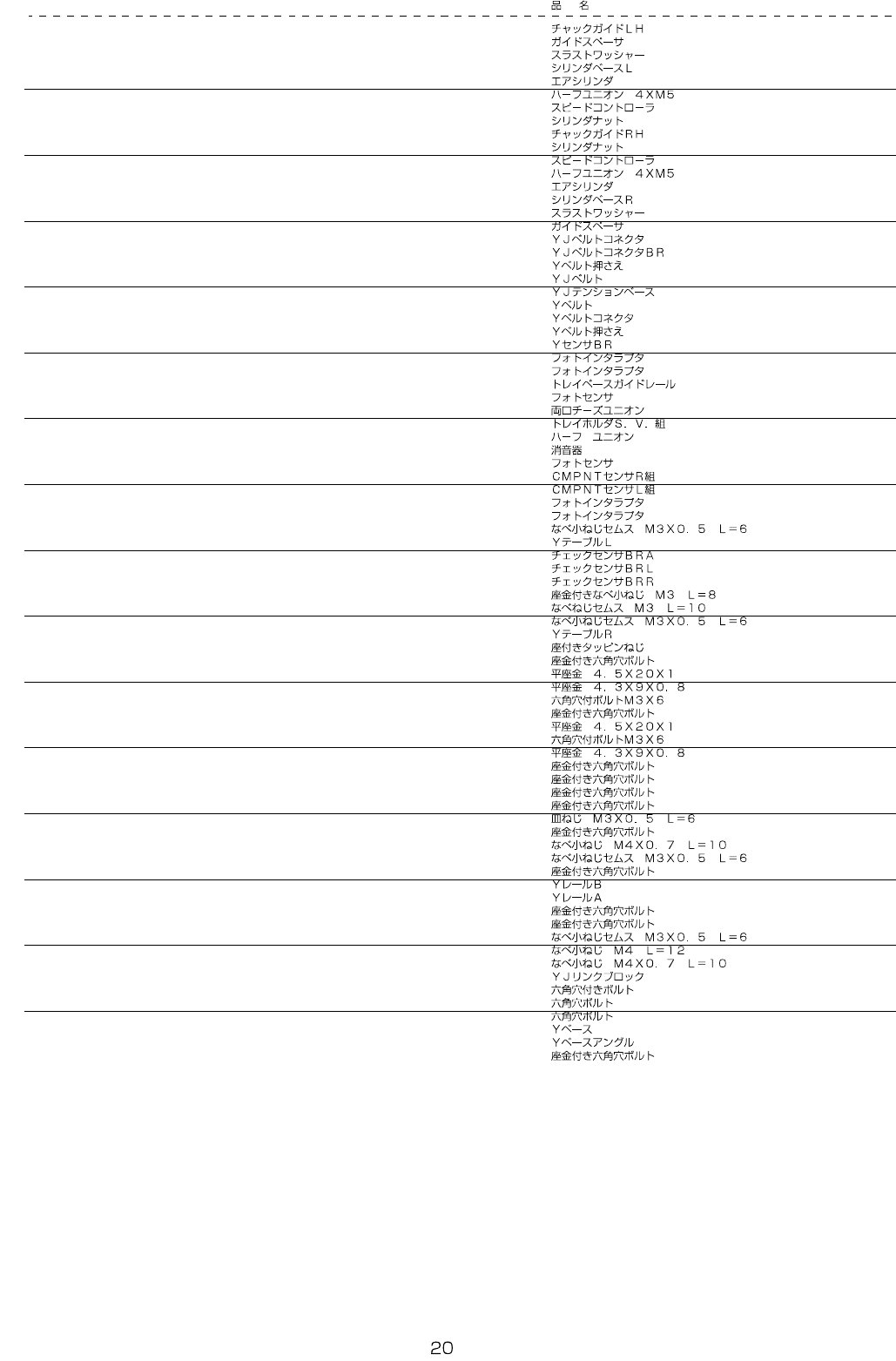

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-48712 CHUCKGUIDELH 1
2 E3403-715-000 GUIDESPACER 2
3 E3404-700-000 THRUSTWASHER 4
4 E1430-726-000 CYLINDERBASEL 1
5 PA-1001524-A0 AIRCYLINDER 1
6 PJ-3010405-02 HALFUNION4XM5 1
7 PC-0105080-00 SPEEDCONTROLLER 1
8 E1432-726-000 CYLINDERNUT 1
9 400-48713 CHUCKGUIDERH 1
10 E1432-726-000 CYLINDERNUT 1
11 PC-0105080-00 SPEEDCONTROLLER 1
12 PJ-3010405-02 HALFUNION4XM5 1
13 PA-1001524-A0 AIRCYLINDER 1
14 E1440-726-000 CYLINDERBASER 1
15 E3404-700-000 THRUSTWASHER 4
16 E3403-715-000 GUIDESPACER 2
17 E1320-726-000 YJBELTCONNECTOR 1
18 400-48910 YJBELTCONNBR 1
19 E1317-726-000 YBELTPRESSER 1
20 E5315-723-000 YJBELT 1
21 400-48909 YJTENSIONBASE 1
22 E5313-723-000 YBELT 1
23 E5314-723-000 YBELTCONNECTOR 1
24 E1317-726-000 YBELTPRESSER 1
25 E1328-726-000 YSENSORBRACKET 1
26 HD-0017000-00 PHOTOSENSOR 1
27 HD-0017100-00 PHOTOSENSOR 1
28 E5319-723-000 TRAYBASEGUIDERAIL 2
29 HD-0009000-00 PHOTOSENSOR 2
30 PJ-3050405-02 T-UNION 2
31 400-49595 TRAYHLDS.V.ASM 1
32 PJ-3010605-03 HALFUNION 1
33 PX-0505010-00 SILENCER 2
34 HD-0009000-00 PHOTOSENSOR 1
35 400-49597 CMPNTSENSORRASM 1
36 400-49599 CMPNTSENSORLASM 1
37 HD-0017000-00 PHOTOSENSOR 1
38 HD-0017100-00 PHOTOSENSOR 5
39 SL-4030691-SC SCREWM3X6 11
40 E5317-723-000 YTABLEL 1
41 400-48977 CHEACKSENSORBRA 4
42 400-48975 CHEACKSENSORBRL 1
43 400-48976 CHEACKSENSORBRR 1
44 SL-4030881-SC SCREWM3L=8 4
45 SL-4031081-SC SCREWM3X10 8
46 SL-4030691-SC SCREWM3X6 4
47 400-49265 YTABLER 1
48 SV-4031006-SR SCREWM3L=10 8
49 SL-6040842-TN SCREWM4L=8 2
50 WP-0451016-SP WASHER4.5X20X1 2
51 WP-0430801-SC WASHER4.3X9X0.8 1
52 SM-6030692-TN SCREWM3X6 2
53 SL-6040842-TN SCREWM4L=8 2
54 WP-0451016-SP WASHER4.5X20X1 2
55 SM-6030692-TN SCREWM3X6 2
56 WP-0430801-SC WASHER4.3X9X0.8 1
57 SL-6040842-TN SCREWM4L=8 2
58 SL-6040892-TN BOLT 2
59 SL-6031042-TN SCREW 4
60 SL-6040842-TN SCREWM4L=8 2
61 SM-1030601-SC SCREWM3L=6 2
62 SL-6030692-TN BOLT 2
63 SM-4041001-SC SCREWM4X0.7L=10 2
64 SL-4030691-SC SCREWM3X6 2
65 SL-6040842-TN SCREWM4L=8 3
66 400-48778 YRAILB 1
67 400-48779 YRAILA 1
68 SL-6030842-TN SCREWM3L=8 4
69 SL-6031042-TN SCREW 4
70 SL-4030691-SC SCREWM3X6 2
71 SM-4041201-SC SCREWM4L=12 4
72 SM-4041001-SC SCREWM4X0.7L=10 2
73 E1314-726-000 YJLINKBLOCK 1
74 SM-6030402-TN BOLTM3X4 4
75 SM-6030802-TN BOLT 8
76 SM-6030802-TN BOLT 8
77 400-48711 YBASE 1
78 400-48915 YBASEANGLE 1
79 SL-6040842-TN SCREWM4L=8 8
- -

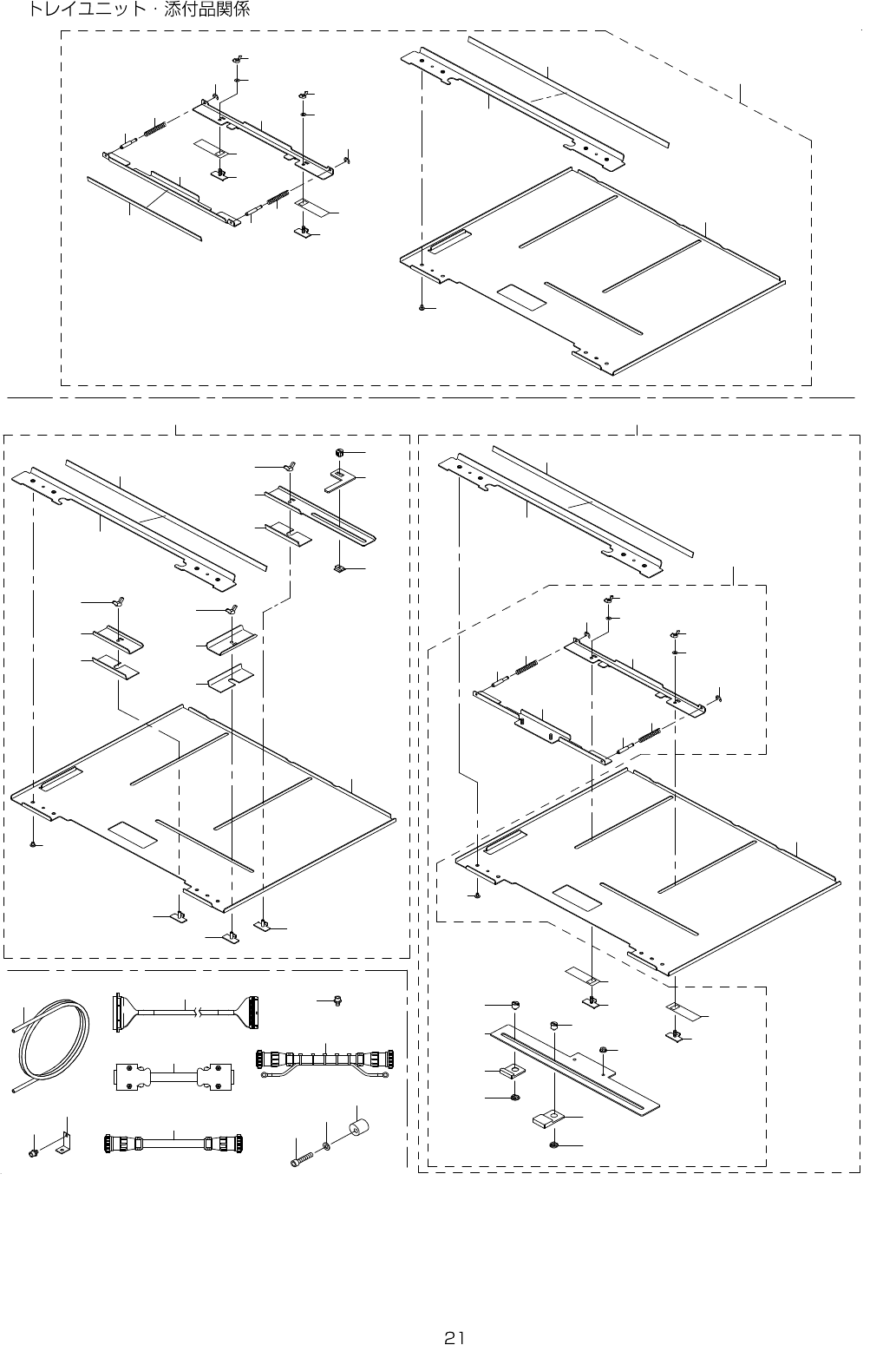

11.TRAYUNIT&APPENDPARTSCOMPONENTS
1 5
4
5
6
7
8
9
8
9
1 0
1 1
1 2
1 3
1 1
1 2
1 3
1 4
1 4
1 0
2
3
1
2 3
2 1
2 2
2 0
3 3
1 8
3 6
2 2
2 0
2 1
2 3
2 4
2 5
2 6
2 7
3 0
2 9
2 8
1 7
3 1
3 4
3 5
3 7
3 8
4 0
4 1
4 0
4 1
4 5
4 2
4 6
4 4
4 2
4 6
4 4
4 3
4 5
4 7
4 8
4 9
5 0
5 0
5 1
5 1
5 2
4 3
1 6
1 9
5 7
6 3
6 2
5 6
5 4
5 3
5 5
6 1
5 8
5 9
6 0
3 2
3 9
