- - 13. MOPBOXCOMPONENT S 1 3 3 1 9 9 2 4 7 8 5 6 1 7 1 8 1 2 1 2 9 2 1 4 1 1 1 5 1 0 1 2 1 2 1 6 1

100%1 / 58
- -

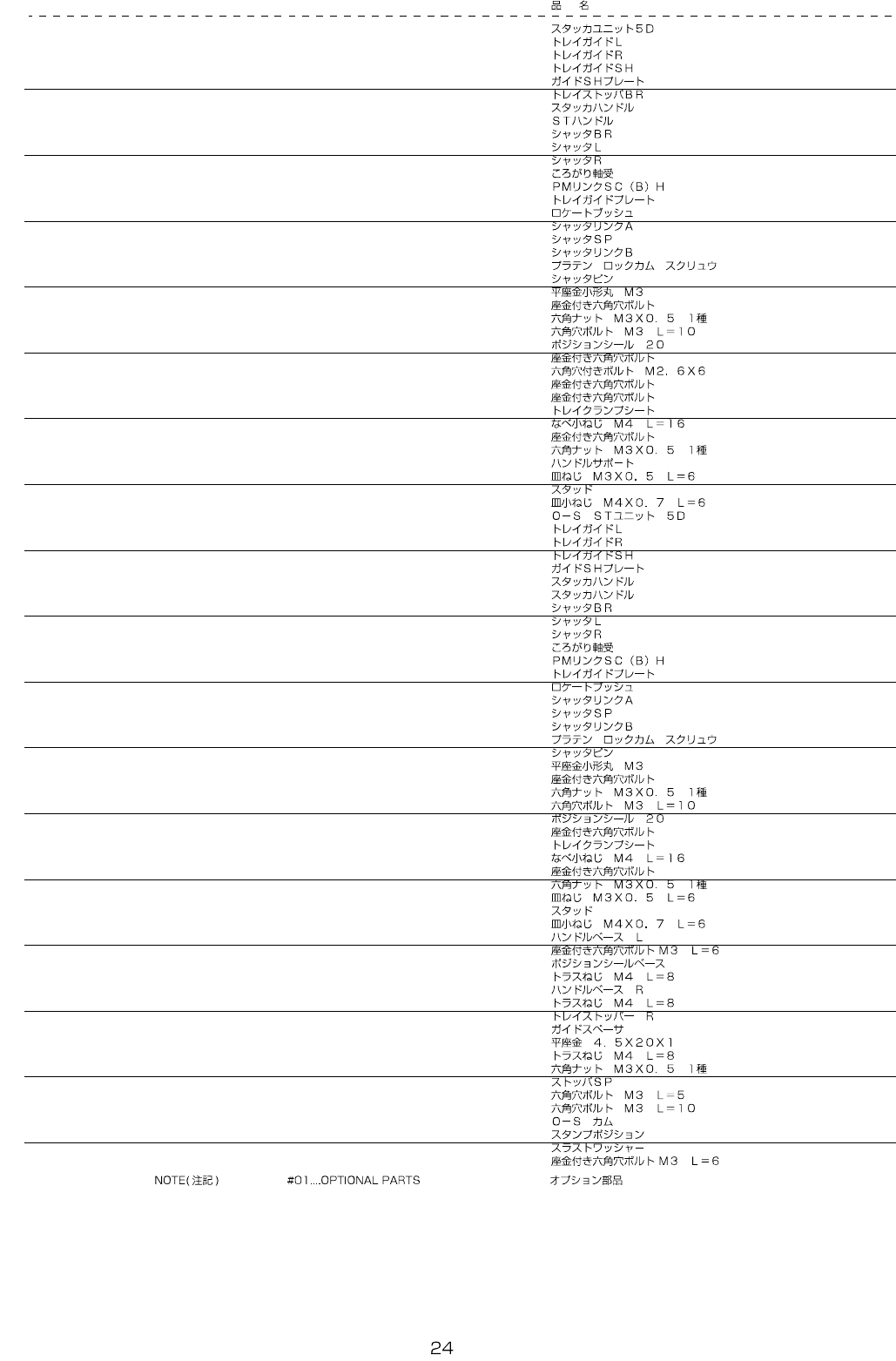

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-49972 STUNIT5D 1
2 400-48756 TRAYGUIDEL (1)
3 400-48757 TRAYGUIDER (1)
4 E1502-726-000 TRAYGUIDESH (2)
5 E1504-726-000 GUIDESHPLATE (4)
6 E6103-723-000 TRAYSTOPPERBRACKET (2)
7 E4607-717-000 STACKERHANDLE (2)
8 E1515-726-000 STHANDLE (2)
9 E6104-723-000 SHUTTERBR (4)
10 E6105-723-000 SHUTTERL (1)
11 E6106-723-000 SHUTTERR (1)
12 SB-1040004-00 ROLLINGSHAFTHOLDER (4)
13 E4560-531-000 PMLINKSC(B)H (4)
14 E6107-723-000 TRAYGUIDEPLATE (1)
15 E6108-723-000 LOCATEBUSH (2)
16 E6109-723-000 SHUTTERLINKA (2)
17 E6110-723-000 SHUTTERSP (1)
18 E6111-723-000 SHUTTERLINK (1)
19 E1038-871-000 PLATENLOCKCAMSCREW (4)
20 E6112-723-000 SHUTTERPIN (1)
21 WP-0320500-SC WASHERM3 (4)
22 SL-6030892-TN SCREW (8)
23 NM-6030001-SC NUTM3 (2)
24 SM-6031002-TN BOLTM3L=10 (2)
25 E1516-726-000 POSITIONSEAL20 (1)
26 SL-6030692-TN BOLT (12)
27 SM-6860602-UZ SCREW (4)
28 SL-6030692-TN BOLT (4)
29 SL-6030692-TN BOLT (6)
30 E1572-726-000 TRAYCLAMPSHEET (1)
31 SM-4041601-SC SCREWM4X0.7L=16 (6)
32 SL-6030692-TN BOLT (8)
33 NM-6030001-SC NUTM3 (1)
34 E6114-723-000 HANDLESUPPORT (2)
35 SM-1030601-SC SCREWM3L=6 (6)
36 E6135-723-000 STUD (1)
37 SM-1040601-SC SCREWM4X0.7L=6 (1)
38
#01
400-51707 O-SSTUNIT5D 1
39
#01
400-48756 TRAYGUIDEL (1)
40
#01
400-48757 TRAYGUIDER (1)
41
#01
E1502-726-000 TRAYGUIDESH (2)
42
#01
E1504-726-000 GUIDESHPLATE (4)
43
#01
E4607-717-000 STACKERHANDLE (2)
44
#01
E1515-726-000 STHANDLE (2)
45
#01
E6104-723-000 SHUTTERBR (4)
46
#01
E6105-723-000 SHUTTERL (1)
47
#01
E6106-723-000 SHUTTERR (1)
48
#01
SB-1040004-00 ROLLINGSHAFTHOLDER (4)
49
#01
E4560-531-000 PMLINKSC(B)H (4)
50
#01
E6107-723-000 TRAYGUIDEPLATE (1)
51
#01
E6108-723-000 LOCATEBUSH (2)
52
#01
E6109-723-000 SHUTTERLINKA (2)
53
#01
E6110-723-000 SHUTTERSP (1)
54
#01
E6111-723-000 SHUTTERLINK (1)
55
#01
E1038-871-000 PLATENLOCKCAMSCREW (4)
56
#01
E6112-723-000 SHUTTERPIN (1)
57
#01
WP-0320500-SC WASHERM3 (4)
58
#01
SL-6030892-TN SCREW (8)
59
#01
NM-6030001-SC NUTM3 (2)
60
#01
SM-6031002-TN BOLTM3L=10 (2)
61
#01
E1516-726-000 POSITIONSEAL20 (1)
62
#01
SL-6030692-TN BOLT (12)
63
#01
E1572-726-000 TRAYCLAMPSHEET (1)
64
#01
SM-4041601-SC SCREWM4X0.7L=16 (6)
65
#01
SL-6030692-TN BOLT (8)
66
#01
NM-6030001-SC NUTM3 (1)
67
#01
SM-1030601-SC SCREWM3L=6 (6)
68
#01
E6135-723-000 STUD (1)
69
#01
SM-1040601-SC SCREWM4X0.7L=6 (1)
70
#01
400-49959 HANDLEBASEL (1)
71
#01
SL-6030692-TN SCREWM3L=6 (3)
72
#01
400-48761 POS.SEALBASE (1)
73
#01
SM-0040801-SC SCREW (2)
74
#01
400-49958 HANDLEBASER (1)
75
#01
SM-0040801-SC SCREW (1)
76
#01
400-49960 TRAYSTOPPERR (1)
77
#01
E1519-726-000 GUIDESPACER (2)
78
#01
WP-0451016-SP WASHER4.5X20X1 (3)
79
#01
SM-0040801-SC SCREW (2)
80
#01
NM-6030001-SC NUTM3X0.5TYPE1 (2)
81
#01
E1521-726-000 STOPPERSP (1)
82
#01
SM-6030502-TN SCREWM3L=5 (1)
83
#01
SM-6031002-TN SCREWM3L=10 (1)
84
#01
400-49962 O-SCAM (1)
85
#01
400-46663 STAMP_POSITION (1)
86
#01
E3404-700-000 THRUSTWASHER (1)
87
#01
SL-6030692-TN SCREWM3L=6 (2)
- -

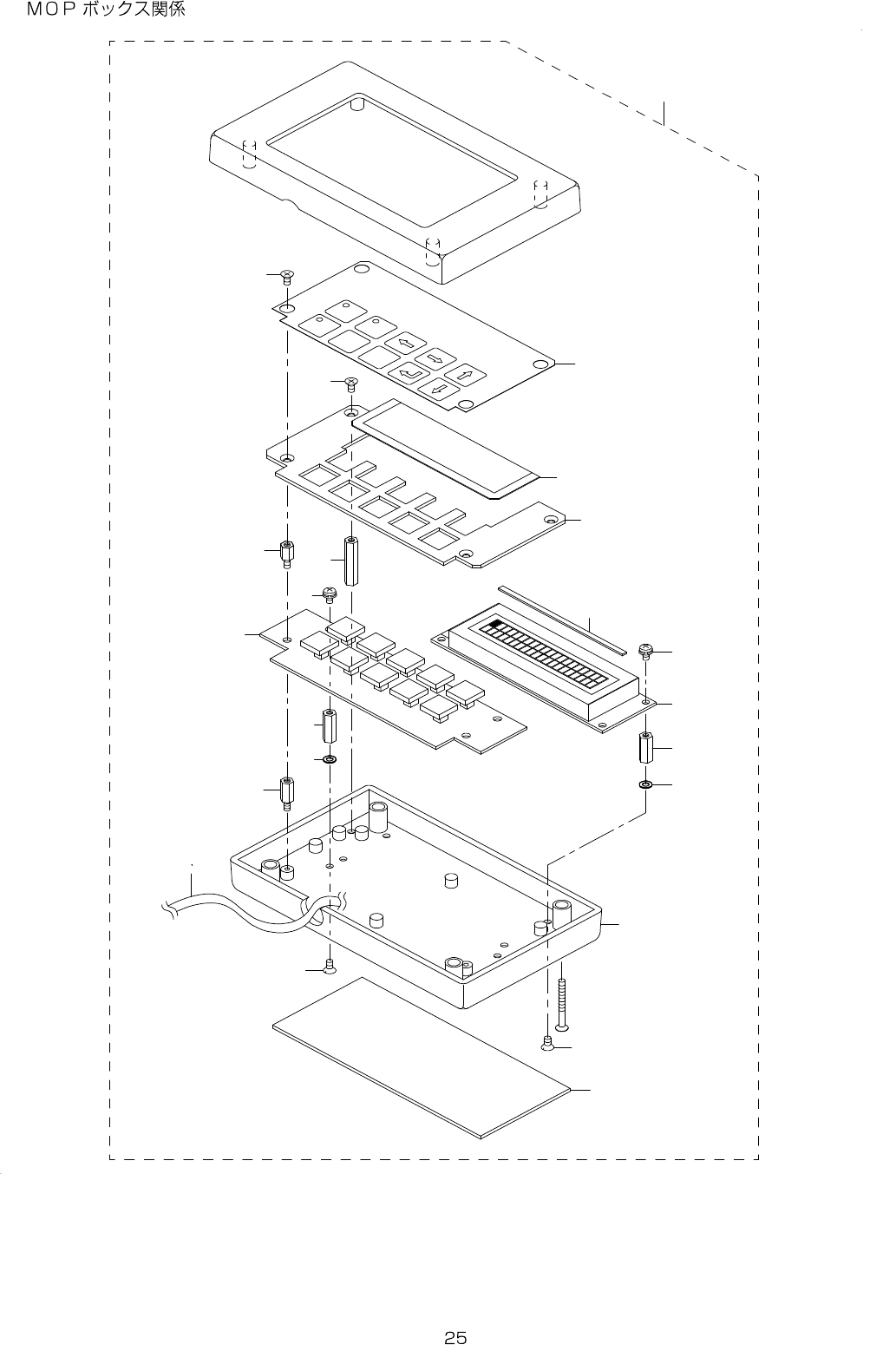

13.MOPBOXCOMPONENTS
1 3
3
1 9
9
2
4
7
8
5
6
1 7 1 8
1 2
1 2
9
2
1 4
1 1
1 5
1 0
1 2
1 2
1 6
1
- -

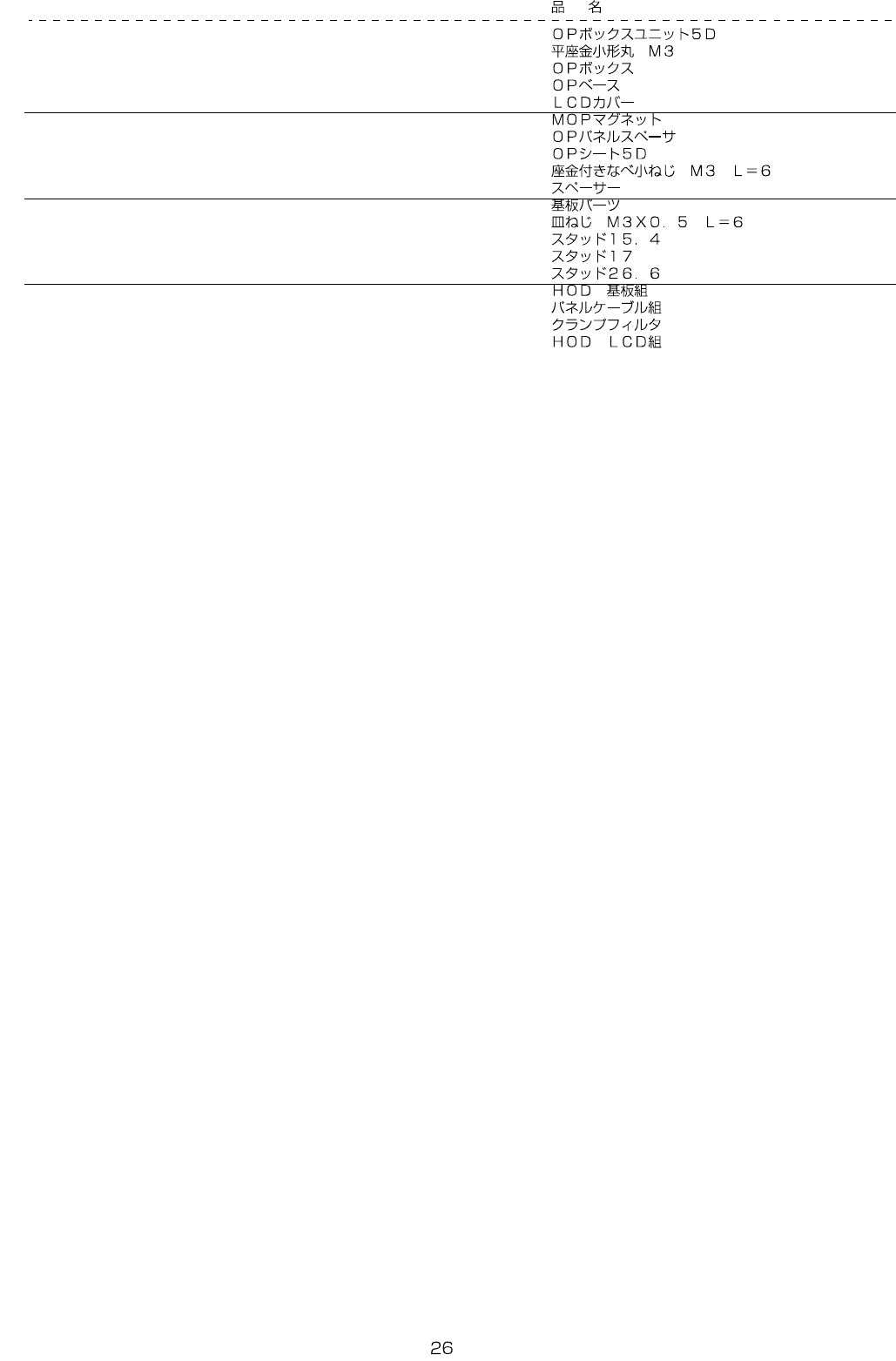

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-49974 OPBOXUNIT5D 1
2 WP-0320500-SC WASHERM3 (6)
3 400-48826 OPBOX (1)
4 400-48827 OPBASE (1)
5 E2505-716-000 LCDCOVER (1)
6 E2506-716-000 MOPMAGNET (1)
7 E2502-716-000 MOPPANELSPACER (1)
8 400-49937 OPSHEET5D (1)
9 SL-4030681-SC SCREWM3L=6 (6)
10 HX-0035400-0B PCBSUPPORTL=8MM (2)
11 HX-0035400-0D BASEPARTS (2)
12 SM-1030601-SC SCREWM3L=6 (12)
13 400-48828 STUD15.4 (4)
14 400-48829 STUD17 (2)
15 400-48830 STUD26.6 (2)
16 400-41206 HODPCBASM (1)
17 400-49604 PANELCABLEASM (1)
18 HN-0014900-00 CLAMPFILTER(L) (1)
19 400-46251 HODLCDASM (1)
