4. Machine Configuration
Type A-0
High Speed head
(8 nozzles)
+
High Speed head
(8 nozzles)
* This is the same as the
previous type A.
Type A-1
High Speed head
(12 nozzles)
+
High Speed head
(8 nozzles)
Type A-2
High Speed head
(12 nozzles)
+
High Speed head
(12 nozzles)
Line camera
(Standard)
8 nozzles head
8 nozzles head
Component Supply Unit
(feeder)
Component Supply Unit
(feeder)
Line camera
(Standard)
Line camera
(Standard)
Line camera
(Standard)
Line camera
(Standard)
12 nozzles head
12 nozzles head
Component Supply Unit
(feeder)
Component Supply Unit
(feeder)
Line camera
(Standard)
Line camera
(Standard)
Line camera
(Standard)
Line camera
(Standard)
8 nozzles head
12 nozzles head
Component Supply Unit
(feeder)
Component Supply Unit
(feeder)
Line camera
(Standard)
Line camera
(Standard)
Line camera
(Standard)
CM602-L 2006.0515
- 10 -
Type B-0
Multi-functional head
(3 nozzles)
+
Multi-functional head
(3 nozzles)
* This is the same as the
previous type B.
Type C-0
High Speed head
(8 nozzles)
+
Multi-functional head
(3 nozzles)
(* The High Speed heads are
located on the upstream side of
PCB flow direction.)
* This is the same as the
previous type C.
Type C-1
High Speed head
(12 nozzles)
+
Multi-functional head
(3 nozzles)
(* The High Speed heads are
located on the upstream side of
PCB flow direction.)
Type D-0
High Speed head
(8 nozzles)
+
Multi-functional head
(3 nozzles)
+
Direct tray feeder (one side)
(* The High Speed heads are
located on the upstream side of
PCB flow direction.)
* The direct tray feeder can be
connected only to the stage of
multi-functional head type.
Line camera
& Side lighting
(Standard)
3 nozzles head
3 nozzles head
Line camera
& Side lighting
(Standard)
Line camera
& Side lighting
(Standard)
Line camera
& Side lighting
(Standard)
Component Supply Unit
(feeder)
Component Supply Unit
(feeder)
Line camera
(Standard)
3 nozzles head
8 nozzles head
Line camera
(Standard)
Line camera
& Side lighting
(Standard)
Line camera
& Side lighting
(Standard)
Component Supply Unit
(feeder)
Component Supply Unit
(feeder)
Line camera
(Standard)
3 nozzles head
12 nozzles head
Line camera
(Standard)
Line camera
& Side lighting
(Standard)
Line camera
& Side lighting
(Standard)
Component Supply Unit
(feeder)
Component Supply Unit
(feeder)
Line camera
(Standard)
3 nozzles head
8 nozzles head
Component Supply Unit
(feeder)
Component Supply Unit (feeder)
Line camera
(Standard)
Line camera
& Side lighting
(Standard)
Line camera
& Side lighting
(Standard)
Component
Supply Unit
(Direct tray feeder)
CM602-L 2006.0515
- 11 -

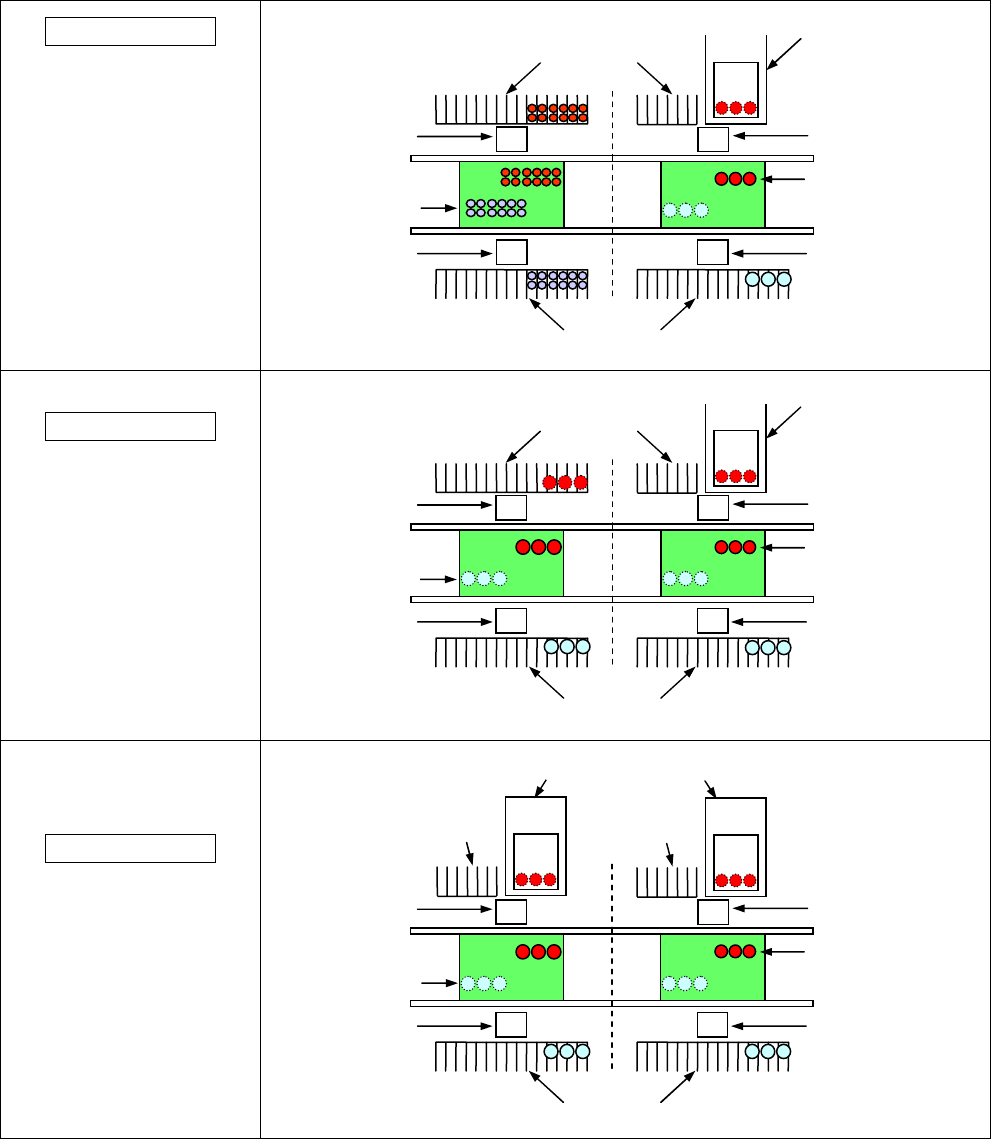

Type D-1
High Speed head
(12 nozzles)
+
Multi-functional head
(3 nozzles)
+
Direct tray feeder (one side)
(* The High Speed heads are
located on the upstream side of
PCB flow direction.)
* The direct tray feeder can be
connected only to the stage of
multi-functional head type.
Type E-0
Multi-functional head
(3 nozzles)
+
Multi-functional head
(3 nozzles)
+
Direct tray feeder (one side)
* The direct tray feeder can be
connected irrespective of
upstream/downstream.
Type F-0
Multi-functional head
(3 nozzles)
+
Multi-functional head
(3 nozzles)
+
Direct tray feeder (both side)
Line camera
(Standard)
3 nozzles head
12 nozzles head
Component Supply Unit
(feeder)
Component Supply Unit (feeder)
Line camera
(Standard)
Line camera
& Side lighting
(Standard)
Line camera
& Side lighting
(Standard)
Component
Supply Unit
(Direct tray feeder)
3 nozzles head
Component Supply Unit
(feeder)
Component Supply Unit (feeder)
Line camera
& Side lighting
(Standard)
Line camera
& Side lighting
(Standard)
Component
Supply Unit
(Direct tray feeder)
Line camera
& Side lighting
(Standard)
3 nozzles head
Line camera
& Side lighting
(Standard)
3 nozzles head
Line camera
& Side lighting
(Standard)
Line camera
& Side lighting
(Standard)
Component Supply Unit
(Direct tray feeder)
Line camera
& Side lighting
(Standard)
3 nozzles head
Line camera
& Side lighting
(Standard)
Component Supply Unit (feeder)
Component Supply
Unit (feeder)
Component Supply
Unit (feeder)
