CM602-L 2006.0515
- 13 -

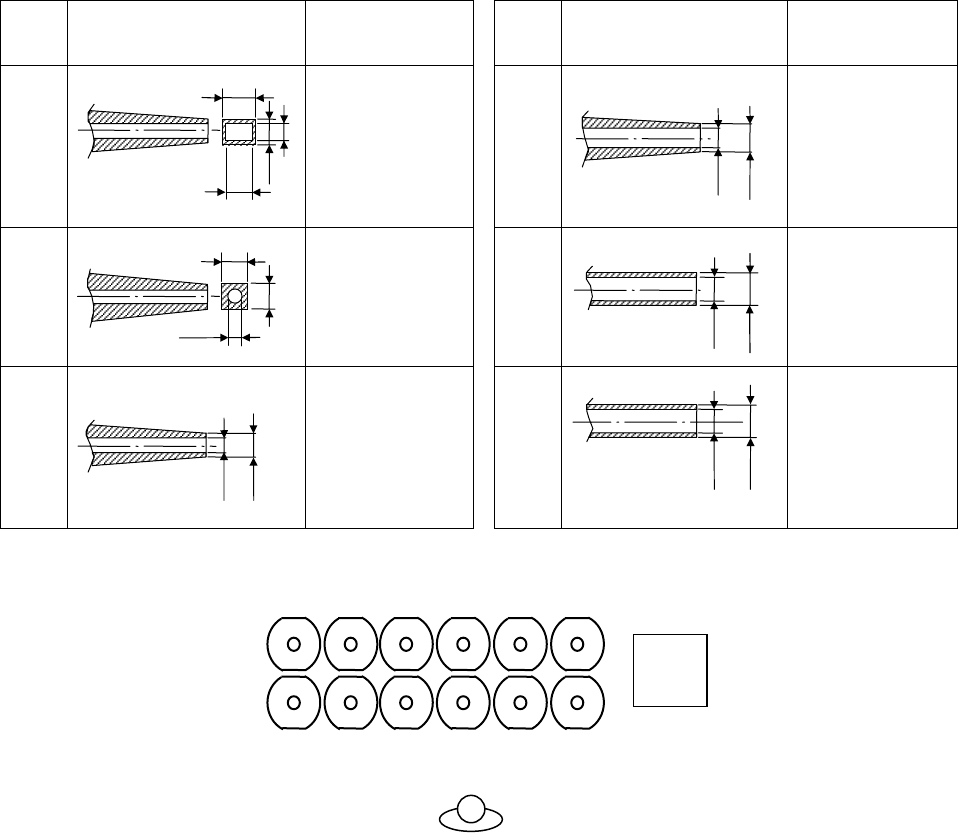

4.2 Nozzle Type & Configuration
■
Nozzles for High Speed head (12 nozzles)
All nozzles are options as well as the tape feeders so that you can select the best combination of them to
make full use of CM602-L to your production pattern.
No.
Shape
(All dimensions in mm)
Applicable
component
(Typical examples)
No.
Shape
(All dimensions in mm)
Applicable
component
(Typical examples)
205S
0603R, C 115S
1608R, C
2012R, C
SS-Mini Tr, Di
S-Mini Tr, Di
206S
0603R, C
1005R, C
120S
2012R, C
3216R, C
S-Mini Tr, Di
Mini Tr, Di
110S
1005R, C
1608R, C
130S
3225R, C
4532R, C
TAN-X
■
Nozzle layout for High Speed head (12 nozzles)
The layout and the maximum number of attachable nozzles for High Speed head (12 nozzles)
(The figures are seen from above.)
* Only the above six types of nozzles for High Speed head (12 nozzles) are available.
* Nozzles for High Speed head (8 nozzles) type are not available to the High Speed head (12 nozzles).
* In transmitting recognition, in some cases, component size and height are limited. (Because it is affected by the component shadow to
adjacent nozzles)
φ
1.8
φ
2.4
φ
0.7
φ
0.9
φ
0.9
φ
1.3
0.35
0.65
0.4
0.18
0.6
0.5
φ
0.3
φ
0.6
φ
0.5
12 nozzles
1 2 3 4
7 8 9
56
121110
PCB
recognition
camera
CM602-L 2006.0515
- 14 -
■
Nozzles for High Speed head (8 nozzles)
All nozzles are options as well as the tape feeders so that you can select the best combination of them to
make full use of CM602-L to your production pattern.
* These nozzles are shared with the CM400 series.
No.
Shape
(All dimensions in mm)
Applicable
component
(Typical examples)
No.
Shape
(All dimensions in mm)
Applicable
component
(Typical examples)
205
0603R, C
(0201” R, C)
130
3225R, C
(1210” R, C)
4532R, C
(1812” R, C)
TAN-X, B, C, D
Aluminum
electrolysis-
A, B, C
206
0603R, C
(0201” R, C)
1005R, C
(0402” R, C)
140
TAN-D
Aluminum
electrolysis-D
SOP, SOJ
PLCC, CSP
110
1005R, C
(0402” R, C)
1608R, C
(0603” R, C)
450
SOP, QFP
PLCC, BGA
to
18 mm × 18 mm
115
1608R, C
(0603” R, C)
2012R, C
(0805” R, C)
SS-Mini Tr, Di
S-Mini Tr, Di
460
SOP, QFP
PLCC, BGA
to
24 mm × 24 mm
120
2012R, C
(0805” R, C)
3216R, C
(1206” R, C)
S-Mini Tr, Di
Mini Tr, Di
■
Nozzle layout for High Speed head (8 nozzles)
The small nozzles (205, 110, 115, 120, 130, 140 described in above table) that support the components
measuring 12 mm or less diagonally can be attached to all the heads.
The large nozzles (450, 460 described in above table) that support the components exceeding 12 mm di-
agonally can be attached to the No.2 and the No.4 head. At this time, also the small nozzles can be attached
to the No.5 and the No.7 head.
The layout and the maximum number of attachable nozzles for High Speed head (8 nozzles)
(The figures are seen from above.)
* Nozzles for High Speed head (12 nozzles) type are not available to the High Speed head (8 nozzles).
φ
1.8
φ
2.4
φ
1.5
φ
6
Pad
φ
2.4
φ
10
Pad
φ
0.6
φ
0.5
φ
0.7
φ
0.9
0.6
0.5
φ
0.3
φ
0.9
φ
1.3
φ
1.5
φ
4
Pad
Eight small nozzles
1 2 3 4
5 6 7 8
PCB
recognition
camera
Two small nozzles
Two large nozzles
24
57
PCB
recognition
camera
0.35
0.65
0.4
0.18
CM602-L 2006.0515
- 15 -
■
Nozzles for Multi-functional head
All nozzles are options as well as the tape feeders so that you can select the best combination of them to
make full use of CM602-L to your production pattern.
* These nozzles are shared with the CM400 series.
The special nozzles can support the components whose vacuum pick up surface’s shape is special
such as irregular shaped chips. For details, please consult us.
No.
Shape
(All dimensions in mm)
Applicable
component
(Typical examples)
No.
Shape
(All dimensions in mm)
Applicable
component
(Typical examples)
1582
0603R, C
(0201” R, C)
1004
SOP
SOJ
QFP
PLCC
BGA
1001
1005R, C
(0402” R, C)
1608R, C
(0603” R, C)
2012R,C
(0805” R, C)
SS-Mini Tr, Di
S-Mini Tr, Di
Mini Tr, Di
1005
SOJ
QFP
PLCC
BGA
1002
3216R, C
(1206” R, C)
4532R, C
(1812” R, C)
TAN-X, B, C, D
Aluminum
electrolysis-
A, B, C
1006
<Uses>
・
For the components
ranging from 23 mm ×
23 mm to 38 mm × 38
mm, one is attached to
the center nozzle of the
three.
・
For the components
measuring 38 mm × 38
mm or over, two are
attached to the both
sides of the three.
1003
Aluminum
electrolysis-
D, E, F
SOP
SOJ
PLCC
BGA
CSP
∗
From a productivity viewpoint, 0603 chips are recommended to be placed with the high-speed head.
■
Nozzle layout for Multi-functional head
The layout and the maximum number of attachable nozzles for Multi-functional head
(The figures are seen from above.)
This is a nozzle
(reflector) to be
attached to the head
that will not pick up
owing to the combi-
nation of pick up
components.
That will enhance the
stability of recogni-
tion for the head that
picks up.
Three small nozzles
PCB
recognition
camera
123
22.5
0.9
φ
0.5
φ
1.3
2.2
φ
1.5
φ
3
22.5
0.6
φ
1.5
φ
3.5
φ
8
22.5
0.3
1
φ
2.4
φ
6
φ
10
22.5
0.3
4
φ
3
φ
6
22.5
22.5
0.35
0.4
(Enlarged view)
0.18
0.65
