Conditions of Component
The components meeting all the following conditions (
①
to
⑦
) can be fed by the shuttle tray feeder.
①
Outside dimensions of component
The outside dimensions of component shall be
L : 100 mm or less
W : 90 mm or less
T : 10 mm or less
For pick up and transfer by two heads
L : 38 mm or less
W : 38 mm or less
T : 10 mm or less
②
Mass of component
The mass of component shall be 30
ｇ
or less.
③
The center of the component’s outside dimensions shall conform to its barycenter.
④
The barycenter position on the top of the component shall have a
φ
9 mm or more flat pick up face al-
lowing a stable pick up.
(In using the standard accessory
φ
6 pad nozzle)
⑤
In placement, the projection to be projected below the top of PCB shall not exist on the underside of the
component, which can be stably placed on a plane without tilting, shaking, and rolling.
⑥
The components shall be in the tray that meets its conditions.
⑦
Standard available components
(1) SOP 9 mm × 15 mm to 9 mm × 18 mm
(2) QFP 12 mm × 12 mm to 53 mm × 53 mm
(3) SOJ 11 mm × 21 mm to 11 mm × 26 mm
(4) PLCC 12 mm × 12 mm to 30 mm × 30 mm
(5) BGA 9 mm × 9 mm to 45 mm × 45 mm
(6) CSP 9 mm × 9 mm to 24 mm × 24 mm
* Except for the components mentioned above samples are required in advance to investigate the possibility of
placement.

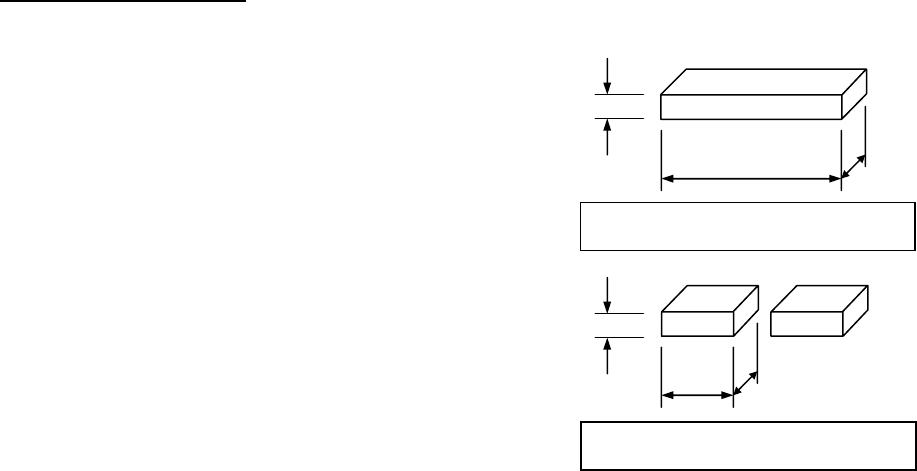

Maximum dimensions and mass for
single component transport
100 mm
90 mm
10 mm
30
g
30
g
10 mm
38 mm
38 mm
Maximum dimensions and mass for
double component transport
CM602-L 2006.0515
- 31 -
Precautions in choosing the Shuttle Tray Feeder
In choosing the shuttle tray feeder, also the extension conveyor(s) and the like need to be chosen because
that projects from the side of CM602-L.
See the following figures for the installation examples and the extension conveyors to be chosen.
①
In installing to the downstream stage
Install the working conveyor to the
downstream.
(For CM602-L, the extension conveyor
supporting shuttle trays can be selected.)
②
In installing to the upstream stage
Install the working conveyor to the upstream.
(For CM602-L, the extension conveyor
supporting shuttle trays can be selected.)
③
In installing to the upstream of the
downstream CM602-L when two
CM602-L are coupled to each other
・
Install the downstream extension
conveyor to the upstream CM602-L.
・
Install the upstream extension conveyor
to the downstream CM602-L.
Shuttle tray feeder
Working conveyor
Downstream machine
PCB flow direction
Working conveyor
Shuttle tray feeder
Upstream machine
PCB flow direction
Shuttle tray feeder
Downstream extension conveyor
PCB flow direction
Upstream extension conveyor
CM602-L 2006.0515
- 32 -
■
Direct Tray Feeder
DT50S-20 (Option)
Installing the direct tray feeder DT50S-20 onto CM602-L enables the placement of tray feeding components.
DT50S-20 can be installed on the rear side (AR and BR) of CM602-L. It cannot be installed on the front side
(AF and BF). The direct tray feeder can be connected only to the stage of multi-functional head type.
When the direct tray feeder DT50S-20 is installed on a table of CM602-L, the feeder table (not attachable/
detachable) that holds a maximum of six feeders is installed next to the direct tray.
Type D-0, D-1 and E-0
Type F-0
Frontside
Rear side
AR
BR
Two DT50S-20s installed on CM602-L
DT50S-20
2727
Feeder table
(Four places)
20 6 20
27
27
27
Feeder table
(Four places)
20
6
