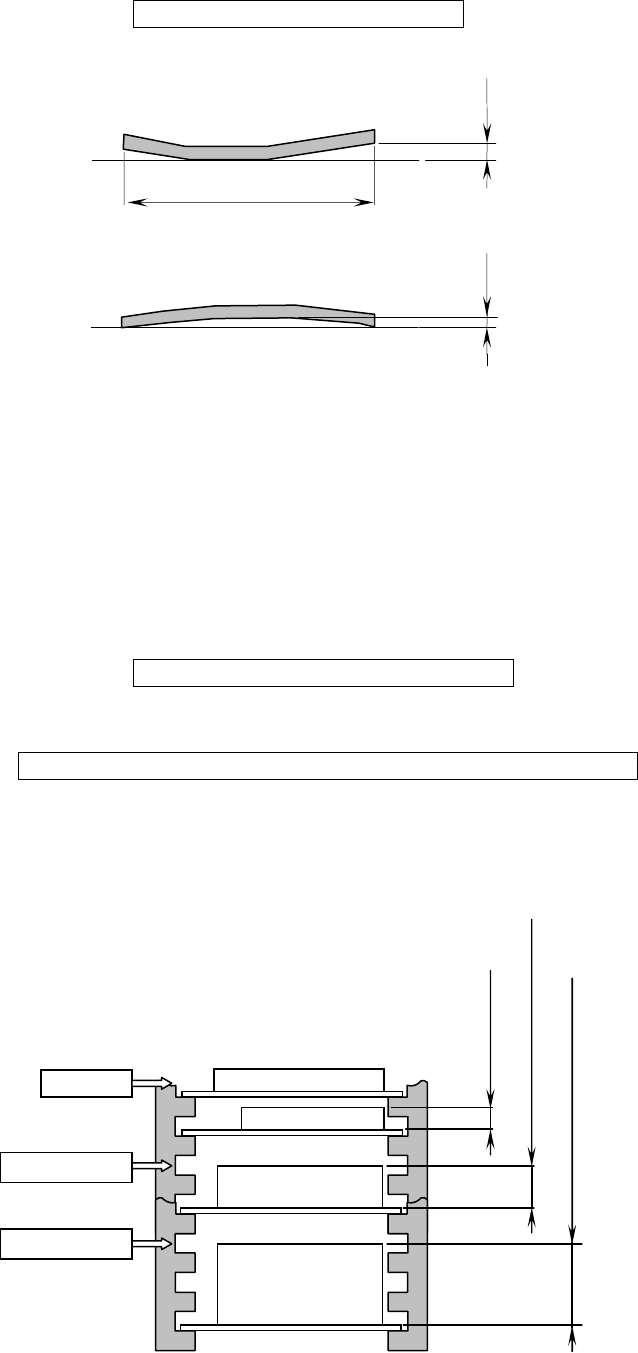

Warp: “Warp” of the tray to be loaded on a pallet shall meet the following conditions.

“

Warp” = Clearance Max. 0.5 mm

・

Type: For enough strength and dimensional accuracy, tray shall be injection molded, not vacuum molded.

(If your trays do not meet these conditions, please consult us. Then we check your sample trays and

suggest option or customization.)

・

Conditions for tray loading: The trays (components) to be loaded on a pallet and a magazine shall satisfy

the following conditions.

①

The total mass of components on a tray shall be 1

㎏

or less including the tray.

(Excluding the mass of pallet)

②

The total mass of the magazine with pallets and trays (components) shall be 20

㎏

or less.

Magazine + Pallets + Trays + Components = Max. 20

㎏

/magazine

③

If the height of the tray on a pallet exceeds 11 mm, a pallet cannot be inserted into the next higher slot

in the magazine.

Additionally if the height of the tray on a pallet exceeds 26 mm, a pallet cannot be inserted into the next

higher slot in the magazine.

Tray + Components = Max. 1

㎏

/pallet

Clearance

Tray

Clearance

Tray

Max. 335 mm

Over 11 mm to 26 mm or less

11 mm or less

Insertable

Over 26 mm to 33 mm or less

Not insertable

CM602-L 2006.0515

- 35 -

5. Other Standard Functions

5.1 Programming Functions

All data are created on PT200-G, the data creating device. Some data, however, can be modified on the machine.

The data modified on the machine and what was taught are fed back to PT200-G automatically. Any of the four

corners of PCB can accept the origin of coordinate data.

PS200-G will make data creation more efficient; for example, it distributes data taking the multi-job production

system into consideration.

* As for the hardware for PT200-G, prepare by yourself.

Refer to the separate volume, “PT200-G Specification” for details of PT200-G.

Refer to the separate volume, “PS200-G Specification” for details of PS200-G.

5.2 3-Color Signal Tower

Color of signal tower and lighting standard

Signal Color Classification Lighting Standard

Red Emergency stop error

・

Trouble in shafts of motors

・

Drop in air pressure

・

Trouble in PCB supports

・

Head trouble

・

Tape trouble

Yellow Single stop error

・

Pickup error

・

Placement error

・

PCB transfer error

・

No works

・

Nozzle change error

Green

In operation

Electric source ON

(e.g., in automatic operation)

(This, however, is off while red or yel-

low is blinking.)

* Lighting specifications are programmable.

Data creating software PT200-G

PC board Data

Parts Data

Chip Name

L W T REF Style Angle …

Tray Data

Tray Name

Chip Count

Fixation Information

Feeder Fixation

Nozzle Fixation

Max. 10 000

oints

Block Data

No.

Parts Name

Block Attribute Data

BAD

ROT

Feeder Arrangement

Nozzle Arrangement

Max. 10 000 points

Placement Data

Parts Name

BL Comment

2 000 mm

from floor

(Standard)

Green

Yellow

Red

CM602-L 2006.0515

- 36 -

6. PCB Design Standard

6.1 PCB Specifications

Standard: PCB fixing method (PCB marks are required.)

* For the dual conveyor, please see “4.5 Dual Conveyor (Option)”.

■

PCB cutout conditions

To secure the PCB stop position by the PCB stopper and to secure the stable operation of the PCB detection

sensor, the following conditions are set on the position and the dimensions of the PCB cutout.

[The below figure indicates the case of the left to right flow/front reference (standard). Also the other condi-

tions (options) follow this.]

Min. 50 mm × 50 mm

Dimensions

Max. 510 mm × 460 mm

Min. 50 mm × 44 mm

Dimensions

(Placement PCB

Dimensions)

Placement Area

Max. 510 mm × 454 mm

Thickness of PCB 0.3 mm to 4.0 mm

Permissible

PCB warpage

Conditions of PCB

before placement

※

The area

where no components

shall exist.

* For the dual conveyor, please see “4.5 Dual Conveyor (Option)”.

Placement direction

Max. 0.5 mm

Open space for transport

3 mm3 mm

3 mm

30 mm

25 mm

High Speed head

: Max. 6.5 mm

Multi-functional head

: Max. 21 mm

PCB

20 mm

Fixed side

50 mm to 510 mm

Placement Area

44 mm to 454 mm

50 mm to 460 mm

3 mm3 mm

50 mm

20 mm

4.5 mm

PCB detection sensor position

PCB cutout

prohibited area

PCB flow direction

PCB stopper
