6.2 Recognition Mark
PCB needs two PCB recognition marks at its opposite corners.
■

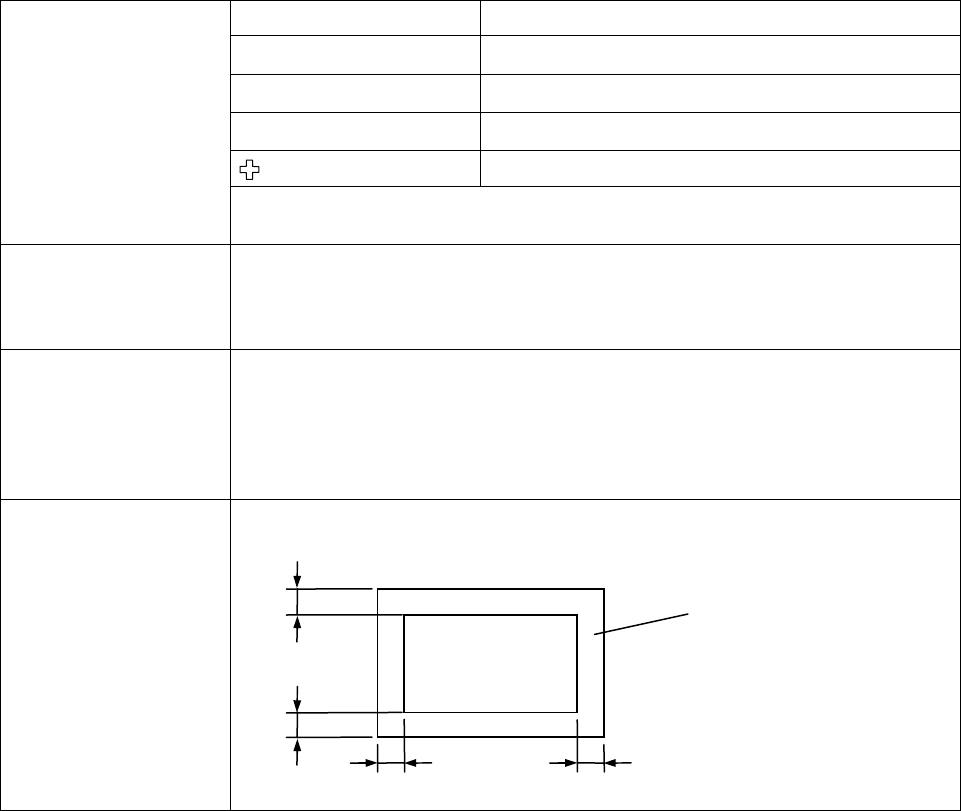

PCB Recognition Mark Specifications
Standard Mark Shapes Dimensions
○
φ
0.5 mm to
φ
1.6 mm
△
(Equilateral triangle)
Length of one side: 0.5 mm to 1.6 mm
□
Length and width: 0.5 mm to 1.6 mm
Length and width: 0.5 mm to 1.6 mm
Standard Mark Shapes
and Dimensions
Length and width means the dimensions of the quadrangle circumscribing the
mark.
Mark Materials and
Circuit Pattern
Because PCB recognition correction is based on the positional relationship be-
tween the marks and the circuit pattern (conductor pattern), the marks must be
made in the same process and of the same materials as the circuit pattern from
the viewpoint of correction accuracy.
Image Conditions of
Mark Materials and
PCB Base
Because, basically, mark recognition process is carried out based on the inten-
sity difference of reflected light, a fixed contrast is required between the mark
materials and the PCB base.
This difference varies significantly depending on the plating condition, oxidation
condition, surface height, unevenness, degree of mirroring, coating, or distur-
bance light; therefore, the assessment of the marks is required beforehand.
Mark Dimensions and
Background
The background of a mark requires the noninterference area (larger than fixed
dimensions) outside the mark.
Noninterference area
Mark
a
≧
0.2 mm or more
Noninterference area
Not all the marks are black.
a
a
aa
CM602-L 2006.0515
- 38 -
Type
A-0
Nozzle case
×
2
(For High Speed head)
High Speed head (8 nozzles)
×
4
Main body
Accessories
Feeder cart
×
4
Line camera
×
4
7. Standard Machine Configuration

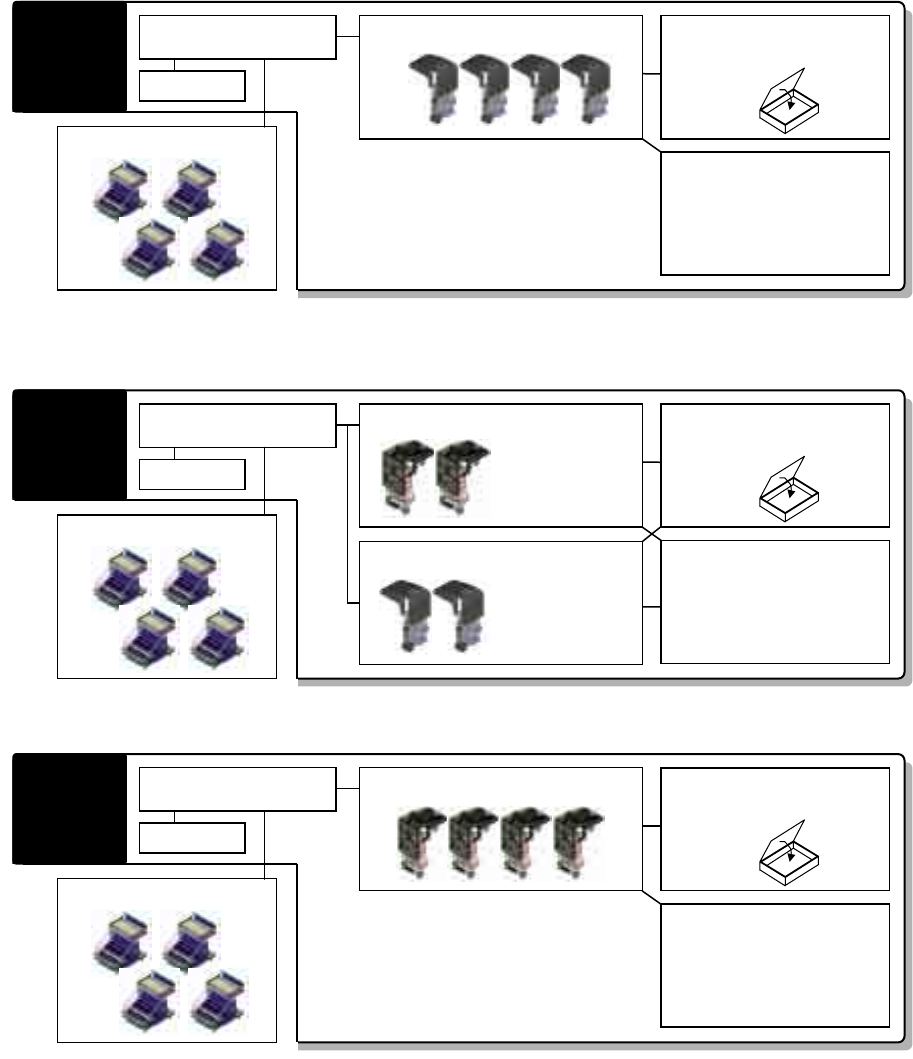

There are six types of standard machine configuration according to the selection of heads.
* This is the same as the previous type A.
Type
A-2
Nozzle case
×
2
(For High Speed head)
High Speed head (12 nozzles)
×
4
Main body
Accessories
Feeder cart
×
4
Line camera
×
4
Type
A-1
Nozzle case
×
2
(For High Speed head)
High Speed head (12 nozzles)
×
2
Main body
Accessories
Feeder cart
×
4
Line camera
×
4
High Speed head (8 nozzles)
×
2
(Upstream side)
(Downstream side)
CM602-L 2006.0515
- 39 -

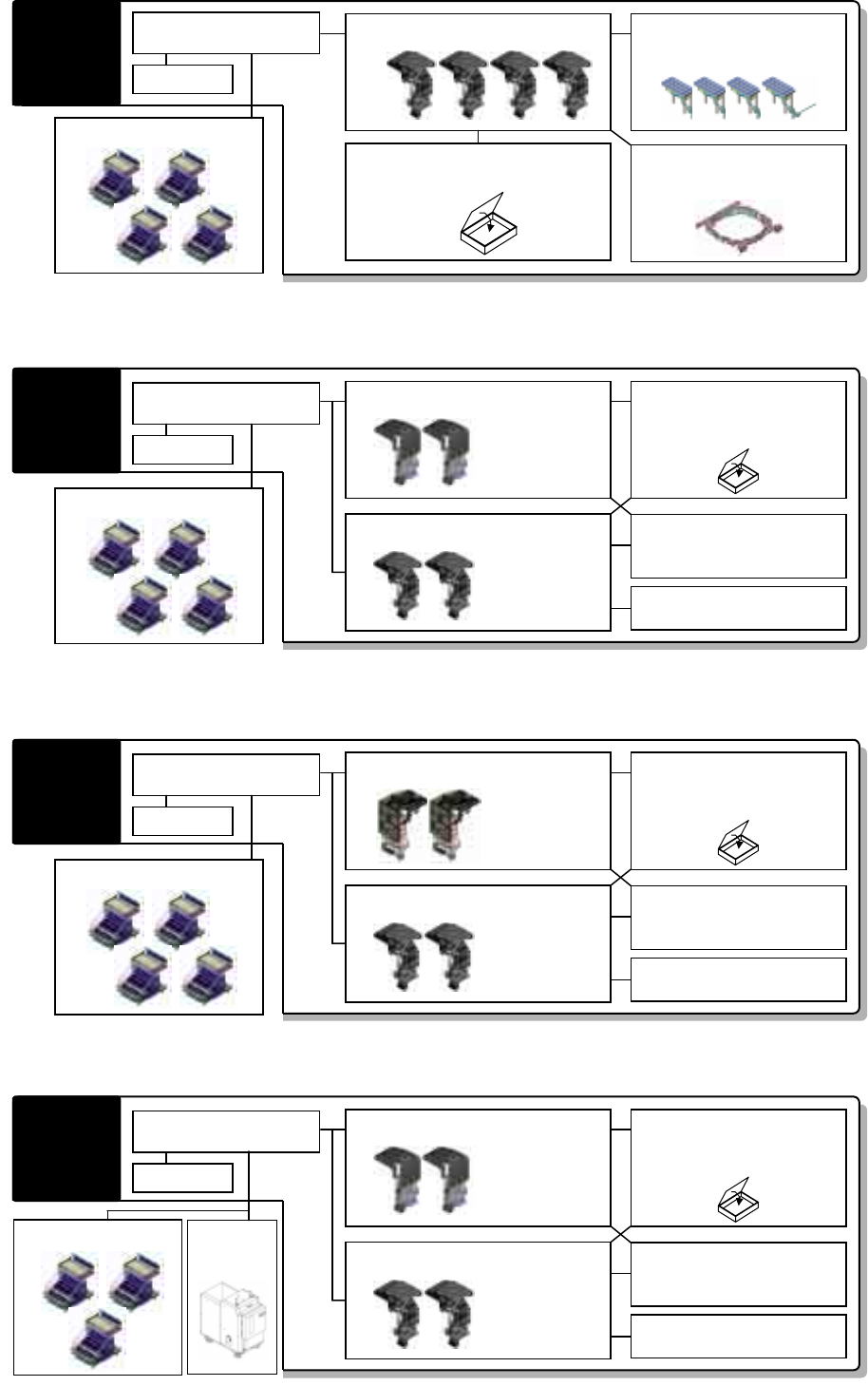

* This is the same as the previous type B.
* This is the same as the previous type C.
Type
B-0
Nozzle case
×
1
(For Multi-functional head)
Multi-functional head
×
4
Nozzle changer
×
4
(For Multi-functional head)
Lien camera
×
4
Side lighting
×
4
Main body
Accessories
Feeder cart
×
4
Type
C-0
High Speed head (8 nozzles)
×
2
Nozzle case
×
2
(For High Speed head
×
1,
For Multi-functional head
×
1)
Line camera
×
4
Side lighting
×
2
(For Multi-functional head)
(Upstream side)
(Downstream side)
Main body
Accessories
Feeder cart
×
4
Multi-functional head
×
2
Nozzle changer
×
2
(For Multi-functional head)
Type
C-1
High Speed head (12 nozzles)
×
2
Nozzle case
×
2
(For High Speed head
×
1,
For Multi-functional head
×
1)
Line camera
×
4
Side lighting
×
2
(For Multi-functional head)
(Upstream side)
(Downstream side)
Main body
Accessories
Feeder cart
×
4
Multi-functional head
×
2
Nozzle changer
×
2
(For Multi-functional head)
Type
D-0
High Speed head (8 nozzles)
×
2
Nozzle case
×
2
(For High Speed head
×
1,
For Multi-functional head
×
1)
Line camera
×
4
Side lighting
×
2
(For Multi-functional head)
(Upstream side)
(Downstream side)
Main body
Accessories
Multi-functional head
×
2
Nozzle changer
×
2
(For Multi-functional head)
DT50S-20
×
1
Feeder cart
×
3
