Data creation
We ask you for preparing the hardware for PT200-G.
Please refer to a separate volume, “PT200-G Specification” for details.
∗∗
Remarks
∗∗
•
For C-0, C-1, D-0 and D-1 types, the High Speed heads are installed on the PCB transfer upstream stage,
and the Multifunctional heads on the downstream stage.
•
The nozzle changer for the High Speed head is an option.
•
The special specifications may potentially not comply with the CE mark specifications.
•
The floor slope in the feeder cart installation area needs to be 6 mm or less in the right/left direction and
11 mm or less in the forward/backward direction. If the floor slope is beyond the above limit, the feeder cart
cannot be taken in and out.

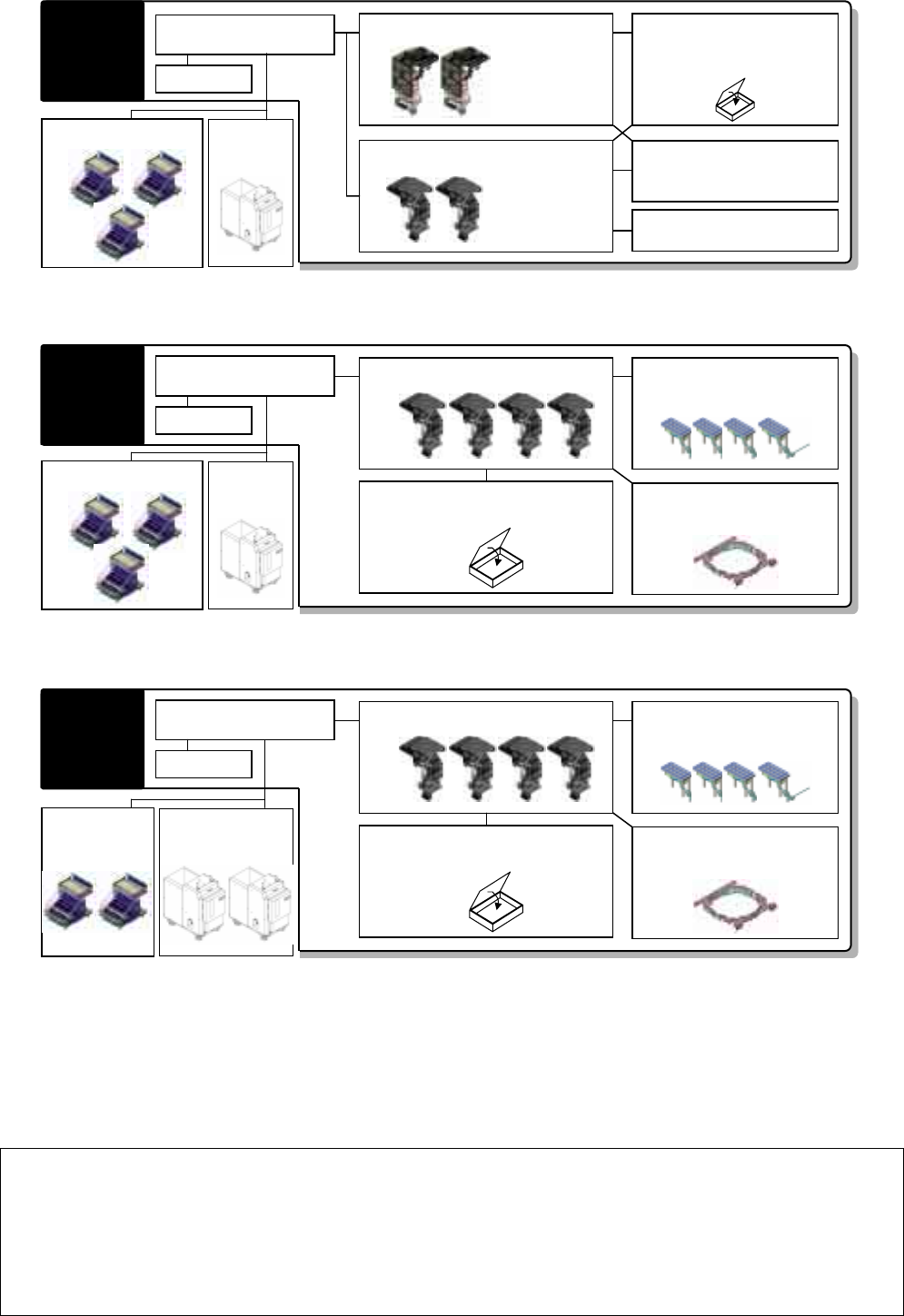

Type
D-1
High Speed head (12 nozzles)
×
2
Nozzle case
×
2
(For High Speed head
×
1,
For Multi-functional head
×
1)
Line camera
×
4
Side lighting
×
2
(For Multi-functional head)
(Upstream side)
(Downstream side)
Main body
Accessories
Multi-functional head
×
2
Nozzle changer
×
2
(For Multi-functional head)
DT50S-20
×
1
Feeder cart
×
3
Type
E-0
Nozzle case
×
1
(For Multi-functional head)
Multi-functional head
×
4
Nozzle changer
×
4
(For Multi-functional head)
Lien camera
×
4
Side lighting
×
4
Main body
Accessories
DT50S-20
×
1
Feeder cart
×
3
Type
F-0
Nozzle case
×
1
(For Multi-functional head)
Multi-functional head
×
4
Nozzle changer
×
4
(For Multi-functional head)
Lien camera
×
4
Side lighting
×
4
Main body
Accessories
DT50S-20
×
2
Feeder cart
×
2
CM602-L 2006.0515
- 41 -
■
Accessories and Spare Parts
Item Qty.
System disk
・
System data (CD-ROM)
・
HGR-40 FD
・
Key disk FD
・
Machine parameter FD
・
Data FD
1 set each
PCB support block 4 set
PCB support pin 80 pieces (20 pieces × 4)
Polarizing filter 4 set
Manual
・
Operation Manual
・
Programming Manual
・
Maintenance Manual
・
Reference Manual
・
Installation Manual
Parts List
Control wiring diagram
1 copy each
Patching paint 1 set
Grease 1 set
