CM602-L 2006.0515
- 43 -
A-1
To set the PCB transfer line height at 930 mm above the floor.
Factory
Support for 930 mm transfer line
・
The standard height of the PCB transfer line is 900 mm above the floor.
A-2
To set the PCB transfer line height at 950 mm above the floor.
Factory
Support for 950 mm transfer line
・
The standard height of the PCB transfer line is 900 mm above the floor.
A-3
To transfer PCB.
(Please be sure to select)
Factory
Whole machine
PCB conveyor
・
This is a single lane conveyor that transfers PCBs and fixes them at each stop position.
A-4
To set shuttle tray feeder.
Factory
Extension conveyor for shuttle tray feeder
・
When installing the shuttle tray feeders, you are recommended to install the extension conveyor (supporting shuttle
trays), however, also the combination of upstream conveyor and downstream conveyor is available.
(This extension conveyor can be inserted between upstream extension conveyor and downstream extension conveyor.
Doing so provides space between the upstream and downstream processes.)
・
“Shuttle tray feeder installation ready” needs to be selected.
+20
-0
+20
-0
CM602-L 2006.0515
- 44 -
A-5
To get space after the upstream machine.
Factory
Upstream extension conveyor
・
As standard, one PCB of up to 330 mm long can stand by before the placement stage. But the addition of the upstream
extension conveyor will let a PCB of up to 510 mm long stand by.
When this option is selected, please note that the safety sensor will not be installed to the PCB entrance because a safe
distance between the entrance and the moving part is secured.
A-6
To provide the post placement standby area for the transfer downmost stream area.
Factory
Downstream extension conveyor
・
As standard, no PCB can stand by after the placement stage. But the addition of the downstream extension conveyor
will let a PCB of up to 510 mm long stand by.
When this option is selected, please note that the safety sensor will not be installed to the PCB exit because a safe
distance between the exit and the moving part is secured.
L = 305 mm
L = 305 mm
CM602-L 2006.0515
- 45 -

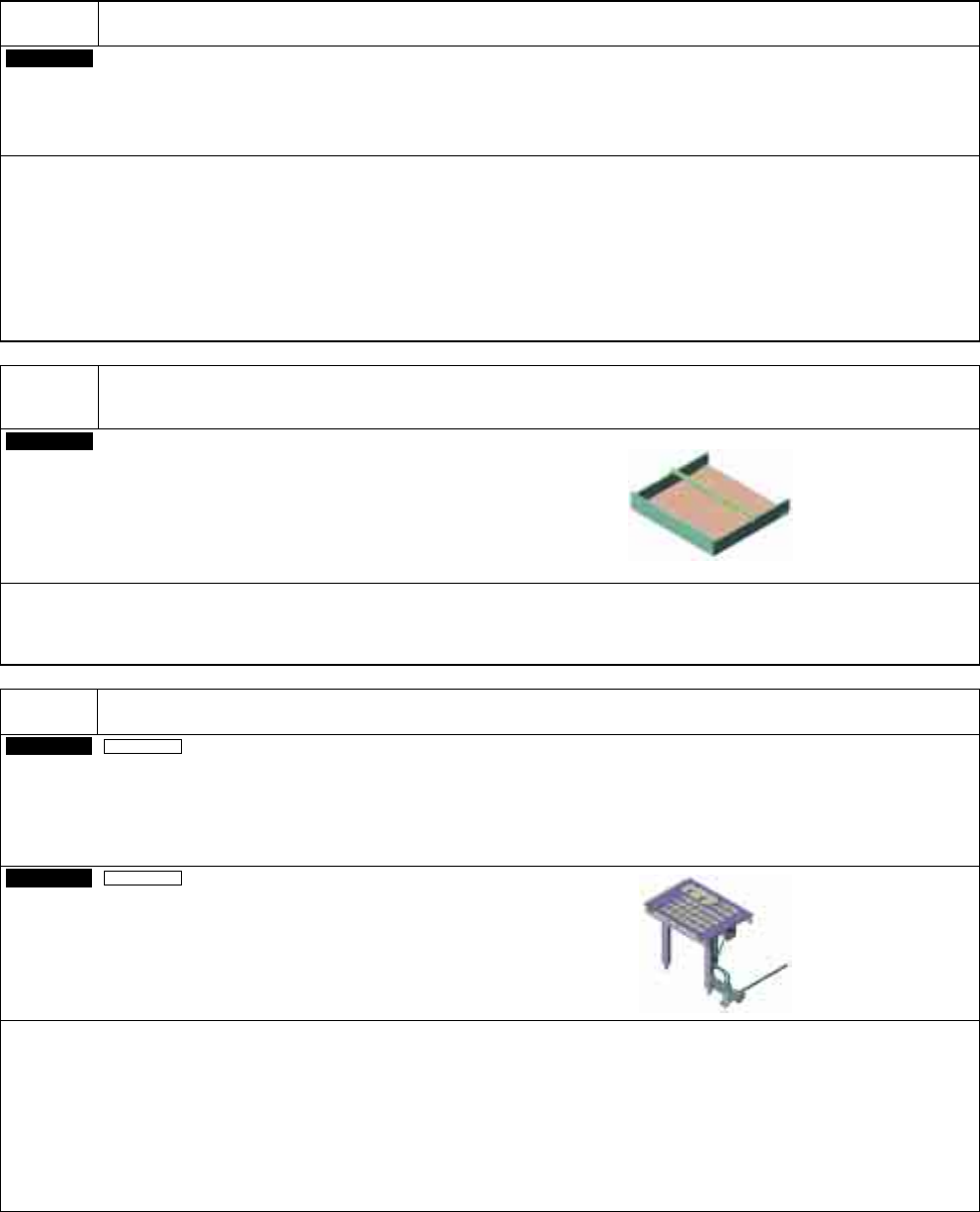

B-1
To change the positions of PCB support pins externally, in order to reduce the changeover time.
Customer
PCB support block
・
The machine comes with four PCB support blocks to be set and used for placement.
(Because the number of support pins is 20 per block, a total of 80 pins is included as standard.
Additional purchase by the block (20 pins) is available.)
・
If requiring more PCB support blocks for external preparation, please purchase as many ones as you need.
・
To set up the positions of support pins for new PCB externally, please purchase “Support pin setting jig”
[option] separately.
・
Common to CM402-L, CM401-L, and DT401-F.
Not sharable with CM402-M, CM401-M, CM400-M, DT401-M, DT400-M, CM212-M, CM202/201, and CM301.
B-2
To set up the positions of support pins for new PCB externally, in order to reduce the changeover
time.
Customer
Support pin setting jig
・
To prepare the support pins externally, please purchase the “PCB support block” [option] separately.
・
Common to CM402-L, CM401-L, and DT401-F.
Not sharable with CM402-M, CM401-M, CM400-M, DT401-M, DT400-M, CM212-M, CM202/201, and CM301.
B-3
To automate the nozzle changing operation in changeover.
On-site
By stage
Nozzle changer (for High Speed head (12 nozzles))
(This holds 36 nozzles.)
On-site
By stage
Nozzle changer (for High Speed head (8 nozzles))
(This holds 28 small nozzles and 2 large nozzles.)
・
In the High Speed head specifications, the nozzle changing for the optimum nozzle layout is supported in changeover.
・
In the High Speed head specifications, automatic nozzle changing operation is carried out exclusively in changeover.
Reason)
①
If nozzles are changed during the placement of one PCB, the placement tact time will be affected.
②
Since there are 24 and 16 attachable nozzles per stage for High Speed head (12 nozzles) and High Speed
head (8 nozzles) respectively, the nozzles for High Speed head cannot be changed during operation.
・
Using the nozzle changer may shorten the life of nozzles and nozzle holders.
(In the High Speed head specifications, their life is about three years if changed 10 times a day.)
・
The multi-functional head comes standard with the nozzle changer. (Please see D-5.)
