CM602-L 2006.0515
- 50 -
C-11
To improve the workability of tape splicing.
Customer
Splicing cart
・
This cart improves the workability of tape splicing.
・
The splicing cart is compatible with CM402, CM401, CM400, DT401, CM212, CM202/201, and CM301.
CM602-L 2006.0515
- 51 -
C-12
To maintenance the Intelligent feeder.
Customer
Intelligent Feeder Check Unit (Model No.: NM-EJW2A)
1. General Description
The intelligent feeder check unit allows the customer to per-
form maintenance on the intelligent feeders (tape feeders 8
mm to 32 mm wide).
・
A periodic check can be made after a fixed number of
operations.
・
The customer can adjust the component-feeding posi-
tion after replacing the parts of a malfunctioning feeder.
(Limited to components)
・
The feeder maintenance history will be managed on a PC.
∗
To use these functions, the version of the software incorpo-
rated in the feeder needs to be updated to Ver. 4.00 or later.
(This unit can update the software to Ver. 4.00.)
2. Features
The camera-captured image will be displayed on the PC
screen, not on the dedicated screen any longer; therefore,
the reference position of feed direction can be visually ad-
justed through the use of PC.
Also the target reference frame to be used for adjustment
can be selected from a pull-down list on the PC screen.
Moreover, the dedicated cart with casters provides easy carrying.
3. Specifications
• Feeder reference position check
PC screen
Check with the jig
tape
Upper:
Pickup position
Lower:
Sprocket position
∗
The pickup and
sprocket positions
can be inspected and
adjusted through the
comparison with the
master jig.
Component
pickup position
check with the
component paper
tape
• Feeder software update function (to Ver. 4.00)
• Feeder maintenance counter reset function (to zero)
• Feeder maintenance history management function
(1)
Details display
The details of work can be displayed by tracing the histo-
ries such as the feeder manufacturer’s serial number and
the version.
(2)
CSV file output
All the information displayed on the history list can be
output to a CSV file.
(3)
Sort function
The histories can be sorted in ascending/descending order
of the item selected on the title bar.
(4)
Search function
A search by date and a search refinement for each item
are available.
(5)
History file compression function
The inspection/adjustment file can be compressed in LZH
format.
(6)
Expire function
All the files within the period of time specified on the screen
can be deleted by pressing the execute button.
Selection of installation location
1. The machine should be placed in a horizontal place.
2. Conditions (No condensation)
• Temperature: 10
°
C to 35
°
C
• Humidity: No condensation
3. Floor space
Enough space (0.5 m wide, 1.5 m deep, and 1.5 m
high or more) should be secured for maintenance.
Item
Description
Target feeder
Intelligent tape feeder
8 mm double tape feeder
(With or without the joint detection sensor)
8 mm single tape feeder
(With or without the joint detection sensor)
12 mm/16 mm tape feeder
(With or without the joint detection sensor)
24 mm/32 mm tape feeder
(With or without the joint detection sensor)
∗
Limited to the standard type.
∗
The 44 mm/56 mm to 104 mm wide tape feeder,
the 32 mm paper adhesive feeder, the bulk
feeder, and the stick feeder are not available for
inspection.
Only the feeding action by switch operation on the
feeder is available.
Dimensions
400 mm wide, 745 mm deep, and 1 155 mm high
Mass
60 k
g
(Master jig and master jig case included)
Service power
source
Single phase AC 100 V to AC 240 V
±
5%
50/60 Hz 60 VA
Pressure
0.29 MPa to 0.34 MPa
Air
∗
Required for the
operation check of
the 32 mm paper
adhesive feeder
and the bulk
feeder
Flow rate
8 L/min (A.N.R.)
Connectable with
φ
4 tube
Picture signal cable
Power cable ∗
1
(AC 100 V to AC 240 V)
∗
2. A PC should be prepared by the customer.
Master jig
Regulator
Valve
Control box
Camera
X-Y table
Jig cart
Communication cable
CM602-L 2006.0515
- 52 -
4. Attachments
Item
Quantity
Master jig
1 pc.
Aluminum case
1 pc. (For storage and carriage of master jig)
Resin case
1 pc.
Jig tape set
8 mm: 3 pcs., 12 mm: 1 pc., 16 mm: 1 pc.,
24 mm: 1 pc., 32 mm: 1 pc.
RS-232C cable
1 pc.
Wrench 2 pcs.
Illumination lamp
For illumination of camera section (for re-
placement): 1 pc.
Power cable
∗
1
(for place of des-
tination)
One type should be selected from among six
types according to the place of destination.
Communication
check connector
1 pc. (For checking the communication with PC)
Maintenance
software
CD-ROM: 1 pc.
Instruction manuals: 1 set
Documentation
Parts list: 1 set
5. Hardware/OS Requirements
∗
2
A PC should be prepared by the customer.
The specifications are as follows.
Item
Requirements
Main body
IBM PC/AT-compatible machine
CPU
32-bit CPU such as Pentium III 800 MHz or
faster, or Celeron 800 MHz or faster
Motherboard
Fully compatible with IBM
Serial/Parallel I/O
Fully compatible with IBM. RS-232C port is required.
Graphics board
XGA or higher (24-bit color or higher)
Desktop area: 1 024 × 768 dots or more
(1 240 × 1 024 dots or more recommended)
16 MB or more of VRAM
(Recommended: Independent of the system memory)
System memory
256 MB or more
(512 MB or more recommended)
HDD
4 GB or more of available software-installed
drive space
CD-ROM unit
8x or faster (CD-RW also available)
Keyboard
English version: 101 keyboard
Mouse
PS/2 or USB connection
Monitor
XGA or higher supported
(Recommended: SXGA or higher supported)
External bus
OHCI-compliant IEEE1394 interface adapter required
OS
Windows XP (Professional, English version),
Direct X 8.0 or later
* The OS installed is limited to the English version
only. (Not installed with Windows XP (Professional,
Japanese version) etc.)

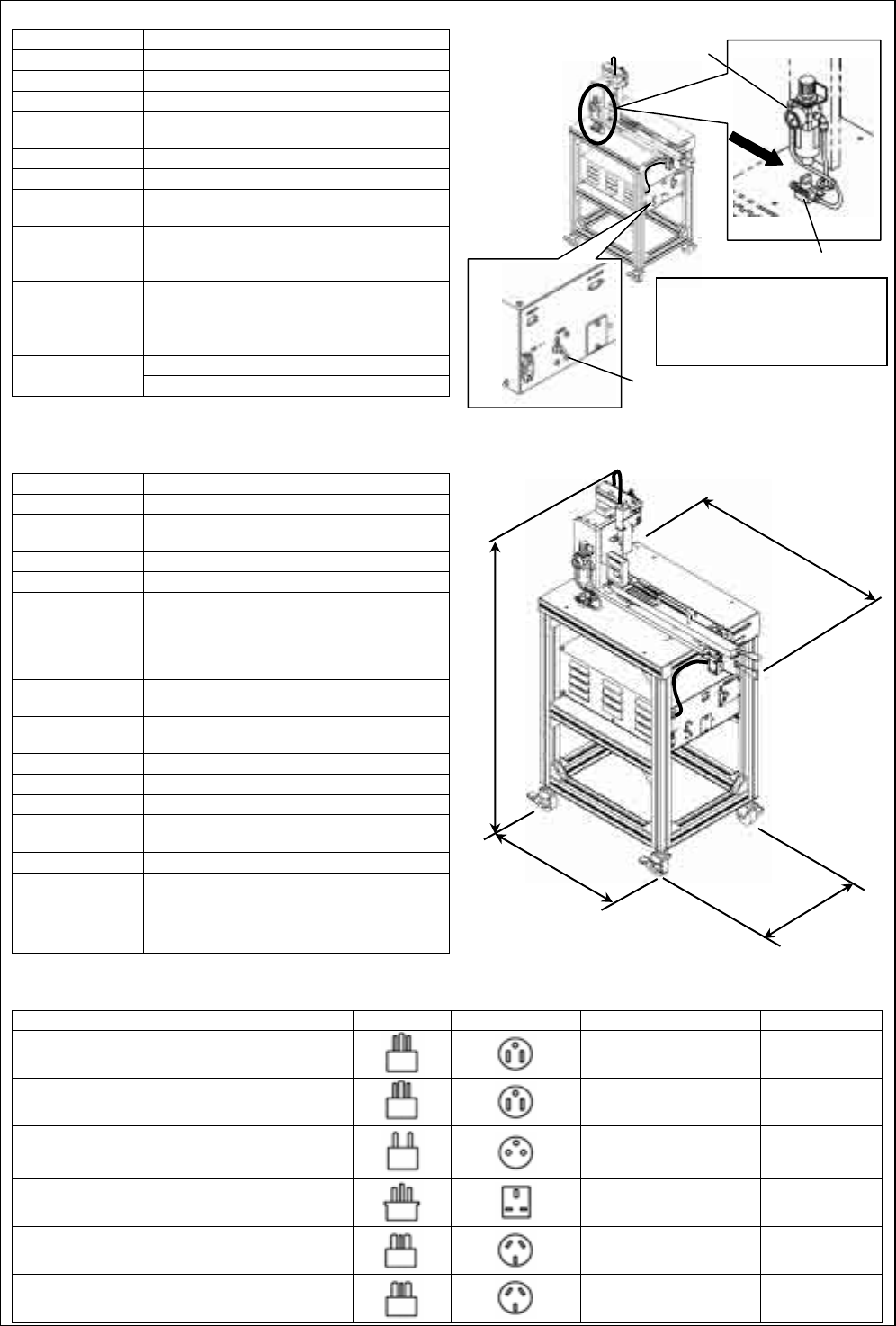

6. Power and Air Sources
7. Dimensional Drawing
(Unit : mm)
∗
1
Selection of the accompanying power cable for control BOX:
Since the type and shape of outlet vary with the region, please choose one type of power cable according to your region.
Major regions applicable
Plug type
Plug shape Outlet shape
Compatible specification
Model number
Japan
A
Electrical Appliance and
Material Safety Law
N610006918AA
North America, Canada, Mexico
A
UL
、
CSA
N610006919AA
Europe (except for England), Ko-
rea, Indonesia, Italy, Austria, Spain,
Germany, Turkey, Hungary, France
S
CE N610006921AA
England, Hong Kong, Singapore,
Malaysia
BF
BS N610006922AA
China, the Philippines
O
CCC N610006920AA
Australia
O
AS N610006923AA
Regulator
Valve
To be connected with
φ
4 air tube when
necessary.
To be required only for the operation
check of the bulk feeder and the 32 mm
paper adhesive feeder.
Power supply switch
1 155
745
400
500
