CM602-L 2006.0515 - 55 - D-6 To m anage and stor e the r emoved he ads. Customer Head stand ( For two heads ) Head stand ( For four heads ) ・ This is used to st ore the re moved head s after ex changed. ・ One stand can s…
CM602-L 2006.0515
- 54 -

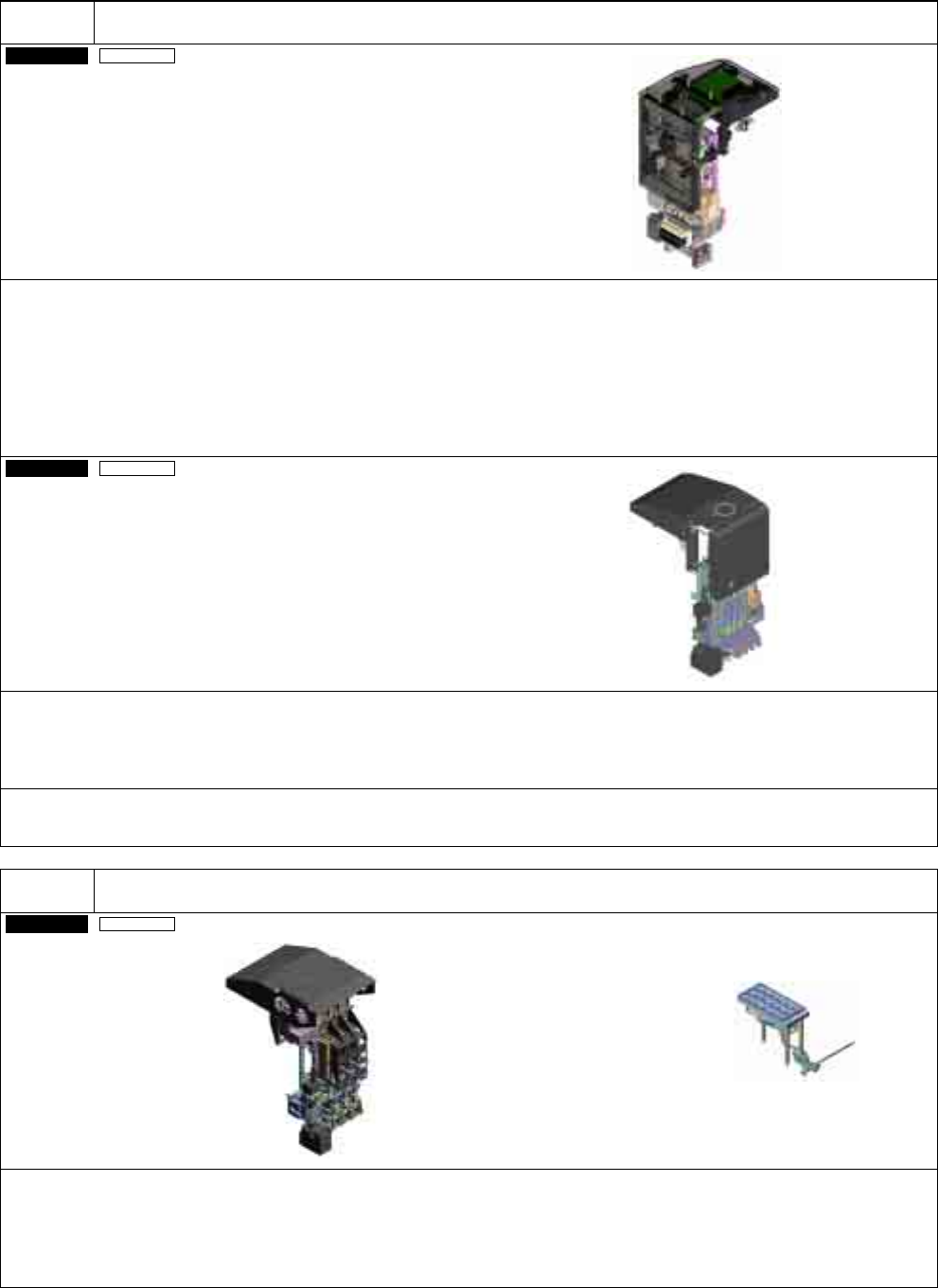

D-4
To replace with High Speed head (8 nozzles) or High Speed head (12 nozzles).
On-site
By stage
High Speed head (12 nozzles)
・
Please select this option if replacing the High Speed head (8 nozzles) or the Multi-functional head with the High Speed
head (12 nozzles).
・
This can be replaced for each stage (two heads). It is not possible to set the different heads onto the front and the rear
table.
・
For High Speed head (12 nozzles) type, the versions of the software incorporated in the double tape feeder and the
feeder cart need to be updated to Ver. 5.00 or later and Ver. 1.20 or later, respectively.
(Because of the gang feed support in right and left lanes of double tape feeder.)
・
Attachments: “Gang feed support” labels (the identification labels for the software-updated feeder and feeder cart)
On-site
By stage
High Speed head (8 nozzles)
・
Please select this option if replacing the High Speed head (12 nozzles) or the Multi-functional head with the High Speed
head (8 nozzles).
・
This can be replaced for each stage (two heads). It is not possible to set the different heads onto the front and the rear
table.
・
For the high-speed head type, the nozzle changer is optional. B-3 “Nozzle changer (for High Speed head)” is required
separately.
D-5
To replace with Multi-functional head.
On-site
By stage
Multi-functional head
Nozzle changer
(for Multi-functional head)
(This holds 15 large nozzles.)
・
Please select this option if replacing the high-speed head with the multi-functional head.
When needed, please select the optional side lighting (D-1 Side lighting) because it is not included as standard.
・
This can be replaced for each stage (two heads). It is not possible to set the different heads onto the front and the rear
table.
・
Nozzle changer (for the Multi-functional head) is included with the Multi-functional head.
CM602-L 2006.0515
- 55 -
D-6
To manage and store the removed heads.
Customer
Head stand (For two heads)
Head stand (For four heads)
・
This is used to store the removed heads after exchanged.
・
One stand can store two or four heads. Please select either one corresponding to the number of heads to be stored.
・
The head stand is compatible with CM402, CM401, CM400, DT401, DT400, and CM212.
D-7
To place components onto ceramic PCB.
On-site
Whole machine
Ceramic board support
・
For further information, please contact us.
D-8
To use the parts verify function.
Factory
Pana PRO/CVT supporting unit
・
To use the production-support system Pana PRO/CVT, the Pana PRO/CVT supporting unit needs to be
installed to the machine.
D-9
To detect the components brought back.
On-site
By stage
Component thickness sensor
・
This emits a laser light to the nozzle tip to provide component thickness measurement (chip data entry and placement
height control), component bring-back check, and nozzle tip check.
・
The measurable component thickness is 3 mm maximum.
・
This is an option exclusive to High Speed head (12 nozzles) type.
∗
This option will be released in September 2006.
E-1
Required for the regular maintenance.
Option name Usage Description Qty. Remarks
Customer
Lubrication set
Greasing the
designated points
on the machine
Grease gun
Nozzle
1 set
Common to CM402,
CM401, CM400, DT401,
DT400, CM212,
CM202/201, and CM301.
Customer
Maintenance jig
Regular
maintenance
Grease for heads (Syringe included)
Blower brush for cleaning the camera
1 set
Common to CM402,
CM401, CM400, DT401,
DT400, and CM212.
・
These are used for the periodical application of grease and cleaning in machine maintenance, etc.
・
They are necessary in purchasing the first standard machine.
CM602-L 2006.0515
- 56 -
E-2
Required for adjustments.
Head (*)
High Speed
Option name
12 nozzles 8 nozzles
Multi-
func-
tional
Usage Description Qty.
Customer
For teaching the pick up position Pick up position and height jig
For teaching the placement height
and the PCB stopper positions
Placement height jig
For ascending/descending the
feeder cart on a stand-alone basis
Feeder base raising jig
Adjustment jig
(For main body)
■
● ◆
For teaching the placement position
Placement position teaching jig
1 set
Customer
For teaching the nozzle changer
position
Nozzle changer position jig
(For High Speed head (12 nozzles))
For teaching the head θ and the
line camera related
Line camera jig
(For High Speed head (12 nozzles))
Adjustment jig
(High Speed
head
(12 nozzles))
■
For teaching the LED lighting
LED lighting teaching jig
(For High Speed head (12 nozzles))
1 set
Customer
For teaching the nozzle changer
position
Nozzle changer position jig
(For High Speed head (8 nozzles))
For teaching the head θ and the
line camera related
Line camera jig
(For High Speed head (8 nozzles))
Adjustment jig
(High Speed
head
(8 nozzles))
●
For teaching the LED lighting
LED lighting teaching jig
(For High Speed head (8 nozzles))
1 set
Customer
For teaching the nozzle changer
position
Nozzle changer position jig
(For Multi-functional head)
For teaching the head θ and the
line camera related
Line camera jig
(For Multi-functional head)
For teaching the LED lighting
LED lighting teaching jig
(For Multi-functional head)
For teaching the lead checker
Laser recognition jig
(For Multi-functional head)
Adjustment jig
(Multi-functional
Head)
◆
For teaching the placement position
Placement position teaching jig
(Addition for Multi-functional head)
1 set
Customer
Adjustment jig
(Common to
High Speed
head (12 and 8
nozzles))
(Exclusive to CM602-L)
■
●
For reflecting recognition teaching
Reflecting recognition teaching jig
(Common to High Speed head
(12 and 8 nozzles))
1 set
Customer
Adjustment jig
(Multi-functional
Head)
(Exclusive to CM602-L)
◆
For reflecting recognition teaching
Reflecting recognition teaching jig
(For Multi-functional head)
1 set
Customer
Plane calibration
jig
■
● ◆
Plane calibration teaching Plane calibration jig 1 set
Customer
Placement load
measuring jig
◆
Placement load teaching Placement load measuring jig 1 set
・
These jigs are used for various adjustments. When purchasing the first machine by specifications, please also purchase them.
・
Please select the jigs represented by
■
when using them for the High Speed head (12 nozzles),
●
when using them
for the High Speed head (8 nozzles), and
◆
when using them for the Multi-functional head.
・
They support compatibility among CM402, CM401, CM400, DT400, and CM212 except for the adjustment jigs (for High
Speed head (12 nozzles) type),
reflecting recognition teaching
and the plane calibration jig.
・
The reflecting recognition teaching jig is exclusive to CM602-L.
・
The plane calibration jig supports compatibility among CM402-L, CM401-L, and DT401-F.
