Installing the CPP Placement Head
Assembly of the CPP Placement Head Height Adjustment and Installation of the Nozzle Station
70 Assembly Instructions / Montageanleitung Head Reconfiguration Kit CPP
Installing the Downholder and the Co ding Sheet
3.4.7.3 Installing the Downholder and the Coding Sheet
Depending on the configuration of the SX machine either the reject bin [03063238-xx] with downholder
[03079173-xx] or the component reject bin up to 6x6 [03062378--xx] is used on occupied box locations.
On unoccupied bin locations the coding sheet (No Box) [03083883-xx] has to be installed.
For the description of the configurations refer to "3.4.7.3.1 Configurations with Reject Bins and Coding
Sheet" [ ➙ 70].
For the description of the installation and the removal refer to "3.4.7.3.2 Installing/Removing Downhold
-
er" [ ➙ 73] and "3.4.7.3.3 Installing/Removing Coding Sheet" [ ➙ 74].
See also
3.4.7.3.1 Configurations with Reject Bins and Coding Sheet [ ➙ 70]
Configura tions with Reject Bins and Coding S heet
Configurations with Reject Bins and Coding Sheet

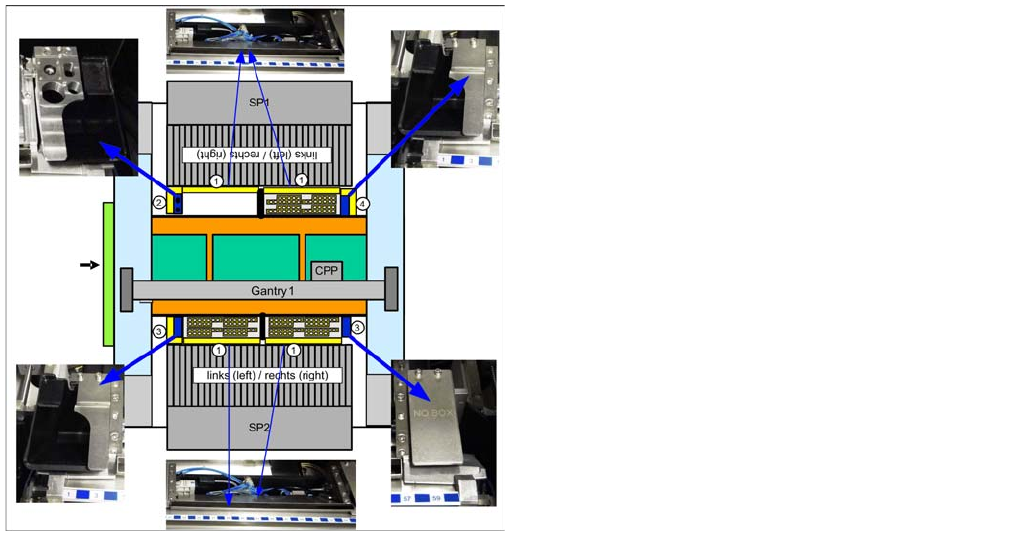

SX 1 without stationary camera
Nozzle station in SP1 right, component reject bin up to
6x6 [03062378--xx] in SP1 and 2, reject bin [03063238-
xx] with downholder [03079173-xx] in SP2 left and SP1
left, coding sheet [03083883-xx] in SP2 right.
Installing the CPP Placement Head
Height Adjustment and Installation of the Nozzle Station Assembly of the CPP Placement Head
Assembly Instructions / Montageanleitung Head Reconfiguration Kit CPP 71

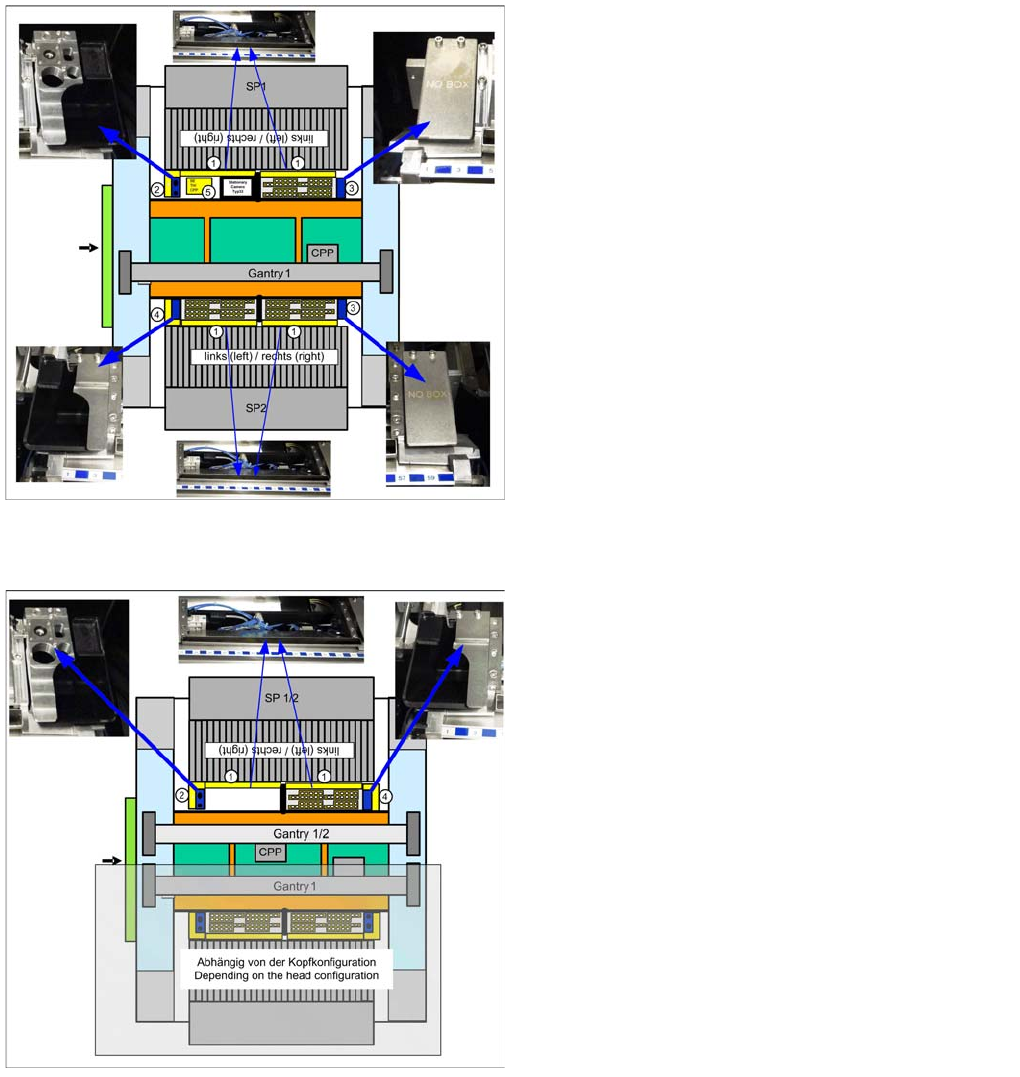

SX 1 with stationary camera
SX2 without stationary camera on one gantry
Nozzle station in SP1 right, component reject bin up to
6x6 [03062378--xx] in SP1 and 2, reject bin [03063238-
xx] with downholder [03079173-xx] in SP2 left, coding
sheet [03083883-xx] in SP1 left and SP2 right
Nozzle station in SP1/2 right, component reject bin up to
6x6 [03062378--xx] in SP1/2, reject bin [03063238-xx]
with downholder [03079173-xx] in SP1/2 left.
On the other gantry: depending on the configuration.
Installing the CPP Placement Head
Assembly of the CPP Placement Head Height Adjustment and Installation of the Nozzle Station
72 Assembly Instructions / Montageanleitung Head Reconfiguration Kit CPP
SX2 with stationary camera on one gantry
SX2 with WPC and stationary camera on one gantry
Nozzle station in SP1/2 right, component reject bin up to
6x6 [03062378--xx] in SP1/2, coding sheet [03083883-
xx] in SP1/2 left.
On the other gantry: depending on the configuration.
Nozzle station right, component reject bin up to 6x6
[03062378--xx].
On the other gantry: depending on the configuration.
