1 4 X-axis 4 Moving-axis KV7-080617 19 47 34 33 15 66 10 64 4 14 72 28 28 54 27 26 1 1 63 45 36 44 16 17 25 58 60 18 29 22 23 56 5 5 1 68 68 44 45 43 13 59 65 9 9 6 5 31 35 30 24 24 38 37 42 40 41 40 12 41 46 29 66 23 56…
4
3
Feeder Floating Detection 20
Feeder
KV7-1107
8
5
3
4
1
2
2
3
6
7
8
8
4
1
2
2
8
FES Left
FES Right
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M3901-00X BRACKET SENSOR2 2 /
2 KG7-M3906-00X BRACKET 6 4 /
3 KV7-M3910-01X BRACKET SENSOR,1 2 /
4 KG9-M3455-30X SENSOR S 2 B
5 KG2-M3903-00X SEAL, CAUTION 1 /
6 KM5-M3941-00X BRACKET 4-1, SENSOR R 1 /
7 KM9-M3941-00X BRACKET 4-2, SENSOR R 1 /
8 KM5-M3456-30X SENSOR R(L=800) 2 B
1
4
X-axis
4 Moving-axis
KV7-080617
19
47
34
33
15
66
10
64
4
14
72
28
28
54
27
26
11
63
45
36
44
16
17
25
58
60
18
29
22
23
56
5
5
1
68
68
44
45
43
13
59
65
9
9
6
5
31
35
30
24
24
38
37
42
40
41
40
12
41
46
29
66
23
56
50
55
48
51
49
66
50
48
49
51
53
8
7
39
62
61
67
59
56
21
20
59
35
32
67
52
43
OLD
70
71
69
3
2
14
27
26
OLD
18
9
9
7
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M2211-03X FRAME X AXIS 1 (2008/4/8) OK /
2 KV7-M2213-02X PLATE A,X AXIS 1 /
3 KV7-M2214-02X PLATE B,X AXIS 1 /
4 KM0-M2220-00X COUPLING, X-AXIS 1 /
5 KV7-M2231-00X SPACER R.NUT 3 /
6 KV7-M2233-00X SPACER R2,NUT 1 (2003/2/11) OK /
7 KV8-M2236-00X PLATE A 1 /
8 KV8-M2237-00X PLATE B 1 /
9 KV7-M2239-00X BRACKET 1 2 /
10 KM0-M2241-01X HOLDER, MOTOR 1 (2008/4/8) OK /
11 KV7-M2242-01X HOLDER, BRG. X AXIS (2008/4/8) OK /
12 90990-25J005 BEARING 1 (2007/12/4) OK /
13 KV7-M2261-01X HOLDER, HEAD 1 (2002/4/25) OK /
14-1 KV7-M2271-01X SCREW BALL X AXIS 1 1999/11/3 Set /
14-2 KV7-M2271-02X SCREW BALL X AXIS 1 with/K1 seal (2002/6/6) Set /
15 90K56-8717EX AC SERVO MOTOR 1 (2003/4/18) OK B
16 KGB-M220A-00X SENSOR , ORG 1 L=600 (2002/11/12) OK B
17 KGB-M220B-00X SENSOR , OT(L=600) 1 L=600 (2002/11/12) OK B
18 KV7-M2276-S0X X-AXIS GUIDE SET 1 with/K1 seal (2002/6/6) Set A
19 KV7-M2267-A1X CABLE DUCT 1 (2004/7/12) OK B
20 K94-M220A-00X TAPE X-AXIS 1 /
21 K94-M220A-10X TAPE X-AXIS 1 /
22 KV7-M2282-00X DOG. ORG 1 /
23 KV7-M2283-00X DOG. 2ND LIMIT 2 /
24 KV7-M226B-00X PLATE 2 /
25 KV7-M2291-00X BRACKET, SENSOR 1 /
26 KGA-M2651-10X DAMPER 14 ASSY 1 /
26-1 KGA-M2651-11X DAMPER 14 ASSY 1 (2002/6/6) Set /
27 KGA-M2651-60X DAMPER 120 ASSY 1 /
27-1 KGA-M2651-61X DAMPER 105 ASSY 1 (2002/6/6) Set /
28 90990-01J023 BOLT,HEX.SOCKET HEAD 24 (2007/10/29) OK /
29 90990-01J024 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) OK /
30 KV7-M226A-00X COVER CABLE 1 /
31 KV7-M2268-00X BRACKET 1, TAPE 1 /
32 KV7-M2269-00X BRACKET 2, TAPE 1 /
33 KV7-M220A-01X TAPE, X DUCT 1 /
34 KV7-M220B-00X TAPE 2, X DUCT 1 /
35 KV7-M2266-00X PLATE.NUT 2 /
36 KV7-M2240-00X SLEEVE.BRG. 1 /
37 KV7-M2243-00X HOUSING, BRG. X 1 /
38 KV7-M2244-00X COVER, BRG. HOUSING 1 /
39 KV7-M2246-00X COIL SPRING M 6 /
40 KV7-M2647-00X OIL SEAL 2 /
41 90990-41J100 COLLAR 3 (2008/4/11) OK /
42 KG2-M9173-00X LOCK NUT 1 /
43 90990-01J030 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) OK /
44 KV7-M2256-00X GRIP 2 /
45 KV7-M2257-00X SPACER GRIP 2 /
46 KV7-M220C-00X TAPE 3, X DUCT 1 /
47 KV7-M221A-A0X COVER, DUCT ASSY 1 /
48 KV7-M2295-01X BRACKET, PIN 2 /
49 KV7-M2296-00X BRACKET, SCREW 2 /
50 KV7-M2297-00X TAPER PIN 4 /
51 KV7-M2298-00X NYLOCK SET SCREW 6 /
52 KM0-M2252-00X STOPPER 1 /
53 99480-06014 PIN, PARALLEL 2 /
54 KV7-M2604-00X SUPPORT UNIT 1 1999/11/3 SET /
55 90990-38J001 WASHER, SPRING 16 (2008/4/15) OK /
56 91317-03006 BOLT HEX. SOCKET HEAD 6 /
57 91317-04006 BOLT HEX. SOCKET HEAD 4 /
58 91317-04008 BOLT HEX. SOCKET HEAD 12 /
59 91317-04010 BOLT HEX.SOCKET HEAD 4 (2002/2/28) OK /
60 91317-04016 BOLT HEX.SOCKET HEAD 30 (2005/2/7) OK /
61 91317-04030 BOLT HEX. SOCKET HEAD 6 /
62 91317-05014 BOLT HEX. SOCKET HEAD 4 /
63 91317-05020 BOLT HEX. SOCKET HEAD 4 /
64 91317-05035 BOLT HEX. SOCKET HEAD 4 /
65 91317-06012 BOLT HEX. SOCKET HEAD 8 /
66 91317-06018 BOLT HEX.SOCKET HEAD 8 (2002/7/19) OK /
67 98902-03006 SCREW BINDING HEAD 4 (2007/7/9) OK /
68 KV7-M2213-S1X PLATE X AXIS SET 1 (2008/4/8) OK /
69 KV7-M2247-00X BLOCK,STOPPER X 1 /
70 KV7-M2248-00X DAMPER 2 1 /
71 KV7-M2248-00X DAMPER 1 1 /
72 KV7-M2271-A0X X AXIS B.S.SUB ASSY 1 (2005/8/2) A
2
4

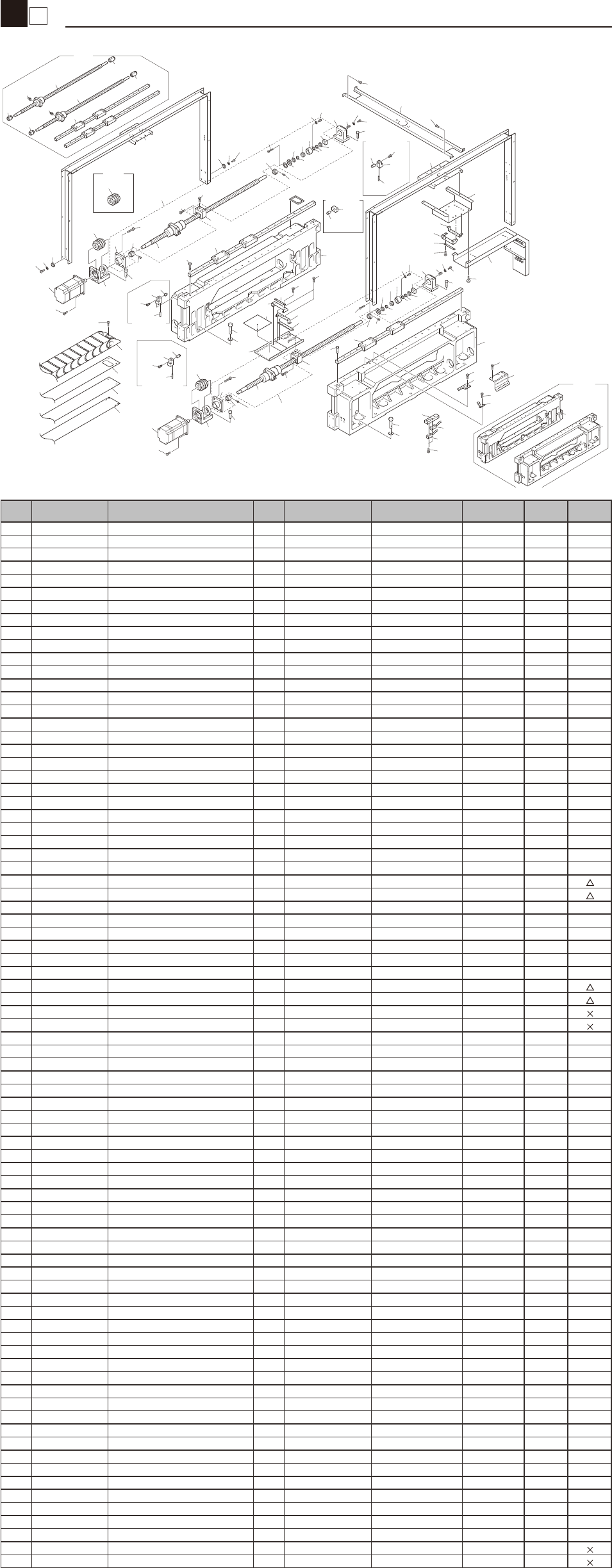

Y-axis (FNC/SF)
Moving-axis
KV7-080617
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M2611-02X FRAME R,Y AXIS 1 (2003/2/17) OK /
2 KV7-M2612-02X FRAME L,Y AXIS 1 (2006/7/25) OK /
3 KV7-M2671-02X SCREW BALL Y AXIS 2 2001/12/26 OK /
3-1 KV7-M2671-03X SCREW BALL Y AXIS 2 with K1 seal 2002/11/28 NG /
4 KG2-M9173-00X LOCK NUT 2 /
5 KV7-M264A-01X HOLDER SET, Y AXIS 2 /
7 KV7-M2243-00X HOUSING BRG. X 2 /
8 KV7-M2244-00X COVER BRB. HOUSING 2 /
9 90990-25J005 BEARING 2 (2007/12/4) OK /
10 KV7-M2646-00X COIL SPRING M 12 /
11 KV7-M2647-00X OIL SEAL 4 /
12 KV7-M2648-00X SPACER 6 /
13 KV7-M2651-40X DAMPER 43 ASSY 2 /
13-1 KGA-M2651-41X DAMPER 24 ASSY 2 (2002/7/16) Set /
14 KV7-M2651-30X DAMPER 35 ASSY 2 /
14-1 KGA-M2651-31X DAMPER 16 ASSY 2 (2002/7/23) Set /
15 KV7-M2666-01X HOLDER NUT Y AXIS 2 /
16 KV7-M2682-01X DOG ORG 1 /
17 KV7-M2683-01X DOG 2ND LIMIT 2 /
18 KV7-M2691-02X BRACKET,SENSOR 1 (2004/9/1) OK /
19 KV7-M2694-00X BRACKET A GUIDE 1 /
20 KV7-M2695-01X BRACKET B GUIDE 1 /
21 KGA-M26F1-00X FRAME 1 1 /
22 KGA-M26F2-00X FRAME 2 1 /
23 KV7-M26F3-00X FRAME 3 1 /
24 KV7-M26F4-00X DUCT HARNESS 1 /
25 KV7-M26F5-01X BRACKET HARNESS 1 /
26 KGA-M260A-00X SENSOR ORG 1 SQ01 (2002/11/12) OK B
27 KGA-M260B-00X SENSOR OT 1 SQ05 (2002/11/12) OK B
28 KV7-M260A-00X TAPE. Y AXIS 1 /
29 KV7-M260B-00X TAPE. Y DUCT 1 /
30 KV7-M260C-00X TAPE 2. Y DUCT 1 /
31 KV7-M2667-00X PLATE 2 /
32 KV7-M2668-00X BRACKET 1. TAPE Y 1 /
33 KV7-M2669-00X BRACKET 2. TAPE Y 1 /
34 KV7-M2678-00X GUIDE.CABLE Y 1 B
35 90K56-8A174Y AC SERVO MOTOR 2 M02,M11; Y1,Y2 (2000/8/28) OK B
36 KV7-M2676-S1X Y-AXIS GUIDE SET 1 A
36-1 KV7-M2676-S2X Y-AXIS GUIDE SET 1 with K1 seal 2002/11/28 NG A
37 KM5-M2611-00X COUPLING,Y-AXIS 2 LCD (2003/2/11) OK /
38 90990-01J028 BOLT,HEX.SOCKET HEAD 20 M12X50 (2007/10/29) OK /
39 90201-124G9 WASHER PLAIN 20 (1999/9/28) OK /
40 90990-01J029 BOLT,HEX.SOCKET HEAD 16 M6X30 (2007/10/29) OK /
41 KV7-M2698-00X PLATE 1. CLAMP 2 /
42 KV7-M2699-00X PLATE 2. CLAMP 1 /
43 90990-01J030 BOLT,HEX.SOCKET HEAD 40 M5X16 (2007/10/29) OK /
44 KV7-M260D-00X TAPE 3. Y DUCT 1 /
45 KV7-M2604-00X SUPPORT UNIT 2 /
46 90990-01J023 BOLT,HEX.SOCKET HEAD 24 M2.6X10 (2007/10/29) OK /
47 KV8-M2611-00X COUPLING. Y-AXIS 1 LCD /
48 98903-03004 SCREW BINDING HEAD 4 /
49 98902-04006 SCREW BINDING HEAD 6 (2006/1/9) OK /
50 90990-12J001 SCREW BIN.HEAD W/W 6 (2002/9/11) OK /
51 98902-05010 SCREW BINDING HEAD 4 (2006/1/9) OK /
52 91312-04008 BOLT HEX, SOCKET HEAD 10 (2006/1/16) OK /
53 91317-04008 BOLT HEX, SOCKET HEAD 2 /
54 91312-04010 BOLT HEX, SOCKET HEAD 12 (2006/1/16) OK /
55 91317-04014 BOLT HEX, SOCKET HEAD 8 /
56 91317-04030 BOLT HEX, SOCKET HEAD 12 /
57 91317-05010 BOLT HEX, SOCKET HEAD 2 /
58 91317-05018 BOLT HEX, SOCKET HEAD 8 /
59 91312-06010 BOLT HEX, SOCKET HEAD 28 (2006/1/26) OK /
60 91317-06018 BOLT HEX, SOCKET HEAD 16 /
61 KV7-M2651-00X DAMPER,STOPPER 2 SF head /
62 KV7-M2651-10X DAMPER,STOPPER 2 SF head /
63 KV7-M2652-00X BRACKET,STOPPER Y 2 SF head /
64 KV7-M2652-10X BRACKET,STOPPER Y 2 SF head /
65 KV7-M2653-00X PIN,PARALLEL 2 SF head /
66 97704-40012 SRW TRUSS HEAD TAP'G 4 SF head /
67 KV7-M2651-10X DAMPER,STOPPER 4 FNC head /
68 KV7-M2652-00X BRACKET,STOPPER Y 4 FNC head /
69 KV7-M2653-00X PIN,PARALLEL 4 FNC head /
70 97704-40012 SRW TRUSS HEAD TAP'G 4 FNC head /
71 KM8-M2647-00X GREASE NIPPLE 2 /
72 92907-04200 WASHER PLAIN 12 /
73 92903-06200 WASHER PLAIN 20 /
74 92990-06400 WASHER EXTL.TOOTHED 20 /
75 KV7-M2611-S0X FRAME,Y AXIS SET 1 (2007/2/8) /
76 KV7-M2671-C0X Y AXIS B.S.SUB ASSY 2 A
76-1 KV7-M2671-A0X Y AXIS B.S.SUB ASSY 2 with K1 seal 2002/11/28 NG A
31
37
45
35
60
5
3
15
58
28
21
36
36
23
51
51
38
39
55
20
40
32
2
50
41
42
29
44
30
34
59
10
9
54
11
4
56
56
72
22
18
31
48
33
41
26
27
53
38
39
1
25
57
16
49
17
49
19
11
12
12
7
8
24
50
5
43
43
40
37
47
45
13
35
5
3
15
40
10
72
9
11
14
4
11
12
12
7
8
46
5
40
56
52
60
55
58
60
54
72
56
13
46
46
14
46
76
76
61
63
66
65
64
62
72
73
74
59
73
74
59
2
1
OLD
36
36
3
14
13
71
3
14
13
71
67
68
70
69
OLD FNC
68
67
69
70
OLD FNC
OLD SF
OLD SF
OLD
OLD
