3 5 Head (FNC) Head KV7-0507 1 6 2 69 70 70 69 5 13 15 59 5 13 15 59 4 3 39 17 66 12 41 42 16 43 18 51 38 62 61 35 55 55 45 40 50 61 37 53 53 34 80 63 36 29 30 26 60 68 85 72 48 46 56 54 21 64 28 58 19 60 27 23 52 67 83 …
2
5

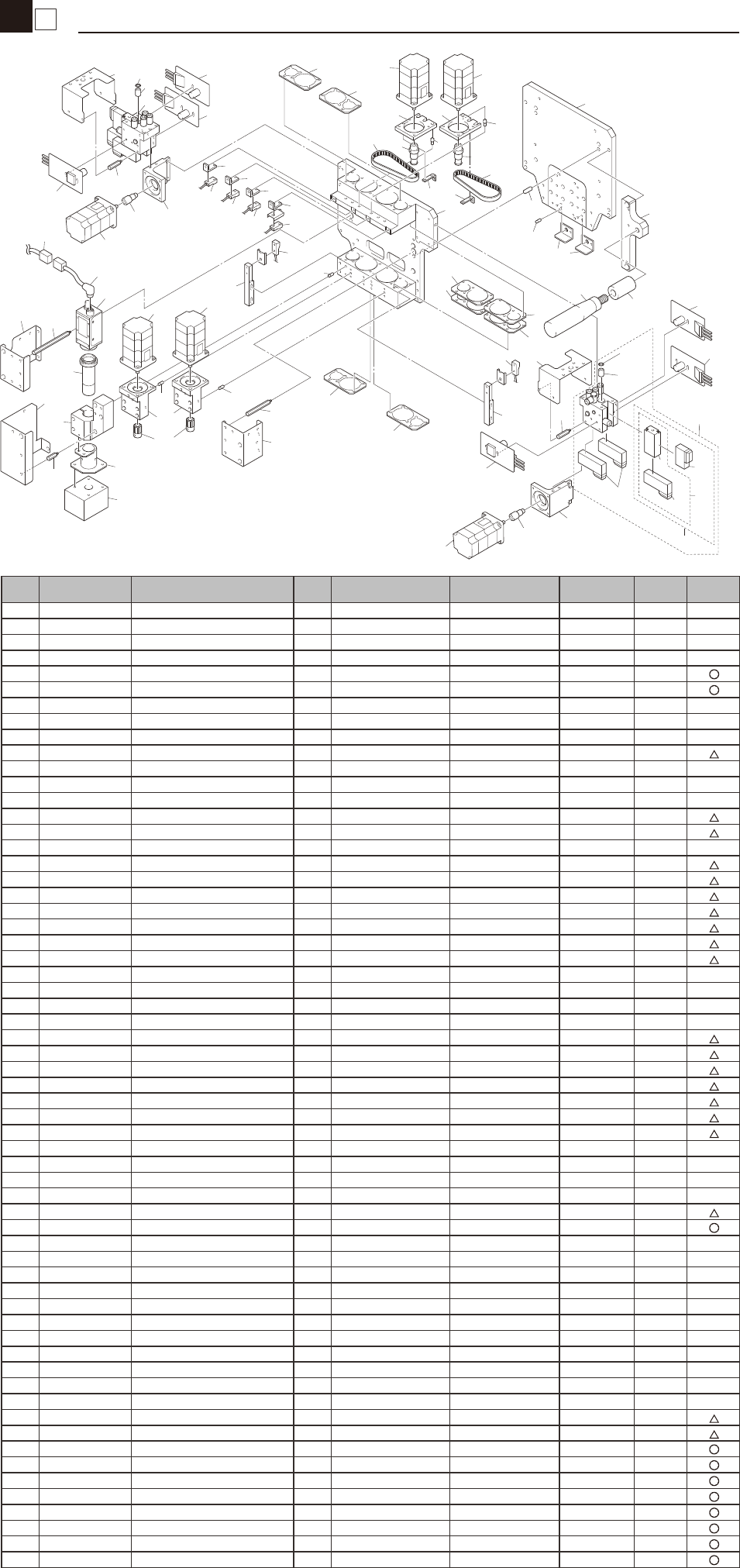

Body Head (FNC)
Head
KV7-090129
53
56
55
59
6
57
58
52
22
60
4
23
28
20
43
5
45
17
29
23
4
7
8
7
8
18
21
19
3
3
30
31
24
24
25
25
15
15
9
9
14
14
27
26
16
44
13
50
49
1
2
2
2
2
43
45
17
22
12
17
12
26
3
3
47
42
26
32
33
11
10
26
38
37
46
36
40
35
48
41
39
54
34
17
51
51
53
52
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M7101-01X HOUSING,HEAD 1 /
2 KV7-M7102-00X PLATE 1,BRG. 4 /
3 KV7-M7103-00X PLATE 2,BRG. 4 /
4 KV7-M7105-00X HOLDER,MOTOR Z 2 /
5 KV7-M7110-00X L VALVE ASSY. 1 C
6 KV7-M7110-10X R VALVE ASSY. 1 C
7 KV7-M7112-01X BRACKET,SENSOR 2 X3 (1999/8/6) OK /
8 KV7-M7113-01X BRACKET,SENSOR 2 X3 (1999/8/6) OK /
9 KV7-M7114-00X BRACKET,TENSION 2 /
10 KV7-M7122-01X GEAR,MOTOR R 2 Set w / KV7-M7121-01X (2003/2/4) OK B
11 KV7-M7123-00X HOLDER,MOTOR R 2 /
12 KV7-M7125-00X STAY,SENSOR Z 2 /
13 KV7-M7129-00X STOPPER,GUIDE 2 /
14 KV7-M7176-00X BELT,N AXIS 2 B
15 KV7-M7179-A0X PULLEY N ASSY. 2 B
16 KV7-M7191-00X PLATE,HOUSING 1 /
17
KV7-M4592-01X PRESSURE SENSOR ASSY 4 (2001/9/30) OK B
18
KV7-M653F-B0X SENSOR,HEAD 1 (N1 ORG) (2003/1/6) OK B
19 KV7-M653F-30X SENSOR,3 ASSY. 1 L=500 (R2 ORG) B
20 KV7-M653G-10X SENSOR,4 ASSY. 1 L=450 (N2 ORG) B
21 KV7-M653G-20X SENSOR,4 ASSY. 1 L=500 (R1 ORG) B
22 KV7-M653A-50X SENSOR,1 ASSY. 2 L=400 B
23 KG7-M7123-00X GEAR,Z AXIS 2 B
24 KH5-M7111-00X BRACKET,MOTOR R2 2 /
25 KH5-M7118-00X PIN 2,TENSION 2 /
26
99480-04010 PIN PARALLEL 6 4X10 (2001/2/20) OK /
27 99480-06014 PIN,PARALLEL 2 /
28 90K55-4W07GA AC SERVO MOTOR 1 for Z1-axis B
29 90K55-4W07GB AC SERVO MOTOR 1 for Z2-axis B
30 90K55-4W07HN AC SERVO MOTOR 1 for N1-axis B
31 90K55-4W07HV AC SERVO MOTOR 1 for N2-axis B
32
90K57-4W07HC AC SERVO MOTOR for R1-axis (2000/8/28) OK B
33
90K57-4W07HD AC SERVO MOTOR for R2-axis (2000/8/28) OK B
34
KV7-M7210-01X CCD CAMERA 1 (2003/2/24) OK B
35 KV7-M7211-00X LENS 095 1 /
36 KV7-M7162-00X HOLDER,CAMERA 1 H=79mm /
36-1 KV7-M7162-01X HOLDER,CAMERA 1 H=75.5mm 2000/1/31 NG /
37 KM7-M7172-00X STAY,FID.LIGHT 1 /
38 KV7-M7600-00X FIDUCIAL LIGHT ASSY. 1 B
39 KV7-M66F0-00X C.CABLE ASSY. 1 1.7M B
40 KV7-M71C1-00X COVER,CAMERA 1 /
41 KV7-M71C2-00X STAY,LEFT 1 /
42 KV7-M71C3-00X STAY,RIGHT 1 /
43 KV7-M71C4-00X COVER,VALVE 2 /
44 KV7-M71C7-00X STAY,HANDLE 1 /
45
90563-03J180 SPACER 8 (2001/10/10) OK /
46
90563-24J170 SPACER BOLT 1 (2001/9/4) OK /
47
90563-24J500 SPACER BOLT 2 (2001/9/4) OK /
48
90563-24J800 SPACER BOLT 2 (2001/9/4) OK /
49 KV7-M8159-00X SHAFT,HANDLE 1 /
50 KV7-M2256-00X GRIP 1 /
51
KM1-M4592-13X VAC SENSOR BOARD ASSY 2 (2005/4/19) OK A
52
90990-17J008 O-RING 1 (2001/11/22) OK A
53 K46-M8527-C0X FILTER 2 A
54
KV7-M66F2-00X C.CABLE ASSY 1 6M (1999/5/26) OK B
55 KV7-M7111-B0X VALVE 4 C
56 KGA-M7111-H0X VALVE 2 A041E1(OPARATE) C
57 KM1-M7163-20X VALVE 2 A010E1(BLOW) C
58 KV7-M7111-F0X EJECTOR 2 C
59 KV7-M7111-A0X EJECTOR 2 AME07-E2(SPARE) C
60 KV7-M7111-J0X EJECTOR 2 SPARE (2008/12/20) C
3
5

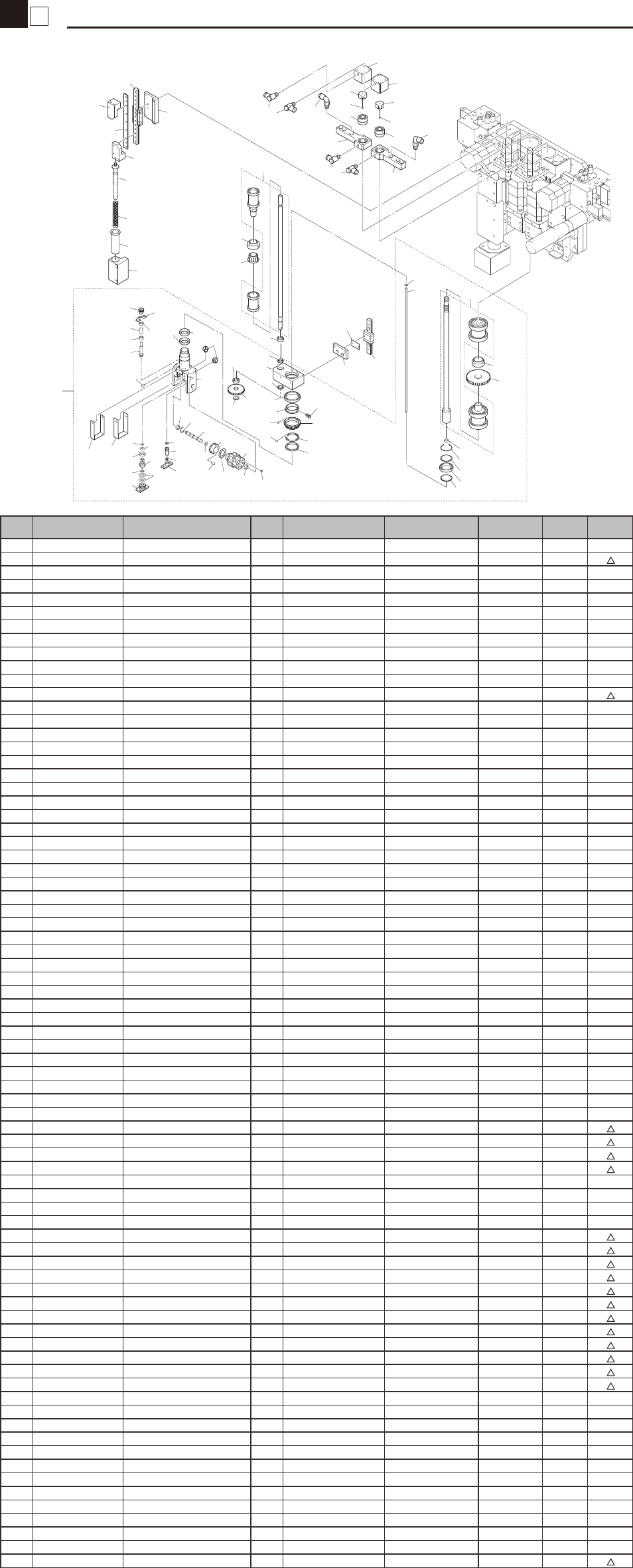

Head (FNC)
Head
KV7-0507
1
6
2
69
70
70
69
5
13
15
59
5
13
15
59
4
3
39
17
66
12
41
42
16
43
18
51
38
62
61
35
55
55
45
40
50
61
37
53
53
34
80
63
36
29
30
26
60
68
85
72
48
46
56
54
21
64
28
58
19
60
27
23
52
67
83
47
60
46
24
25
22
20
57
57
81
60
71
31
7
65
8
11
9
10
14
44
49
82
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M7104-00X BLOCK,GUIDE Z 2 /
2 KV7-M7106-00X GUIDE,Z AXIS 2 A
3 KV7-M7107-00X BRACKET,Z AXIS 1 /
4 KV7-M7108-00X BRACKET,Z AXIS 1 /
5 KV7-M7109-00X HOLDER,BRG.Z 2 /
6 KV7-M7115-00X BLOCK 1,SPRING 2 /
7 KV7-M7116-00X BLOCK 2,SPRING 2 /
8 KV7-M7117-00X GUIDE 1,SPRING 2 /
9 KV7-M7118-00X GUIDE 2,SPRING 2 /
10 KV7-M7119-00X BLOCK,PIN 2 /
11 KV7-M7120-01X SPRING,RETURN 2 /
12 KV7-M7121-01X GEAR,HEAD R 2 Set w / KV7-M7122-01X 2003.02 B
13 KV7-M7124-00X NUT,LOCK 2 /
14 KV7-M7126-00X PIPE,AIR 2 /
15 KV7-M7127-00X SET PIECE,LOCK 2 /
16 KV7-M7128-00X GUIDE,HOLDER 2 /
17 KV7-M7130-00X SPLINE,HEAD ASSY. 2 /
18 KV7-M7135-00X COLLAR,SHAFT 2 /
19 KV7-M7136-00X STOPPER,SEALING 2 /
20 KV7-M7137-01X BODY,NOZZLE 2 /
21 KV7-M7138-00X PLAG,AIR 2 /
22 KV7-M7141-00X SPRING,LOCATE PIN 2 /
23 KV7-M7142-00X SHAFT,BLOCK 2 /
24 KV7-M7143-00X BLOCK,NOZZLE 2 /
25 KV7-M7144-00X GEAR 1,BEVEL 2 /
26 KV7-M7145-00X GEAR 2,BEVEL 2 /
27 KV7-M7146-00X BUSH,LOCATE PIN 2 /
28 KV7-M7147-00X PIN,LOCATE 2 /
29 KV7-M7148-00X COLLAR,BRG. 2 /
30 KV7-M7149-00X PLATE,BRG. 2 /
31 KV7-M7151-00X GEAR,N4 2 /
34 KV7-M7155-00X CUP,BALL 2 /
35 KV7-M7157-01X HOLDER,BRG. 2 /
36 KV7-M7158-00X COLLAR,BRG. 2 /
37 KV7-M71M6-01X SCREW,NOZZLE 2 /
38 KV7-M7159-00X/10X WASHER,BRG. 2 /
39 KV7-M7170-00X SPLINE,INDEX ASSY. 2 /
40 KV7-M7175-00X GEAR,N1 2 /
41 KV7-M7177-00X COLLAR,DOG N 2 /
42 KV7-M7178-00X PULLEY,SHAFT N 2 /
43 KV7-M7181-00X BRACKET,HOLDER 1 /
44 KV7-M7187-XXX GUIDE SHIM SEL 2 /00X/10X/20X 2001/1/29 /
45
KV7-M7184-XXX BRG. SHIM SEL 2 /00X/10X 2001/2/2 /
46 90200-02J025 O-RING 14 SS-025 2001/11/27 A
47 90200-02J038 O-RING 4 SS-038 2001/11/27 A
48 90200-02J048 O-RING 2 SS-048 2001/11/27 A
49 90200-10J030 O-RING 2 P3 2001/11/27 A
50 KV7-M71S6-00X WASHER,SEAL 2 /
51 99009-20800 CIRCLIP 2 /
52 90440-02J032 CIRCLIP 2 2001/12/28 /
53 KV7-M71X3-00X BALL 196 D1.5 /
54 90990-22J009 PACKING 2 KSYA-3 2002/1/21 E
55 90990-22J010 PACKING 8 KSYA-7 2002/1/21 E
56 90990-22J011 PACKING 2 KSY P-11 2002/1/21 E
57 90990-22J012 PACKING 4 KSYA-22 2002/1/21 E
58 90990-22J013 PACKING 2 KSYA-4 2002/1/21 E
59 KV7-M71T1-00X BEARING 2 79M8ADF A
60 KV7-M71T2-00X BEARING 8 WBC5-9ZZA A
61 KV7-M71T3-00X BEARING 4 WBC7-13ZZA A
62 KV7-M71T4-00X BEARING 2 6704LLF A
63 KV7-M71T5-00X BEARING 2 6705LLF A
64 90200-01J090 O-RING 4 S9 2001/11/27 A
65 KG7-M7122-00X RACK,Z AXIS 2 A
66 KH5-M7108-00X COLLAR,DOG R 2 /
67 91690-10004 PIN,SPRING 2 /
68 91690-20005 PIN,SPRING 4 /
69 TLR4-M5 JOINT 2 /
70 SL4-M5 JOINT 4 /
71 KV7-M71C5-00X COVER,GEAR 1 /
72 KV7-M71C6-00X COVER,PIN 1 /
80 KV7-M7152-00X IDLER GEAR ASSY 2 2000/10/5 /
81 KV7-M7192-A0X PLUG ASSY 4 2001/6/6 /
82 KV7-M7185-XXX CUP SHIM SEL 1 /00X /01X 2001/2/2 /
83 KV7-M7186-XXX BLOCK SHIM SEL 1 /00X /01X /
84 99009-17800 CIRCLIP 1 2001/8/24 /
85 KV7-M711S-A0X FNC SHAFT1, SPARE 1 C
1
6

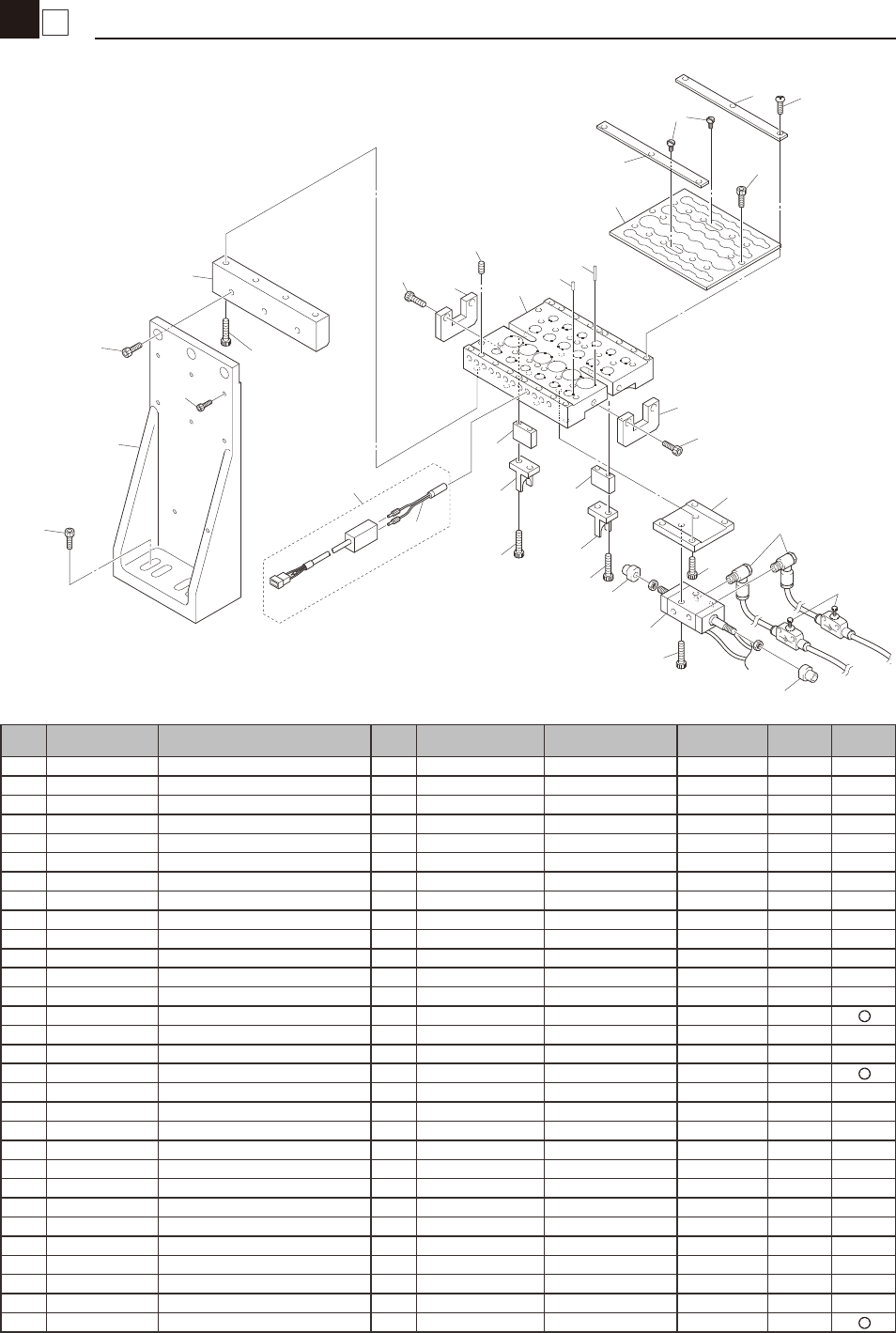

Body ANC (SF)
6 Nozzle
KV7-090406
1
2
3
4
4
5
5
6
6
7
8
9
9
10
11
12
13
14
15
18
20
19
19
18
18
26
25
22
17
3
16
27
24
23
21
28
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M9601-00X HOLDER. ANC 1 /
2 KV7-M9602-00X PLATE. CLAMP 1 /
3 KV7-M9603-00X NUT. CLAMP 2 /
4 KV7-M9604-00X STOPPER. CLAMP 2 /
5 KV7-M9605-00X SLIDE. CLAMP 2 /
6 KV7-M9606-00X SLIDE BLOCK 2 /
7 KV7-M9607-00X PLATE. CYLINDER 1 /
8 KV7-M9608-00X PIN. SLIDE 2 /
9 KV7-M9609-00X PLATE. GUIDE 2 /
10 KV7-M9610-00X BRACKET 1 1 /
11 KV7-M9611-00X BRACKET ANC. 1 /
11-1 KGA-M9611-00X BRACKET ANC. 1 (2001/11/26) SET /
11-2 KGA-M8021-00X BRACKET A,SENSOR 1 (2001/10/2) OK /
12 KV7-M9612-00X AIR CYLINDER ASSY. 1 B
13 90990-19J007 NEEDLE PIN 24 (2001/12/25) OK /
14 90990-19J004 NEEDLE PIN 16 (2001/12/25) OK /
15 KH5-M655A-A1X SENSOR,1-1 16 2000/6/23 OK C
16 $SL4-M5 JOINT 2 /
17 91317-03006 BOLT HEX. SOCKET HEAD 4 /
18 91317-03008 BOLT HEX. SOCKET HEAD 8 /
19 91317-03010 BOLT HEX. SOCKET HEAD 4 /
20 91317-03014 BOLT HEX. SOCKET HEAD 2 /
21 91317-04008 BOLT HEX. SOCKET HEAD 6 /
22 91317-04020 BOLT HEX. SOCKET HEAD 4 /
23 91317-05010 BOLT HEX. SOCKET HEAD 3 /
24 91317-06020 BOLT HEX.SOCKET HEAD 2 (2000/12/18) OK /
25 98907-03005 SCREW BINDING HEAD 10 /
26 90990-02J007 SET,SCREW 16 (2003/8/28) OK /
27 $SSU4 SPEED CONTROLLER 2 /
28 KH5-M655A-02X FIBER 1 C
