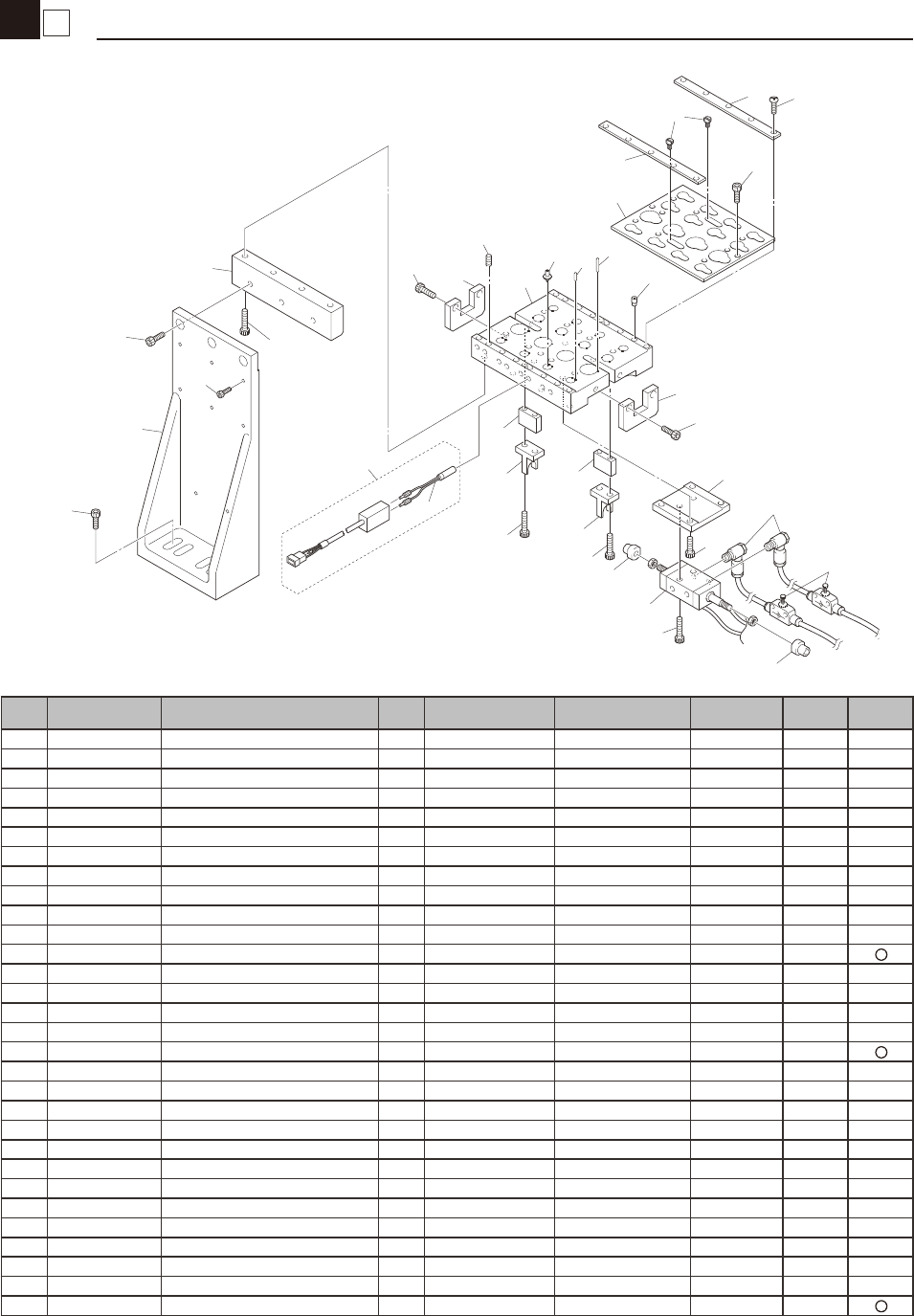

2 6 Body ANC (FNC) Nozzle KV7-090406 1 2 3 4 4 5 5 6 6 7 8 9 9 12 15 13 14 16 20 22 21 21 20 20 28 27 19 3 10 1 1 17 24 26 25 23 18 29 30 No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level 1 KV7-…
1
6
Body ANC (SF)
6 Nozzle
KV7-090406
1
2
3
4
4
5
5
6
6
7
8
9
9
10
11
12
13
14
15
18
20
19
19
18
18
26
25
22
17
3
16
27
24
23
21
28
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M9601-00X HOLDER. ANC 1 /
2 KV7-M9602-00X PLATE. CLAMP 1 /
3 KV7-M9603-00X NUT. CLAMP 2 /
4 KV7-M9604-00X STOPPER. CLAMP 2 /
5 KV7-M9605-00X SLIDE. CLAMP 2 /
6 KV7-M9606-00X SLIDE BLOCK 2 /
7 KV7-M9607-00X PLATE. CYLINDER 1 /
8 KV7-M9608-00X PIN. SLIDE 2 /
9 KV7-M9609-00X PLATE. GUIDE 2 /
10 KV7-M9610-00X BRACKET 1 1 /
11 KV7-M9611-00X BRACKET ANC. 1 /
11-1 KGA-M9611-00X BRACKET ANC. 1 (2001/11/26) SET /
11-2 KGA-M8021-00X BRACKET A,SENSOR 1 (2001/10/2) OK /
12 KV7-M9612-00X AIR CYLINDER ASSY. 1 B
13 90990-19J007 NEEDLE PIN 24 (2001/12/25) OK /
14 90990-19J004 NEEDLE PIN 16 (2001/12/25) OK /
15 KH5-M655A-A1X SENSOR,1-1 16 2000/6/23 OK C
16 $SL4-M5 JOINT 2 /
17 91317-03006 BOLT HEX. SOCKET HEAD 4 /
18 91317-03008 BOLT HEX. SOCKET HEAD 8 /
19 91317-03010 BOLT HEX. SOCKET HEAD 4 /
20 91317-03014 BOLT HEX. SOCKET HEAD 2 /
21 91317-04008 BOLT HEX. SOCKET HEAD 6 /
22 91317-04020 BOLT HEX. SOCKET HEAD 4 /
23 91317-05010 BOLT HEX. SOCKET HEAD 3 /
24 91317-06020 BOLT HEX.SOCKET HEAD 2 (2000/12/18) OK /
25 98907-03005 SCREW BINDING HEAD 10 /
26 90990-02J007 SET,SCREW 16 (2003/8/28) OK /
27 $SSU4 SPEED CONTROLLER 2 /
28 KH5-M655A-02X FIBER 1 C
2
6
Body ANC (FNC)
Nozzle
KV7-090406
1
2
3
4
4
5
5
6
6
7
8
9
9
12
15
13
14
16
20
22
21
21
20
20
28
27
19
3
10
11
17
24
26
25
23
18
29
30
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M9651-00X HOLDER. ANC 1
/
2 KV7-M9652-00X PLATE. CLAMP 1
/
3 KV7-M9603-00X NUT. CLAMP 2
/
4 KV7-M9604-00X STOPPER. CLAMP 2
/
5 KV7-M9605-00X SLIDE. CLAMP 2
/
6 KV7-M9606-00X SLIDE BLOCK 2
/
7 KV7-M9607-00X PLATE. CYLINDER 1
/
8 KV7-M9608-00X PIN. SLIDE 2
/
9 KV7-M9654-00X PLATE. GUIDE 2
/
10 KV7-M9653-00X BRACKET 1 1
/
11 KGA-M8021-00X BRACKET A,SENSOR 1 (2001/10/2) OK
/
12 KV7-M9612-00X AIR CYLINDER ASSY. 1
B
13 KV7-M9655-00X PIN. MARK 4
/
14 KV7-M7760-00X NOZZLE 66A 2
/
15 90990-19J007 NEEDLE PIN 18 (2001/12/25) OK
/
16 90990-19J004 NEEDLE PIN 16 (2001/12/25) OK
/
17 KH5-M655A-A1X SENSOR,1-1 16 (2000/6/23) OK
C
18 $SL4-M5 JOINT 2
/
19 91317-03006 BOLT HEX. SOCKET HEAD 4
/
20 91317-03008 BOLT HEX. SOCKET HEAD 8
/
21 91317-03010 BOLT HEX. SOCKET HEAD 4
/
22 91317-03014 BOLT HEX. SOCKET HEAD 2
/
23 91317-04008 BOLT HEX. SOCKET HEAD 6
/
24 91317-04025 BOLT HEX. SOCKET HEAD 4
/
25 91317-05010 BOLT HEX. SOCKET HEAD 3
/
26 91317-06020 BOLT HEX.SOCKET HEAD 2 (2000/12/18) OK
/
27 98907-03005 SCREW BINDING HEAD 10
/
28 90990-02J007 SET,SCREW 16 (2003/8/28) OK
/
29 $SSU4 SPEED CONTROLLER 2
/
30 KH5-M655A-02X FIBER 1
C
3
6
Nozzle Selection (SF)
Nozzle
KV7-080402
4
5
6
7
1 2
3
8
A66epyTA36epyTA26epyTA16epyT Type64A Type65A
Circle Nozzle 69A
10
9
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M7710-A1X NOZZLE 61A ASSY. 2 Type 61A (2000/4/11) OK E
2 KV7-M7720-A1X NOZZLE 62A ASSY. 2 Type 62A (2000/4/11) OK E
3 KV7-M7730-00X NOZZLE 63A 2 Type 63A E
4 KV7-M7740-A0X NOZZLE 64A 2 E
5 90990-17J013 O-RING 5 (2001/12/6) OK E
6 KV7-M7750-A0X NOZZLE 65A 1 E
7 90990-17J015 O-RING 5 (2001/12/6) OK E
8 KV7-M7760-00X NOZZLE 66A 2 Type 66A E
9 90200-02J015 O-RING 5 E
10 KV7-M7790-A0X NOZZLE 69A ASSY. 1 (2003/5/14) OK E
