4 6 Nozzle Selection(FNC) Nozzle KV7-090901 1 5 4 8 3 7 34 7 9 23 24 12 1 1 13 18 16 21 14 17 15 20 19 22 27 25 T ype61F T ype62F T ype63F T ype69F T ype65F T ype64F T ype66F 26 Nozzle Holder 8 29 28 32 31 30 33 30 32 31…
3
6
Nozzle Selection (SF)
Nozzle
KV7-080402
4
5
6
7
1 2
3
8
A66epyTA36epyTA26epyTA16epyT Type64A Type65A
Circle Nozzle 69A
10
9
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M7710-A1X NOZZLE 61A ASSY. 2 Type 61A (2000/4/11) OK E
2 KV7-M7720-A1X NOZZLE 62A ASSY. 2 Type 62A (2000/4/11) OK E
3 KV7-M7730-00X NOZZLE 63A 2 Type 63A E
4 KV7-M7740-A0X NOZZLE 64A 2 E
5 90990-17J013 O-RING 5 (2001/12/6) OK E
6 KV7-M7750-A0X NOZZLE 65A 1 E
7 90990-17J015 O-RING 5 (2001/12/6) OK E
8 KV7-M7760-00X NOZZLE 66A 2 Type 66A E
9 90200-02J015 O-RING 5 E
10 KV7-M7790-A0X NOZZLE 69A ASSY. 1 (2003/5/14) OK E
4
6

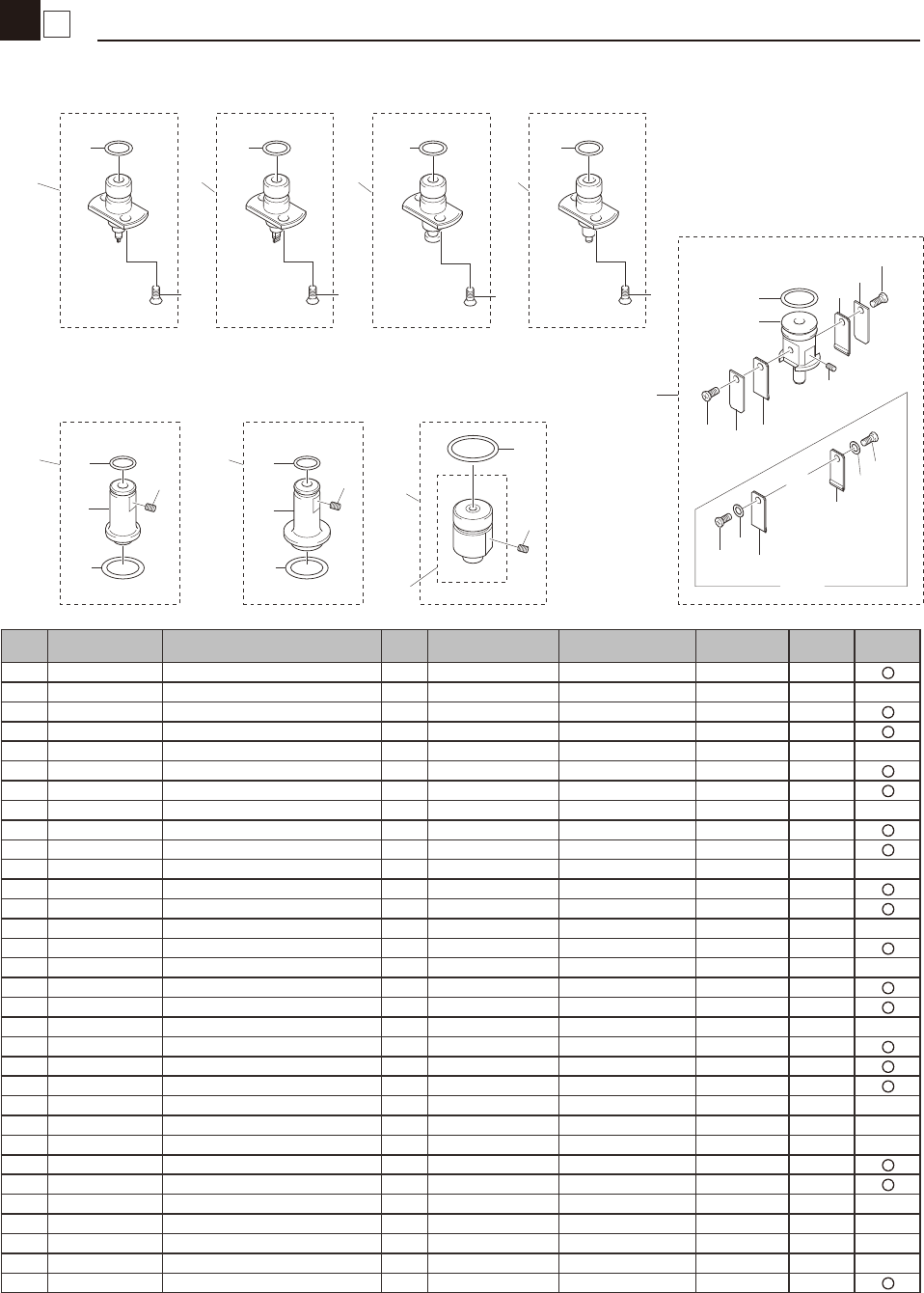

Nozzle Selection(FNC)
Nozzle
KV7-090901
1
5
4 8
3
7
34
7
9
23
24
12
11
13
18
16 21
14
17
15 20
19
22
27
25
Type61F Type62F Type63F Type69F
Type65FType64F Type66F
26
Nozzle Holder
8
29
28
32
31
30
33
30
32
31
32
31
30
30
32
31
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KGA-M71N1-A0X NOZZLE 61F ASSY. 2 (2001/3/12) OK E
3 KV7-M71M6-01X SCREW, NOZZLE 6 /
4 90200-02J038 O-RING 5 (2001/11/22) OK E
5 KGA-M71N2-A0X NOZZLE 62F ASSY. 2 (2001/3/12) OK E
7 KV7-M71M6-01X SCREW, NOZZLE 6 /
8 90200-02J038 O-RING 5 (2001/11/22) OK E
9 KV7-M71N3-A1X NOZZLE 63F ASSY. 2 (2001/3/12) OK E
11 KV7-M71M6-01X SCREW, NOZZLE 6 /
12 90200-02J038 O-RING 5 (2001/11/22) OK E
13 KV7-M71N4-A0X NOZZLE 64F ASSY. 2 E
14 KV7-M71N4-00X BODY, NOZZLE 4 1 /
15 90990-17J013 O-RING 5 (2001/12/6) OK E
16 90200-02J038 O-RING 5 (2001/11/22) OK E
17 92A08-03305 SCREW,SET 3 (2001/9/21) OK /
18 KV7-M71N5-A0X NOZZLE 65F ASSY. 2 E
19 KV7-M71N5-00X BODY, NOZZLE 5 1 /
20 90990-17J014 O-RING 5 (2001/12/6) OK E
21 90200-02J038 O-RING 5 (2001/11/22) OK E
22 92A08-03305 SCREW,SET 3 (2001/9/21) OK /
23 KV7-M71N6-A0X NOZZLE 66F ASSY. 2 E
24 KV7-M71N6-B0X NOZZLE 66F SUB ASSY. 1 E
25 90200-02J065 O-RING 5 (2001/11/22) OK E
26 92A08-03303 SET SCREW M3X3 3 (2001/9/21) OK /
27 KV7-M71M0-A1X NOZZLE HOLDER ASSY. 2 (2007/6/14) OK /
28 KV7-M71M0-00X HOLDER NOZZLE SP 1 /
29 90200-02J065 O-RING 5 (2001/11/22) OK E
30 KGR-M71M3-00X LEAF SPRING 4 (2007/6/14) NG E
31 90990-08J002 SCREW,PAN HEAD 4 (2007/6/14) NG /
32 90990-28J002 WASHER 4 (2003/3/28) /
32-1 KGS-M714W-03X PLATE,SPRING 4 (2007/6/14) NG /
33 92A08-03303 SET SCREW M3X3 3 (2001/9/21) OK /
34 KV7-M71N9-A0X NOZZLE 69F ASSY. 2 (2002/9/10) OK E
1
7
Push-in

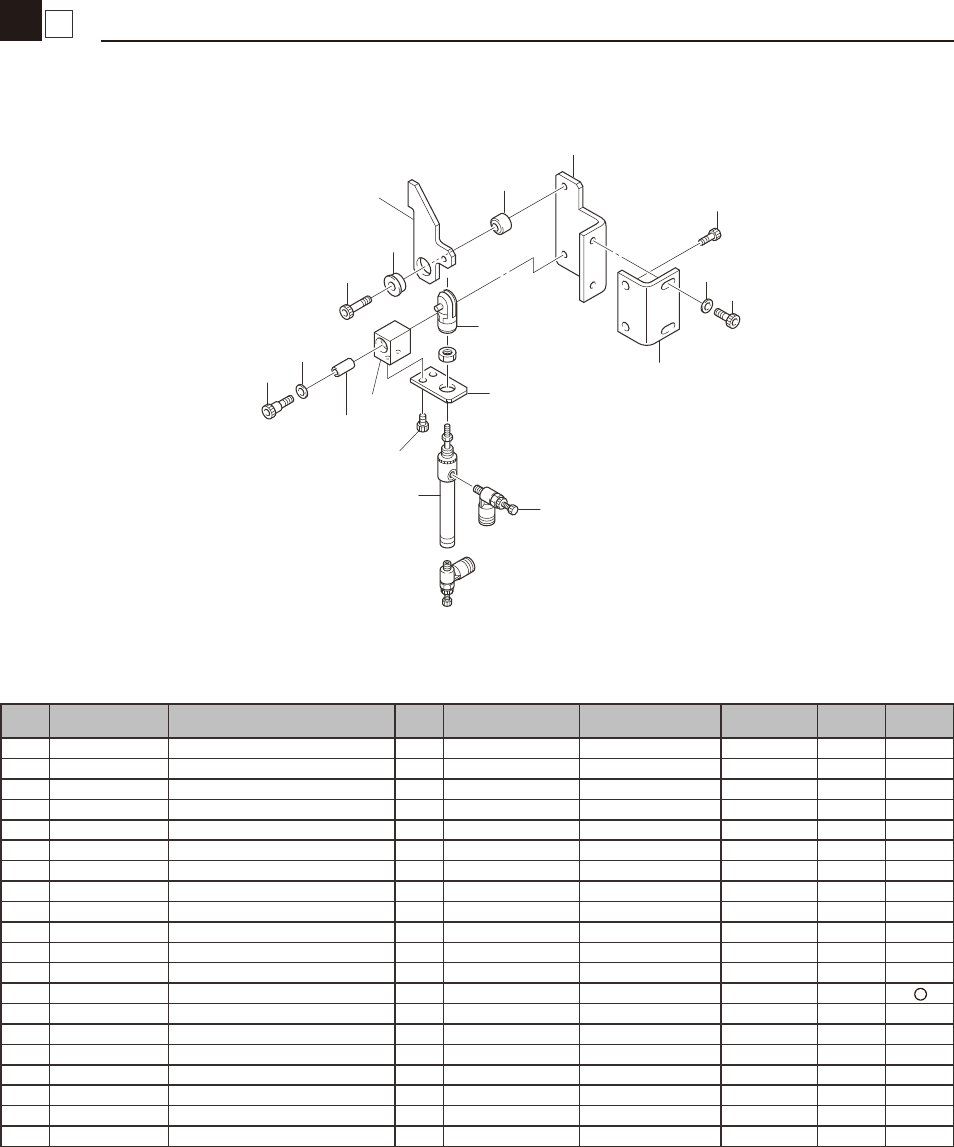

7 Conveyor Unit
KV7-080402
1
2
9
12
4
5
13
16
6
7
3
10
11
NORMAL
8
14
16
15
13
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KGA-M9221-00X PLATE PUSH IN 1 (2002/11/27) OK
/
2-1 KV7-M9222-00X BRACKET,PUSH IN 1 t=3.2
/
2-2 KV7-M9222-01X BRACKET,PUSH IN 1 t=2 (2006/1/13) NG
/
3 KV7-M9223-00X HOLDER CYL. 1
/
4-1 KV7-M9224-00X COLLAR 1 t=6.5
/
4-2 KV7-M9224-01X COLLAR 1 t=7.5 (2006/2/20) Set
/
5-1 KV7-M9225-00X BRACKET,HOLDER 1 t=3.2
/
5-2 KV7-M9225-01X BRACKET,HOLDER 1 t=2 (2006/1/13) NG
/
6 90990-41J061 COLLAR 1 (2008/4/17) OK
/
7-1 KV7-M9227-00X BLOCK,COLLAR 1
/
7-2 KV7-M9227-01X BLOCK,COLLAR 1 (2006/2/20) Set
/
8 90933-03J694 BEARING 1 (2001/7/6) OK
/
9 KG7-M9166-00X CYLINDER 1 (2003/8/29) OK
B
10 KJ9-M177F-11X Y-KNUCKLE 1 (2005/11/3) OK
/
11 $SC4-M5A SPEED CONTROLLER 2
/
12 91317-04006 BOLT HEX.SOCKET HEAD 2
/
13 91317-04008 BOLT HEX.SOCKET HEAD 2
/
14 91317-04014 BOLT HEX.SOCKET HEAD 1
/
15 91317-04016 BOLT HEX.SOCKET HEAD 1
/
16 92907-04200 WASHER PLAIN 1
/
