1 8 Front Light 8 Light KV7-080305 1 5 4 5 4 3 6 2 No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level 1-1 KV8-M7500-10X FR ONT LIGHT 2 ASSY 1 slider front C KV8-M7500-20X FR ONT LIGHT 2 ASSY 1 sl…
7
7
Main Conveyor
Conveyor Unit
KV7-1011
7
81
81
3
39
33
75
9
12
8
39
5
1
1
25
28
25
30
84
57
23
79
86
65 Fig E
76
20
28
25
35
29
57
34
22
32
85
58
14
16
57
15
58
58
27
26
24
31
56
77
34
28
28
25
11
64
63
59
60
40
80
62
61
74
39
13
66
73
47
45
55
72
87
71
13
15
61
4
1
2
50
53
48
51
46
61
52
54
44
42
43
32
1
2
6
80
13
67
15
15
70
68
62
74
69
14
16
11
24
85
29
22
84
57
57
57
34
26
19
36
37
36
37
38
38
19
17
17
10
10
24
30
84
57
23
21
34
39
33
3
9
18
18
76
49
58
58
58
58
82
83
84
65 Fig A
65 Fig B
65 Fig C
65 Fig F
OLD
41
with Clamp board
88
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1-1 KV7-M9101-00X STAY,FOOT 4 /
1-2 KV7-M9101-01X STAY,FOOT 4 1999/12/21 NG /
1-3 KV7-M9101-02X STAY,FOOT 4 2000/8/28 NG /
2 KV7-M9102-00X PLATE 1 2 /
3 KV7-M9103-00X PLATE 2 2 /
4 KV7-M9106-00X BRKT.1,EXT.FRAME 1 /
5 KV7-M9107-00X BRKT.2,EXT.FRAME 1 /
6 KV7-M9108-00X BRKT.3,EXT.FRAME 1 /
7 KV7-M9109-00X BRKT.4,EXT.FRAME 1 /
8 KV7-M9105-00X BRKT.,SPLINE 1 /
9 KV7-M9104-00X PLATE 3 2 /
10-1 90K71-0L0280 LM RAIL,15 2 250 (1999/11/12) OK A
10-2
90K71-0L0460 LM RAIL,15 2 (445) A
90K71-0L0280 LM RAIL,15 3 (250) A
90K71-0L0400 LM RAIL,15 4 (385) A
11-1 KV7-M9115-10X PLATE,LINEAR 2 (250) t=15 /
11-2 KV7-M9115-11X PLATE,LINEAR 2 (250) t=16 2003/6/16 NG /
11-3
KV7-M9115-11X PLATE,LINEAR 2 (250) /
KV7-M9115-23X PLATE,LINEAR 2 (385) /
KV7-M9115-03X PLATE,LINEAR 2 (445) /
12 KV7-M9111-01X BRKT.,COLLAR 1 /
13 KG7-M9110-01X COLLAR,W 3 /
14 KV7-M9110-00X COLLAR 2,W 2 /
15 KV7-M9118-00X PLATE,BRG. 4 /
16 90933-01J200 BEARING 2 (2001/6/29) OK A
17-1 KV7-M9132-10X BALL SCREW W 2 250 A
17-2
KV7-M9132-10X BALL SCREW W 2 (250) A
KV7-M9132-20X BALL SCREW W 2 (385) A
KV7-M9132-00X BALL SCREW W 2 (445) A
18 KV7-M9113-00X STAY,FRAME 2 /
19-1 KV7-M9114-00X BRKT.,GUIDE 2 /
19-2 KV7-M9114-01X BRKT.,GUIDE 2 Two points of white marks. 2003/6/16 NG /
20 KV7-M9121-00X FRAME,CONV.FIXED 1 /
21 KV7-M9122-00X FRAME CONV.MOVING 1 /
22 KV7-M9127-01X FRAME 1,EXT. 2 (2004/5/11) OK /
23 KV7-M9128-01X FRAME 2,EXT. 2 (2004/5/11) OK /
24 KV7-M9123-00X GUIDE 1 4 /
25 KV7-M9126-00X GUIDE 1-1 4 /
26 KV7-M9124-00X PLATE 1,GUIDE 1 /
27 KV7-M9125-00X PLATE 2 GUIDE 1 /
28 KV7-M9126-10X GUIDE 1-2 4 /
29-1 KM7-M9113-00X GUIDE 1,END 2 t=16 /
29-2 KM7-M9113-01X GUIDE 1,END 2 t=12 2001/7/24 NG /
29-3 KGA-M9113-00X GUIDE 1,END 2 t=16 2001/12/28 NG /
30-1 KM7-M9114-00X GUIDE 2,END 2 t=16 /
30-2 KM7-M9114-01X GUIDE 2,END 2 t=12 2001/7/24 NG /
30-3 KGA-M9114-00X GUIDE 2,END 2 t=16 2001/12/28 NG /
31 KG7-M912A-00X BRACKET SENSOR 1 /
32 KV7-M9151-00X DAMPER 1,W 2 /
33 KV7-M9152-00X DAMPER 2,W 2 /
34 KV7-M9129-00X BELT 1,CONVEYOR 2 E
35 KV7-M9144-00X BRKT.3,SENSOR 1 /
36 KG7-M9133-00X PLATE LOCATE PIN 2 /
37 KG7-M9135-00X PLATE EDGE 2 4 /
38 KG7-M9136-00X PLATE EDGE 3 2 /
39 KH2-M9121-00X BEARING 4 A
40 KV7-M4886-00X MOTOR ASSY.6 1 CONV.MO B
41 KGA-M911D-00X SENSOR, SET POS 1 1 B
42 KM0-M9182-00X PLATE GUIDE 1 /
43 KG7-M9183-00X BRACKET BELT 1 /
44 KM8-M9189-00X GUIDE 1 A
45 KG7-M9127-00X STOPPER LOCATE PIN 1 /
46 KV7-M9188-00X BELT 1 1305-3GT-6 B
47 KV7-M9192-00X PLATE,IDLER 1 /
48 KV7-M9185-00X HOUSING,SHAFT 1 /
49 KG7-M9190-00X HANDLE 1 /
50 KV7-M9191-00X SHAFT 1 1 /
51 KV7-M9193-00X LEVER,CLAMP 1 /
52 90990-28J068 WASHER,PLAIN 1 (2007/12/18) OK /
53 99009-15400 CIRCLIP 1 /
54 KV7-M9195-00X BRKT.,HOUSING 1 /
55 KV7-M9196-02X SHAFT 2 1 (2001/12/3) OK /
56 KGA-M911A-00X SENSOR,ENT 1 (2002/2/28) OK B
57 KV7-M9140-A0X PULLEY,CONVEYOR ASSY 12 2002/7 A
58 91317-05020 BOLT HZX. S.H 12 2002/3/15 /
59-1 KV7-M9143-10X SPLINE 1 2 250 /
59-2
KV7-M9143-10X SPLINE 1 2 (250) /
KV7-M9143-20X SPLINE 1 2 (385) /
KV7-M9143-00X SPLINE 1 2 (445) /
60 KV7-M9142-00X PILLEY 1,MOTOR 1 /
61 KH2-M9105-11X PULLEY,MOTOR 4 P30-3GT (2001/6/5) OK /
62 KV7-M9146-00X BELT 2 300-3GT-9 B
63 KG2-M9105-00X PULLEY 1 SPLINE 1 /
64 KG2-M9108-11X COLLAR,CONVEYOR 1 (2000/7/31) OK /
65-1 KV7-M91B2-01X BRKT.,SENSOR 1 Fig B (2000/6/15) OK /
65-2 KV7-M91B2-02X BRKT.,SENSOR 1 Fig C 2001/1/26 NG /
65-3
KGA-M91B2-00X BRKT.,SENSOR 1 Fig D S.T.D 2003/5/21 NG /
KV7-M926F-00X BRKT.,SENSOR 1 Fig E with Clamp board 2003/5/21 NG /
66 KG7-M9111-01X PULLEY 1 1 /
67 KG7-M9112-01X PULLEY 2 1 /
68 KG7-M9113-01X PULLEY 3 1 /
69 90K55-4W076W AC SERVO MOTOR 1 (2000/2/2) OK B
70 KV7-M9147-00X BRKT.,MOTOR W 1 /
71 KV7-M9148-00X BRKT.,TENSION 2 /
72 90933-02J608 BEARING 2 608ZZ (2002/3/25) OK /
73 90990-41J057 COLLAR 2 (2008/4/17) OK /
74 KG7-M9115-00X BELT W AXIS 1 B
75 KGA-M911F-00X SENSOR,ORG 1 (2002/2/28) OK B
76-1 KV7-M9150-00X DOG 1,ORIGIN 1 445,250 /
76-2 KV7-M9150-20X DOG 1,ORIGIN(-60) 1 385 /
76-3 KV7-M9150-30X DOG 1,ORIGIN(-110) 1 335 /
76-4
KV7-M9150-00X DOG 1,ORIGIN 1 L=36 /
KV7-M9150-10X DOG 2,ORIGIN 1 L=86 /
KV7-M9150-20X DOG 3,ORIGIN 1 L=96 /
KV7-M9150-30X DOG 4,ORIGIN 1 L=146 /
KV7-M9150-40X DOG 5,ORIGIN 1 L=166 /
77 KV7-M9155-00X BRKT.,SENSOR SHAFT 2 /
78-1 KV7-M9156-00X SENSOR SHAFT 1 /
78-2 KV7-M9156-01X SENSOR SHAFT 1 L=271 2000/3/10 NG /
79-1 KV7-M9157-00X BRKT,4,SENSOR 1 W=29 /
79-2 KV7-M9157-01X BRKT.4,SENSOR 1 W=32 1999/8/20 NG /
79-3 KV7-M9157-02X BRKT.4,SENSOR 1 W=33 2006/6/9 NG /
80 KV7-M910A-00X STAY1.FRAME. 2 /
81 KV7-M910B-00X STAY2.FRAME. 2 /
82 98907-03005 SCREW BINDING HEAD 20 M3X5 /
83 95304-03700 NUT HEXGON 20 M3 /
84 KGS-M9140-A0X PULLEY,CONVER.ASSY 4 2004/8/17 A
85 92907-05600 WASHER PLAIN 2 /
86 KGA-M911E-00X SENSOR,OUT 1 (2002/2/28) OK B
87 90933-03J608 BEARING 2 F608ZZ (2002/3/25) OK /
88 91312-04010 BOLT HEX.SOCKET HEAD 1 /
1
8

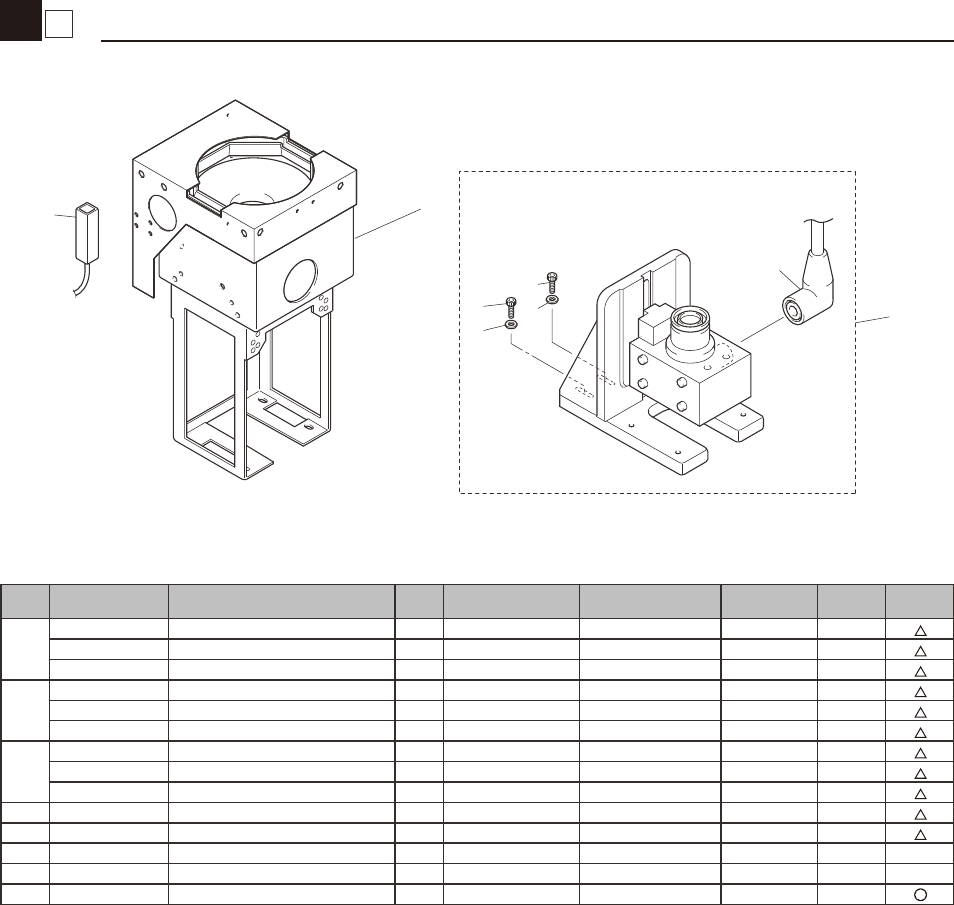

Front Light
8 Light
KV7-080305
1
5
4
5
4
3
6
2
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1-1
KV8-M7500-10X FRONT LIGHT 2 ASSY 1 slider front C
KV8-M7500-20X FRONT LIGHT 2 ASSY 1 slider right. C
KV8-M7500-30X FRONT LIGHT 2 ASSY 1 slider left. C
1-2
KV8-M7500-21X FRONT LIGHT 2 ASSY 1 slider front 1999/4/15 NG C
KV8-M7500-31X FRONT LIGHT 2 ASSY 1 slider right. 1999/4/15 NG C
KV8-M7500-11X FRONT LIGHT 2 ASSY 1 slider left. 1999/4/15 NG C
1-3
KV8-M7500-22X FRONT LIGHT 2 ASSY 1 slider front (1999/8/30) OK C
KV8-M7500-32X FRONT LIGHT 2 ASSY 1 slider right. (1999/8/30) OK C
KV8-M7500-12X FRONT LIGHT 2 ASSY 1 slider left. (1999/8/30) OK C
2 KV8-M7300-00X MULTI CAMERA ASSY. 1 C
3 KV7-M652G-00X SENSOR,CYLINDER 1 C
4 91317-06020 BOLT HEX. SOCKET HEAD 3 /
5 92907-06200 WASHER, PLAIN 3 /
6 KV8-M66F0-00X C. CABLE ASSY L5M 1 A
2
8

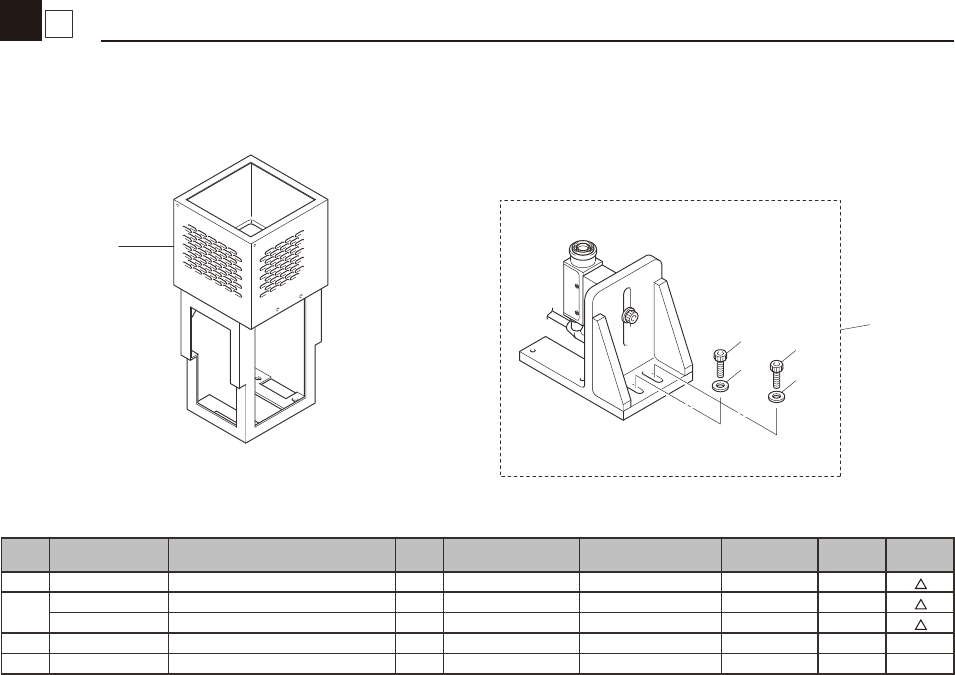

Front Light (Option)
Light
KV7-080306
3
4
3
4
1
2
No. Part No. Part Name Q'ty Remarks Date of change Compati. Renk Level
1 KV7-M7401-00X FRONT LIGHT 1 ASSY 1 C
2
KV7-M7200-00X FIXED CAMERA ASSY 1 Front C
KV7-M7200-10X FIXED CAMERA ASSY 1 Rear C
3 91317-06020 BOLT HEX. SOCKET HEAD 3 /
4 92907-06200 WASHER, PLAIN 3 /
