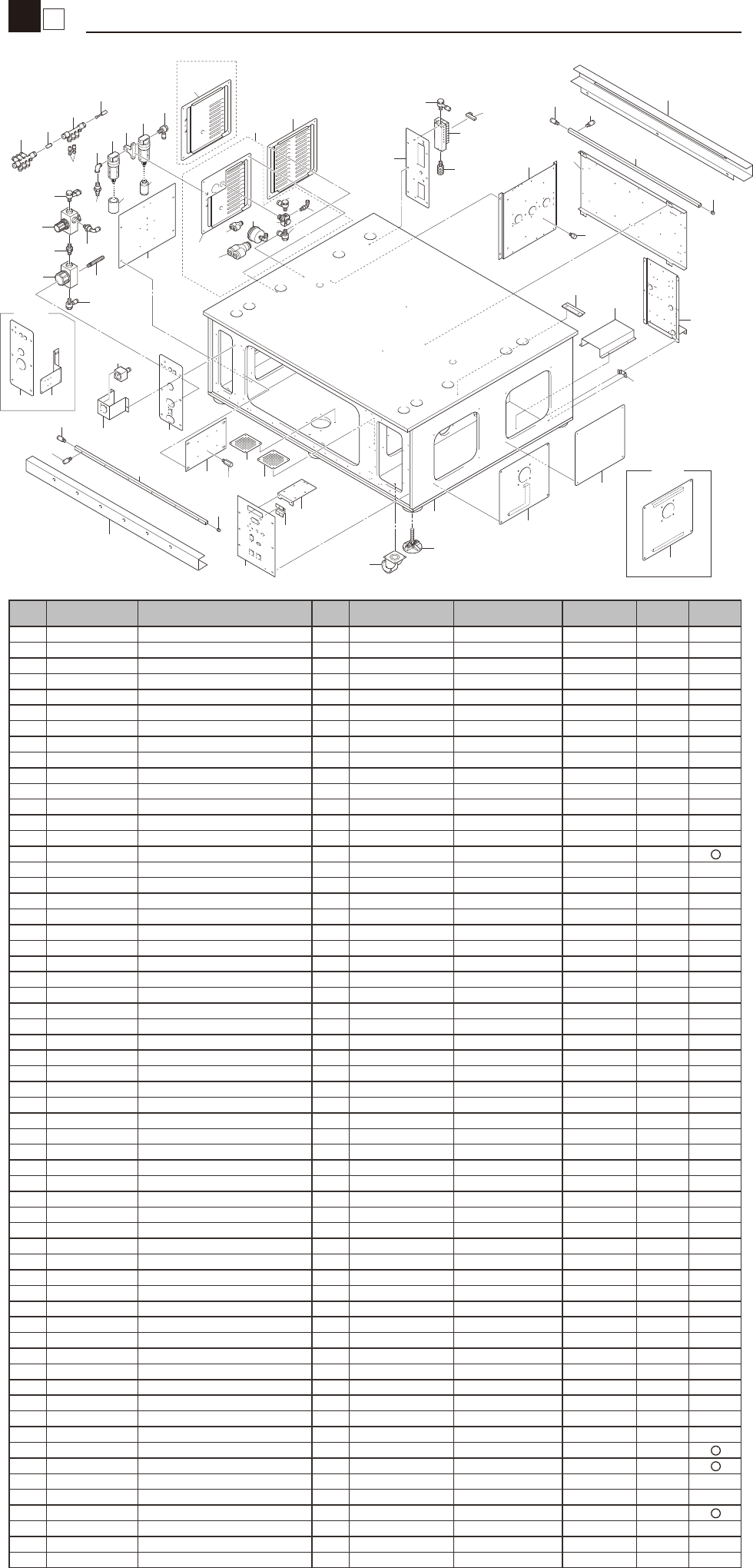

No. Part No. Part Name Q'ty Remarks Date of change Compati.
RANK LEVEL
1 KV7-M1101-04X BASE 1 (2000/5/9) OK
/
2 KV7-M1120-01X PLATE 10 1 CONNECTOR (1999/11/30) OK
/
3 KV7-M1112-01X PLATE 2 1 (2007/12/3) OK
/
4 KGA-M1113-00X PLATE 3 1 VALVE (2003/5/10) OK
/
5 KV7-M1114-01X PLATE 4 1 I/O (2007/12/3) OK
/
6 KV7-M1115-00X PLATE 5 1 AIR
/
7 KM0-M1141-00X MANUFOLD 2
/
8 KG7-M1342-01X BRACKET,F/D 1
/
9 KG7-M8501-00X AIR FILTER 1
/
10 KV8-M8502-00X MIST FILTER 1
/
11 KV8-M8503-00X MODULE ADAPTER 1
/
12 KG7-M8504-00X REGULATOR 1 R300-03
/
13 90990-42J007 JOINT 1 (2008/6/17) OK
/
14 90990-42J008 JOINT 1 (2008/6/17) OK
/
15 KM0-M8582-00X VALVE 1 040M12AJ1-7
C
16 KG7-M8596-00X PRESSURE GAUGE 1
/
17 KV7-M1118-00X PLATE 8 1
/
18 KV7-M1125-00X PLATE CLAMP 1
/
19 KG2-M1128-00X BRACKET SPEED CONT. 1
/
20 KM0-M1142-00X CASTER 6
/
21 KM0-M1151-02X PLATE,SIDE 1 1 (2007/6/6) Set
/
22 KM0-M1152-01X PLATE SIDE 2 1
/
23 KM0-M1153-01X PLATE SIDE 3 1
/
24 KM0-M1154-01X PLATE BOTOM 1 2
/
25 $SL12-03 JOINT 3
/
26 $SLY10-03 JOINT 1
/
27 $TSH4-M5 JOINT 1
/
28 $TL4-02 JOINT 1
/
29 $UEDW10-8 JOINT 1
/
30 $USD10-8 JOINT 1
/
31 $TL8-01 JOINT 1 (2007/12/10) OK
/
32 $KM-11 MUFFLER 1
/
33 $TSS4-01 JOINT 12
/
34 $TSH8-01 JOINT 2
/
35 KM5-M4184-00X COVER,NOISE FILTER 1
/
36 KV7-M1180-01X LEVELING BOLT ASSY 6 (2000/2/4) OK
/
37 K40-M8598-00X PLUG 1 2
/
38 91C00-03210 SPACER 28 M3X10L
/
38 90563-03J100 SPACER BOLT 28 (2001/9/1) OK
/
39 KH5-M8501-00X EXHAUST VALVE 1
/
40 KH5-M8531-00X FITTING 1 1
/
41 $KM-23 MUFFLER 1
/
42 90563-03J200 SPACER BOLT 4 (2001/9/4) OK
/
44 KV7-M1116-01X PLATE 6 1 1999/5/21 NG
/
45 KV7-M1161-00X PLATE 11 1 TRANS
/
46 KV7-M1113-10X PLATE 3-1 1 REG
/
46-1 KV7-M1113-11X PLATE 3-1 1 REG 2001/1/25 NG
/
47 KGS-M1153-50X PLATE,SIDE 3 1 (2005/11/17) OK
/
48 KV7-M111A-00X BRACKET,GAUGE 1
/
49 $UED8-4 JOINT 1
/
50 $UP8 JOINT 1
/
51 $UP4 JOINT 3
/
52 KV8-M8502-40X MIST FILTER ELEMENT 1 SPARE
E
53 KG7-M8501-40X AIR FILTER ELEMENT 1 SPARE
E
58 $SL10-03 JOINT 1
/
59 $UC4 JOINT 1
/
60 KG2-M8582-40X VALVE 1 SPARE
C
61 KV7-M1325-01X BRACKET 5 1 (2002/4/2)
/
62 KV7-M1153-10X PLATE,SIDE 3 1
/
63 KV7-M1325-01X BRACKET 5 1 (2002/4/2)
/
1
2
Top Cover
2 Cover
KV7-090928
31
21
9
28
22
28
22
20
3
30
28
28
30
11
22
26
29
11
23
25
11
10
27
19
9
22
16
20
25
34
23
14
31
32
2
33
31
32
6
21
31
32
23
7
15
10
5
1
25
5
29
8
10
13
10
23
12
25
17
19
30
16
25
4
21
20
18
32
18
21
30
35
25
20
17
25
11
24
25
36
37

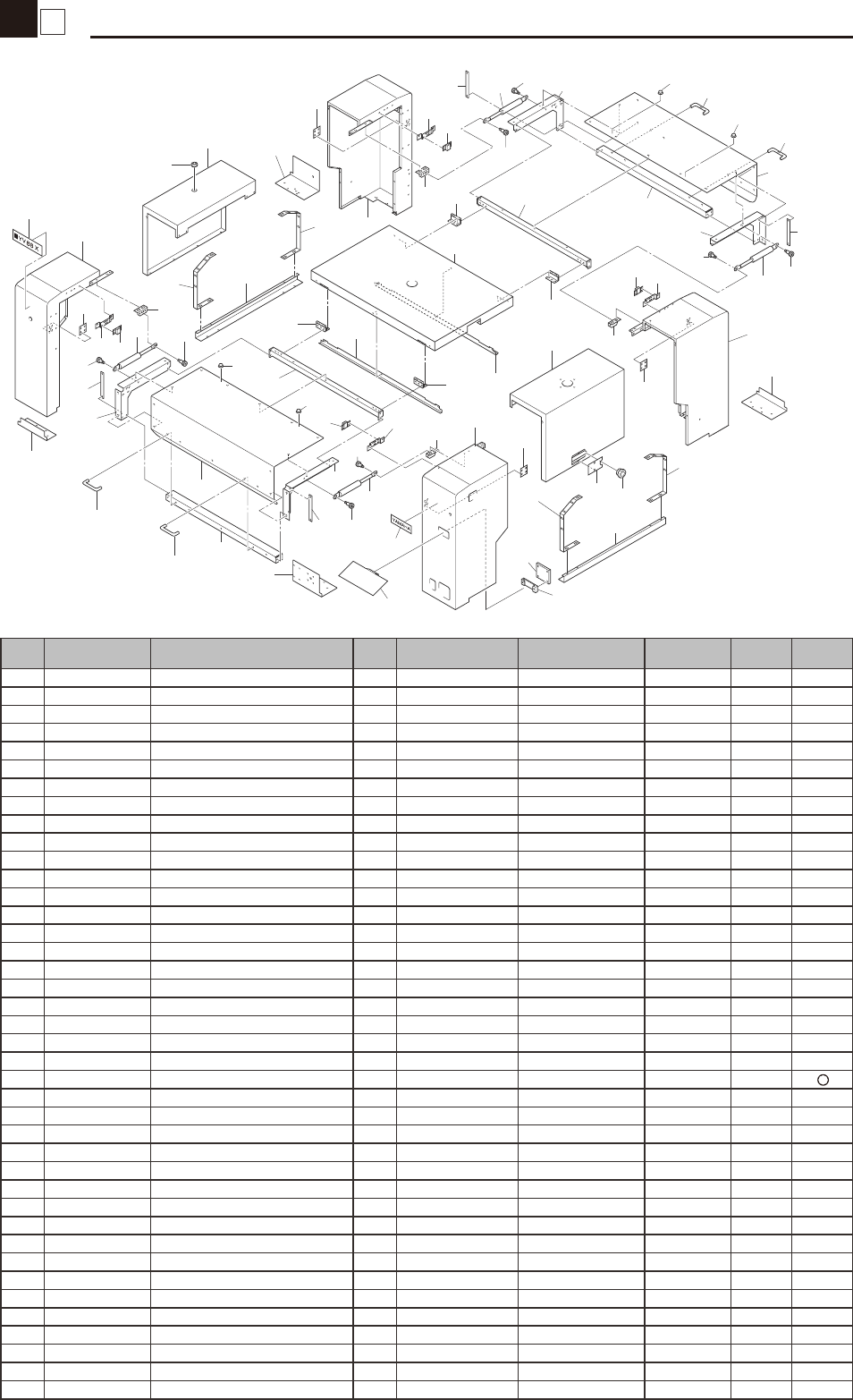

No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M1301-A0X COVER 1 ASSY 1
/
2 KV7-M1302-A0X COVER 2 ASSY 1
/
3 KV7-M1303-A0X COVER 3 ASSY 1
/
4 KV7-M1304-A0X COVER 4 ASSY 1
/
5 KV7-M1305-00X COVER 5 2
/
6 KV7-M1306-A1X COVER 6 ASSY 1 (2000/10/2) OK
/
7 KV7-M1307-A0X COVER 7 ASSY 1
/
8 KV7-M1308-A0X COVER 8 ASSY 1
/
9 KV7-M1309-01X COVER,9 2 (2000/10/2) OK
/
10 KM0-M1322-00X PLATE PLUG 4
/
11 KM0-M1331-01X BRACKET ,GAS DAMPER 4
/
12 KM8-M1338-01X BRACKET MAIN SWITCH 1
/
13 KV7-M1336-00X BKT CORNER L,BACK 1
/
14 KV7-M1337-00X BKT CORNER L,FRONT 1
/
15 KV7-M1339-00X BKT CORNER R,BACK 1
/
16 KV7-M1340-01X BRACKET 1,COVER 9 2 (2000/10/2) OK
/
17 KV7-M1341-02X BRACKET 2,COVER 9 2 (2001/3/28) OK
/
18 KV7-M1342-00X BRACKET 3,COVER 9 2
/
19 KV7-M1343-01X BRACKET 4,COVER 9 1 (2000/10/20) OK
/
20 KV7-M1349-00X PLATE 2 NUT 4
/
21 K46-M1374-10X HINGE 2 4
/
22 KH2-M1324-00X GRIP 4
/
23 KL3-M1348-10X GAS SPRING 4 A
24 KH5-M13B1-10X BRACKET KEYBOARD 1
/
24-1 KGA-M13B1-00X BRACKET,KEYBOARD 1 (2002/6/11) NG
/
24-2 KGA-M13B1-10X STAY KEYBOARD 1 (2005/12/5) NG
/
25 KM0-M1346-00X SHOULDER,BOLT 8
/
25-1 90990-31J006 BOLT,SHOULDER 8 (2008/6/24) OK
/
26 KL0-M1318-00X COVER 18 1
/
27 KH1-M13A9-00X BUSH 1
/
28 K93-M1392-00X SPACER 4 TM-180-303
/
29 KV7-M1329-00X COVER 29 2
/
30 KM0-M1335-00X BKT 1 GATE COVER 4
/
31 KM0-M1332-00X BRACKET MAGNET 4
/
31-1 KM0-M1332-01X BRACKET MAGNET 4 (2001/9/18) SET
/
32 K93-M1388-00X MG.CATCH 4 TL-77S
/
32-1 KV5-M1130-00X CATCH MG. 4 (2001/9/18) SET
/
35 KV7-M1350-00X CAP,PATLIGHT 1
/
36 KL3-M1381-02X PLATE 1 KEY BOARD 1 (2001/3/28) OK
/
37 KL3-M1382-01X PLATE 2 KEY BOARD 1 (2001/3/28) OK
/
2
2
Base Cover
Cover
KV7-080304
8
8
8
8
9
8
13
8
8
8
14
16
14
9
14
8
8
15
14
11
14
13
10
11
5
6
6
18
7
3
12
11
9
2
9
11
14
9
18
8
16
10
8
10
11
9
11
1
17
6
6
7
6
7
4
1
OLD
OLD

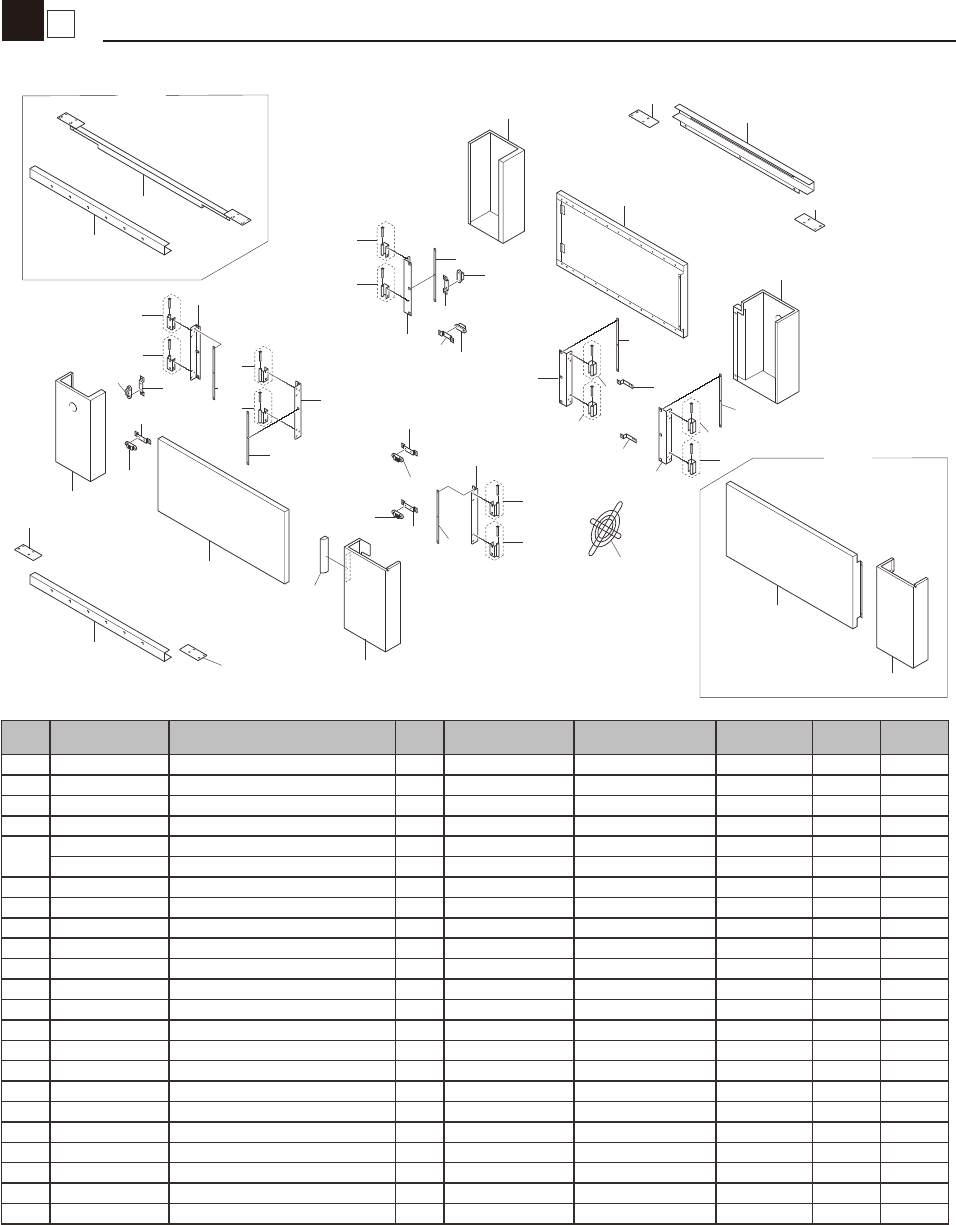

No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M1310-02X COVER 10 1 2000/2/12 NG /
1-2 KGA-M1310-00X COVER 10 1 (2005/6/2) OK /
2 KV7-M1311-00X COVER 11 1 /
3 KV7-M1313-00X COVER 13 1 /
3-1
KV7-M1313-00X COVER 13 1 S.T.D (2004/4/1) OK /
KV7-M1313-10X COVER 13 1 with Power Indicator (2004/4/1) /
4 KV7-M1314-00X COVER 14 2 /
5 KV7-M1315-00X COVER 15 1 /
6 KV7-M1317-00X COVER 17 2 /
6-1 KV7-M1317-01X COVER 17 4 1999/8/5 NG /
7 KV7-M1325-00X BRACKET 5 2 /
7-1 KV7-M1325-01X BRACKET 5 2 1999/8/5 NG /
8 KG2-M1370-00X HINGE ASSY 12 /
9 K44-M1354-00X MG.CATCH 6 TL-152-2 /
10 KV7-M1326-00X BRACKET 1-1 3 /
11 KV7-M1370-00X BRACKET MAGNET 6 /
12 KV7-M1327-00X BRACKET 1-2 1 /
13 KV7-M1328-00X BRACKET 2 2 /
14 KV7-M1347-00X PLATE BRACKET 6 /
15 KJ0-M4187-00X FAN GUARD 2 /
16 KGS-M1371-00X BRACKET,FIX 2 (2006/9/6) OK /
17 KV7-M1372-00X HANDLE 1 /
18 KV7-M1312-00X COVER,12 1 (1999/11/30) /
