2 3 Feeder Holder H (20) Feeder KV7-080410 Fig D Fig E Fig F 16mm 16mm 20mm Fig G Fig H 16mm 20mm 50 mm 38 mm 22 15 3 15 21 15 20 20 23 6 2 8 15 22 16 15 4 5 16 16 16 7 15 1 14 14 10 17 24 19 18 OLD 10 17 24 1 OLD No. Pa…
1
3

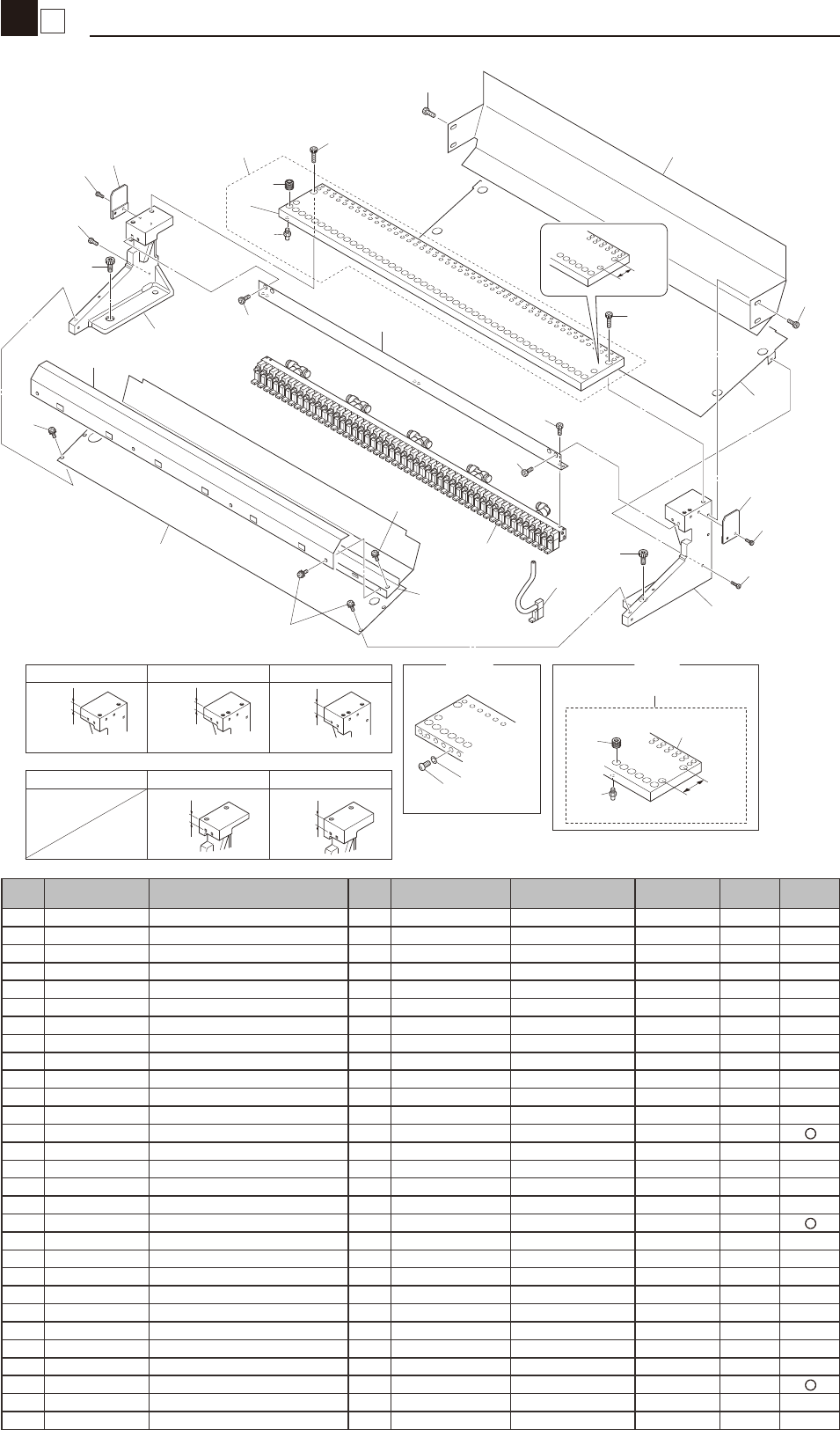

Feeder Holder E (50)
3 Feeder
KV7-080410
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
38mm
50mm
10
16
1
3
16
15
4
20
16
15
19
7
2
16
10
22
17
16
19
5
21
21
6
17
17
8
16
24
11
27
23
9
25
26
OLD
24
11
27
1
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati.
Rank Level
1 KM0-M3401-E2X PLATE E,FEEDER 1
/
1-2 KM0-M3401-E3X PLATE E,FEEDER 1 (2005/2/14) NG
/
2 KM0-M3402-F0X GUIDE F-1.TAPE 1
/
3 KM0-M3403-E0X GUIDE E-2.TAPE 1
/
4 KM0-M3405-01X STAND,1 1 Fig D
/
4-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) OK
/
4-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) NG
/
4-3 KM0-M3405-S0X STAND,1/2 SET 1 Set of the same Parts (2010/4/5)
/
5 KM0-M3406-01X STAND,2 1 Fig G
/
5-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) NG
/
6 KM0-M3408-E0X BRACKET E.VALVE 1
/
7 KM0-M3409-E0X COVER E.VALVE 1
/
8 KGA-M3410-10X VALVE ASSY.50-L 1 C
10 $BF4BU JOINT 16
/
14 91317-06020 BOLT HEX.SOCKET HEAD 11
/
15 91317-04010 BOLT HEX.SOCKET HEAD 14
/
16 90990-12J005 SCREW BINDING HEAD 10
/
17 KG2-M3407-A0X AIR JOINT 50
A
18 KM0-M3419-E0X GUIDE E-5.TAPE 1
/
19 KM0-M3416-00X GASKET 50
/
20 98907-03004 SCREW.BINDING HEAD 50
/
21 91317-08020 BOLT.HEX SOCKET HEAD 4
/
22 KM0-M3404-E1X GUIDE E-3.TAPE 1
/
23 90990-07J002 BOLT HEXAGON 2
/
24 91317-03006 BOLT.HEX SOCKET HEAD 6
/
25 KM0-M3417-00X GUIDE4 2
/
26 KGA-M37P0-00X VALVE KIT 1 SPARE PARTS (2003/2/5) OK
C
27 KM8-M34A0-00X FEEDER PLATE ASSY. 1
/
27-1 KM8-M34A0-01X FEEDER PLATE ASSY.50 1 (2004/4/20) NG
/
2
3
Feeder Holder H (20)
Feeder
KV7-080410
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
50mm
38mm
22
15
3
15
21
15
20
20
23
6
2
8
15
22
16
15
4
5
16
16
16
7
15
1
14
14
10
17
24
19
18
OLD
10
17
24
1
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KM9-M3401-H0X PLATE H,FEEDER 1 /
1-2 KM9-M3401-H1X PLATE H,FEEDER 1 (2005/2/14) NG /
2 KM9-M3402-H0X GUIDE H-1.TAPE 1 /
3 KM9-M3403-H0X GUIDE H-2.TAPE 1 /
4 KM0-M3405-01X STAND,1 1 Fig D /
4-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) OK /
4-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) NG /
4-3 KM0-M3405-S0X STAND,1/2 SET 1 Set of the same Parts (2010/4/5) /
5 KM0-M3406-01X STAND,2 1 Fig G /
5-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) NG /
6 KM9-M3408-H0X BRACKET H.VALVE 1 /
7 KM9-M3409-H0X COVER H.VALVE 1 /
8 KGA-M3410-20X VALVE ASSY.20-R 1 (2003/2/5) OK C
10 $BF4BU JOINT 20 /
14 91317-06020 BOLT HEX.SOCKET HEAD 4 /
15 91317-04010 BOLT HEX.SOCKET HEAD 12 /
16 90990-12J005 SCREW BINDING HEAD 10 /
17 KG2-M3407-A0X AIR JOINT 20 A
18 KM0-M3416-00X GASKET 20 /
19 98907-03004 SCREW.BINDING HEAD 20 /
20 91317-08020 BOLT.HEX SOCKET HEAD 4 /
21 91317-03006 BOLT.HEX SOCKET HEAD 6 /
22 KM0-M3417-00X GUIDE4 2 /
23 KGA-M37P0-00X VALVE KIT 1 SPARE PARTS (2003/2/5) OK C
24 KM9-M34A0-01X FEEDER PLATE ASSY.20 1 (2004/4/20) NG /
3
3
Feeder Holder B (16)
Feeder
KV7-080410
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
50mm
38mm
22
15
3
15
21
20
20
6
2
15
22
16
15
24
4
5
16
16
16
7
15
1
14
14
10
25
17
8
19
18
OLD
10
17
25
1
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KG2-M3401-B2X PLATE B,FEEDER 1 /
1-1 KG2-M3401-B3X PLATE B,FEEDER 1 (2005/2/14) NG /
2 KM0-M3402-B0X GUIDE B-1.TAPE 1 /
3 KG2-M3403-B1X GUIDE B-2,TAPE 1 /
4 KM0-M3405-01X STAND,1 1 Fig D /
4-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) OK /
4-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) NG /
4-3 KM0-M3405-S0X STAND,1/2 SET 1 Set of the same Parts (2010/4/5) /
5 KM0-M3406-01X STAND,2 1 Fig G /
5-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) NG /
6 KM0-M3408-B0X BRACKET B.VALVE 1 /
7 KL0-M3409-B1X COVER B VALVE 1 /
8 KGA-M3410-30X VALVE ASSY.16-R 1 (2003/2/5) OK C
10 $BF4BU JOINT 16 /
14 91317-06020 BOLT HEX.SOCKET HEAD 4 /
15 91317-04010 BOLT HEX.SOCKET HEAD 12 /
16 90990-12J005 SCREW BINDING HEAD 8 /
17 KG2-M3407-A0X AIR JOINT 16 A
18 KM0-M3416-00X GASKET 16 /
19 98907-03004 SCREW.BINDING HEAD 16 /
20 91317-08020 BOLT.HEX SOCKET HEAD 4 /
21 91317-03006 BOLT.HEX SOCKET HEAD 4 /
22 KM0-M3417-00X GUIDE4 2 /
24 KGA-M37P0-00X VALVE KIT 1 SPARE PARTS (2003/2/5) OK C
25 KM8-M34B0-00X FEEDER PLATE ASSY. 1 /
25-1 KM8-M34B0-01X FEEDER PLATE ASSY.16 1 (2004/4/20) NG /
