3 3 Feeder Holder B (16) Feeder KV7-080410 Fig D Fig E Fig F 16mm 16mm 20mm Fig G Fig H 16mm 20mm 50 mm 38 mm 22 15 3 15 21 20 20 6 2 15 22 16 15 24 4 5 16 16 16 7 15 1 14 14 10 25 17 8 19 18 OLD 10 17 25 1 OLD No. Part …
2
3

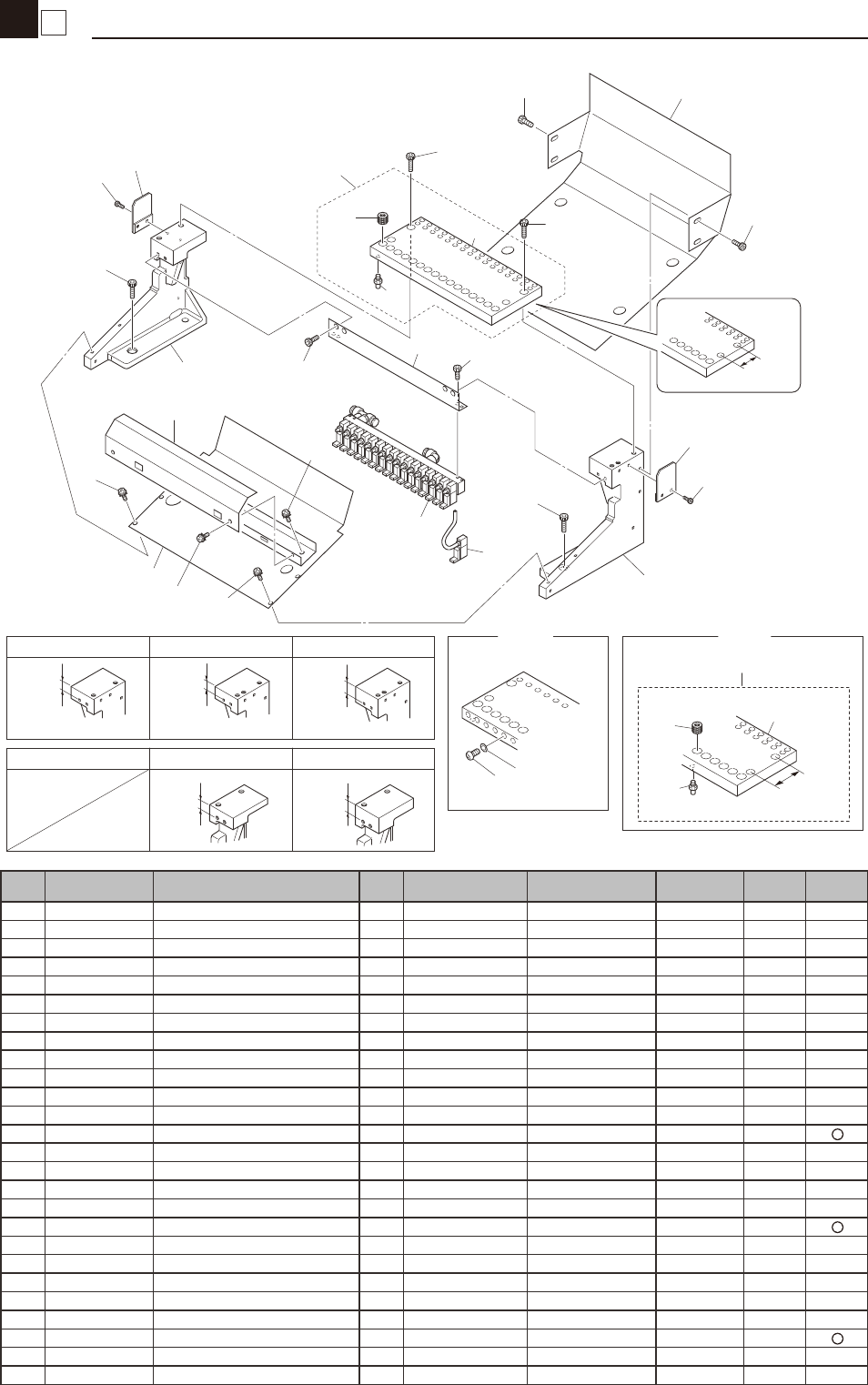

Feeder Holder H (20)
Feeder
KV7-080410
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
50mm
38mm
22
15
3
15
21
15
20
20
23
6
2
8
15
22
16
15
4
5
16
16
16
7
15
1
14
14
10
17
24
19
18
OLD
10
17
24
1
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KM9-M3401-H0X PLATE H,FEEDER 1 /
1-2 KM9-M3401-H1X PLATE H,FEEDER 1 (2005/2/14) NG /
2 KM9-M3402-H0X GUIDE H-1.TAPE 1 /
3 KM9-M3403-H0X GUIDE H-2.TAPE 1 /
4 KM0-M3405-01X STAND,1 1 Fig D /
4-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) OK /
4-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) NG /
4-3 KM0-M3405-S0X STAND,1/2 SET 1 Set of the same Parts (2010/4/5) /
5 KM0-M3406-01X STAND,2 1 Fig G /
5-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) NG /
6 KM9-M3408-H0X BRACKET H.VALVE 1 /
7 KM9-M3409-H0X COVER H.VALVE 1 /
8 KGA-M3410-20X VALVE ASSY.20-R 1 (2003/2/5) OK C
10 $BF4BU JOINT 20 /
14 91317-06020 BOLT HEX.SOCKET HEAD 4 /
15 91317-04010 BOLT HEX.SOCKET HEAD 12 /
16 90990-12J005 SCREW BINDING HEAD 10 /
17 KG2-M3407-A0X AIR JOINT 20 A
18 KM0-M3416-00X GASKET 20 /
19 98907-03004 SCREW.BINDING HEAD 20 /
20 91317-08020 BOLT.HEX SOCKET HEAD 4 /
21 91317-03006 BOLT.HEX SOCKET HEAD 6 /
22 KM0-M3417-00X GUIDE4 2 /
23 KGA-M37P0-00X VALVE KIT 1 SPARE PARTS (2003/2/5) OK C
24 KM9-M34A0-01X FEEDER PLATE ASSY.20 1 (2004/4/20) NG /
3
3

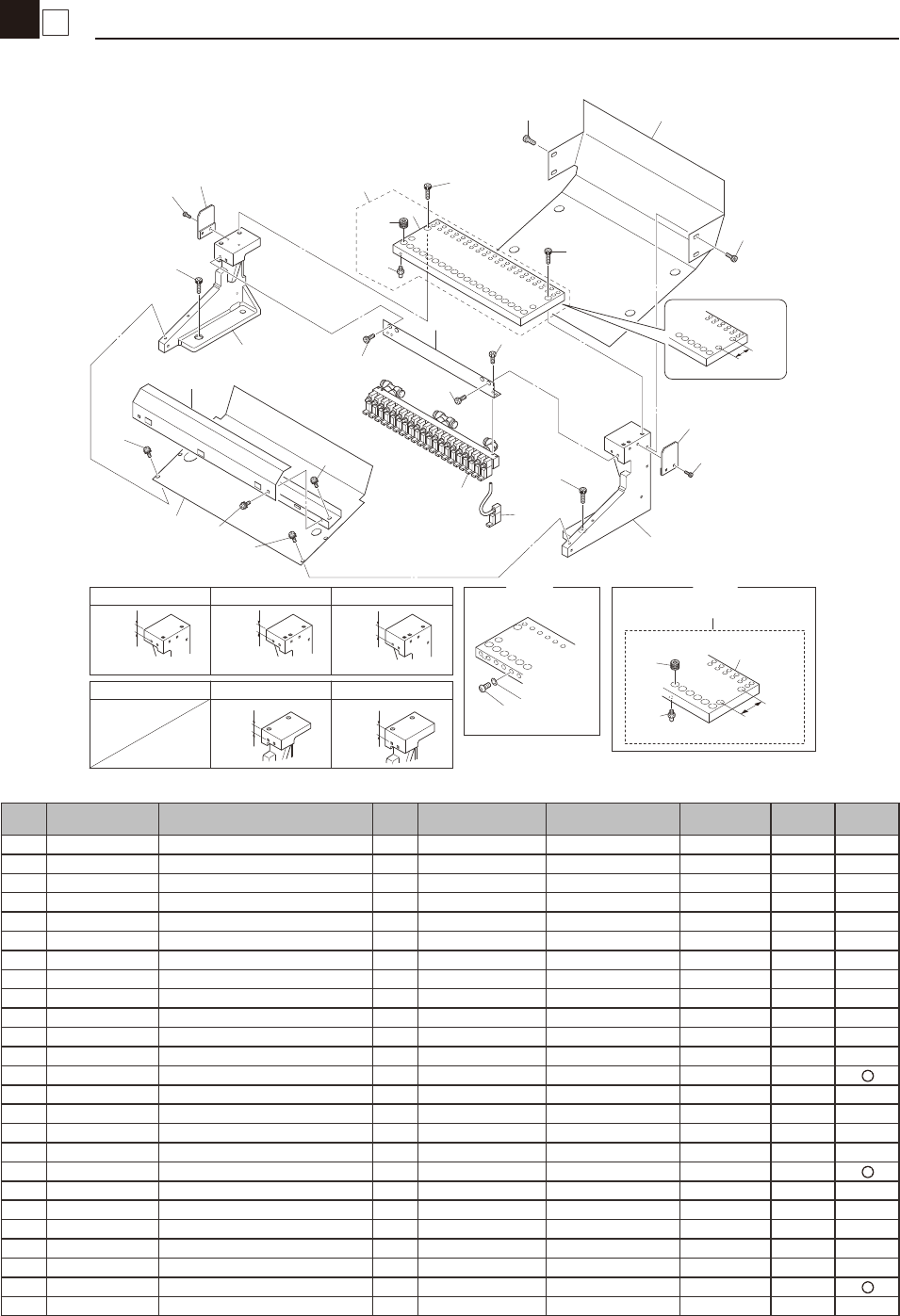

Feeder Holder B (16)
Feeder
KV7-080410
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
50mm
38mm
22
15
3
15
21
20
20
6
2
15
22
16
15
24
4
5
16
16
16
7
15
1
14
14
10
25
17
8
19
18
OLD
10
17
25
1
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KG2-M3401-B2X PLATE B,FEEDER 1 /
1-1 KG2-M3401-B3X PLATE B,FEEDER 1 (2005/2/14) NG /
2 KM0-M3402-B0X GUIDE B-1.TAPE 1 /
3 KG2-M3403-B1X GUIDE B-2,TAPE 1 /
4 KM0-M3405-01X STAND,1 1 Fig D /
4-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) OK /
4-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) NG /
4-3 KM0-M3405-S0X STAND,1/2 SET 1 Set of the same Parts (2010/4/5) /
5 KM0-M3406-01X STAND,2 1 Fig G /
5-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) NG /
6 KM0-M3408-B0X BRACKET B.VALVE 1 /
7 KL0-M3409-B1X COVER B VALVE 1 /
8 KGA-M3410-30X VALVE ASSY.16-R 1 (2003/2/5) OK C
10 $BF4BU JOINT 16 /
14 91317-06020 BOLT HEX.SOCKET HEAD 4 /
15 91317-04010 BOLT HEX.SOCKET HEAD 12 /
16 90990-12J005 SCREW BINDING HEAD 8 /
17 KG2-M3407-A0X AIR JOINT 16 A
18 KM0-M3416-00X GASKET 16 /
19 98907-03004 SCREW.BINDING HEAD 16 /
20 91317-08020 BOLT.HEX SOCKET HEAD 4 /
21 91317-03006 BOLT.HEX SOCKET HEAD 4 /
22 KM0-M3417-00X GUIDE4 2 /
24 KGA-M37P0-00X VALVE KIT 1 SPARE PARTS (2003/2/5) OK C
25 KM8-M34B0-00X FEEDER PLATE ASSY. 1 /
25-1 KM8-M34B0-01X FEEDER PLATE ASSY.16 1 (2004/4/20) NG /
4
3

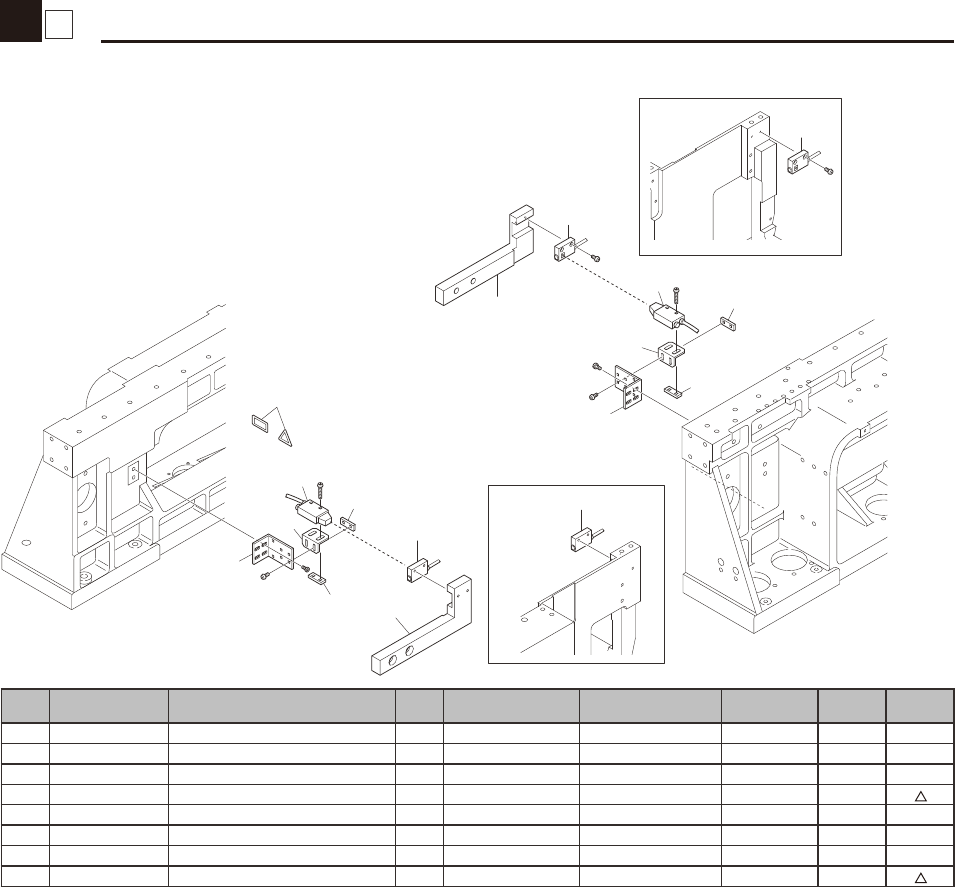

Feeder Floating Detection 20
Feeder
KV7-1107
8
5
3
4
1
2
2
3
6
7
8
8
4
1
2
2
8
FES Left
FES Right
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M3901-00X BRACKET SENSOR2 2 /
2 KG7-M3906-00X BRACKET 6 4 /
3 KV7-M3910-01X BRACKET SENSOR,1 2 /
4 KG9-M3455-30X SENSOR S 2 B
5 KG2-M3903-00X SEAL, CAUTION 1 /
6 KM5-M3941-00X BRACKET 4-1, SENSOR R 1 /
7 KM9-M3941-00X BRACKET 4-2, SENSOR R 1 /
8 KM5-M3456-30X SENSOR R(L=800) 2 B
