Loaders & Unloaders

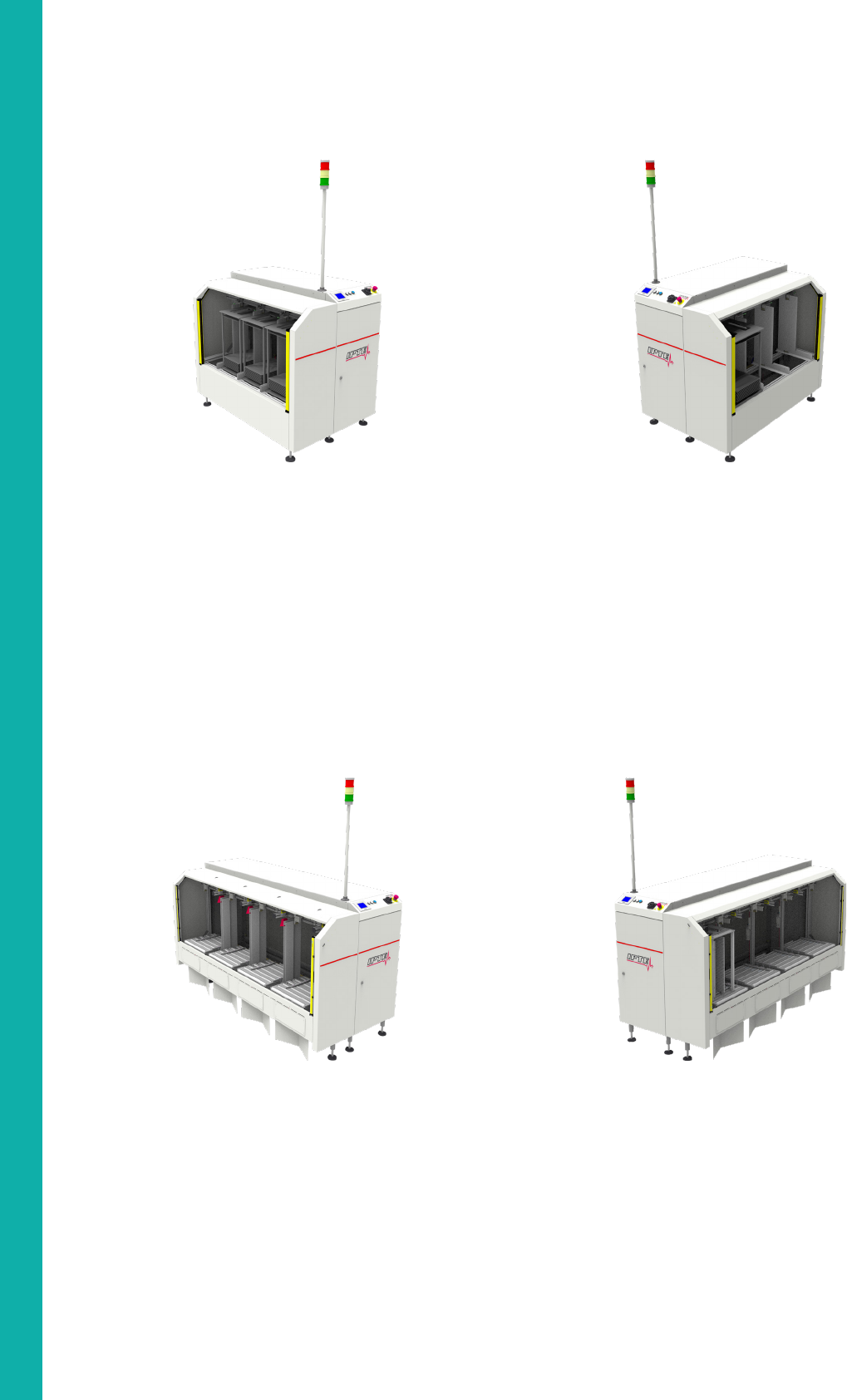

MLL xP - Multi magazine line
loader
MLU xP AIV 0 Multi magazne
line unloader (AIV prepared)
MLU xP - Multi magazine line
loader
MLL xP AIV 0 Multi magazne
line loader (AIV prepared)
- Compact reliable PCB line Loader
- Loading upto 10 magazines
- Silent operation
- Lean design - optimized footprint
- Compact reliable PCB line unloader
- Suitable as Pass/Fail Sorter
- Unloading upto 10 magazines
- Silent operation
- Lean design - optimized footprint
- Compact reliable PCB line Loader
- Loading upto 10 magazines
- Silent operation
- Lean design - optimized footprint
- AGV/AIV Prepared
- Compact reliable PCB line unloader
- Suitable as Pass/Fail Sorter
- Unloading upto 10 magazines
- Silent operation
- Lean design - optimized footprint
- AGV/AIV Prepared
Buffers
MBU I - Single magazine buffer
FBU - FIFO buffer unit
MBU VI - Multi magazine buffer
SBU - LIFO buffer unit
- In-line LIFO or FIFO PCB buffer with magazine
- Suitable as FAIL PCB stacker unit
- 10 mm Programmable pitch
- 12 sec PCB exchange time
- Optional Pass-Through on belt conveyor
- In-line LIFO PCB buffer with magazine changer
- Suitable as FAIL PCB stacker unit
- 10 mm Programmable pitch
- 12 sec PCB exchange time
- 30 sec Magazine exchange time
- Optional Pass-Through on belt conveyor
- In-line buffer with stock capacity of max 40 PCBs
- Suitable as LIFO or FAIL PCB stacker unit
- Configurable pitch of 20 mm
- 10 sec Cycle time
- 800 mm Stack height
- In-line buffer with stock capacity of max 25 PCBs
- Suitable as FIFO or FAIL PCB stacker unit
- Configurable pitch >= 20 mm (steps of 10 mm)
- 500 mm Stack height
- Optional cool down fans
Traffic controllers
TRV - Traverser unit
LFU - Lift unit
TUU - Turn unit
FLU - Flip unit
- Electrically operated PCB transfer unit
- Programmable stroke for import and export
positions
- Cycle time depends on stroke
- Multiple entries and/or exits
- ± 90° or 180° Configurable
- Smooth PCB turning
- 8 sec Cycle time
- Smooth PCB flipping
- Flip-on program
- Pneumatical stopper
- 8 sec Cycle time
- Electrically operated PCB lift unit
- Programmable lift positions
- Cycle time depends on stroke
- Lift up or lift down
