KGC-YV100XTg_PL - 第5页
9 9 9 9 10 9 14 9 9 9 16 18 16 10 9 9 17 16 12 16 14 1 1 12 15 6 5 8 7 7 4 13 12 10 2 10 12 16 10 3 9 18 1 1 9 1 1 12 10 12 1 19 7 8 16 7 2 2 Base Cover Cover KGC-081009 No. Part No. Part Name Q'ty Remarks Date of c…
1
2

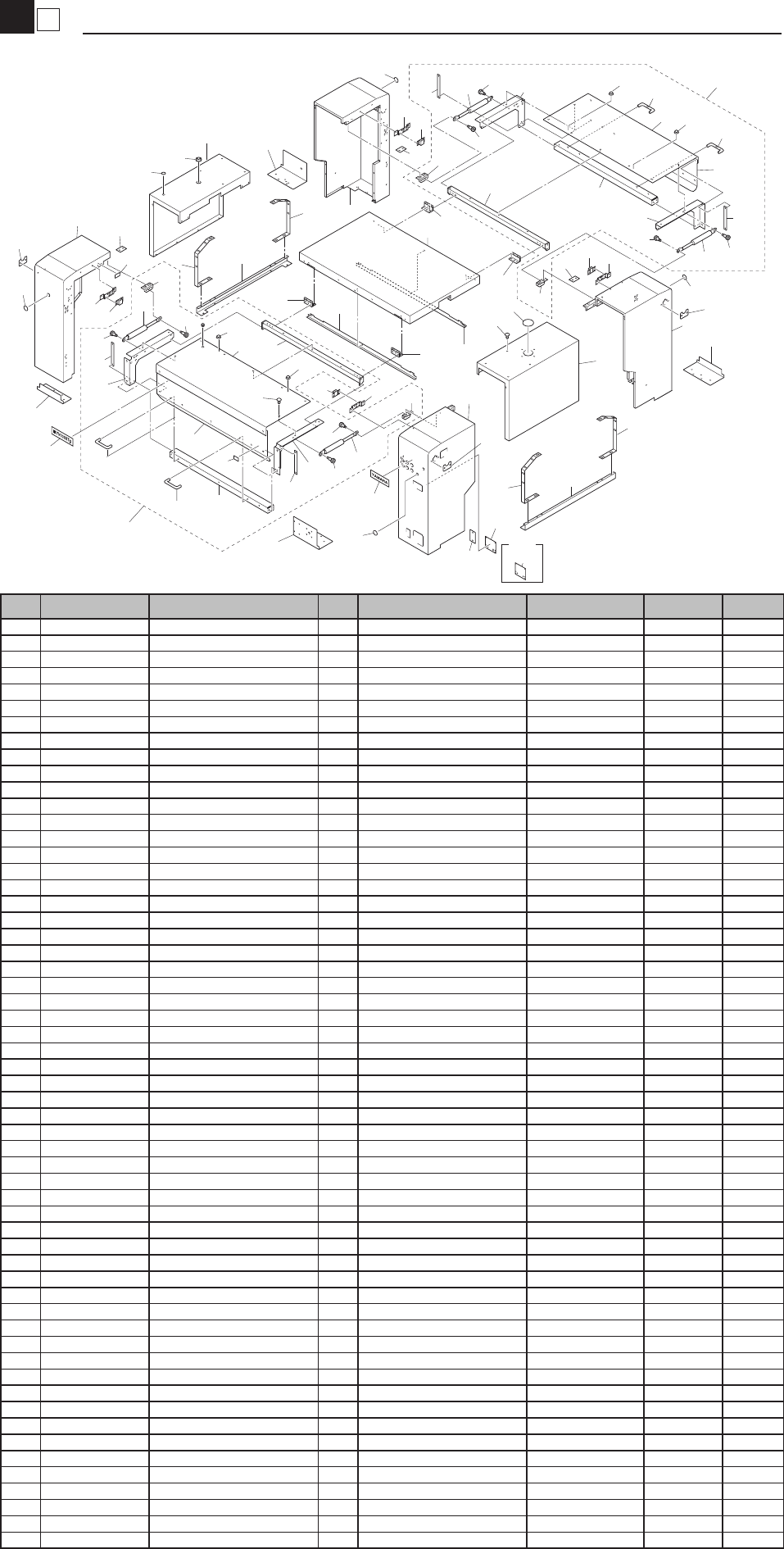

Top Cover
Cover
KGC-081009
20
27
27
26
6
5
5
26
8
12
27
20
27
35
32
30
24
1
39
10
28
25
15
19
23
31
22
11
37
29
23
36
25
44
21
18
9
21
41
17
23
19
16
43
10
13
28
29
2
34
23
22
42
36
9
25
21
25
21
43
44
19
3
10
22
23
10
40
37
28
29
20
28
29
22
7
14
23
16
18
15
23
4
20
19
17
23
40
40
34
33
24
24
39
OLD
38
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M1301-A0X COVER 1 ASSY 1
2 KGA-M1302-A0X COVER 2 ASSY 1
2-1 KGA-M1302-A1X COVER 2 ASSY 1 (2006/7/11) MC60146 OK
3 KGA-M1303-A0X COVER 3 ASSY 1
3-1 KGA-M1303-A1X COVER 3 ASSY 1 (2006/7/11) MC60146 OK
4 KGA-M1304-A0X COVER 4 ASSY 1
5 KV1-M1305-00X COVER 5 2
6 KGA-M1306-A0X COVER 6 ASSY 1
7 KGA-M1307-A0X COVER 7 ASSY 1
8 KGA-M1308-A0X COVER 8 ASSY 1
9 KGA-M1309-A0X COVER 9 ASSY 2
10 KM0-M1331-01X BRACKET GAS DAMPER 2
11 KM8-M1338-01X BRACKET MAIN SWITCH 1
12 KV7-M1336-00X BKT CORNER L BACK 1
13
KV7-M1337-00X BKT CORNER L FRONT 1
14 KV7-M1339-00X BKT CORNER R BACK 1
15 KV7-M1340-01X BRACKET 1 COVER 9 2
16 KV7-M1341-02X BRACKET 2 COVER 9 2
17 KV7-M1342-00X BRACKET 3 COVER 9 2
18 KV7-M1343-01X BRACKET 4 COVER 9 2
19 KV7-M1349-00X PLATE 2 NUT 4
20 K46-M1374-10X HINGE 2 4
20-1 K46-M1374-11X HINGE 2 4 (2009/7/13) MF70096 OK
20-2 K46-M1374-12X HINGE 2 4 (2013/2/13) MK20039 OK
21 KH2-M1324-00X GRIP 4
22 KL3-M1348-10X GAS SPRING 2
23 KM0-M1346-00X SHOULDER,BOLT 4
23-1 90990-31J006 BOLT,SHOULDER 4 (2008/6/24) ME10118 OK
24 KGA-M1318-00X COVER 18 1
24-1 KGA-M1318-00X COVER 18 3 (2006/7/11) MC60146 OK
25 K93-M1392-00X SPACER 4 TM-180-303
26 KV7-M1329-00X COVER 29 2
27 KM0-M1335-00X BRACKET 1 GATE COVER 4
28 KM0-M1332-01X BRACKET MAGNET 4
29 KV5-M1130-00X CATCH MG. 4
30 KGC-M13D6-00X SEAL 1(YV100XTG) 1
30-1 KGC-M13D6-01X SEAL 1(YV100XTG) 1 (2003/10/24) M300086 OK
30-2 KGC-M13D6-02X SEAL 1(YV100XTG) 1 (2004/6/30) MA60120 OK
31 KW7-M13D7-00X SEAL 2(YAMAHA) 1
31-1 KW7-M13D7-01X SEAL 2(YAMAHA) 1 (2004/6/30) MA60120 OK
32 KV7-M1350-00X CAP PATLIGHT 1
33 KGA-M1356-00X PLATE 1, JOINT 2
34 KGA-M1357-00X PLATE 2, JOINT 2
35 KGA-M1391-00X PLUG (50) 1
36 KGA-M1392-00X PLUG (30) 2
37 KGA-M1394-00X PLUG (5) 12
38 KL3-M1381-02X PLATE 1 KEY BOARD 1
39 KL3-M1382-01X PLATE 2 KEY BOARD 1
39-1 KGT-M1382-00X PLATE 2,KEYBOARD 1 (2003/10/2) M300005 NG
40 KV7-M1391-10X PLUG 4
41 90K41-000190 WARNING SEAL(1) 2
41-1 90K41-000360 LABEL,ALERT 2 (2004/7/16) MA70069 OK
42
90K41-000220 WARNING SEAL(2) 2
42-1
90K41-000230 WARNING SEAL(2) 2 (2001/5/8) M150004 OK
42-2 90K41-000350 LABEL,ALERT 2 (2004/7/16) MA70069 OK
43
KGA-M1309-00X COVER 9-1 1 STD
44 KGA-M130A-00X COVER 9-2 1 STD
9
9
9
9
10
9
14
9
9
9
16
18
16
10
9
9
17
16
12
16
14
11
12
15
6
5
8
7
7
4
13
12
10
2
10
12
16
10
3
9
18
11
9
11
12
10
12
1
19
7
8
16
7
2
2

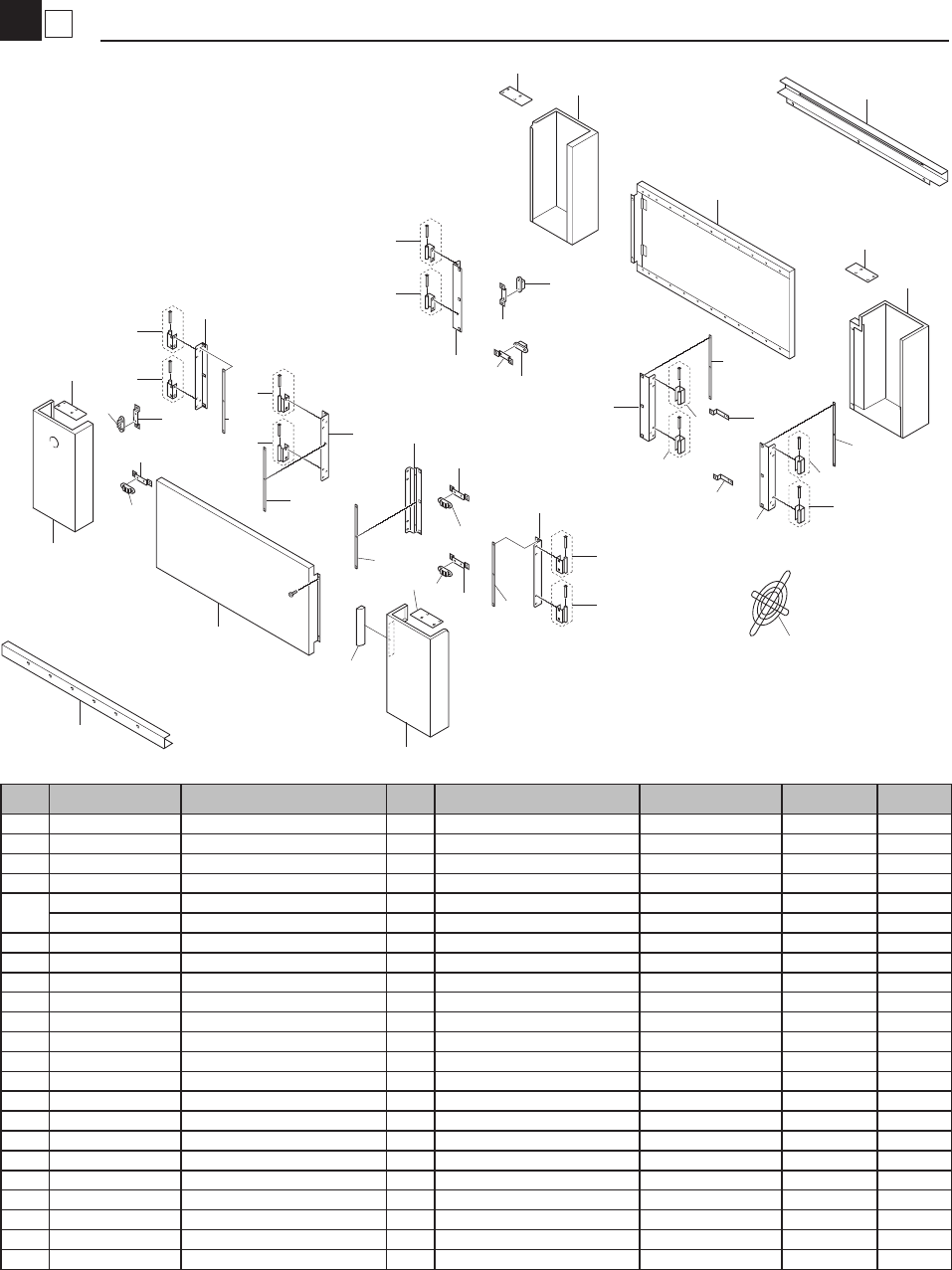

Base Cover
Cover
KGC-081009
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M1310-00X COVER 10 1
2 KV7-M1311-00X COVER 11 1
3 KV7-M1312-00X COVER,12 1
4 KV7-M1313-00X COVER 13 1
4-1
KV7-M1313-00X COVER 13 1 S.T.D (2004/4/1) M440001 OK
KV7-M1313-10X COVER 13 1 with Power Indicator (2004/4/1) M440001
4-2 KV7-M1313-00X COVER 13 1 (2007/6/4) MD20072
5 KV7-M1314-00X COVER 14 1
6 KGA-M1315-00X COVER 15 1
7 KV7-M1317-01X COVER 17 4
8 KV7-M1325-01X BRACKET 5 2
9 KG2-M1370-00X HINGE ASSY 12
10 KV5-M1130-00X CATCH MG. 6
11 KV7-M1326-00X BRACKET 1-1 3
12 KM0-M1332-01X BRACKET MAGNET 6
13 KV7-M1327-00X BRACKET 1-2 1
14 KV7-M1328-00X BRACKET 2 2
15 KGA-M1328-00X BRACKET 2 1
16 KV7-M1347-00X PLATE BRACKET 6
17 KGA-M4187-00X FAN GUARD 119MM 4
18 KV7-M1371-00X BRACKET,FIX 2
18-1 KGS-M1371-00X BRACKET,FIX 2 (2006/2/20) MC20122 OK
19 KV7-M1372-00X HANDLE 1 1
1
3
Feeder Holder E (50)
Feeder
KGC-081009
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM0-M3401-E2X PLATE E,FEEDER 1
1-1 KM0-M3401-E3X PLATE E,FEEDER 1 (2005/2/14) MB20042 NG
2 KM0-M3402-F0X GUIDE F-1,TAPE 1
3 KM0-M3403-E0X GUIDE E-2,TAPE 1
4 KM0-M3404-E1X GUIDE E-3,TAPE 1
5 KM0-M3405-01X STAND,1 1 Fig D
5-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) M440062 OK
5-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) MA00129 NG
6 KM0-M3406-01X STAND,2 1 Fig G
6-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) MA00129 NG
7 KM0-M3408-E0X BRACKET E, VALVE 1
8 KM0-M3409-E0X COVER E, VALVE 1
9 KM8-M3410-E1X VALVE ASSY.L 1
9-1 KGA-M3410-10X VALVE ASSY.50-L 1 (2003/2/5) M320011 OK
10 KM0-M3417-00X GUIDE, 4 2
11 KG2-M3407-A0X AIR JOINT 50
15 91317-06020 BOLT HEX.SOCKET HEAD 11
16 91317-04008 BOLT HEX.SOCKET HEAD 4
17 90990-12J005 SCREW BINDING HEAD 10
19 90990-07J002 BOLT HEXAGON 2
20 91317-03006 BOLT, HEX. SOCKET HEAD 6
21 91317-08020 BOLT, HEX. SOCKET HEAD 4
22 KM0-M3419-E0X GUIDE E-5, TAPE 1
23 KGA-M37P0-00X VALVE KIT 1 SPARE PARTS (2003/2/5) M320011 OK
24 $BF4BU JOINT 50
25 98907-03004 SCREW BINDING HEAD 50
25-1 Delete (2005/2/14) MB20042
26 KM0-M3416-00X GASKET 50
26-1 Delete (2005/2/14) MB20042
27 KM8-M34A0-00X FEEDER PLATE ASSY. 1
27-1 KM8-M34A0-01X FEEDER PLATE ASSY.50 1 (2004/4/20) M440062 NG
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
38mm
50mm
10
16
1
3
16
15
4
20
16
15
19
7
2
16
10
22
17
16
19
5
21
21
6
17
17
8
16
24
11
27
23
9
25
26
OLD
24
11
27
1
OLD
