S A MS U N G T E C H W I N RELAY#1 CN1 CN9 CN5 RELAY#2 CN13 CN14 CN9 CN13 CN14 CN5 RELAY#3 CN9 SM310-PS-0C-02 SM310-PS-0C-02 SM310-PS-0C-02 I/O#2 BOARD DCPWR BOARD MPS CN14 CN13 CN23 SM310-MIB-0K-04 CN12 CN15 P8 …
NO. PARTNO. PARTNAME Q'TY TYPE REMARK
1 J9080888B KVMSPOWERCABLE CP63-KVMS-01
2 J9080892A KVMSDATACABLE CP63-KVMS-05
3 J9080894B T/BCABLEASS'Y CP63-KVMS-07
4 J9080895A MOUSE/KEYBOARDCABLEASS'Y CP63-KVMS-08
5 J9083016D OPPANELSWEXTCABLE#1 SM310-KVMS-11
6 J90830017G OPPANELSWEXTCABLE#2 SM310-KVMS-12
7 J90830018G OPPANELSWEXTCABLE#3 SM310-KVMS-13
8 J9083031B OPPANELSWEXTCABLE#4 SM310-KVMS-14
9 J9083032D OPPANELSWEXTCABLE#5 SM310-KVMS-15
10 J9083033B OPPANELSWEXTCABLE#6 SM310-KVMS-16
11 J9083034B OPPANELSWEXTCABLE#7 SM310-KVMS-17
12 J9083035B OPPANELSWEXTCABLE#8 SM310-KVMS-18
13 J9083015F OPPANELASS'Y SM310-KVMS-10
14
15
16
17
18
19
20
21
22
23
24
25
26
27

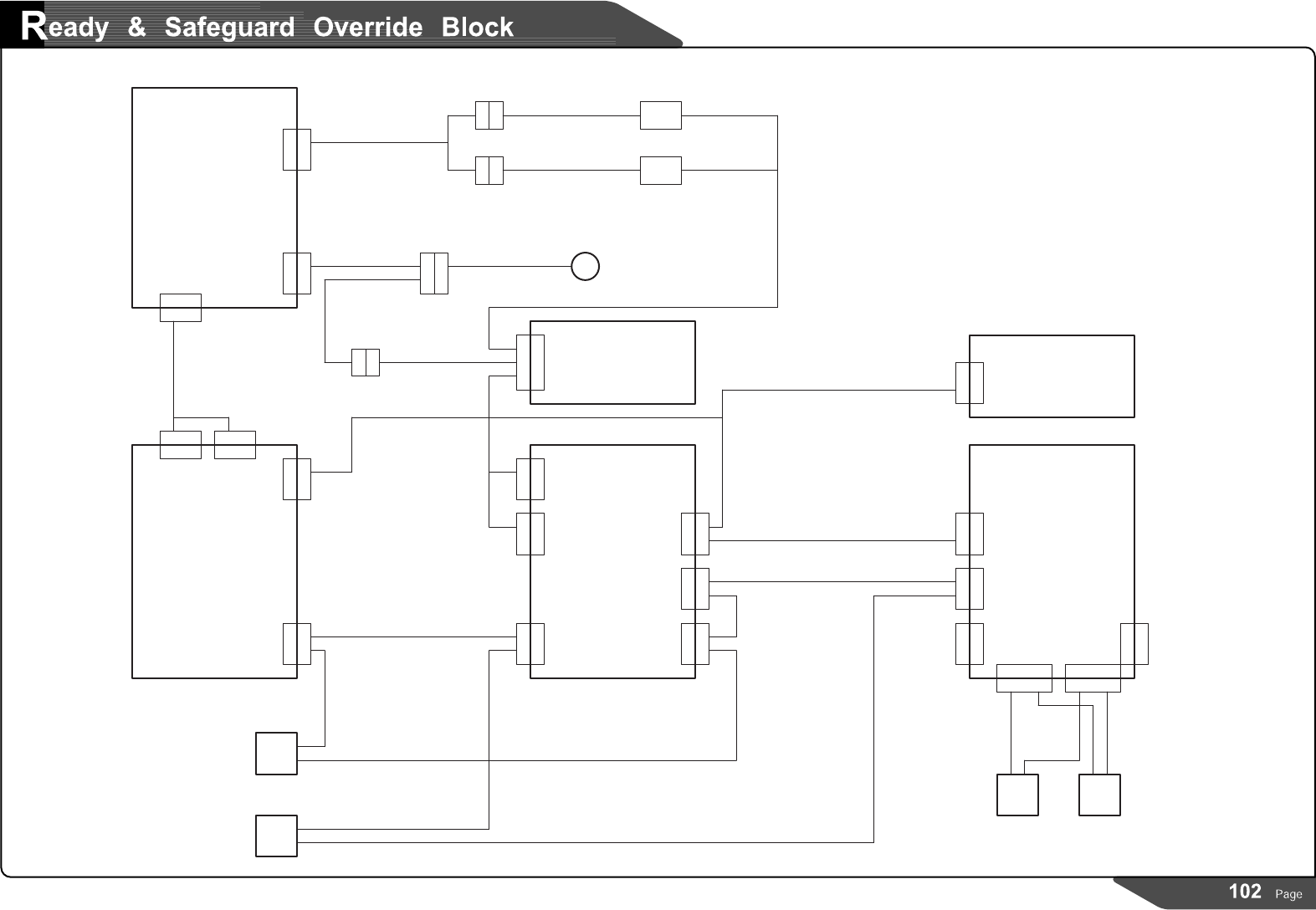

S AMS UNG TE CHWIN
RELAY#1
CN1 CN9
CN5
RELAY#2
CN13 CN14 CN9
CN13CN14CN5
RELAY#3
CN9
SM310-PS-0C-02
SM310-PS-0C-02
SM310-PS-0C-02
I/O#2
BOARD
DCPWR
BOARD
MPS
CN14CN13
CN23
SM310-MIB-0K-04
CN12
CN15
P8
CN8
SM310-MIB-0K-05
SM310-PS-0C-03
Safeguard
OverrideKey
CN16
SM310-MIB-0K-03
SM310-MIB-0K-01
SM310-MIB-0K-02
FRONTDOOR
REARDOOR
SM310-PS-01-31
CN10
SM310-PS-0C-01
SM310-PS-0C-02
FSWEX#1
RSWEX#1
SM310-KVMS-12
SM310-KVMS-13
FSWEX RSWEX
CN5 CN9
SM310-KVMS-12 SM310-KVMS-13
REF)'*'isforOption
*
*
NO. PARTNO. PARTNAME Q'TY TYPE REMARK
1 J90830017G OPPANELSWEXTCABLE#2 SM310-KVMS-12
2 J90830018G OPPANELSWEXTCABLE#3 SM310-KVMS-13
3 J90830073C DOORSWCABLE#31 SM310-PS-01-31
4 J90830076D FRONTDOORSIGNALEXTCABLE SM310-MIB-0K-01
5 J90830077E REARDOORSIGNALEXTCABLE SM310-MIB-0K-02
6 J90830078C DOORSIGNALEXTCABLE#2 SM310-MIB-0K-03
7 J90830079B 24VRELAYPOWERCABLE SM310-PS-0C-01
8 J90830080B READYOFFSIGNALCABLE SM310-MIB-0K-04
9 J90830081C RELAYCABLE SM310-PS-0C-02
10 J9083082B SAFEGUARDOVERRIDEEXTCABLE SM310-MIB-0K-05
11 J9083083A SAFEGUARDOVERRIDEKEYSWCABLEASS'Y SM310-PS-0C-03
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
OPTION
OPTION
